Features:
- Intelligent Shunt
- Built-in Battery Monitor
- Connects to Colour Control GX for Information Readout
- Accurately Monitors Battery State of Charge
Brand: Victron |
Features:

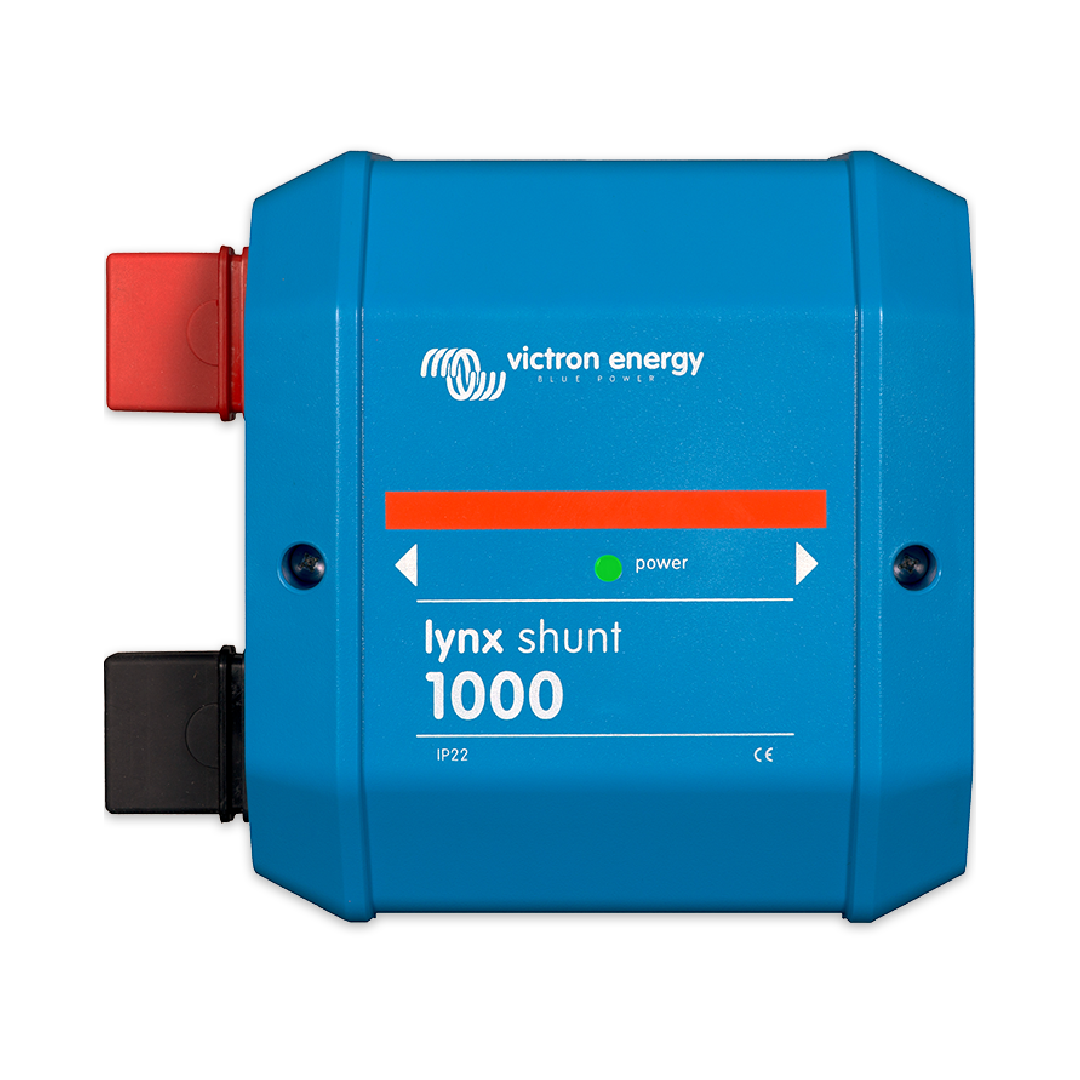

The Lynx Shunt VE.Net is an intelligent 1000A shunt with a location for a fuse (not included). The built-in battery monitor accurately monitors the state of charge on your battery. Use the Blue Power Panel or VE.Net panel to read out the information. The Victron Lynx Shunt VE.Can is a part of the modular Lynx distribution system.
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Brand | Victron |
Supply voltage range |
9 - 70 Vdc
|
Supported system voltages
|
12, 24 or 48V
|
Reverse polarity protection
|
No
|
Current rating
|
1000Adc continuous
|
Power consumption
|
60mA @ 12V, 33mA @ 24V, 20mA @ 48V |
Potential free alarm contact
|
3A, 30Vdc, 250Vac
|
Busbar
|
M8
|
Fuse
|
M8
|
VE.Can
|
RJ45 and RJ45 terminator
|
Power supply connection to Lynx
Distributor
|
RJ10 (a RJ10 cable ships with each Lynx Distributor)
|
Temperature sensor
|
Screw terminal
|
Relay
|
Screw terminal
|
Enclosure material
|
ABS
|
Enclosure dimensions
|
190 x 180 x 80 mm
|
Unit weight
|
1.4 kg
|
Busbar material |
Tinned copper
|
Busbar dimensions
|
8 x 30 mm
|
Operating temperature range
|
-40°C to +60°
|
Storage temperature range
|
-40°C to +60°
|
Humidity
|
Max. 95% (non-condensing)
|
Protection class
| IP22 |
