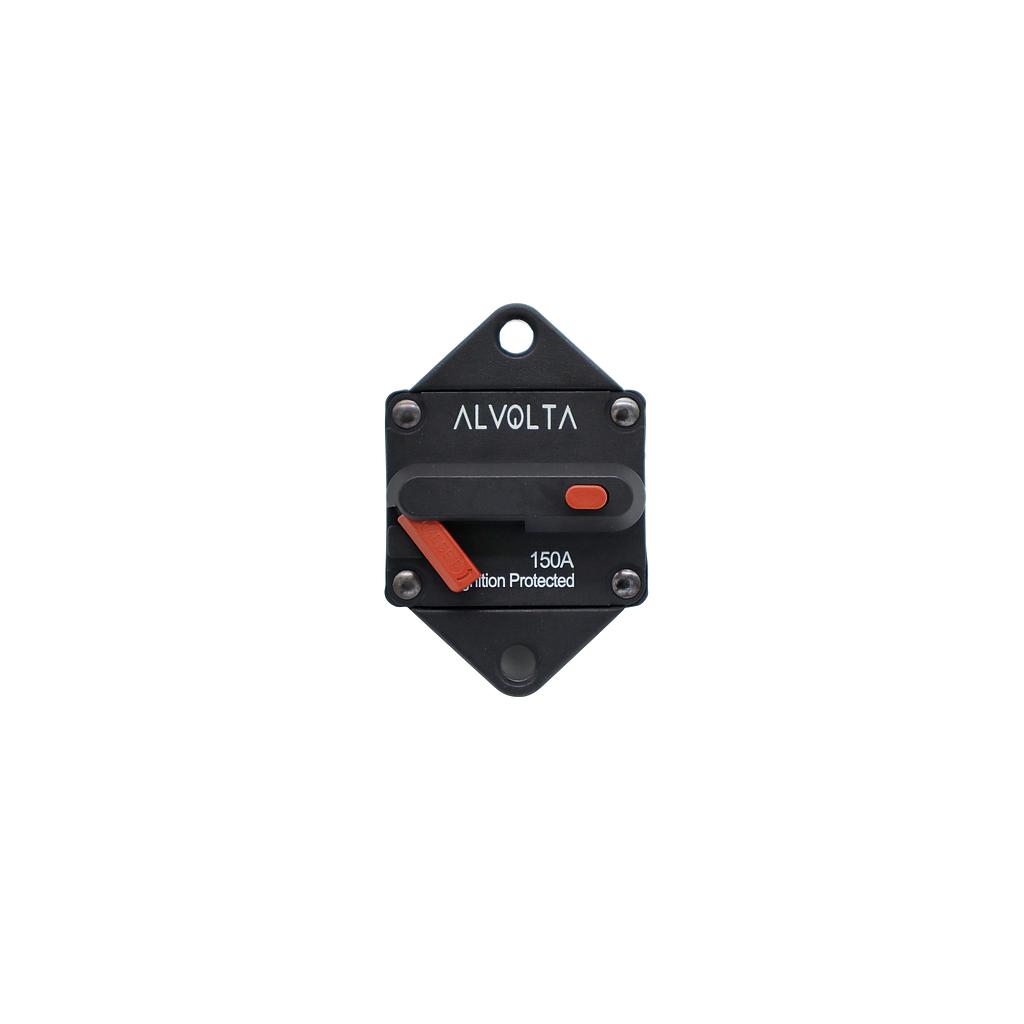

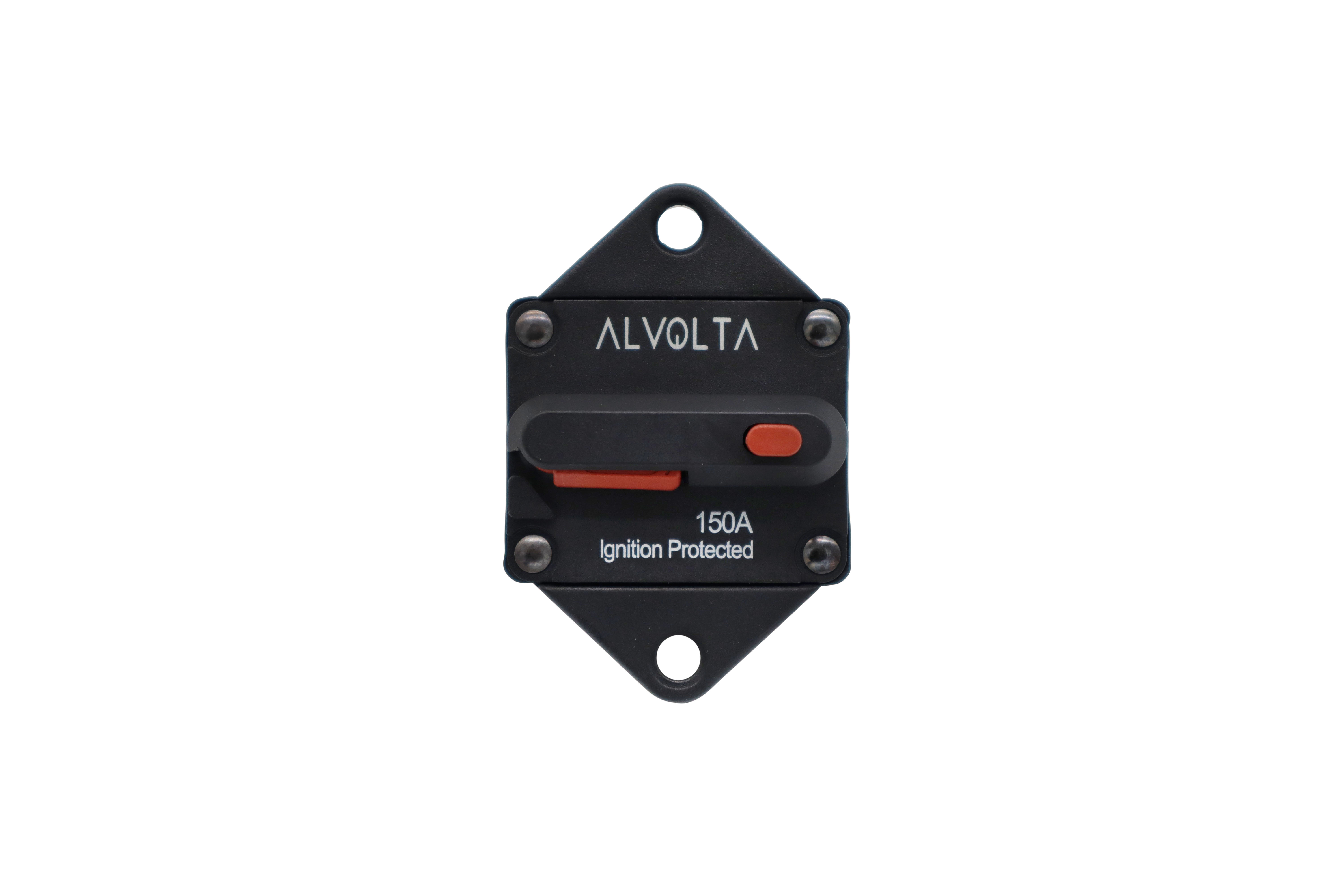

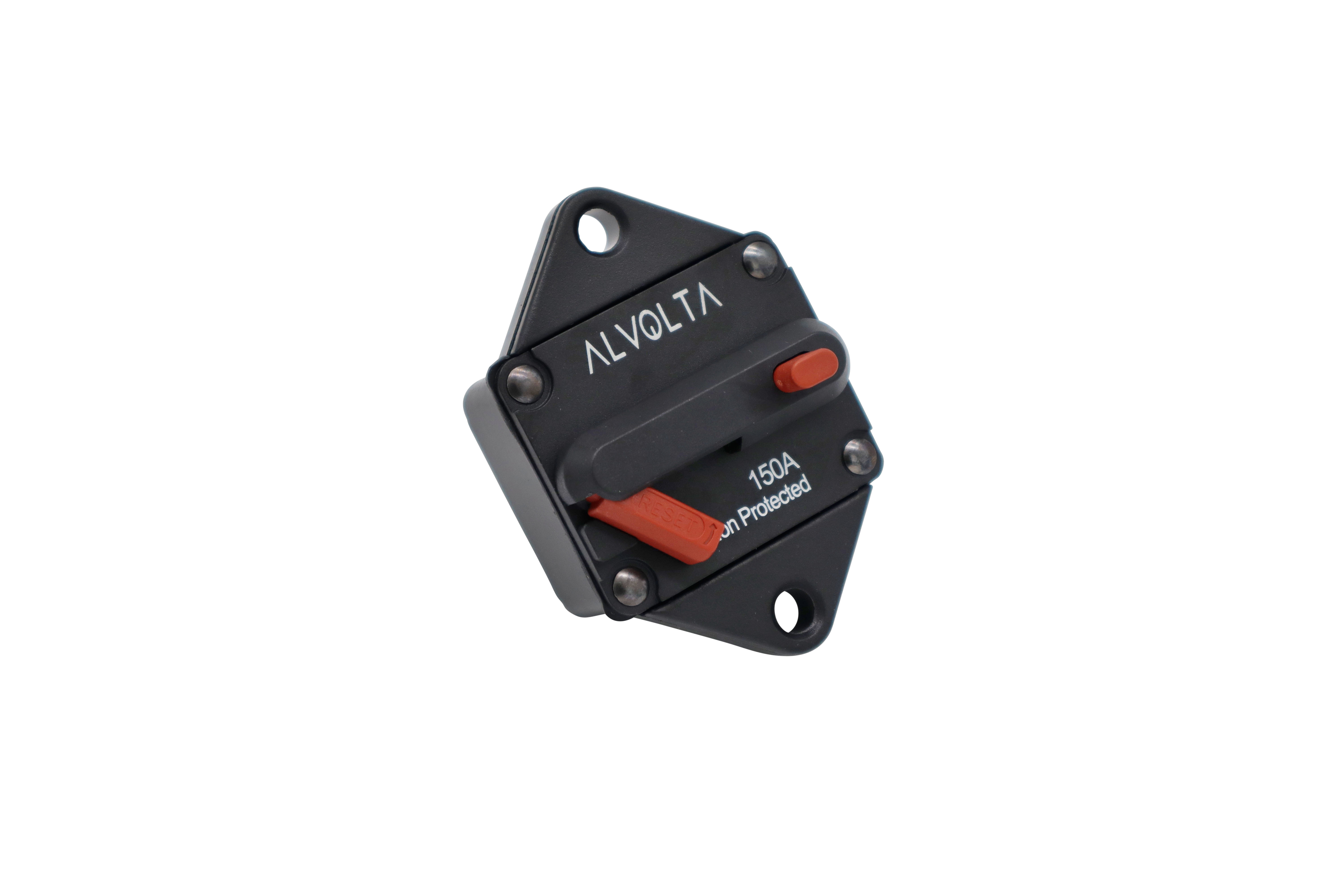

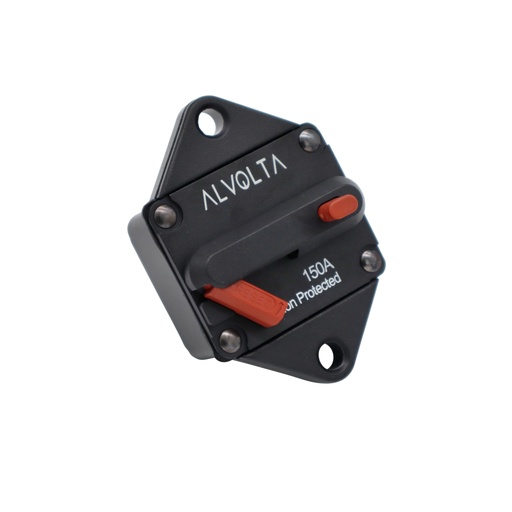

Alvolta 150A Manual Reset Panel Mount Circuit Breaker
Breaker features
- 150A thermal trip with manual ON/OFF
- Suits 12, 24, 32 and 48V systems
- Interrupting capacity 3,000A at 30V DC
- Trip status indicator and manual trip button, so it can be used as an isolation switch
Build
- Panel mount

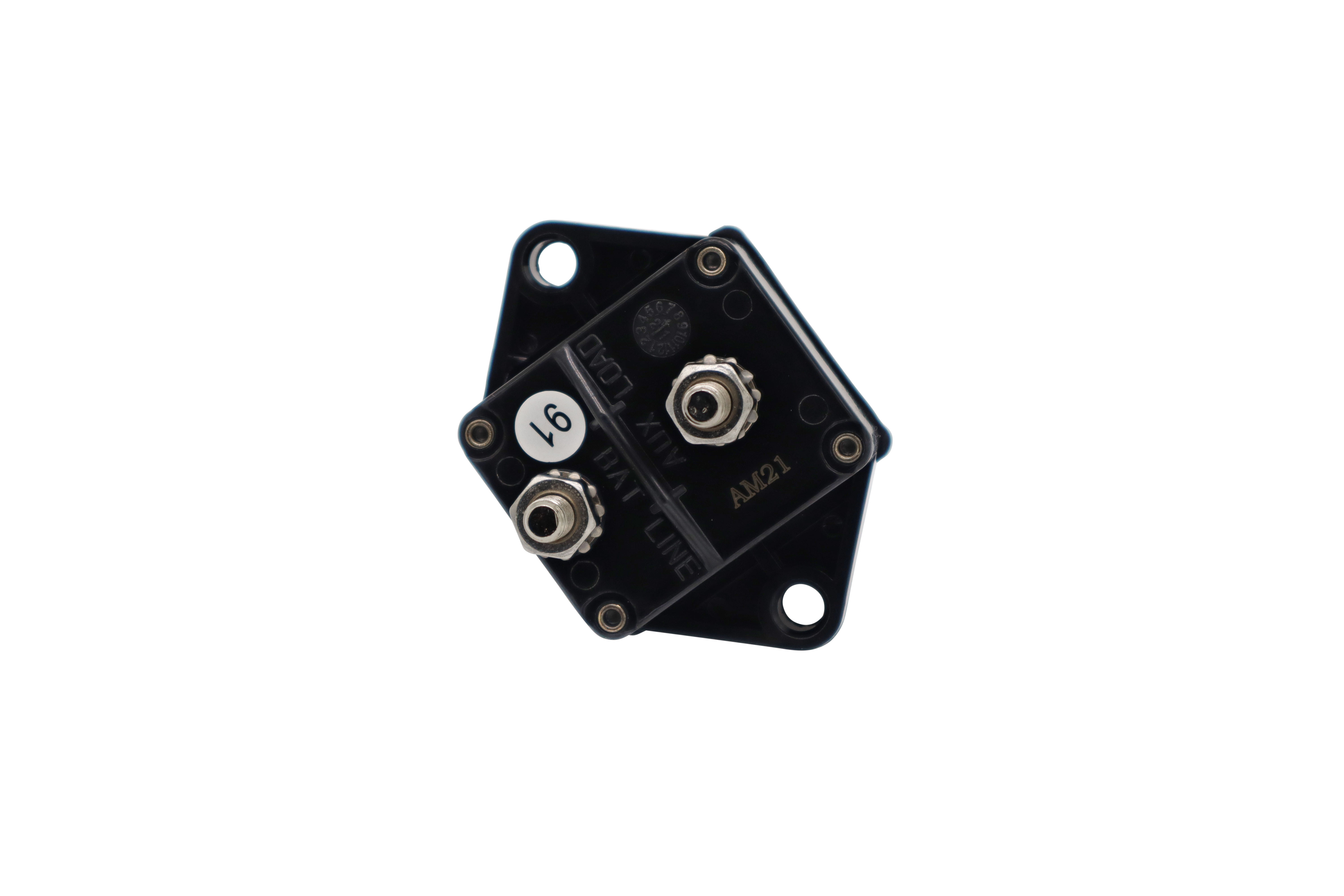

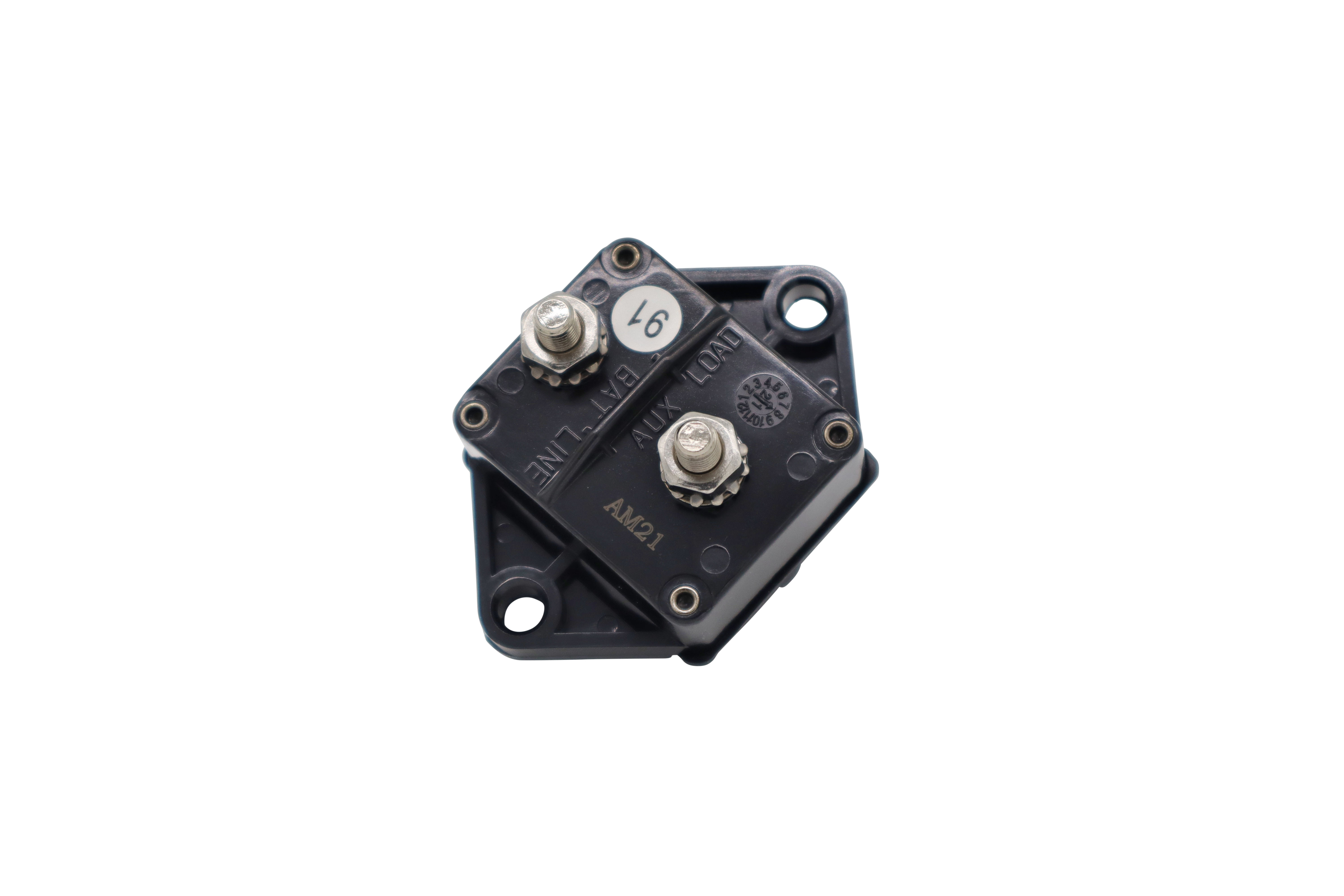

- 1/4"-28 terminal studs
- IP67 rated, sealed against moisture, dust and dirt, ignition protected
- Black
Where to use it
The Alvolta 150A Manual Reset Panel Mount Circuit Breaker protects DC cables in dual battery systems and other 12-48V circuits in 4WDs, motorhomes, caravans, boats and off-grid setups. Being IP67 sealed and ignition protected, it suits under-bonnet use on vehicles that do serious off-road work. After a trip it stays off until you reset it, so you can check the fault first.
Choose the rating to protect the cable: at or below the cable's current capacity and above the normal load. It mounts through a panel cut-out, takes cables on 1/4" studs and is backed by a 1-year warranty.
Dimensions
Height | 57 mm |
Width | 48.2 mm |
Depth | 44 mm |
Safety features
- IP67 rated
- Ignition protected
- Manual trip button
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
