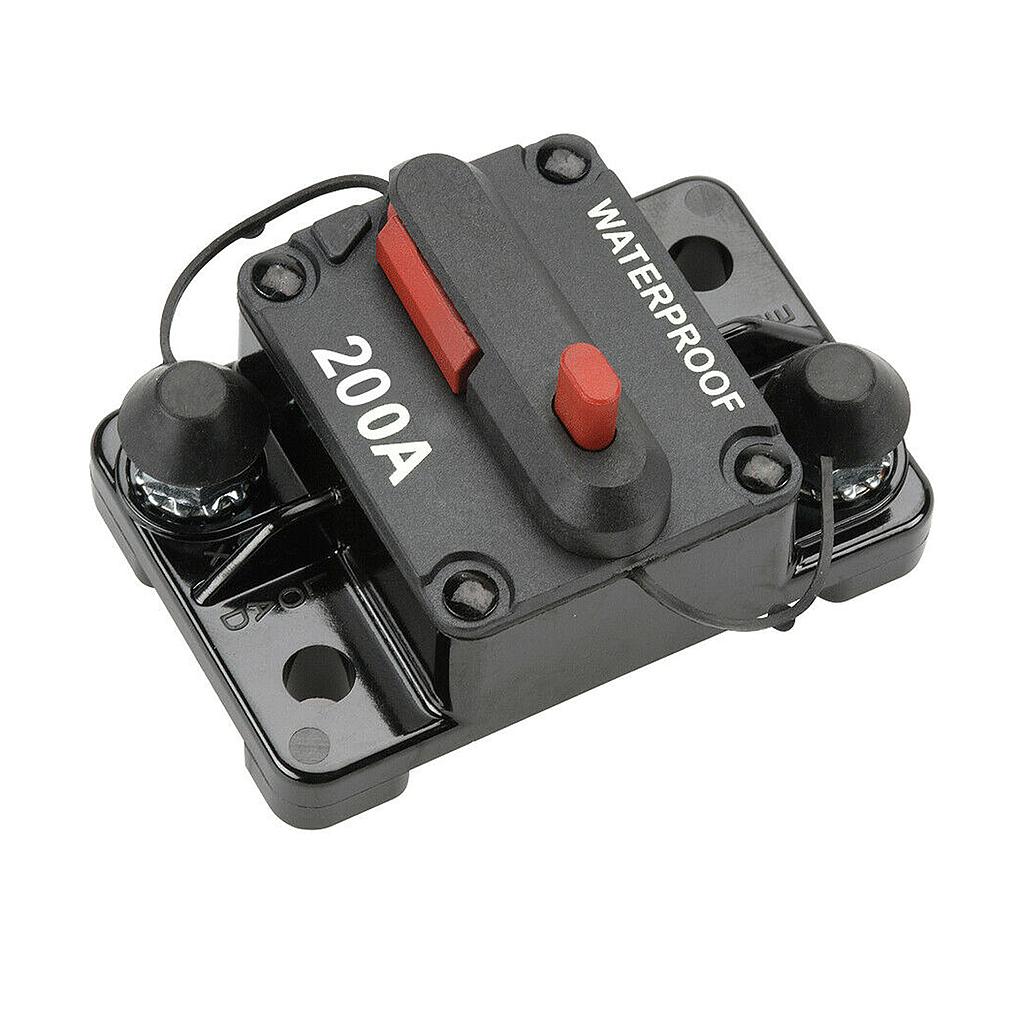

Alvolta 200A Manual Reset Circuit Breaker
MANUAL RESET CIRCUIT BREAKER 200A
Alvolta 200A Manual Reset Circuit Breaker
MANUAL RESET CIRCUIT BREAKER 200A

Alvolta 200A Manual Reset Circuit Breaker

https://www.springers.com.au/web/image/product.template/1339/image_1920?unique=49e23ba
(0 reviews)

Surface mount circuit breaker with 1/4" terminal studs

$ 14.98 - Inc GST 14.98 AUD $ 14.98 Tax Included

Not Available For Sale

($ 14.98 / Unit)
  • Brand

This combination does not exist.

You have already submitted a query for this product today.
In stock
In stock
In stock
Contact Us
Brand: Alvolta
ALVOLTA
Terms and Conditions
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Circuit Protection, Circuit Breakers, Surface Mount
M12200

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Alvolta 200 A Manual Reset Surface Mount Circuit Breaker


Features

  • 200 A
  • Manual reset circuit breaker
  • Surface mount for simple on-wall installation
  • Suitable for 12 - 48 V systems
  • Marine-rated
  • Suitable for heavy-duty applications
  • IP67 rated thermoplastic
  • Can be used as an ON / OFF isolation switch
  • 1/4" / M6 terminal studs
  • Thermal trip with trip status indicator
  • Manual trip button
  • Single pole
  • Ignition protected
  • Recessed mounting holes for tidy installation


Where to use it

Alvolta surface mount circuit breakers are ideal for under bonnet applications. They are suitable for use in motorhomes, 4WD, boats, marine, and off-grid setups.

Its durable design and IP67 rating make these an excellent choice for heavy duty, off-road applications. It is sealed internally against moisture, dust, and dirt.


Dimensions

Width

48.2 mm

Height

57 mm

Depth

44 mm

Weight

0.1 kg


Compliance

  • SAE J1625
  • ABYC E-11
  • CE
  • SAE J1117 (Ignition protection)
  • IP67


Warranty

  • 5-year warranty

Applications

Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Specifications

Brand Alvolta
Datasheet_M12200_Manual Reset Circuit Breakers.pdf
Download

A manual reset circuit breaker protects your electrical system from overloads and short circuits. When tripped, it cuts off power to prevent damage, and can be manually reset once the issue is investigated and resolved - making it ideal for automotive, marine, solar, and off-grid applications.

A manual reset breaker stays off after tripping, allowing you to inspect and correct the fault before restoring power. In contrast, an automatic reset breaker reconnects power automatically once it cools down, which can risk repeated faults if the issue isn't fixed.

Alvolta manual reset circuit breakers are IP67 rated, meaning they are internally sealed for protection against moisture, dust, and dirt. They are also ignition protected.

Circuit breakers will experience less voltage drop across the circuit. When they are tripped, you can simply reset the device as opposed to having to source and install a new fuse, should a fuse blow. These units offer lower voltage drop than a fuse and can be used as an occasional isolation switch.

These breakers are designed for flush mounting on a surface. Simply mount the breaker to the surface with M8 bolts and connect your positive circuit wires to the terminals as directed. Always ensure the breaker's rating matches your circuit's current load.

Product Specifications


Mounting

Surface Mount

Amperage

200 A

Function Types

Thermal Trip with Manual On-Off

Number of Poles

Single Pole Single Through

Maximum Current Rating

20 - 200 A

Maximum Voltage Rating

48V DC

Calibration at 25°C

100% Hold
135% Trip

Maximum Interrupting Capacity

3000A 30V DC

Terminal Stud

M6
Accepts 1/4" ring terminal

Mounting Holes

M8

Dimensions

57 x 48.2 x 44 mm

Material

Thermoplastic

Accessory Products

[M12120] Alvolta 120A Manual Reset Circuit Breaker
ALVOLTA
Alvolta 120A Manual Reset Circuit Breaker
$ 14.98 $ 14.98 14.98 AUD
Tax Included
SKU: M12120

Alternative Products

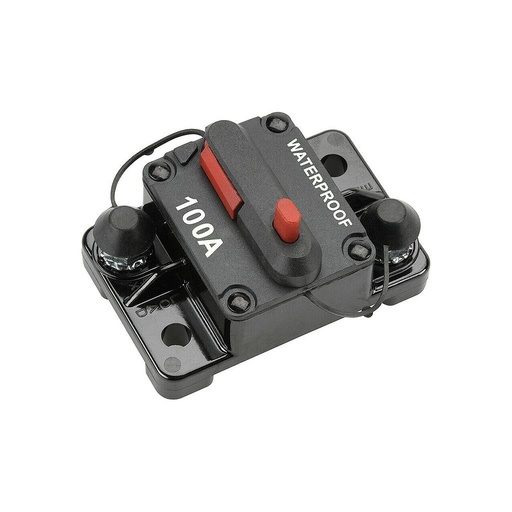

[M12100] Alvolta 100A Manual Reset Circuit Breaker
ALVOLTA
Alvolta 100A Manual Reset Circuit Breaker
$ 14.98 $ 14.98 14.98 AUD
Tax Included
SKU: M12100
[M12120] Alvolta 120A Manual Reset Circuit Breaker
ALVOLTA
Alvolta 120A Manual Reset Circuit Breaker
$ 14.98 $ 14.98 14.98 AUD
Tax Included
SKU: M12120

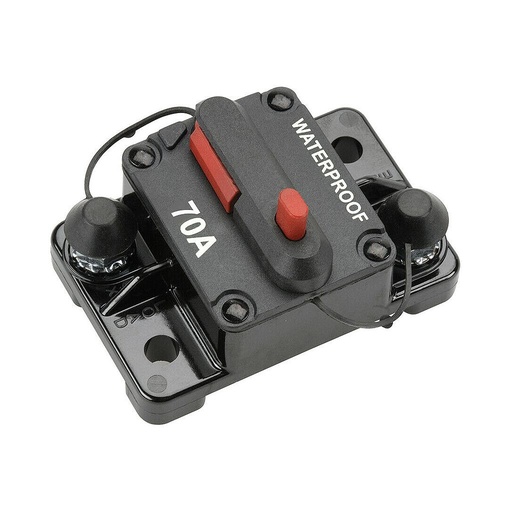

[M1270] Alvolta 70A Manual Reset Circuit Breaker
ALVOLTA
Alvolta 70A Manual Reset Circuit Breaker
$ 14.98 $ 14.98 14.98 AUD
Tax Included
SKU: M1270

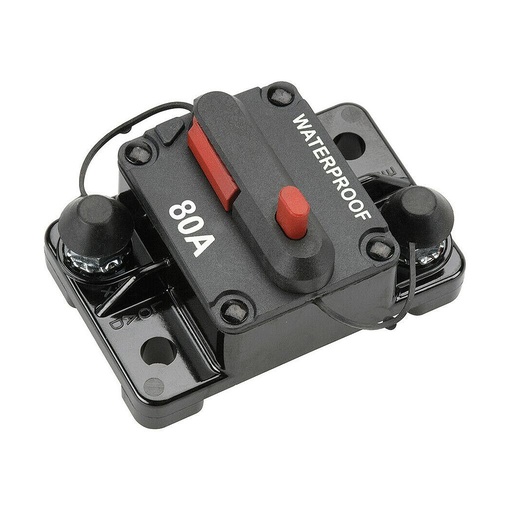

[M1280] Alvolta 80A Manual Reset Circuit Breaker
