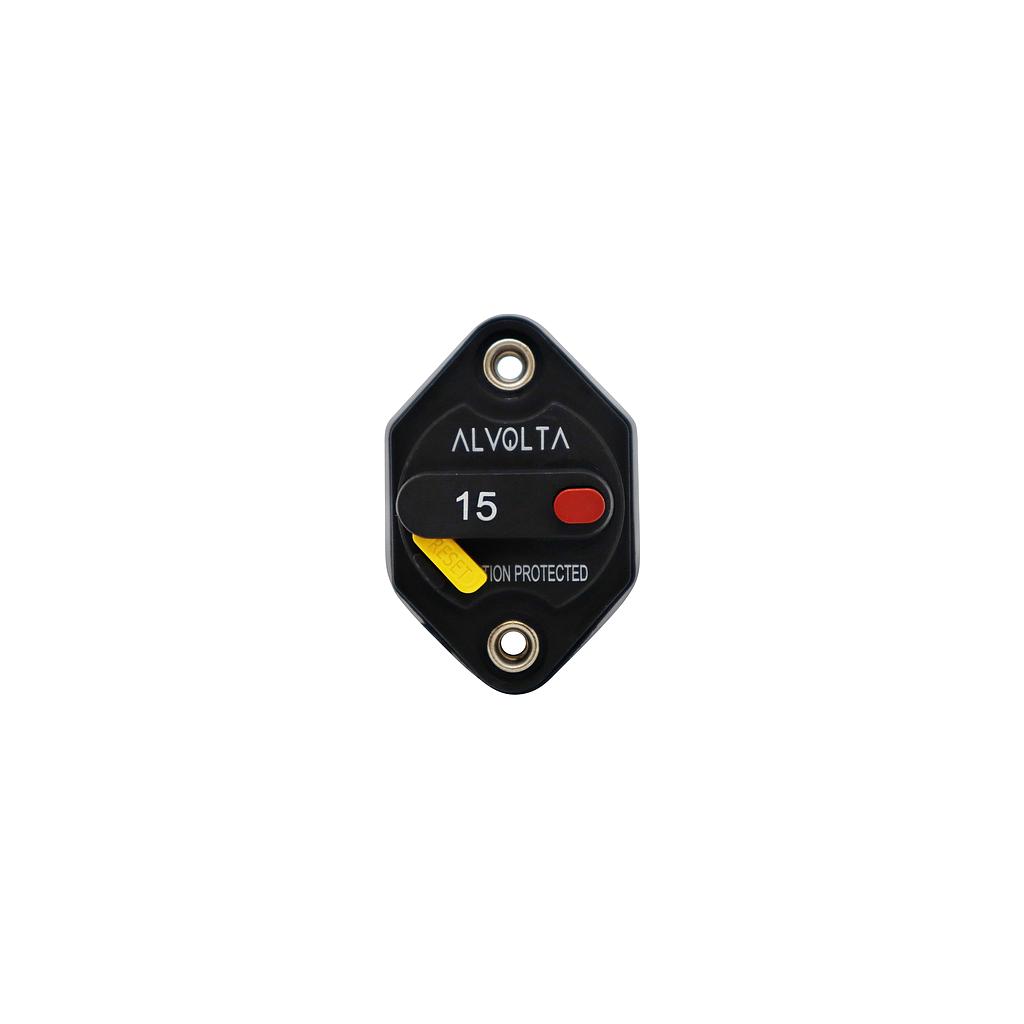

Alvolta 15A Manual Reset Panel Mount Circuit Breaker 255 Series

15A Manual Reset Panel Mount Circuit Breaker

Alvolta 15A Manual Reset Panel Mount Circuit Breaker

Alvolta 15A Manual Reset Panel Mount Circuit Breaker 255 Series

(0 reviews)

Through-wall panel mount 255 series circuit breaker with 1/4" terminal studs

$ 39.90 - Inc GST 39.9 AUD $ 39.90 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Circuit Protection, Circuit Breakers, Panel Mount

SKU: M25515P

Alvolta 15 A Manual Reset Panel Mount Circuit Breaker 255 Series

Features

15 A
Manual reset circuit breaker
Panel mount for through-wall installation
Suitable for 12 - 32 V systems
Marine-rated
IP66 rated
Can be used as an ON / OFF switch
1/4" / M6 terminal studs
Thermal trip with trip status indicator
Manual trip button
Ignition protected
255 series offers a compact design
Recessed mounting holes on top and bottom for tidy installation

Where to use it

Alvolta panel mount series 255 circuit breakers are designed for marine applications. They are suitable for use in boats, marine applications, motorhomes, 4WD, and off-grid setups.

Its durable design and IP66 rating make these an excellent choice for marine and exposed applications. It is sealed internally against moisture, dust, and dirt.

Dimensions

Width	33 mm
Height	56 mm
Depth	37 mm
Weight	.04 kg

Compliance

SAE J1625
ABYC E-11
CE
SAE J1117 (Ignition Protection)
IP66

Warranty

5-year warranty

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_M22515P_Manual Reset Panel Mount Circuit Breakers Series 255.pdf

Download

A manual reset circuit breaker protects your electrical system from overloads and short circuits. When tripped, it cuts off power to prevent damage, and can be manually reset once the issue is investigated and resolved - making it ideal for automotive, marine, solar, and off-grid applications.

A manual reset breaker stays off after tripping, allowing you to inspect and correct the fault before restoring power. In contrast, an automatic reset breaker reconnects power automatically once it cools down, which can risk repeated faults if the issue isn't fixed.

These breakers are designed for flush mounting on a panel or enclosure. Simply mount the breaker on the panel with M8 bolts and connect your positive circuit wires to the terminals as directed. Always ensure the breaker's rating matches your circuit's current load.

Alvolta manual reset circuit breakers are IP67 rated, meaning they are internally sealed for protection against moisture, dust, and dirt. They are also ignition protected.

Circuit breakers will experience less voltage drop across the circuit. When they are tripped, you can simply reset the device as opposed to having to source and install a new fuse, should a fuse blow. These units offer lower voltage drop than a fuse and can be used as an occasional isolation switch.

Product Specifications

Model	M25515P
Amperage	15 A
Voltage	>32 V DC
Mounting	Panel
Trip Type	Thermal
Poles	1
Interrupt Rating	2.5 Kva
Material	Thermoset
Class	Type III with push-to-trip
Terminal Stud	M6 Accepts 1/4" ring terminal
IP Rating	IP66
Mounting Holes	M4
Warranty	5 Years
