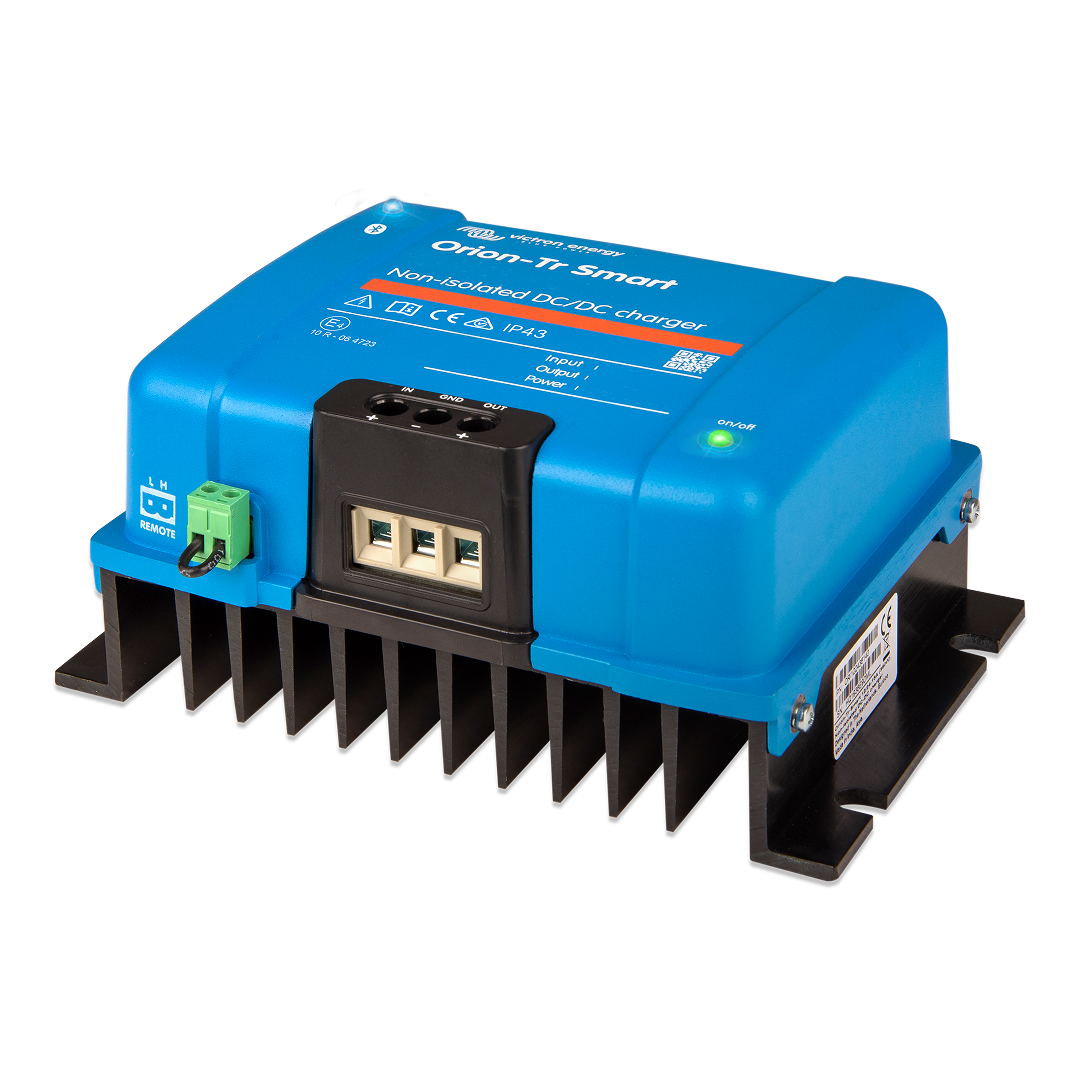

Victron Orion-Tr Smart 12/24-15A Non-isolated DC-DC ch.

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.

The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

manual-Victron Orion-Tr Smart 12:24-15A Non-isolated DC-DC ch..pdf

Download

Datasheet-Victron Orion-Tr Smart 12:24-15A Non-isolated DC-DC ch..pdf

Download

Product Specification

Orion-Tr Smart Chargers non-isolated	12/24-15 (360 W)
Input voltage range	8 - 17 V
Under voltage shutdown	7V
Under voltage restart	7,5 V
Nominal output voltage	24,2 V
Output voltage adjust range	18 - 30 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current at nominal output voltage and 40 °C	15 A
Max. output current (10 s) at nominal output voltage minus 20 %	25 A
Short circuit output current	40 A
Cont. output power at 25 °C	430 W
Cont. output power at 40 °C	360 W
Efficiency	88 %
No load input current	< 100 mA
Standby current	Less than 1 mA
Can be used as power supply	Yes, output voltage can be set with Bluetooth
Operating temperature range	-20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity	Max. 95 % non-condensing
DC connection	Screw terminals
Maximum cable cross-section	16 mm² (AWG6)
Weight	12 V input and/or 12 V output models: 1,8 kg (3 lb)
Dimensions h x w x d	130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Protection category	IP43 (electronic components), IP22 (connection area)
Standards: Safety Emission Immunity Automotive Directive	EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-5
