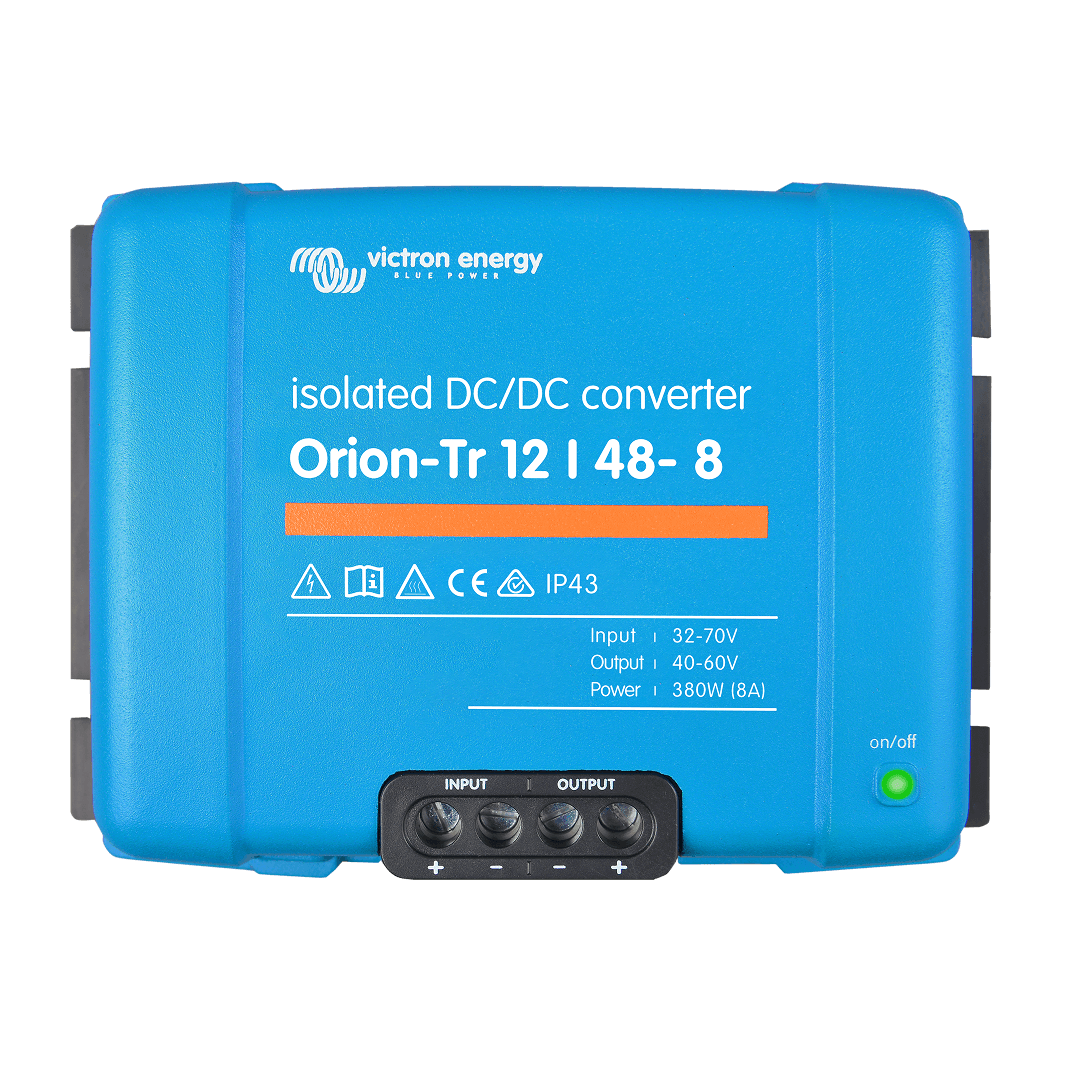

Victron Orion-Tr 12/48-8A (380W) Isolated DC-DC converter

(0 reviews)

$ 284.43 - Inc GST 284.43 in stock AUD $ 284.43 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaOnline Only

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: DCDC Chargers, DCDC Chargers

SKU: ORI124838110

Orion-Tr 12/48-8A Isolated DC-DC Converter

Features:

12V - 48V / 8Amps
DC-DC Converter
IP43 Protection
Adjustable Output Voltage
Short-Circuit Proof

Remote On/Off:

The remote on-off eliminates the need for a high-current switch in the Input wiring. The remote on-off can be operated with a low-power switch or, for example, the engine run/stop switch (see manual).

Adjustable Output Voltage:

The converter can also be used as a battery charger, for example, to charge a 12-volt starter or accessory battery in an otherwise 48-volt system.

High Temperature Protected:

The output current will reduce at high ambient temperatures.

IP43 Protection:

When installed with the screw terminals oriented downward.

Screw Terminals:

No special tools are needed for installation.

Input Fuse (non-replaceable):

On 12V and 24V input models only.

Applications:

Marine

RV's

Motor Homes

4WD

Motor Vehicles

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet-Orion-Tr Smart.pdf

Download

Manual-Orion-Tr Smart.pdf

Download

Product Specification

Isolated converters (380 Watt)	Orion-Tr 12/48-8
Input voltage range	8-17 V
Under voltage shutdown	7 V
Under voltage restart	7,5 V
Nominal output voltage	48.2 V
Output voltage adjust range	40-60 V
Output voltage tolerance	+/- 0,2 V
Output noise	2 mV rms
Cont. output current at nominal output voltage and 40 °C	8 A
Max. output current (10 s) at nominal output voltage minus 20 %	15 A
Short circuit output current	25 A
Cont. output power at 25 °C	430 W
Cont. output power at 40 °C	380 W
Efficiency	89 %
No load input current	< 220 mA
Standby current	< 200uA when disabled via its remote port
Can be used as power supply	200 VDC between input, output and case
Operating temperature range	-20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity	Max. 95 % non-condensing
DC connection	Screw terminals
Maximum cable cross-section	16 mm² (AWG6)
Weight	12 V input and/or 12 V output models: 1.8 kg (4 lb). Other models: 1,6 kg (3.5 lb)
Dimensions h x w x d	12 V input and/or 12 V output models: 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Standards: Safety Emission Immunity Automotive Directive	EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-5
