Features:
- DC-DC Converter
- Adjustable Output
- Remote On/Off Connector
- Can be Paralleled to Increase Output Current
- Easy to Install
- Binding Posts
Brand: Victron |
Features:
Remote On/Off Connector:
The remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch.
Easy to Install:
Product includes four Insulated Fastons Female Crimp 6.3mm.
Applications:
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Brand | Victron |

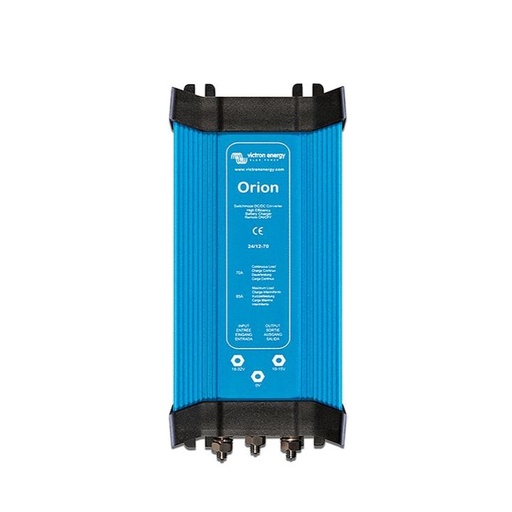

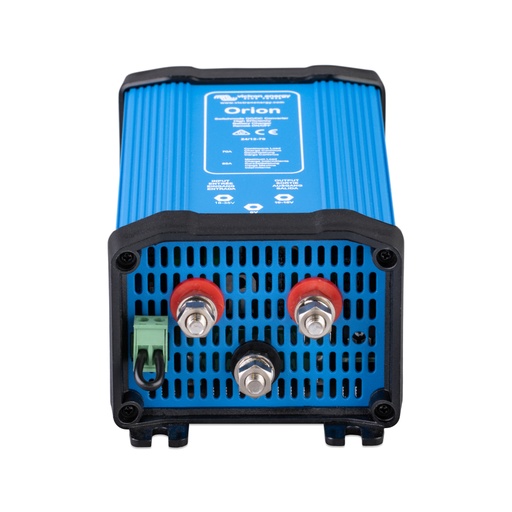

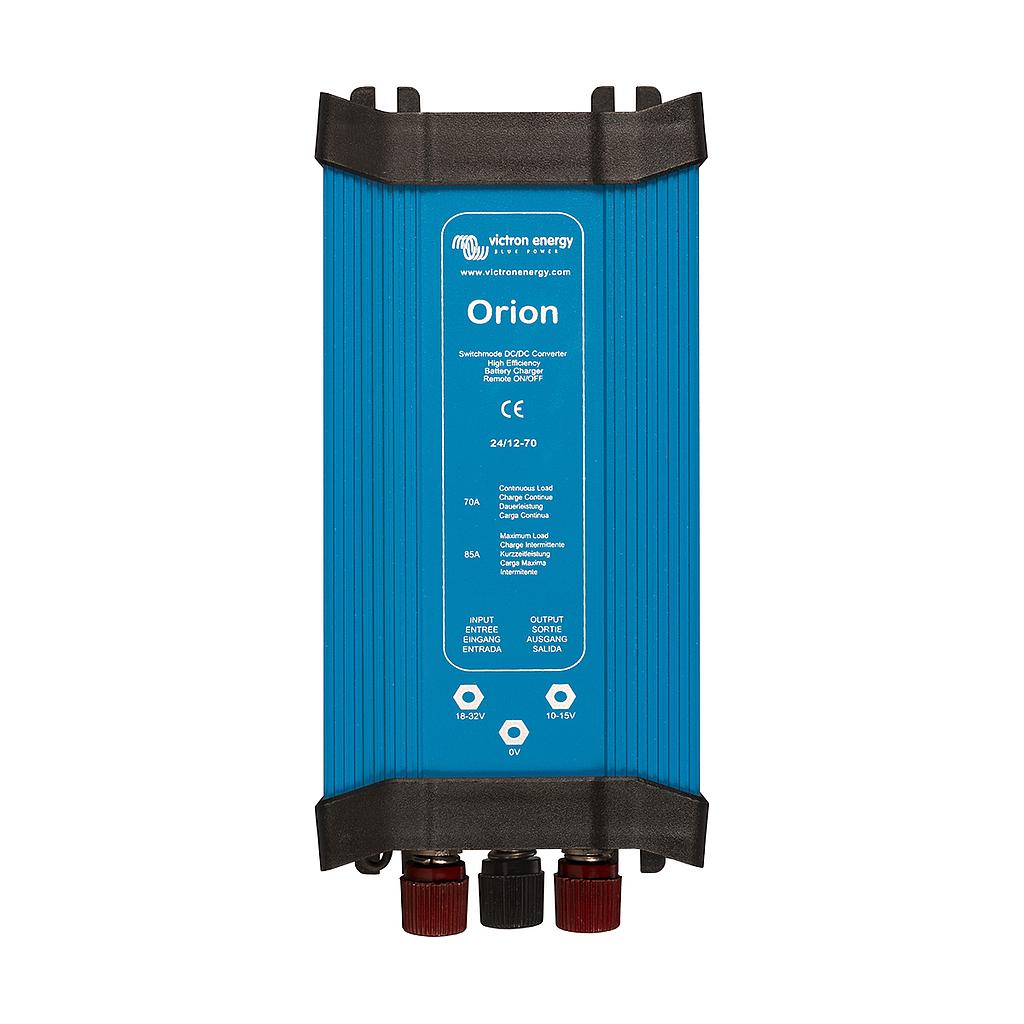

Orion DC-DC Converter | |
Input voltage range | 18-35V |
Under voltage shutdown | 14V |
Under voltage restart | 18V |
Output voltage adjustable with potentiometer | yes |
Output voltage | Adjustable 10-15V F set 13.2V |
Efficiency | 92% |
Suitable to buffer-charge a battery | yes |
Can be connected in parallel | yes |
Continuous output current | 70A |
Max. Output current | 85A |
Fan-assisted cooling (temp. controlled) | yes |
Galvanic isolation | no |
Off load current | < 20mA |
Remote on-off | no |
Operating temperature range (derate 3% per °C above 40°C) | -20 to +55°C |
DC connection | M6 bolts |
Weight | 0.9kg |
Dimensions | 65 x 88 x 195mm |
Safety Standard | EN 60950 |
Emission Standard | EN 61000-6-3, EN 55014-1 |
Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
Automotive Directive | ECE R10-4 |
