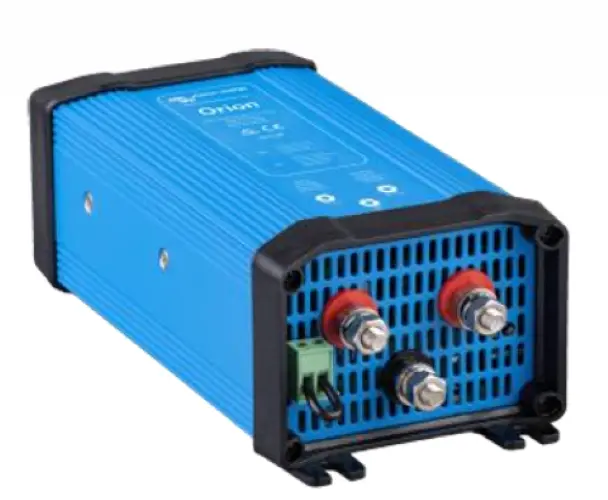

Victron Orion 24/12-80 DC-DC converter IP20

This high-power, non-isolated DC-DC converter efficiently steps down 24V power to a stable 13.2V output, featuring an adjustable design that allows it to double as a battery charger or be paralleled with up to five units for increased current.

$ 189.00 - Inc GST 189.0 AUD $ 189.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

Orion XS PCM

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: DCDC Chargers, DCDC Chargers

SKU: ORI241280020

Victron Orion 24/12-80 DC-DC converter IP20

Features

24V to 12V DC Conversion
80A Output Current
Remote On-Off Connector
Battery Charger Function
Parallelable Configuration
Easy IP20 Installation

Where to use it

The Victron Orion 24/12-80 DC-DC Converter is a high-power, professional-grade solution engineered to deliver clean, stable 12V power from a primary 24V battery system. Boasting up to 95% efficiency and fan-assisted thermal management, this non-isolated unit provides a massive 80A of continuous output current, making it ideal for demanding 12V loads in 4WDs, caravans, commercial trucks, and marine setups. It features a convenient remote on/off connector to eliminate the need for high-current input switching, an adjustable output that allows it to safely double as a 12V battery charger, and the capability to run up to five units in parallel for scaled capacity. Housed in a compact, durable IP20 chassis and bundled with six insulated female crimp Faston connectors, it is perfect for indoor or protected installations where heavy-duty reliability is non-negotiable.

Dimensions

Width	88 mm
Height	195 mm
Depth	65 mm
Weight	0.9 kg

Safety Features

Short circuit protection
Overheating (over-temperature) protection
Overload (current-limiting) protection
IP20 enclosure rating
Remote on-off connector

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_Orion-DC-DC-converters-high-power,-non-isolated-latest-models-EN.pdf

Download

Product Specifications

Part number	ORI241280020
Input voltage range (V)	18-35
Under voltage shutdown (V)	14
Under voltage restart (V)	18
Output voltage adjustable with potentiometer	yes
Output voltage (V)	Adjustable 10–15V F set 13,2V
Efficiency (%)	92
Suitable to buffer-charge a battery	yes
Can be connected in parallel	yes
Continuous output current (A)	80
Max. Output current (A)	90
Fan assisted cooling (temp. controlled)	yes
Galvanic isolation	no
Off load current	<20mA
Remote on-off	yes
Operating temperature range (derate 3% per °C above 40 °C)	-20 to 55 C
DC connection	M6 bolts
Weight kg (lbs)	0,9 (2.0)
Dimensions hxwxd in mm (hxwxd in inches)	65x88x195 (2.6x3.5x7.7)
Standards: Safety Emission Immunity	EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2
