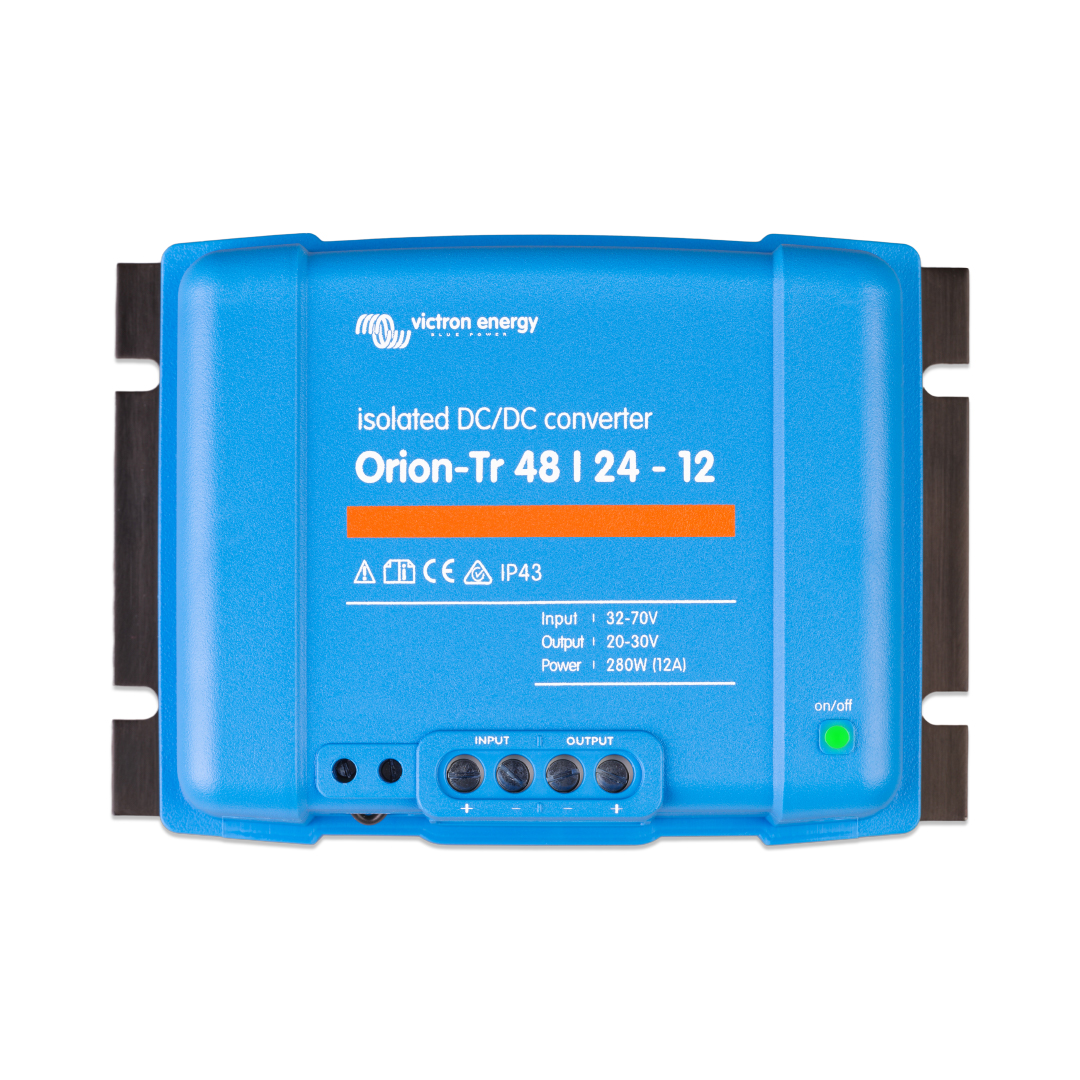

Victron Orion-Tr 48/24-12A (280W) Isolated DC-DC Converter

Orion-Tr 48/24-12A Isolated DC-DC Converter

Features:

• 48V - 24V / 12Amps
• DC-DC Converter
• IP43 Protection
• Adjustable Output Voltage
• Short-Circuit Proof


Remote On/Off:

The remote on-off eliminates the need for a high-current switch in the Input wiring. The remote on-off can be operated with a low-power switch or, for example, the engine run/stop switch (see manual).

Adjustable Output Voltage:

The converter can also be used as a battery charger, for example, to charge a 12-volt starter or accessory battery in an otherwise 24-volt system.

High Temperature Protected:

The output current will reduce at high ambient temperatures.

IP43 Protection:

When installed with the screw terminals oriented downward.

Screw Terminals:

No special tools are needed for installation.

Input Fuse (non-replaceable):

On 12V and 24V input models only.

Applications:

Marine

RV's

Motor Homes

4WD

Motor Vehicles

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
