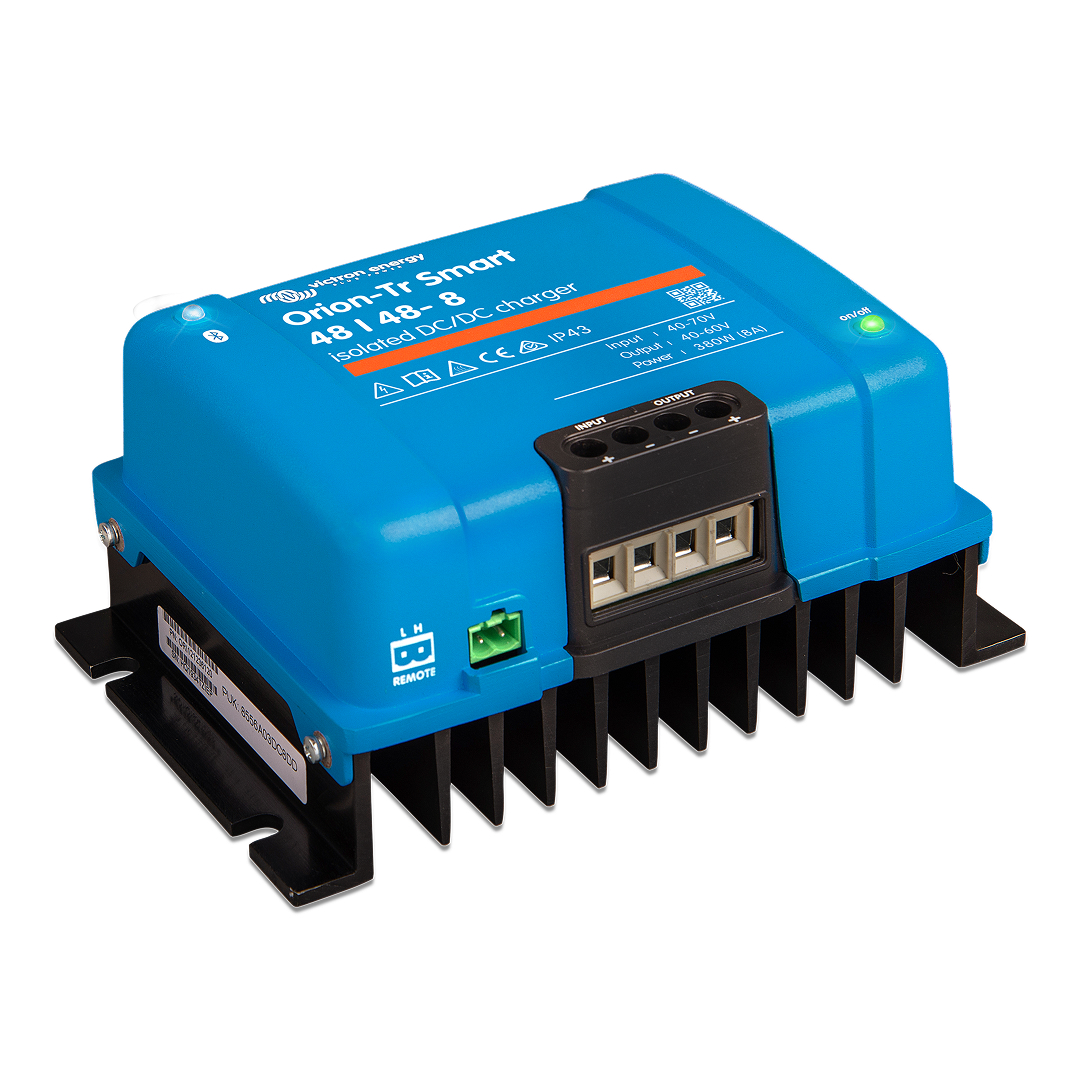

Victron Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC charger

Orion-Tr Smart 48/48-8A (380W) Isolated DC-DC charger

The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" comes from its built-in Bluetooth connection, where the charger can be monitored and configured via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. This isolated model allows the input and output to have separate chassis grounds.

The Orion-Tr Smart charger can be used in 12V, 24V or 48V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.

Features

• 48 V in, 48 V out: 8 A continuous (380 W at 40 °C, 430 W at 25 °C)
• Galvanically isolated: input, output and case separated (200 VDC)
• Adaptive 3-stage charging (bulk, absorption, float) or fixed output voltage
• Works with lead acid and lithium batteries
• Engine running detection for smart alternator (Euro 5/6) vehicles
• Built-in Bluetooth: set up and monitor with the VictronConnect app
• Remote on/off connector
• Wide 32-70 V input range, 40-60 V adjustable output
• Unlimited units can be paralleled for more output
• 89% efficiency, under 1 mA standby current
• IP43 (electronics) with screw terminals, no special tools needed

What's in the box

• 1 x Orion-Tr Smart 48/48-8A (380W) isolated DC-DC charger

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
