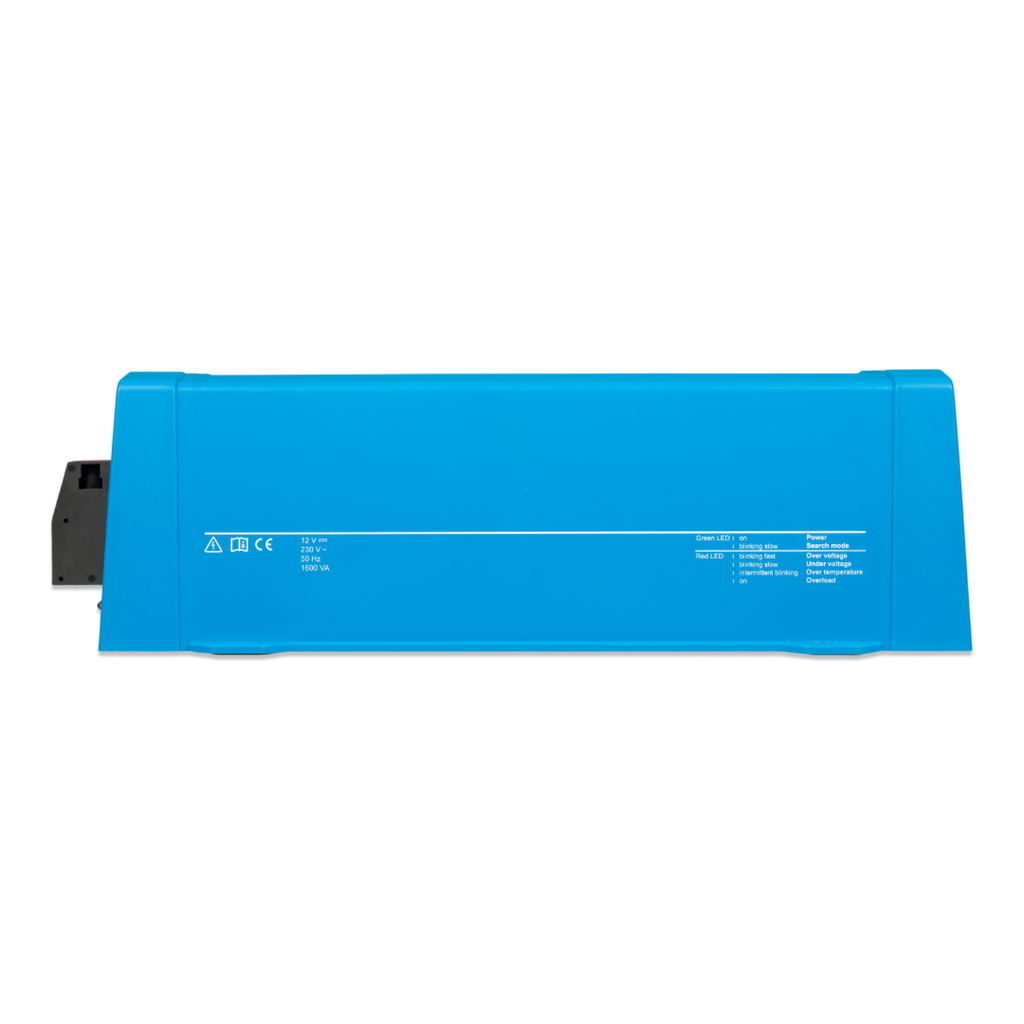

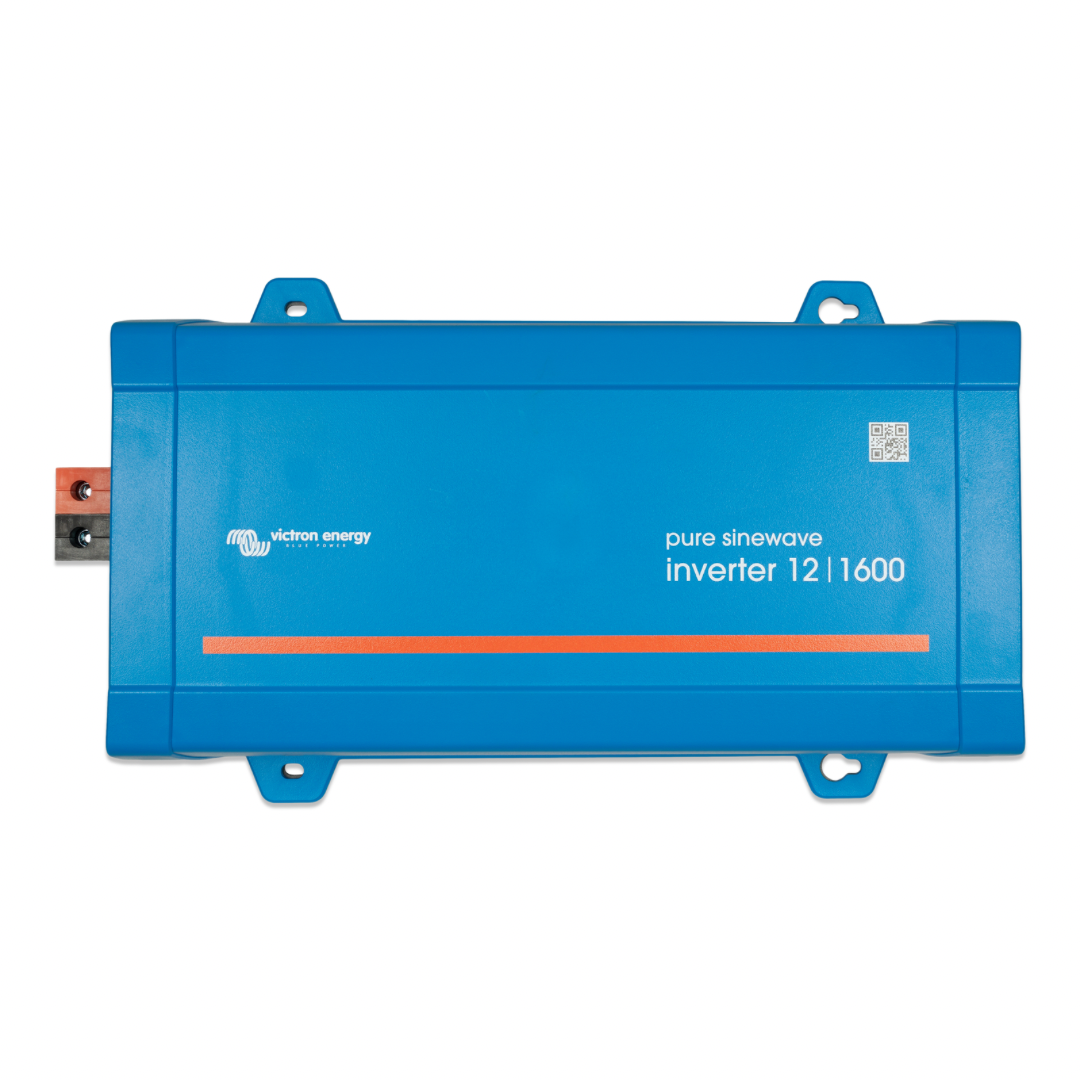

- Victron VE.Direct Inverter 12/1600 230V
Victron VE.Direct Inverter 12/1600 230V
https://www.springers.com.au/shop/pin122161300-victron-ve-direct-inverter-12-1600-230v-19174 https://www.springers.com.au/web/image/product.template/19174/image_1920?unique=9a62652VICTRON
Victron VE.Direct Inverter 12/1600 230V
Features
- 1600 VA pure sinewave inverter
- Suitable for 12 V systems
- Optimise efficiency
- SinusMax engineering
- High start-up power
- Built-in Bluetooth with VictronConnect app
- VE.Direct communication port
- Integrated ECO mode
- LED status indicator

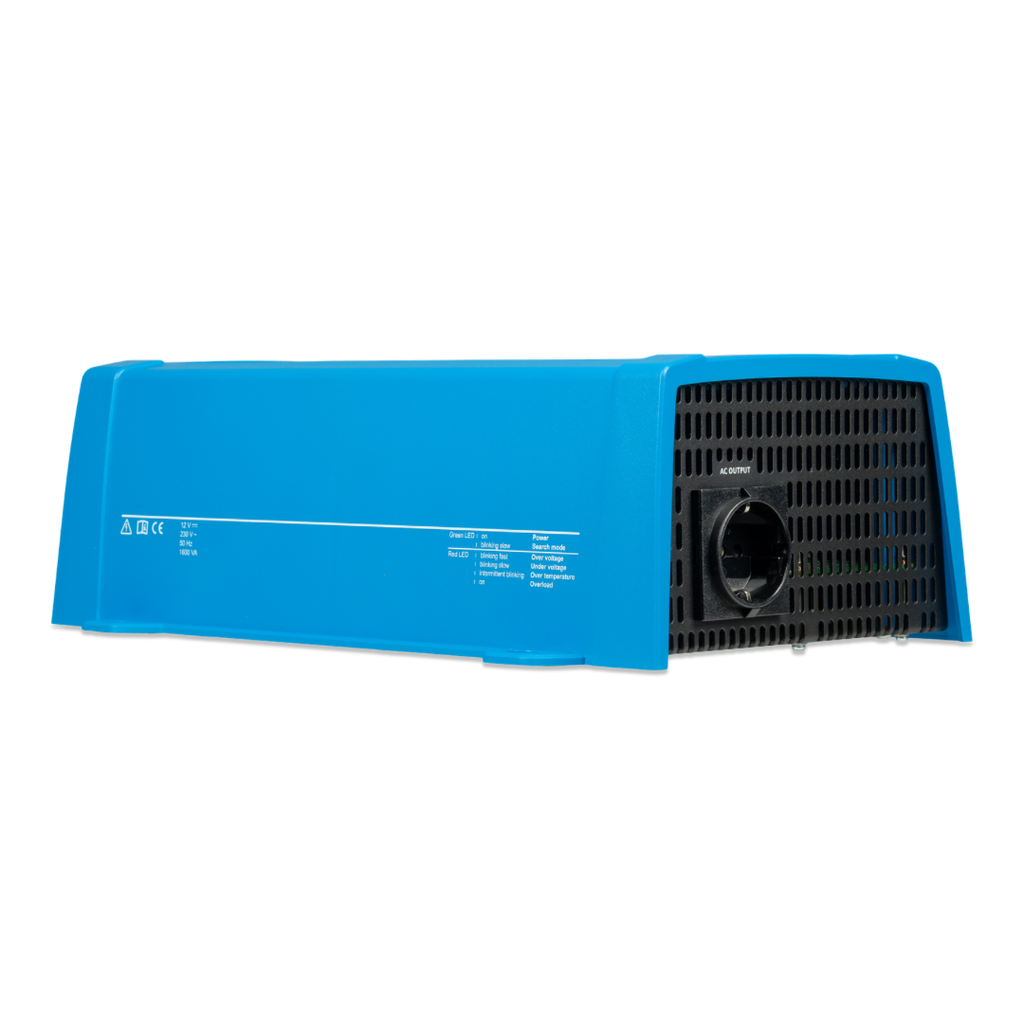

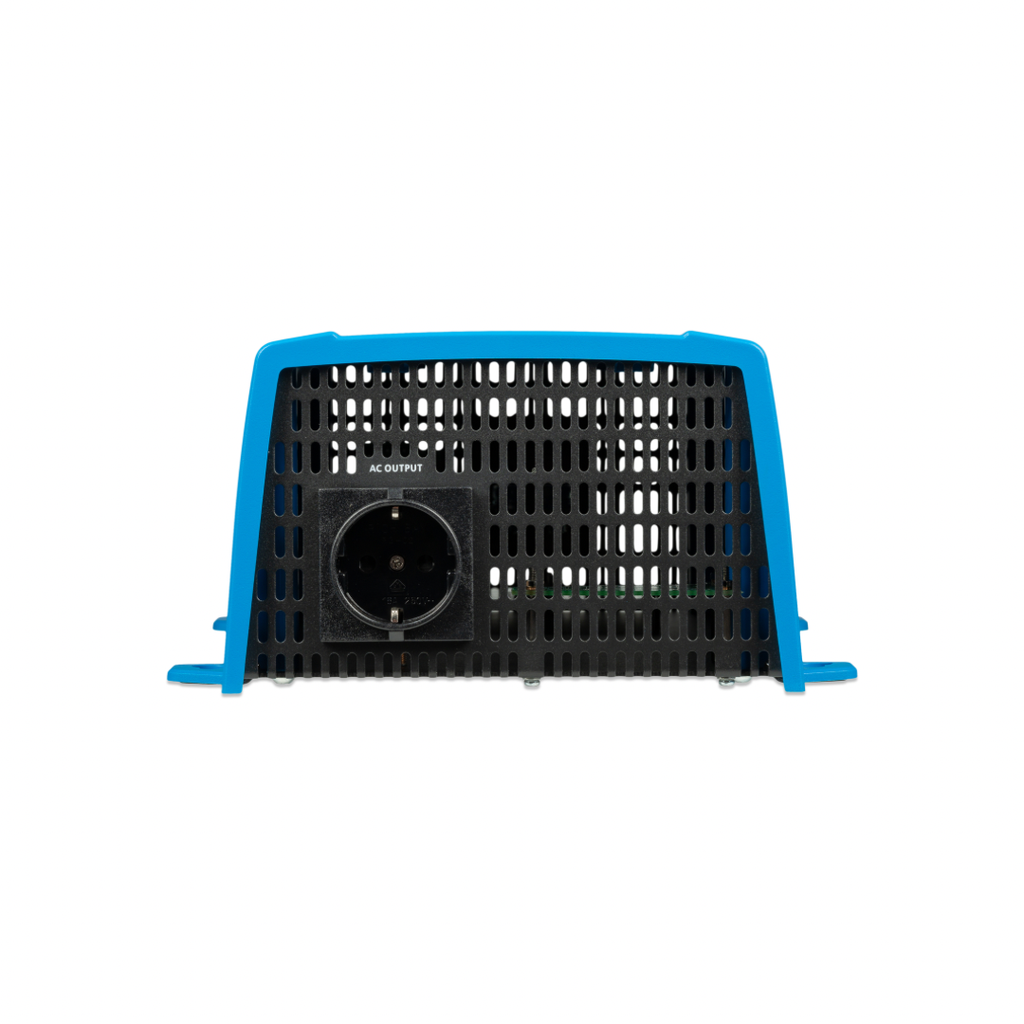

- AC output socket (AS/NZS 3112)
Where to use it
Designed for situations where you need to run 230V appliances, such as laptops, fridges, pumps, and power tools, from a 12V battery bank. Ideal for mid-sized mobile and off-grid power systems, such as camper vans, caravans, marine vessels, and small cabins.
Dimensions
Width | 232 mm |
Height | 177 mm |
Depth | 395 mm |
Weight | 8.9 kg |
Safety features & certifications
- IP21 rated
- EN-IEC 60335-1
- EN-IEC 62109-1
- EMC EN 55014-1
- EN 55014-2
- IEC 61000-6-1
- IEC 61000-6-2
- IEC 61000-6-3
- ECE R10-4
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Product Specifications
Inverter | |
Cont. power at 25°C | 1600 VA |
Cont. power at 25°C / 40°C | 1450 / 1200 W |
Peak power | 2200 W |
Output AC voltage / frequency (adjustable) | 230VAC or 120VAC +/- 3%, 50Hz or 60Hz +/- 0.1% |
Input voltage range | 9.2 - 17 / 18.4 - 34.0 / 36.8 - 62.0V |
DC low shut down (adjustable) | 9.3 / 18.6 / 37.2V |
Dynamic (load dependent) DC low shut down (fully configurable) | Dynamic cut-off* |
DC low restart and alarm (adjustable) | 10.9 / 21.8 / 43.6V |
Battery charged detect (adjustable) | 14.0 / 28.0 / 56.0V |
Max. efficiency | 92% |
Zero-load power | 12 W |
Default zero-load power in ECO mode (default retry interval: 2.5 s, adjustable) | 1.8 W |
ECO mode stop and start power setting | Adjustable |
Protection | a-f |
Operating temperature range | -40 to +65°C (fan-assisted cooling), Derate 1.25% per °C above 40°C |
Humidity (non-condensing) | Max. 95% |
Enclosure | |
Material & Colour | Steel chassis and plastic cover (blue Ral 5012) |

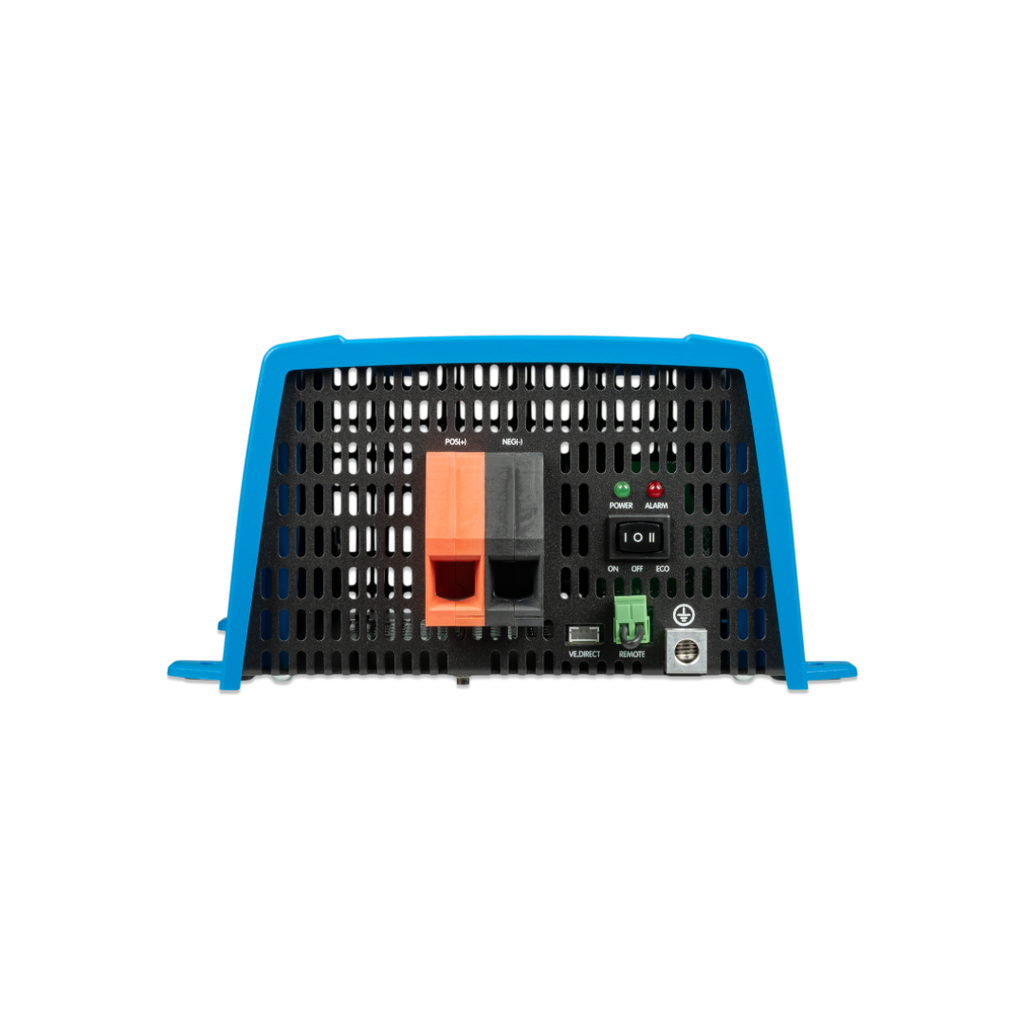

Battery connection | Screw terminals |
Maximum cable cross-section | 50mm2 / AWG 1 |
Standard AC outlets | AU/NZ (AS/NZS 3112) |
Protection category | IP21 |
Weight | 8.9 kg |
Dimensions | 117 x 232 x 395 mm |
Accessories | |
Remote on-off | Yes |
Automatic transfer switch | Filax |
Standards | |
Safety | EN-IEC 60335-1 / EN-IEC 62109-1 |
EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
Automotive Directive | ECE R10-4 |
