Clenergy Post Mount Kit 3 Module

Clenergy Ezrack post mount kit:

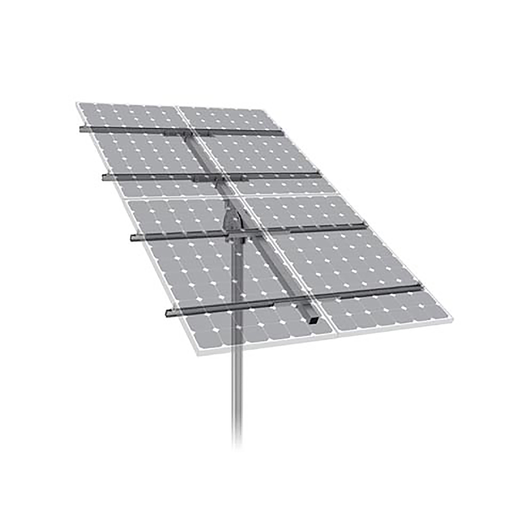

Clenergy’s PVezRack® PostMount-A delivers flexible and durable designs to mount four panels per post. It’s ideal for remote off-grid applications such as water pumps or small residential and commercial systems. The panel tilt is easily adjustable between 10° and 60° throughout the year and comes with hassle-free mounting thanks to patented components such as the PVezRack® rails and clamps. The combination of high-quality aluminium, stainless steel and galvanised steel components make this a robust, reliable system with excellent corrosion resistance.

Main Benefits

Suitable for every soil condition

With its concrete foundation, PostMount-A can be installed on even or uneven ground or on a slope, making it suitable for any soil type and a wide range of applications.

Adjustable tilt angle

The steel cap (post head) is designed to tilt panels between 10° and 60° to ensure that you get the required power output you need anywhere, anytime. Changing the angle merely requires a single pair of spanners.

Robust and reliable

Mounted on aluminium rails the panels are supported by robust galvanised steel landscape and master tubes secured with stainless steel bolts. The post is fixed into a concrete foundation.

Quick and easy installation

Innovative and internationally patented, the Z-Module technology is used in almost all PVezRack® components. The Z-Module provides a quick, easy and safe installation method and can be inserted into the rail at any given point, secured with just three hand grips.

Components:

- End clamp

- Inter clamp

- Galvanize pole

- Steel cap

- Adjust tube

- Master tube

- Angle bracket

- Light rail
