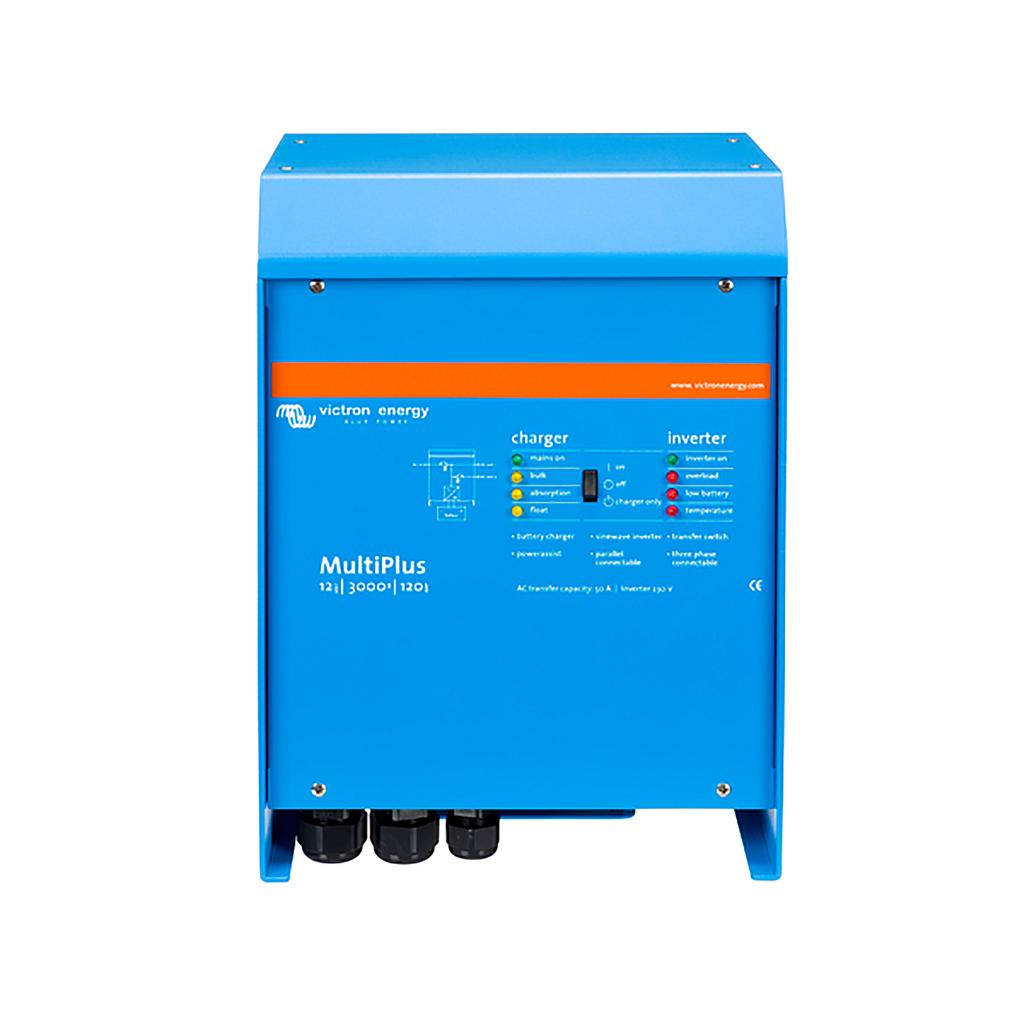

Victron MultiPlus 12/3000/120-16

(0 reviews)

12 V 3000 VA inverter and 120 A battery charger for off-grid power systems

$ 1,932.58 - Inc GST 1932.58 in stock AUD $ 1,932.58 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: INVERTER CHARGERS, Victron, Multiplus

SKU: PMP122300001

Victron MultiPlus 12/3000/120-16

Features

Combined inverter/charger unit
12 V, 3000 VA pure sine wave inverter
120 A battery charger
16 A automatic transfer switch
Three-phase and parallel capability
Hybrid power assist technology
Adaptive charging
Overload protection
Built-in Bluetooth
Two AC outputs
PowerControl & PowerAssist features

Where to use it

The Victron MultiPlus 12/3000/120-16 is a high-power inverter/charger designed for mobile and off-grid applications requiring 12V DC to 230V AC conversion, specifically campervans, RVs, marine vessels, and remote cabins. It is ideal for running high-load appliances, such as air conditioners, microwaves, and power tools via its 3kVA inverter while providing fast 120A charging.

Dimensions

Width	258 mm
Height	362 mm
Depth	218 mm
Weight	19 kg

Safety features

IP21 rated
Emergency power backup for grid-connected applications
Overload protection

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_MultiPlus-3k-230V-16A-50A-(firmware-xxxx4xx)-EN-NL-FR-DE-ES-SE.pdf

Download

Datasheet_MultiPlus-inverter-charger--800VA-5kVA-EN.pdf

Download

Product Specifications

MultiPlus 12/3000/120
PowerControl	Yes
PowerAssist	Yes
Transfer switch	16 A
Inverter
Input voltage range	9.5 - 17 V, 19 - 33 V, 38 - 66 V DC
Output	Output voltage: 230 V AC ± 2%, Frequency: 50 Hz ± 0.1%
Cont. output power at 25°C	3000 VA
Cont. output power at 25°C	2400 W
Cont. output power at 40°C	2200 W
Cont. output power at 65°C	1700 W
Peak power	6000 W
Maximum efficiency	93 %
Zero-load power	20 W
Zero load power in AES mode	15 W
Zero load power in Search mode	8 W
Charger
AC Input	Input voltage range: 187-265 V AC, Input frequency: 45 – 65 Hz, Power factor: 1
Charge voltage 'absorption'	14.4 V DC
Charge voltage 'float'	13.8 V DC
Storage mode	13.2 V DC
Charge current house battery	120 A
Charge current starter battery	4 A
Battery temperature sensor	Yes
General
Auxiliary output	Yes (16 A)
Programmable relay	Yes
Protection	a - g
VE.Bus communication port	For parallel and three-phase operation, remote monitoring and system integration
General purpose com. port	Yes
Remote on-off	Yes
Operating temperature range	-40 to +65°C (fan-assisted cooling)
Humidity (non-condensing)	Max 95%
Enclosure
Material & colour	Aluminium, blue RAL 5012
Protection category	IP21
Battery-connection	Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection	Screw terminals 13 mm² (6 AWG)
Weight	18 kg
Dimensions	362 x 258 x 218 mm
Standards
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
Emission & immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles	ECE R10-4
