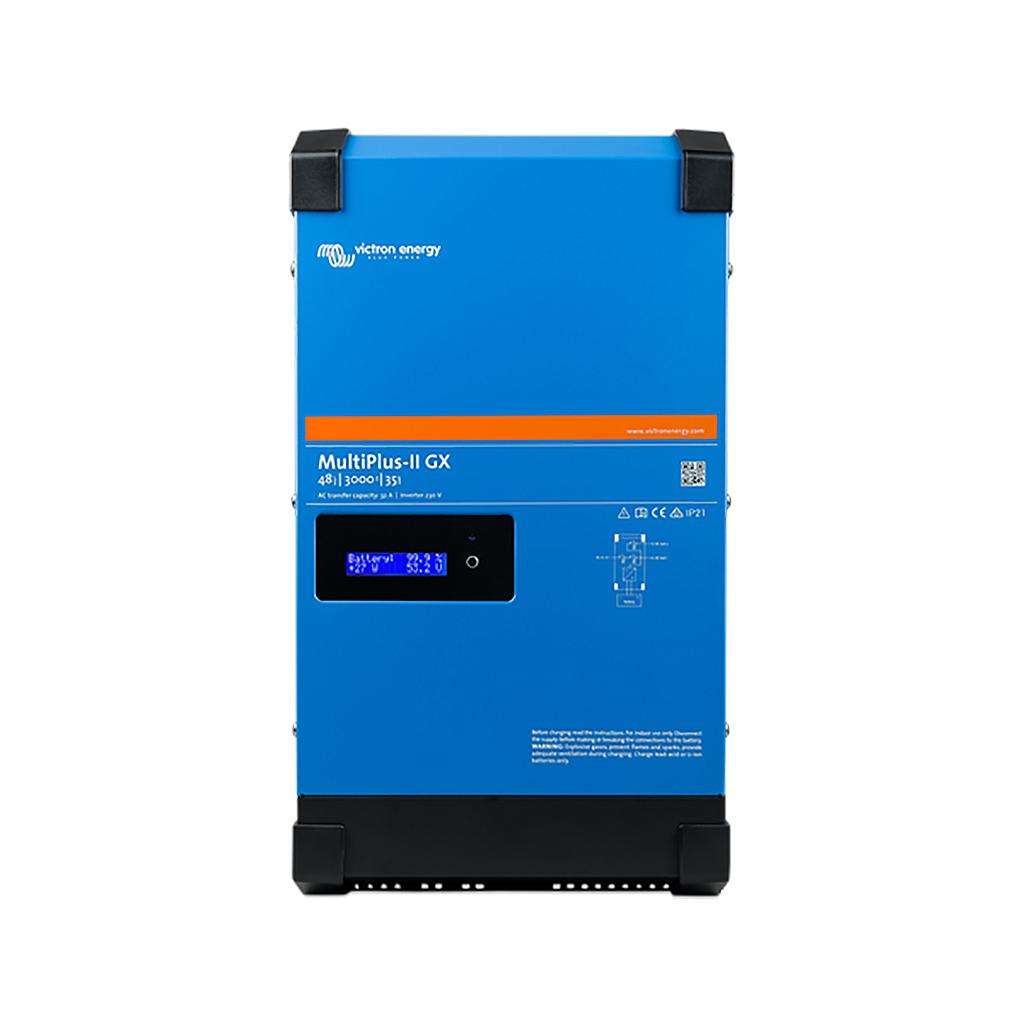

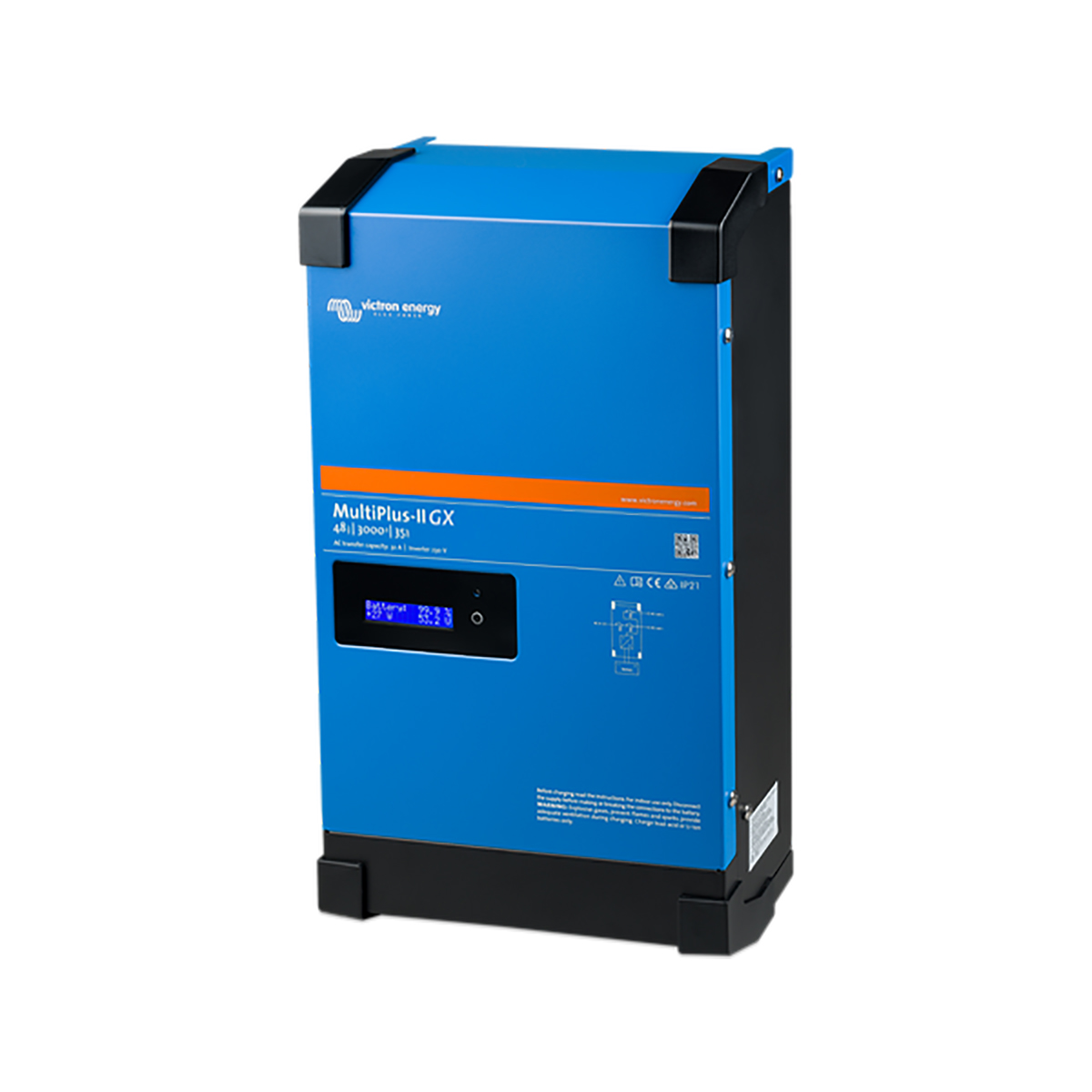

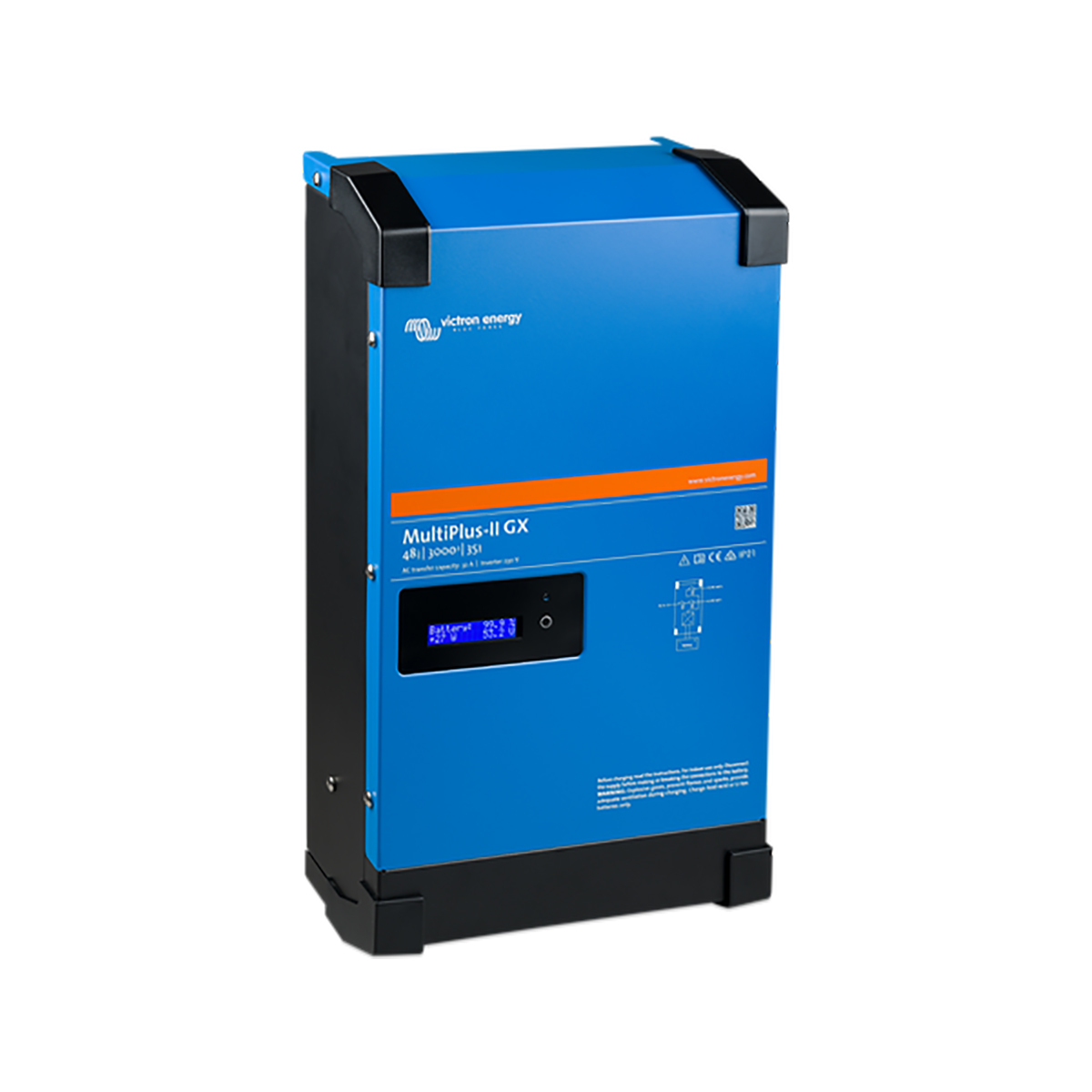

Victron MultiPlus-II 48/3000/35-32 GX
Features
- 48V pure sine wave inverter/charger with a built-in GX system controller
- 3000 VA (2400 W) continuous, 5500 W peak
- 35 A adaptive battery charger
- 32 A automatic transfer switch, under 20 ms changeover

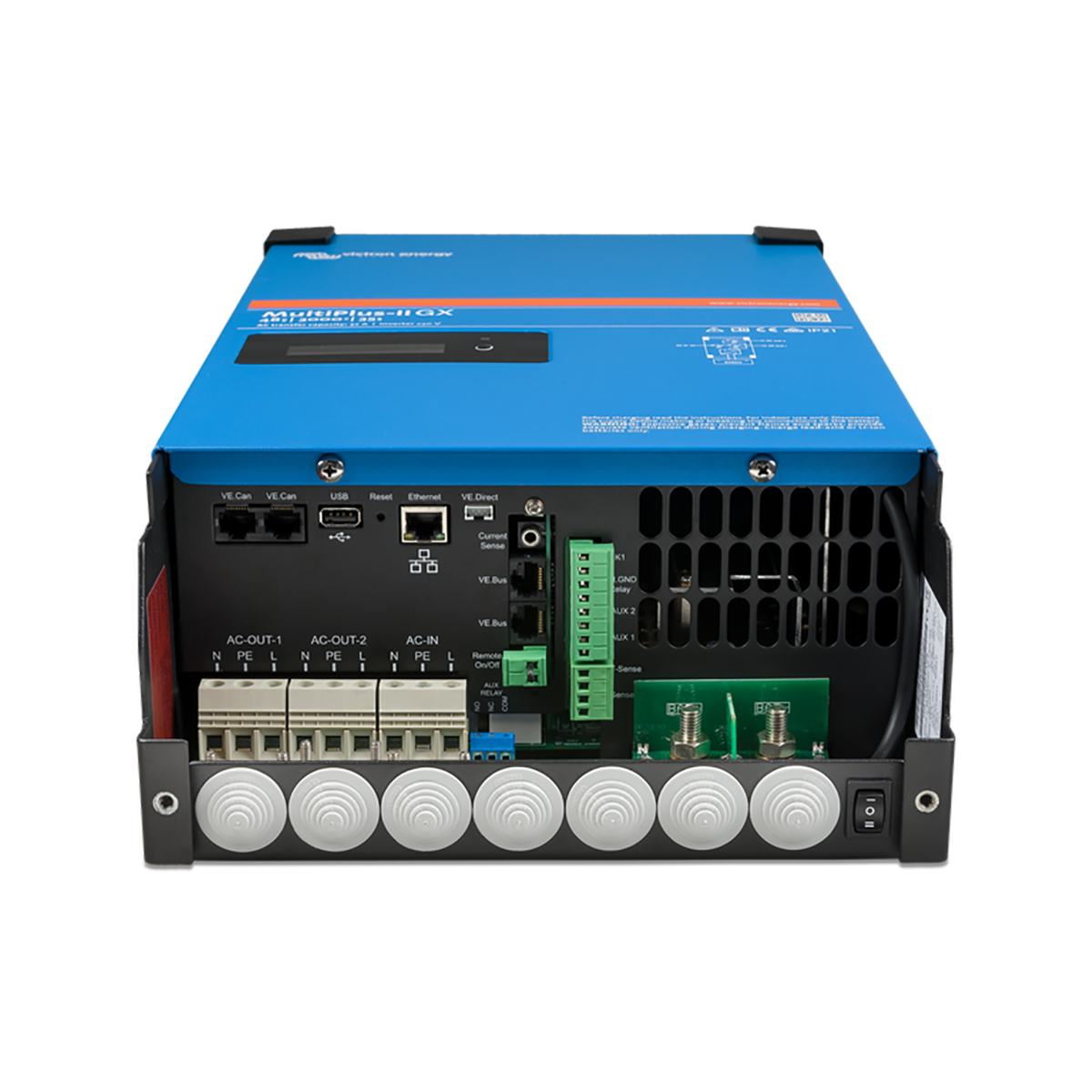

- Built-in GX: Ethernet, WiFi, VE.Direct, BMS-Can and USB - no separate Cerbo GX needed
- Free remote monitoring and control on VRM
- PowerControl and PowerAssist for limited generator or grid supplies
- ESS ready with anti-islanding (check certificates for grid connection)
- Parallel and three-phase capable
Where to use it
The MultiPlus-II 48/3000 GX suits smaller off-grid homes, cabins and sheds, and backup or ESS systems, running AC loads from a 48V battery bank and charging from a generator or the grid.
The built-in GX means solar chargers, batteries and monitors connect straight to it for monitoring on VRM, saving the cost and space of a separate Cerbo GX.
Dimensions
| Height | 506 mm |
| Width | 275 mm |
| Depth | 147 mm |
| Weight | 20 kg |
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications:
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications. Only one GX unit is needed in case of Parallel and three-phase operation.
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
