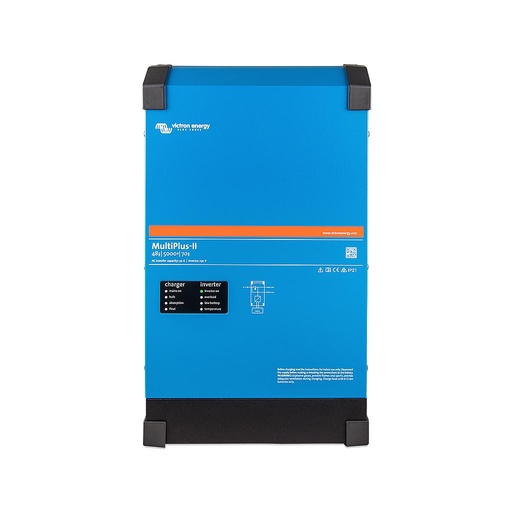

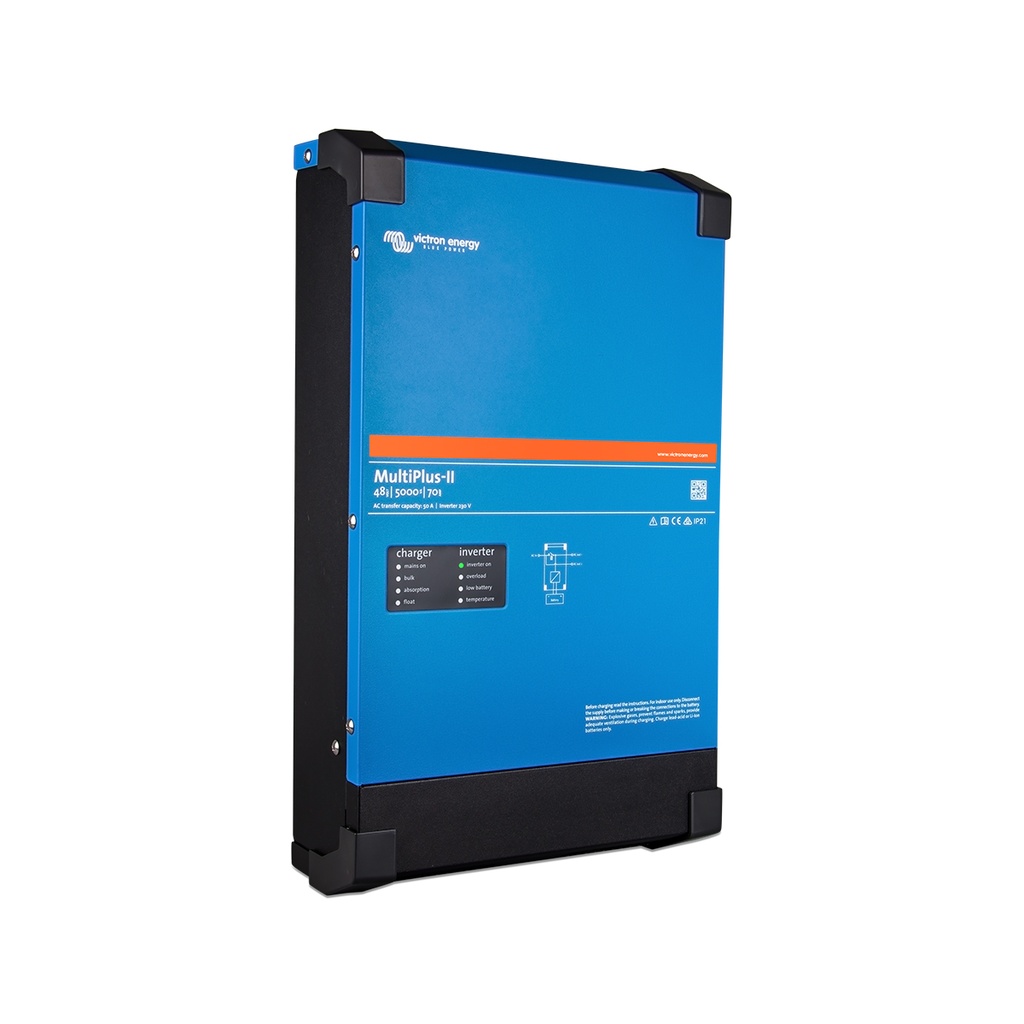

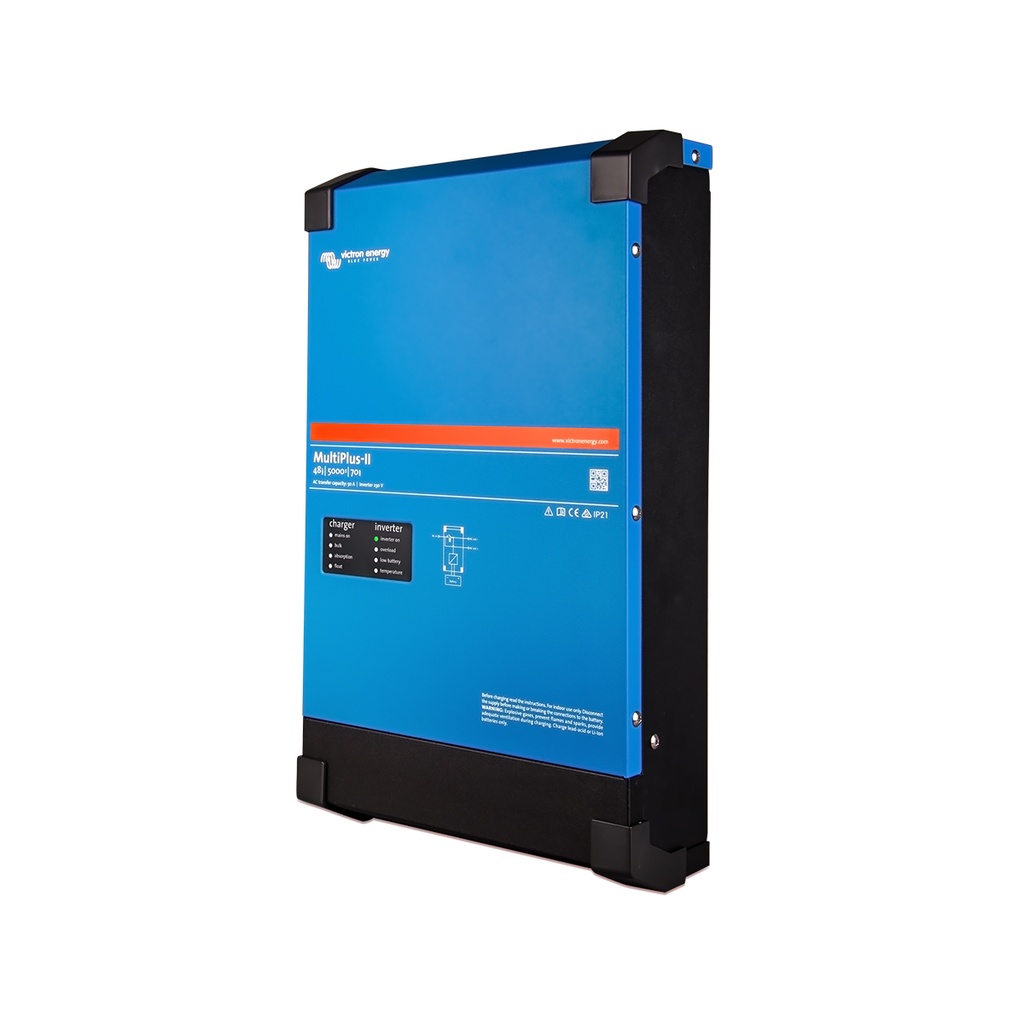

Victron Multiplus-II 48/5000/70-50

(0 reviews)

48 V 5000 VA pure sine wave inverter/charger with 70 A charger and 50 A transfer switch

$ 1,335.03 - Inc GST 1335.03 in stock AUD $ 1,335.03 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: INVERTER CHARGERS, Victron, Multiplus

SKU: PMP482505012

Victron MultiPlus-II 48/5000/70-50

Features:

48 V pure sine wave inverter/charger: 5000 VA (4000 W) continuous
9000 W peak power for motor and compressor starts
70 A adaptive battery charger
50 A automatic transfer switch, under 20 ms changeover
PowerControl and PowerAssist: protects and boosts a limited generator or grid supply
ESS ready with built-in anti-islanding (check the certificates for grid connection)
32 A auxiliary output
Parallel and three-phase capable
Monitor and control locally or remotely with a GX device and VRM

Where to use it

The MultiPlus-II 48/5000 is the heart of many off-grid homes and backup or ESS (Energy Storage System) installations, running household AC loads from a 48 V battery bank and charging from a generator or the grid.

Pair it with SmartSolar MPPT controllers and a Cerbo GX for a complete system. If the grid or generator drops out, the inverter takes over in under 20 milliseconds.

Dimensions

Height	565 mm
Width	320 mm
Depth	149 mm
Weight	30 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Quick-Install-Guide-MultiPlus-II-24V48V-3000VA-48V-5000VA-230Vac-EN.pdf

Download

Manual_MultiPlus-II___Quattro-II_120V-230V-pdf-en.pdf

Download

Datasheet_MultiPlus-II-inverter-charger-EN.pdf

Download

Product Specifications

PowerControl & PowerAssist	Yes
Transfer switch	50 A
Maximum AC input current	50 A
DC Input voltage range	38-66V
Output	230 V AC ± 2%, 50 Hz ± 0.1%
Continuous output power at 25 °C	5000 VA / 4000 W
Continuous output power at 40 °C	3700 W
Continuous output power at 65 °C	3000 W
Max apparent feed-in power	5000 VA
Peak power	9000 W
Maximum efficiency	96%
Zero load power	18 W
Zero load power in AES mode	12 W
Zero load power in Search mode	2 W
AC input	187 - 265 V AC, 45 - 65 Hz
Charge voltage 'absorption'	57.6 V
Charge voltage 'float'	55.2 V
Storage mode	52.8 V
Max. battery charge current	70 A
Battery temperature sensor	Yes
Auxiliary output	Yes (32 A)

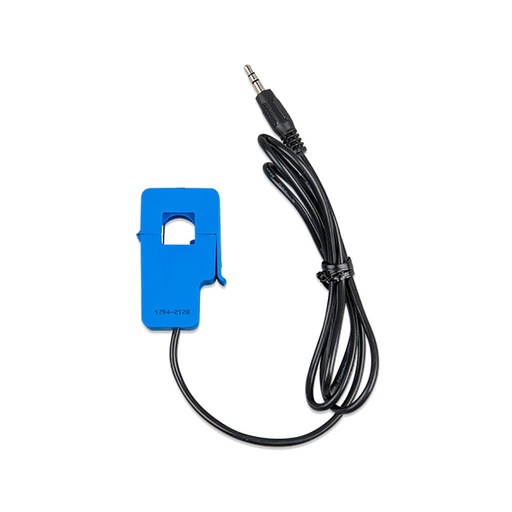

External AC current sensor (optional)	50 A or 100 A
Programmable relay	Yes
Protection	Output short circuit, overload, battery voltage too high or too low, over temperature, 230 V AC on inverter output, input voltage ripple too high
VE.Bus communication port	For parallel and three-phase operation, remote monitoring and system integration
General purpose com. port	Yes, 2x
Remote on-off	Yes
Operating temperature	-40 to +65 °C (fan assisted cooling)
Humidity	Max 95%, non-condensing
Material and colour	Steel, blue RAL 5012
Protection category	IP22
Battery-connection	M8 bolts
230 V AC-connection	Screw terminals 13 mm² (6 AWG)
Weight	30 kg
Dimensions (h x w x d)	565 x 320 x 149 mm (earlier version 607 x 330 x 149 mm)
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
