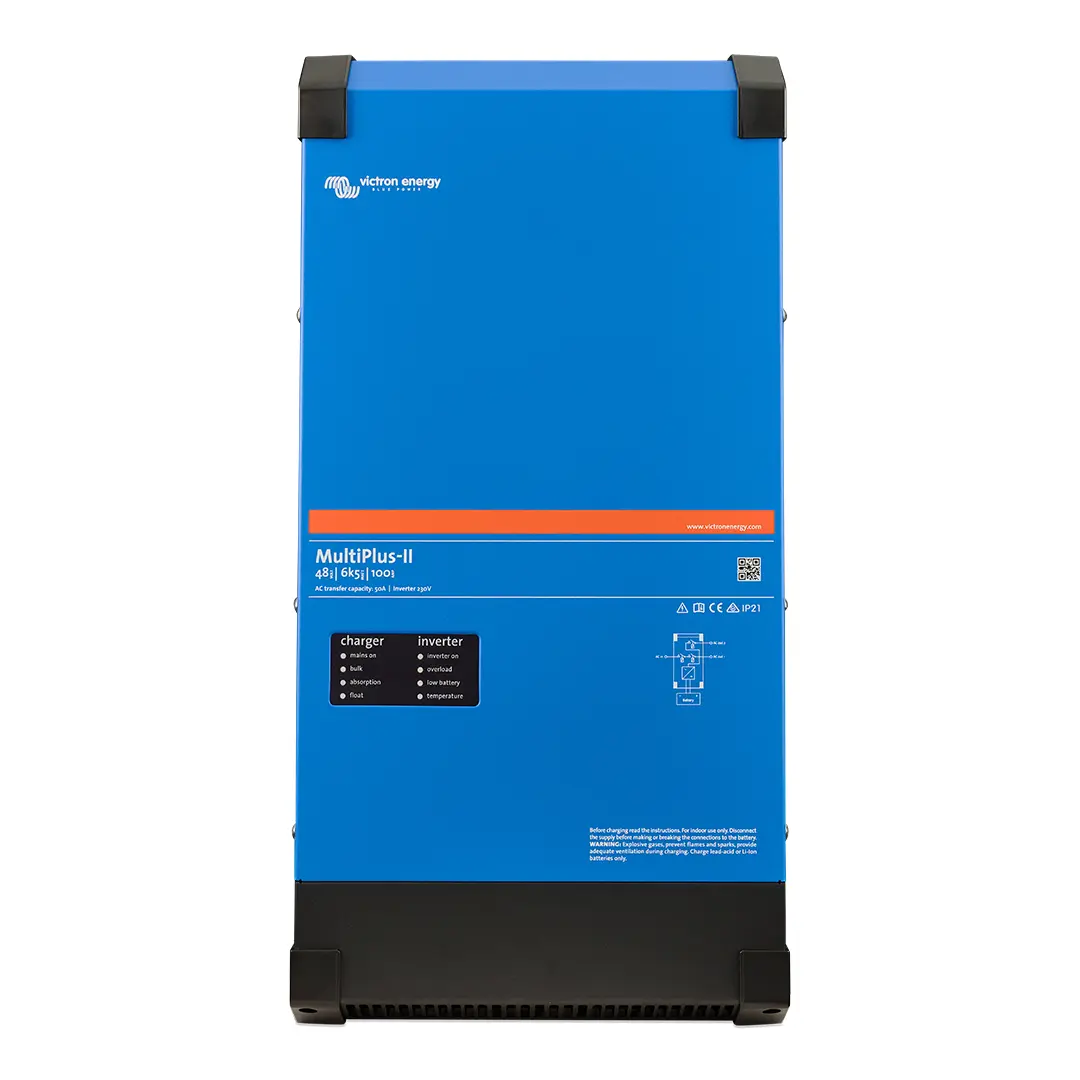

Victron 48/6k5/100-50 230V MultiPlus-II

(0 reviews)

48 V 6.5 kVA inverter with 100 A battery charger and 50 A transfer switch for off-grid power systems

$ 1,499.00 - Inc GST 1499.0 AUD $ 1,499.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: INVERTER CHARGERS, Inverter Chargers, Victron, Multiplus

SKU: PMP482605012

Victron MultiPlus-II 48/6k5/100-50 230V

Features

230 V inverter output
100 A battery charger
50 A transfer switch
Suitable for 48 V systems
PowerControl
PowerAssist
UPS functionality
Dual AC outputs
Parallel capability
Three-phase capability
Adaptive 4-stage charging
ESS compatibility
Programmable relay
VE.Bus communication
AES mode
Search mode
Temperature compensation
Anti-islanding
Multi-battery chemistry support

Where to use it

The Victron MultiPlus-II 48/6500/100-50 is a high-performance inverter-charger engineered for demanding 48 V energy systems, offering a powerful 6.5kVA output and a 100 A integrated battery charger. Ideal for large-scale off-grid residences, residential energy storage (ESS), and high-power expedition vehicles, this versatile unit features seamless UPS functionality and a high-speed 50 A transfer switch to ensure uninterrupted power during grid failures.

Equipped with Victron’s signature PowerControl and PowerAssist technologies, it intelligently manages AC sources to prevent overloads while maximising battery efficiency. Whether used as a standalone hub or scaled in parallel for larger industrial applications, the MultiPlus-II delivers professional-grade reliability and smart energy management for any modern power installation.

Dimensions

Width	320 mm
Height	644 mm
Depth	150 mm
Weight	29 kg

Safety features

Overload protection
Short circuit protection
Overheating protection
Low battery voltage protection
High DC ripple protection
Pure sine wave output
Integrated ground relay
UPS transfer functionality

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_32424-MultiPlus-II___Quattro-II-pdf-en.pdf

Download

Datasheet_MultiPlus-II-inverter-charger-4k-4k5-6k5-EN.pdf

Download

Product Specifications

MultiPlus-II 230V 48/6k5/100-50
PowerControl & PowerAssist	Yes
Transfer switch	50 A
Maximum AC input current	50 A
Inverter
DC Input voltage range	38 - 60 V
Output voltage	230 V ± 2%
Output frequency	50 Hz ± 0.1%
Cont. output power at 25°C	6 kW
Cont. output power at 40°C	5.7 kW
Cont. output power at 65°C	4.6 kW
Time-limited power 1 (cold start)	6.5 kW / 4h
Time-limited power 2 (cold start)	8 kW / 1h
Max apparent feed-in power	6 kW
Peak power	11 kW / 1 min
Maximum efficiency	96 %
Zero load power	28 W
Zero load power in AES mode	18 W
Zero load power in Search mode	8 W
Charger
AC Input voltage range	187 - 265 V
AC Input frequency range	45 - 65 Hz
Charge voltage 'absorption'	57.6 V
Charge voltage 'float'	55.2 V
Storage mode	52.8 V
Max. battery charge current at 25°C	100 A
Max. battery charge current at 40°C	95 A
Battery temperature sensor	Yes
Compatible battery chemistries	Lithium, Lead-acid, Zinc-Bromine and more
General
Auxiliary output	Yes (32 A)
Interfaces	BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi
External AC current sensor (optional)	50 A or 100 A
Programmable relay	Yes
Protection	a - g
VE.Bus communication port	For parallel and three-phase operation, remote monitoring and system integration
General-purpose communication port	Yes, 2x
Remote on-off	Yes
Operating temperature range	-40°C to +65°C (fan-assisted cooling)
Maximum humidity (non-condensing)	95 %
Maximum altitude	2000 m
Enclosure
Material & Colour	Steel, blue RAL 5012
Protection category	IP21
Battery-connection	M8 bolts
230 V AC connection	Screw terminals 13 mm² (6 AWG)
Weight	29 kg
Dimensions (h x w x d)	644 x 320 x 150 mm
Standards
Safety	EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity	EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply	IEC 62040
Anti-islanding	IEC 62116
