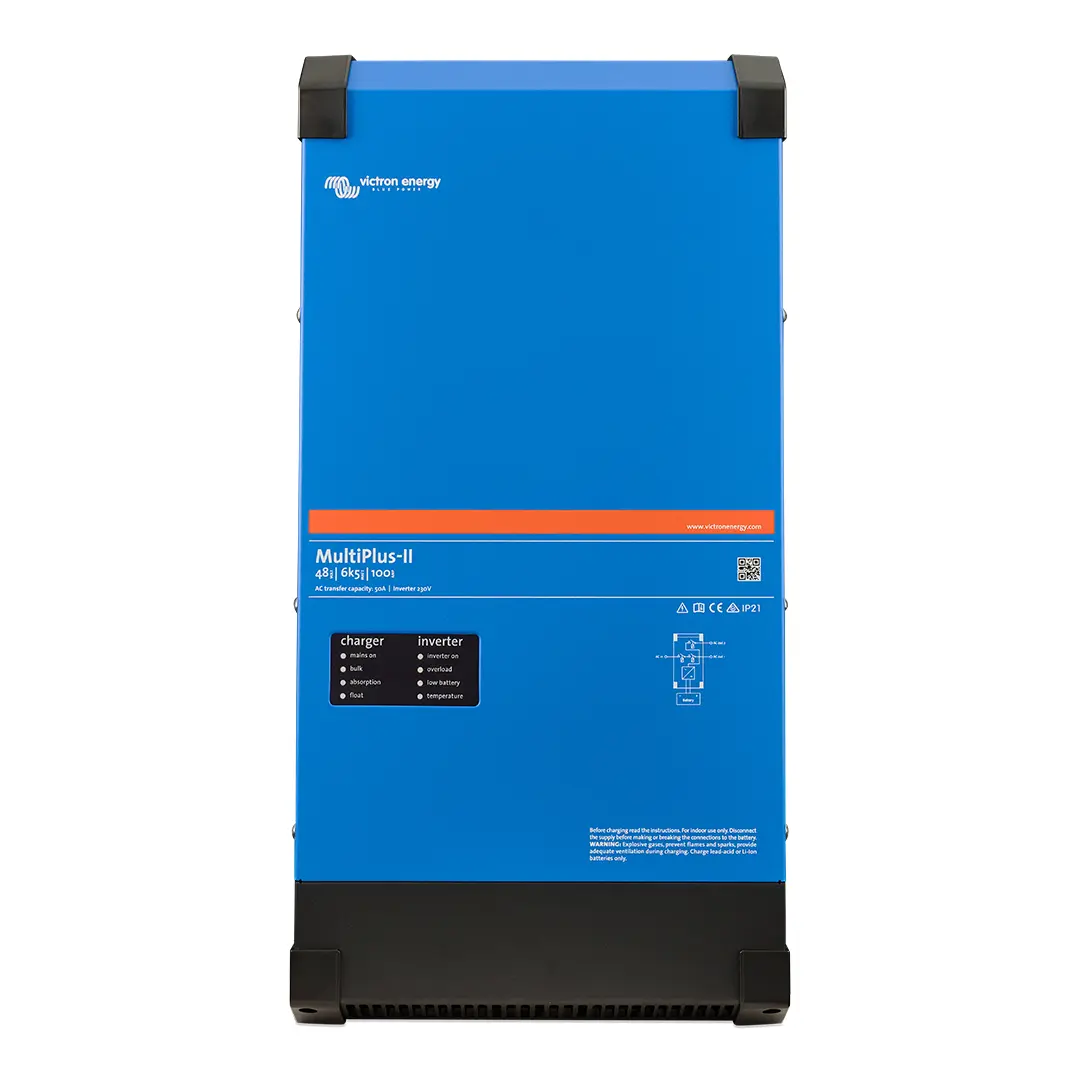

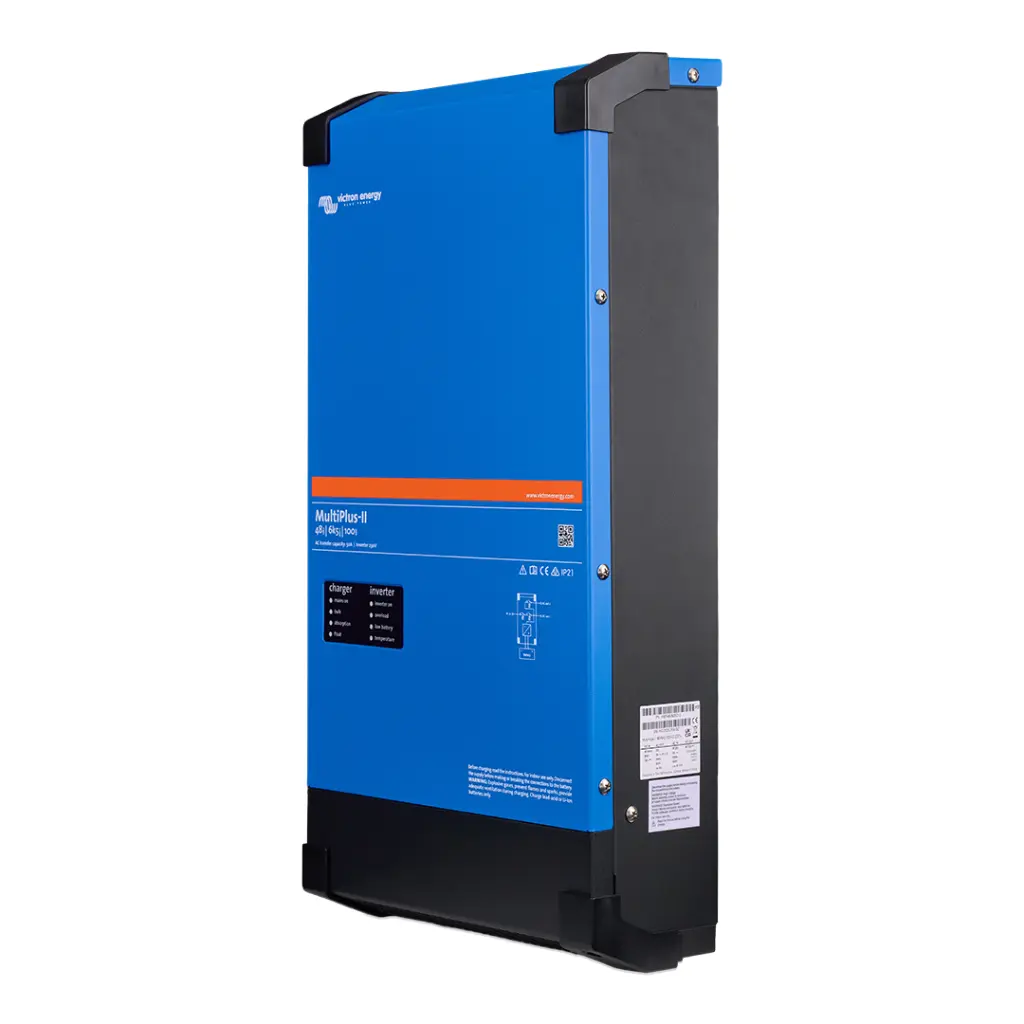

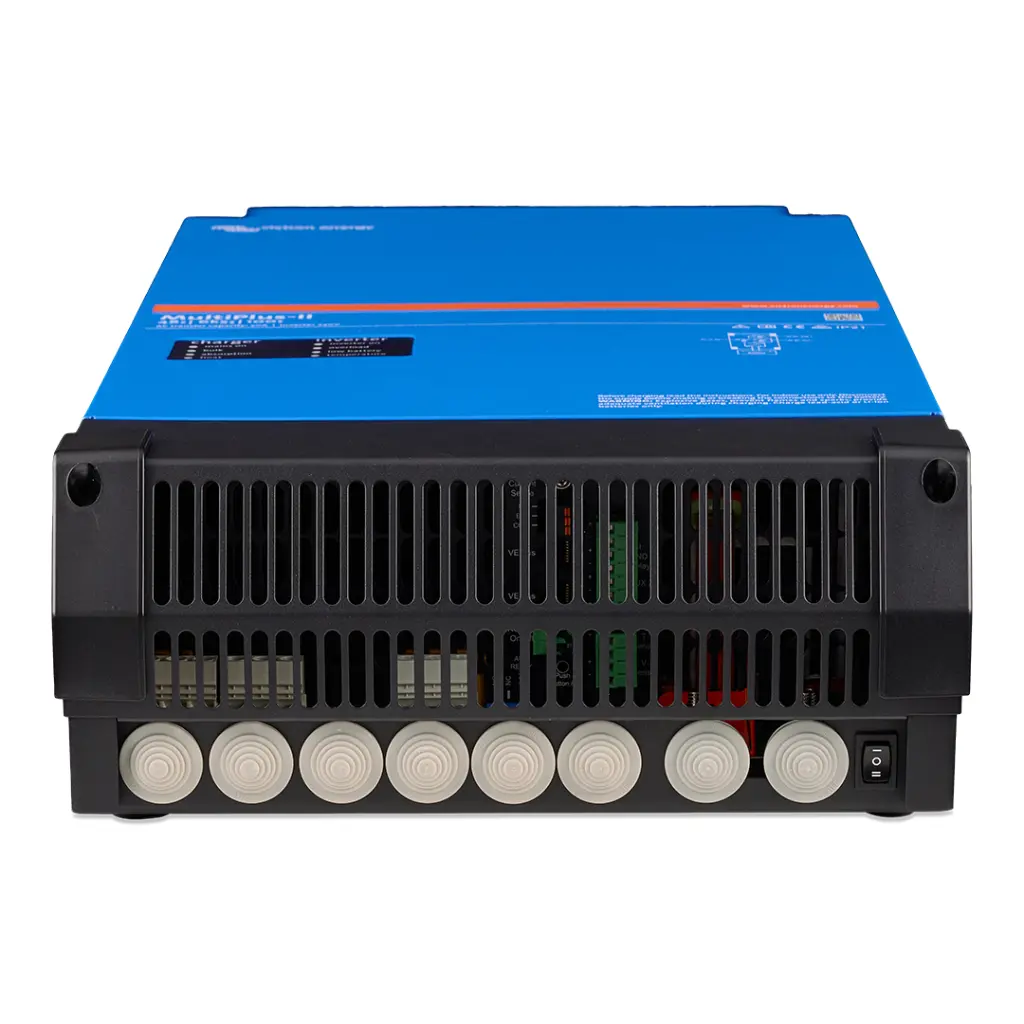

Victron 48/6k5/100-50 230V MultiPlus-II
https://www.springers.com.au/shop/pmp482605012-victron-48-6k5-100-50-230v-multiplus-ii-19309 https://www.springers.com.au/web/image/product.template/19309/image_1920?unique=640d898VICTRON
Victron MultiPlus-II 48/6k5/100-50 230V
- 230 V inverter output
- 100 A battery charger
- 50 A transfer switch
- Suitable for 48 V systems
- PowerControl
- PowerAssist
- UPS functionality
- Dual AC outputs
- Parallel capability
- Three-phase capability
- Adaptive 4-stage charging
- ESS compatibility
- Programmable relay
- VE.Bus communication
- AES mode
- Search mode
- Temperature compensation
- Anti-islanding
- Multi-battery chemistry support
Where to use it
The Victron MultiPlus-II 48/6500/100-50 is a high-performance inverter-charger engineered for demanding 48 V energy systems, offering a powerful 6.5kVA output and a 100 A integrated battery charger. Ideal for large-scale off-grid residences, residential energy storage (ESS), and high-power expedition vehicles, this versatile unit features seamless UPS functionality and a high-speed 50 A transfer switch to ensure uninterrupted power during grid failures.
Equipped with Victron’s signature PowerControl and PowerAssist technologies, it intelligently manages AC sources to prevent overloads while maximising battery efficiency. Whether used as a standalone hub or scaled in parallel for larger industrial applications, the MultiPlus-II delivers professional-grade reliability and smart energy management for any modern power installation.
Dimensions
| Width | 320 mm |
| Height | 644 mm |
| Depth | 150 mm |
| Weight | 29 kg |
Safety features
- Overload protection
- Short circuit protection
- Overheating protection
- Low battery voltage protection
- High DC ripple protection
- Pure sine wave output
- Integrated ground relay
- UPS transfer functionality
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Product Specifications
| MultiPlus-II 230V 48/6k5/100-50 | |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 50 A |
| Maximum AC input current | 50 A |
| Inverter | |
| DC Input voltage range | 38 - 60 V |
| Output voltage | 230 V ± 2% |
Output frequency | 50 Hz ± 0.1% |
| Cont. output power at 25°C | 6 kW |
| Cont. output power at 40°C | 5.7 kW |
| Cont. output power at 65°C | 4.6 kW |
| Time-limited power 1 (cold start) | 6.5 kW / 4h |
| Time-limited power 2 (cold start) | 8 kW / 1h |
| Max apparent feed-in power | 6 kW |
| Peak power | 11 kW / 1 min |
| Maximum efficiency | 96 % |
| Zero load power | 28 W |
| Zero load power in AES mode | 18 W |
| Zero load power in Search mode | 8 W |
| Charger | |
| AC Input voltage range | 187 - 265 V |
| AC Input frequency range | 45 - 65 Hz |
| Charge voltage 'absorption' | 57.6 V |
| Charge voltage 'float' | 55.2 V |
| Storage mode | 52.8 V |
| Max. battery charge current at 25°C | 100 A |
| Max. battery charge current at 40°C | 95 A |
| Battery temperature sensor | Yes |
| Compatible battery chemistries | Lithium, Lead-acid, Zinc-Bromine and more |
| General | |
| Auxiliary output | Yes (32 A) |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| External AC current sensor (optional) | 50 A or 100 A |
| Programmable relay | Yes |
| Protection | a - g |
| VE.Bus communication port | For parallel and three-phase operation, remote monitoring and system integration |
| General-purpose communication port | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40°C to +65°C (fan-assisted cooling) |
| Maximum humidity (non-condensing) | 95 % |
| Maximum altitude | 2000 m |
| Enclosure | |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP21 |

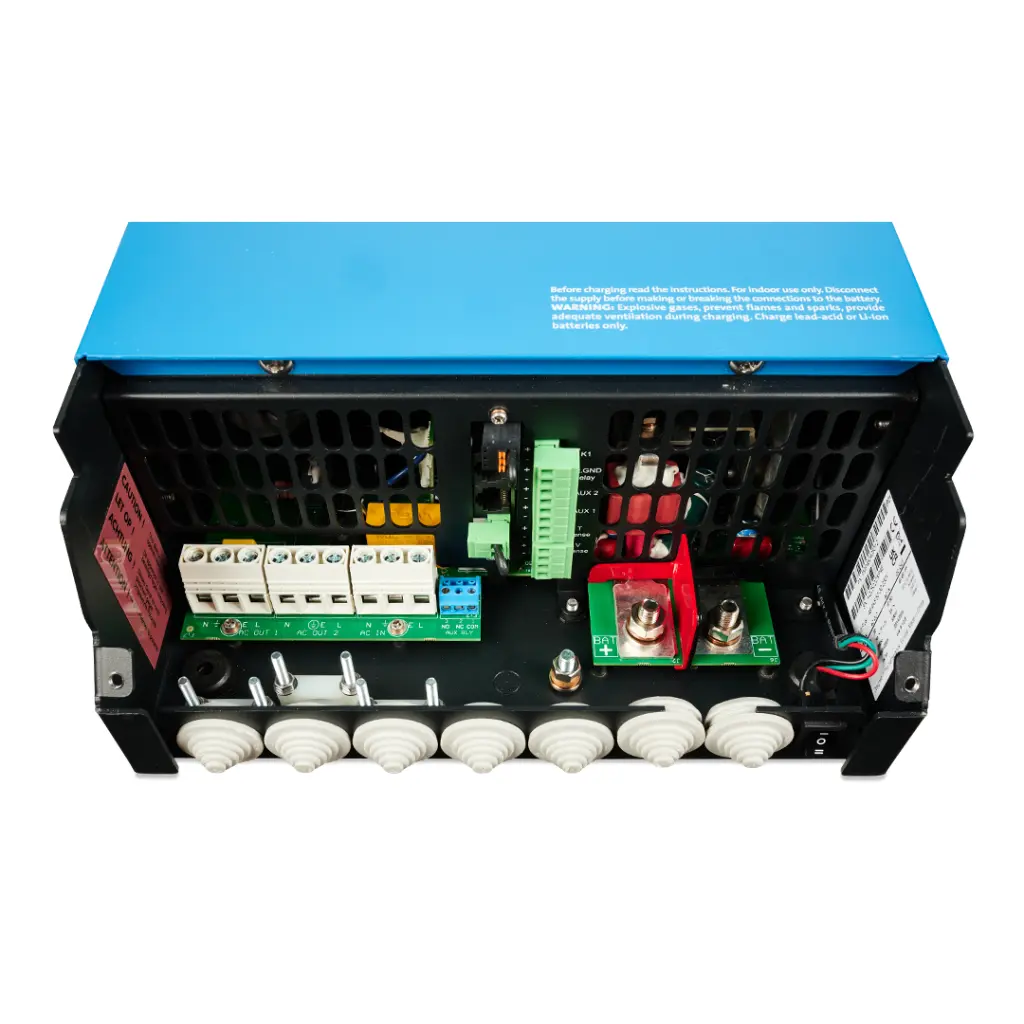

| Battery-connection | M8 bolts |
| 230 V AC connection | Screw terminals 13 mm² (6 AWG) |
| Weight | 29 kg |
| Dimensions (h x w x d) | 644 x 320 x 150 mm |
| Standards | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Uninterruptible power supply | IEC 62040
|
| Anti-islanding | IEC 62116
|
