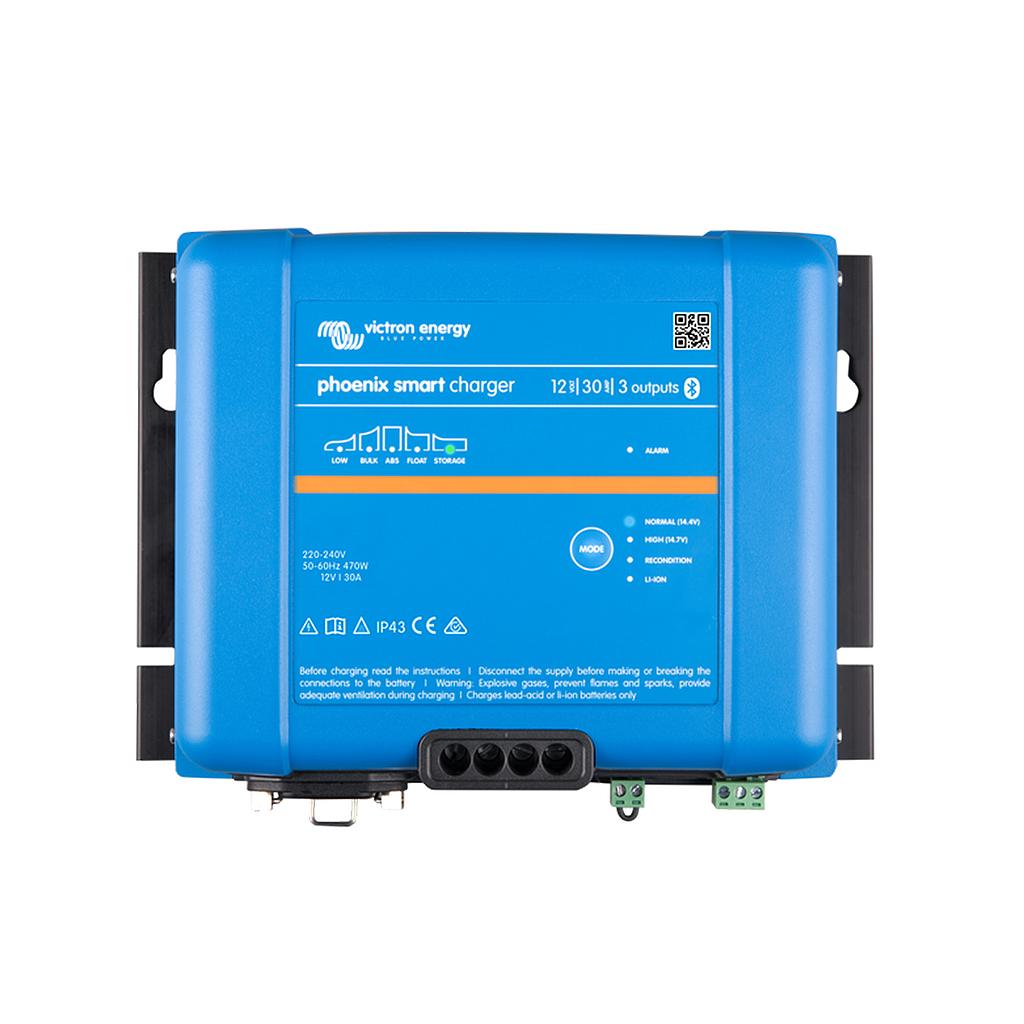

Victron Phoenix Smart Charger 12/30 (3)

(0 reviews)

12V 30A Bluetooth battery charger with three full-current outputs (3), lithium ready

$ 685.83 - Inc GST 685.83 in stock AUD $ 685.83 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaIn stock

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Battery Chargers, AC Chargers, AC Chargers

SKU: PSC123053095

Victron Phoenix Smart Charger 12/30 (3)

Features:

12V 30A battery charger with three full-current outputs (3)
Built-in Bluetooth and VE.Direct: set up and monitor with VictronConnect
6-stage adaptive charging (3-stage for lithium)
Lead-acid and lithium (Li-ion) charge modes
Low current mode (15A)
94% efficient, 1W no-load power
Programmable relay and remote on/off
Can be used as a 12V power supply

Where to use it

Powerful mains charging for 12V house batteries in boats, motorhomes, trucks and off-grid systems, charging up to three battery banks at once.

It needs an IEC (C13) AC lead with an AU plug, which isn't included.

Dimensions

Height	180 mm
Width	249 mm
Depth	100 mm
Weight	3.5 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_Phoenix-Smart-IP43-Charger-230V-EN.pdf

Download

Manual_Phoenix_Smart_IP43_Charger_120-240V-pdf-en.pdf

Download

Product Specifications

Input voltage	230V AC (210-250V), 45-65 Hz
DC input voltage range	290-355V DC
Power factor	0.7
No load power consumption	1 W
Efficiency	94%
Charge voltage (absorption / float / storage)	Normal: 14.4 / 13.8 / 13.2V, High: 14.7 / 13.8 / 13.2V, Li-ion: 14.2V / n/a / 13.5V
Number of battery connections	3 (full current each, total limited to rated current)
Charge current house battery	30A
Low current mode	15A
Temperature compensation - Default	-16 mV/°C
Charge algorithm	6-stage adaptive (3-stage for Li-ion)
Fully programmable	Yes, Bluetooth and/or VE.Direct
Can be used as power supply	Yes
Protection	Battery reverse polarity (internal fuse), output short circuit, over temperature
Operating temperature range	-20 to 60°C (rated current up to 40°C, derating to 20% at 60°C)
Remote on/off	Yes (2-pole terminal)
Programmable relay	5A up to 28V DC
Battery-connection	Screw terminals 16mm² (AWG6)
AC-connection	IEC 320 C14 inlet with retainer clip (AC cord ordered separately)
Protection category	IP43 (electronics), IP22 (connection area)
Weight	3.5 kg
Dimensions (h x w x d)	180 x 249 x 100 mm
