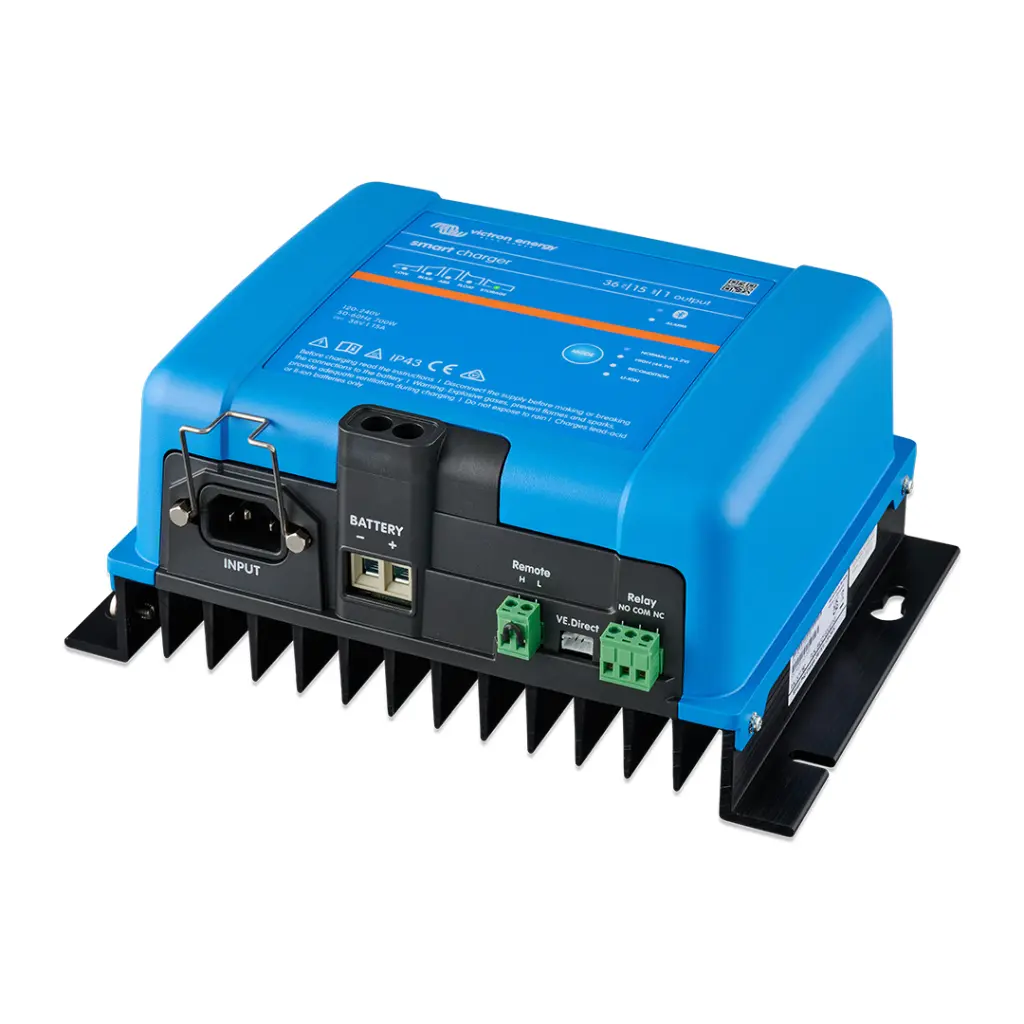

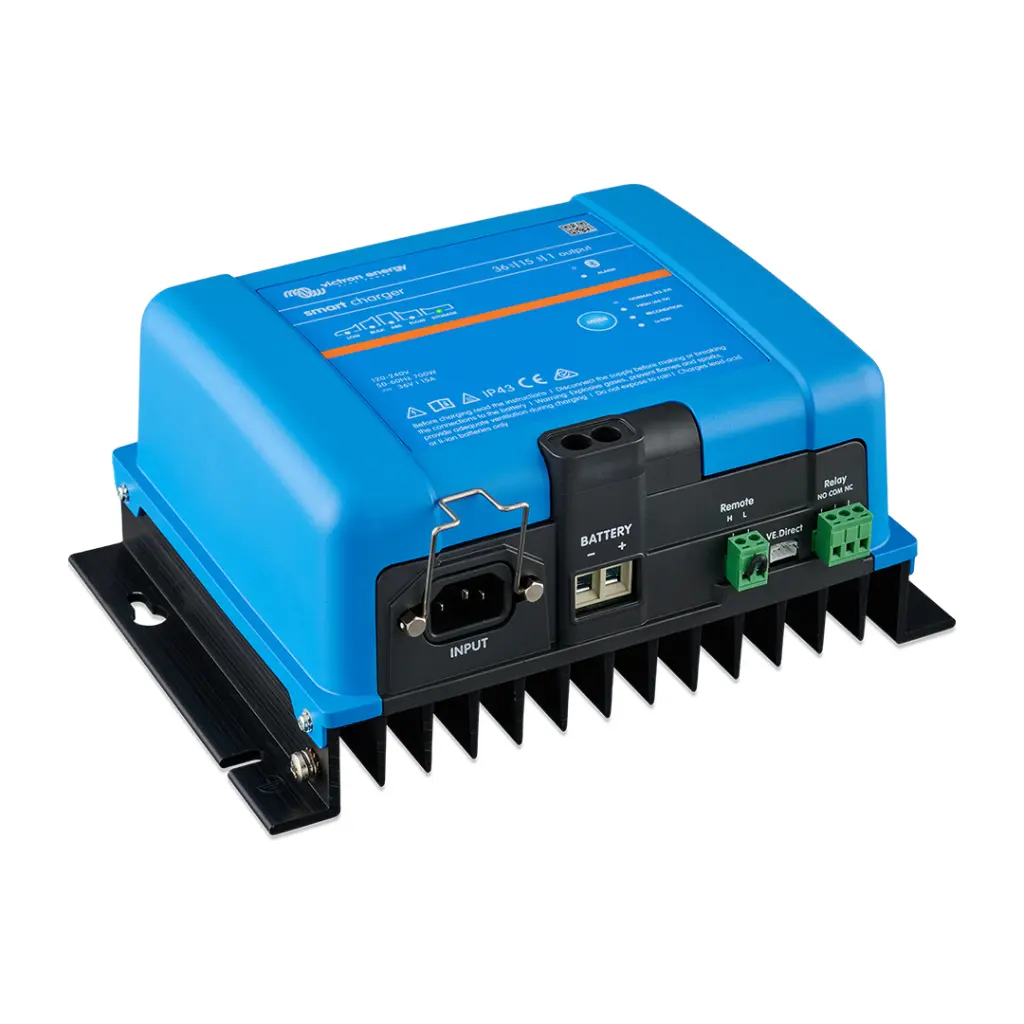

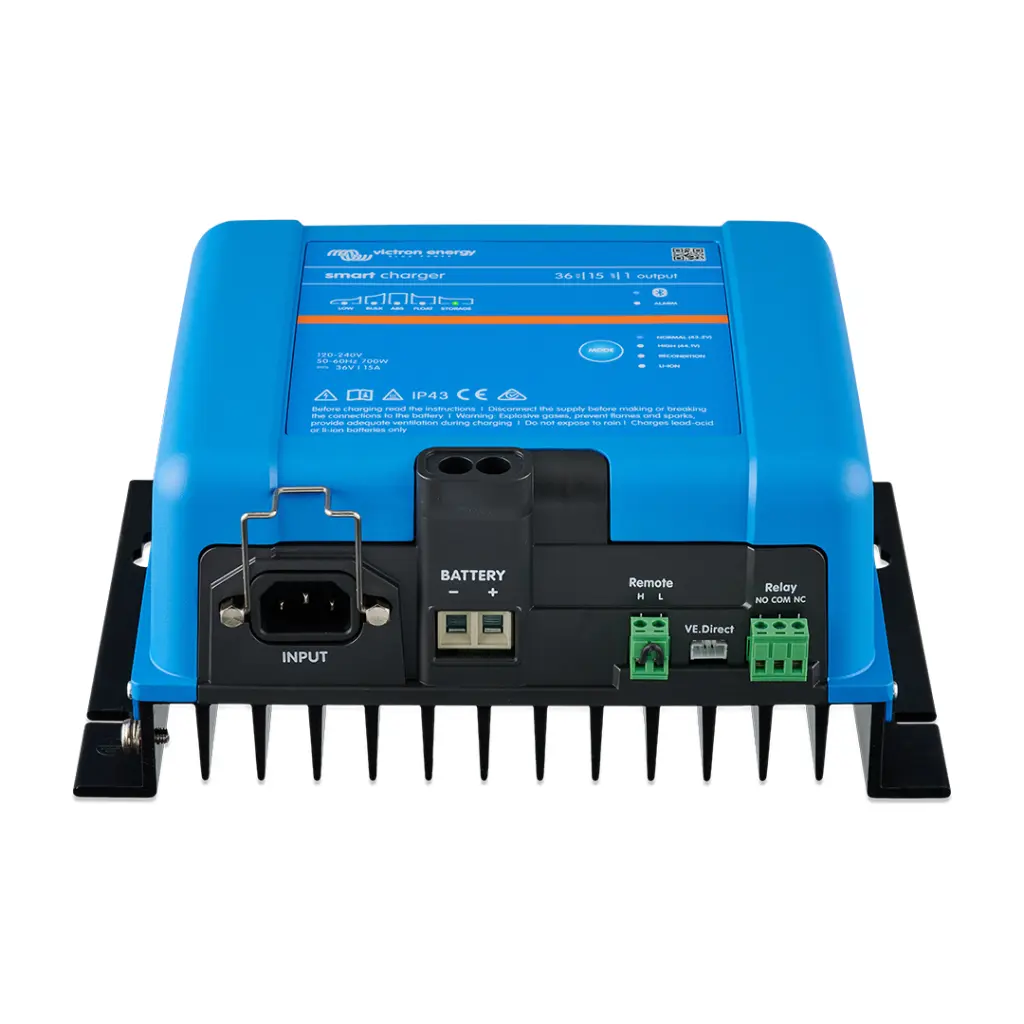

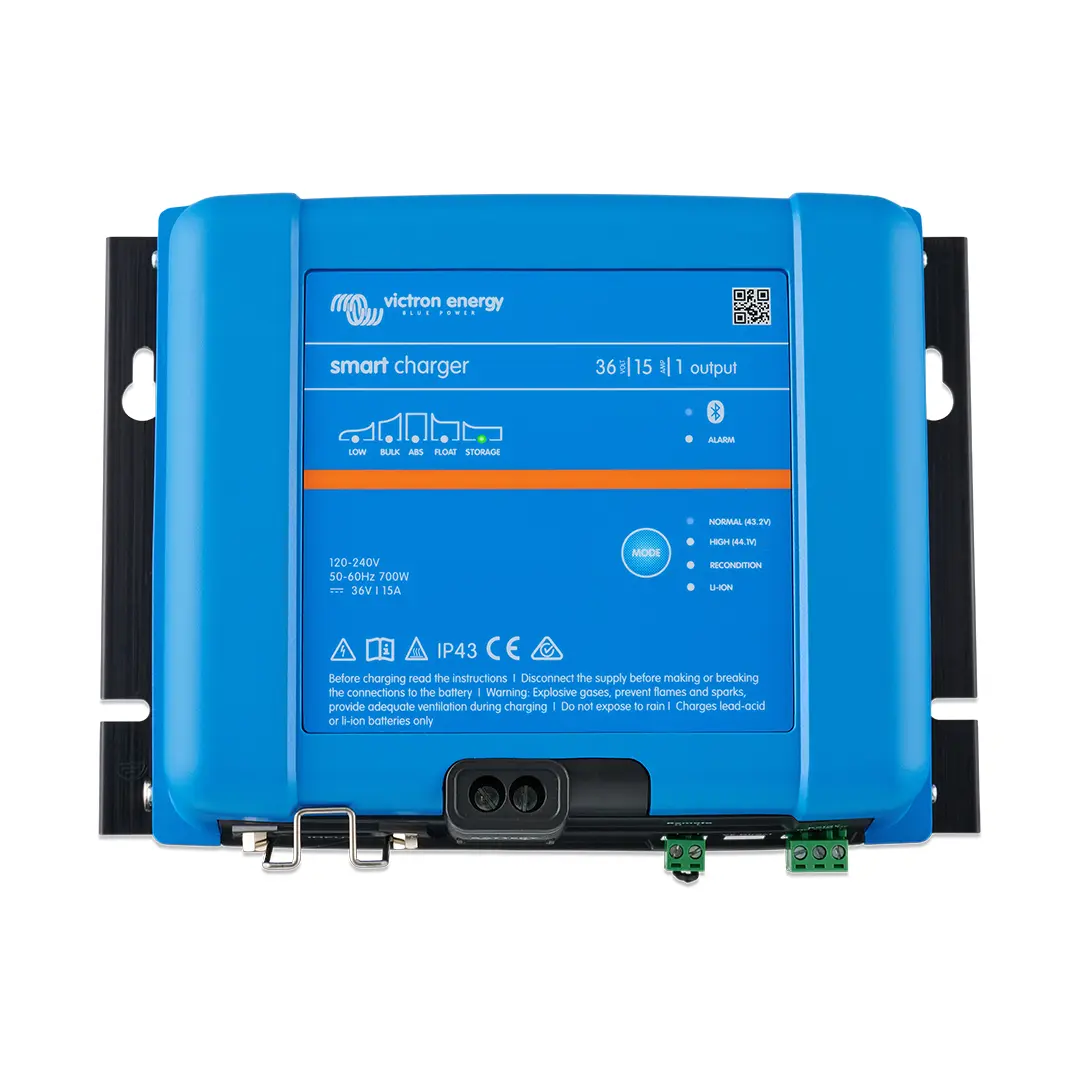

The Victron Smart IP43 Charger 36 V 15 A is designed for 36 V battery systems requiring intelligent, high-efficiency AC-to-DC multi-stage charging. It is ideal for applications in eMobility, marine vessels, recreational vehicles, golf carts, industrial equipment, and remote off-grid solar power setups running on a 36 V bank.
| Width | 249 mm |
| Height | 180 mm |
| Depth | 116 mm |
| Weight | 2.7 kg |
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
| Model | Smart IP43 Charger 36/15 (1) |
| Input Voltage Range (AC) | 85 - 250 V AC (Full power from 100 V AC, startup from 90 V AC) |
| DC Input Voltage Range | 90 - 375 V DC |
| Frequency | 45 – 65 Hz |
| Power Factor | 1 |
| No Load Power Consumption | 1 W |
| Back Current Drain | < 1 mA |
| Maximum Efficiency | 96% |
| Charge Voltage - Normal Mode | Absorption: 43.2 V Float: 41.4 V Storage: 39.6 V |
| Charge Voltage - High Mode | Absorption: 44.1 V Float: 41.4 V Storage: 39.6 V |
| Charge Voltage - Lithium Mode | Absorption: 42.6 V Float: N/A Storage: 40.5 V |
Fully Programmable | Yes, with Bluetooth and/or VE.Direct |
Maximum Input Current Setting | 3 - 10 A |
Number of Battery Connections | 1 |
House Battery Charge Current | 15 A |
Low Current Mode | 7.5 A |
Temperature Compensation | -84 mV/°C |
| Charge Algorithm | 6-stage adaptive (3-stage for Li-ion) |
| Protection | Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature |
| Can be Used as a Power Supply | Yes, output voltage can be set with Bluetooth and/or VE.Direct |
| Operating Temperature Range | -20 to 60°C (Rated output up to 40°C, derates linearly to 20% at 60°C) |
| Humidity (non-condensing) | Max. 95% |
| Remote On/Off | Yes (2-pole terminal) |
| Programmable Relay | Yes (SPDT - 5 A up to 250 V AC / 5 A up to 28 V DC) |
| Wireless Communication | Bluetooth built-in (Power: -4 dBm, Frequency: 2402 – 2480 MHz) |
| Data Communication | VE.Direct port |
Enclosure | |
| Enclosure Material & Color | Aluminium (Blue RAL 5012) |
| Battery Connection Terminals | Screw terminals 16 mm² (AWG6) |
| AC Connection | IEC 320 C14 inlet with retainer clip |
| Protection Category | IP43 |
| Dimensions (H x W x D) | 180 x 249 x 116 mm |
| Weight | 2.7 kg |
Standards | |
Safety | EN 60335-1, EN 60335-2-29 |
Emission | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
Immunity | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
Vibration | IEC68-2-6:10-150Hz/1.0G |
