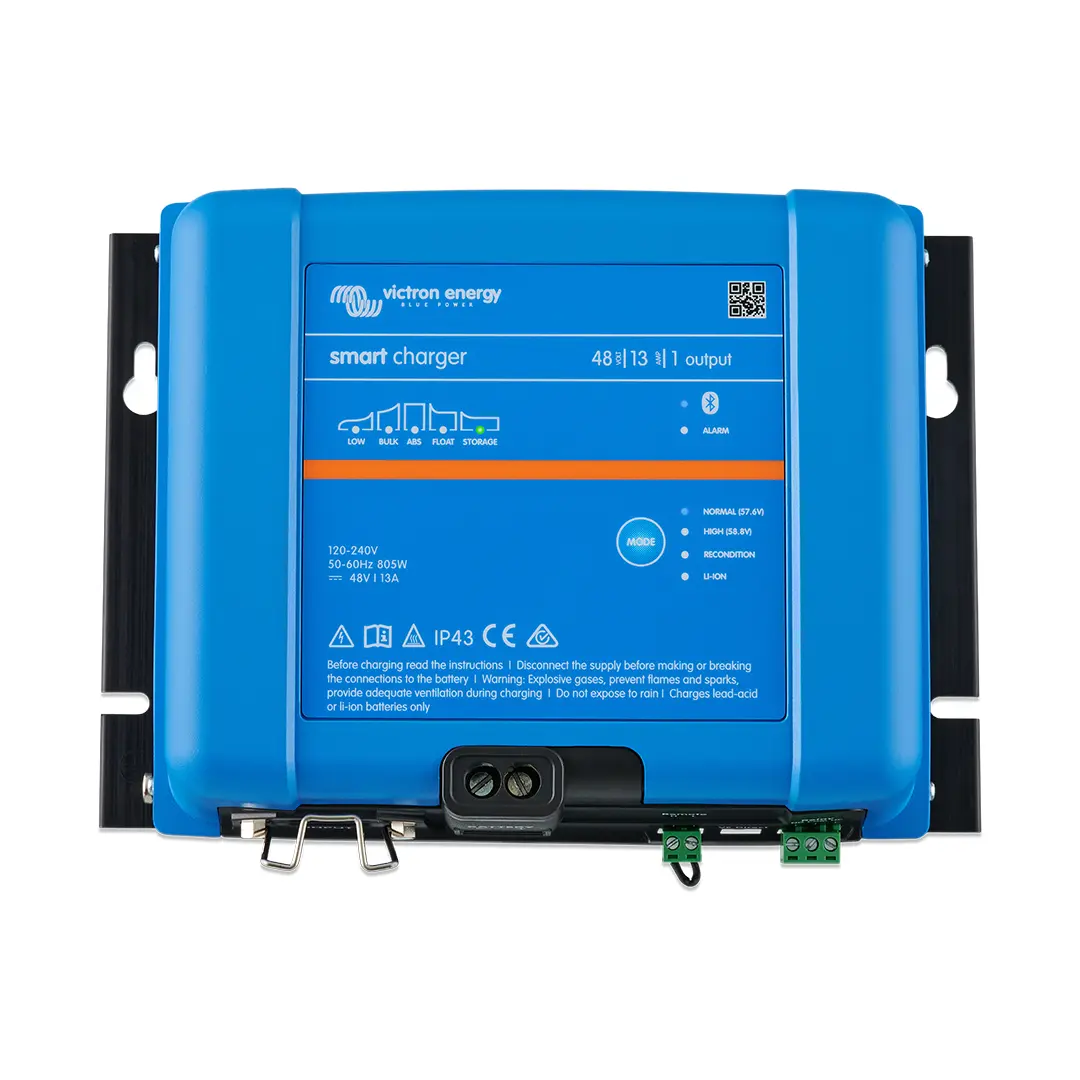

Victron 48/13 1-Output Smart IP43 Charger

Victron 48/13 1-Output Smart IP43 Charger

(0 reviews)

High-efficiency adaptive 13 A AC battery charger with integrated Bluetooth monitoring for 48 V systems

$ 759.00 - Inc GST 759.0 AUD $ 759.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: AC Chargers, AC Chargers

SKU: PSC481350095

Victron 48/13 1-Output Smart IP43 Charger

Features

13 A charging
Single output charger
Suitable for 48 V systems
Adaptive 6-stage charging algorithm
Built-in Bluetooth
Supports 120 - 240 V AC input
Compatible with AGM, gel, flooded, and lithium batteries
Deep discharge recovery
VE.Direct port for Cerbo GX & GX device integration

Where to use it

Ideal for charging 48V battery systems in off-grid solar setups, remote cabins, industrial backup power systems, and marine or RV installations connected to shore power or generators.

Dimensions

Width	249 mm
Height	180 mm
Depth	116 mm
Weight	2.7 kg

Safety features

IP43 ingress protection rating against solid objects and spray
Integrated battery temperature compensation (for lead-acid chemistry)
Storage mode to reduce float voltage and prevent battery degradation during long-term standby
Over-temperature and short-circuit protection

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_109244-Smart_IP43_Charger_120-240V-pdf-en.pdf

Download

Datasheet-Smart-IP43-Charger-120-240V-EN-.pdf

Download

Product Specifications

Model	Smart IP43 Charger 48/13 (1)
Input Voltage Range (AC)	85 - 250 V AC (Full power from 100 V AC, startup from 90 V AC)
DC Input Voltage Range	90 - 375 V DC
Frequency	45 – 65 Hz
Power Factor	1
No Load Power Consumption	1 W
Back Current Drain	< 1 mA
Maximum Efficiency	96%
Charge Voltage - Normal Mode	Absorption: 57.6 V Float: 55.2 V Storage: 52.8 V
Charge Voltage - High Mode	Absorption: 58.8 V Float: 55.2 V Storage: 52.8 V
Charge Voltage - Lithium Mode	Absorption: 56.8 V Float: N/A Storage: 54.0 V
Fully Programmable	Yes, with Bluetooth and/or VE.Direct
Maximum Input Current Setting	3 - 10 A
Number of Battery Connections	1
House Battery Charge Current	13 A
Low Current Mode	6.5 A
Temperature Compensation	-64 mV/°C
Charge Algorithm	6-stage adaptive (3-stage for Li-ion)
Protection	Battery reverse polarity (fuse, not user accessible) / Output short circuit / Over temperature
Can be Used as a Power Supply	Yes, output voltage can be set with Bluetooth and/or VE.Direct
Operating Temperature Range	-20 to 60°C (Rated output up to 40°C, derates linearly to 20% at 60°C)
Humidity (non-condensing)	Max. 95%
Remote On/Off	Yes (2-pole terminal)
Programmable Relay	Yes (SPDT - 5 A up to 250 V AC / 5 A up to 28 V DC)
Wireless Communication	Bluetooth built-in (Power: -4 dBm, Frequency: 2402 – 2480 MHz)
Data Communication	VE.Direct port
Enclosure
Enclosure Material & Color	Aluminium (Blue RAL 5012)
Battery Connection Terminals	Screw terminals 16 mm² (AWG6)
AC Connection	IEC 320 C14 inlet with retainer clip
Protection Category	IP43
Dimensions (H x W x D)	180 x 249 x 116 mm
Weight	2.7 kg
Standards
Safety	EN 60335-1, EN 60335-2-29
Emission	EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity	EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Vibration	IEC68-2-6:10-150Hz/1.0G
