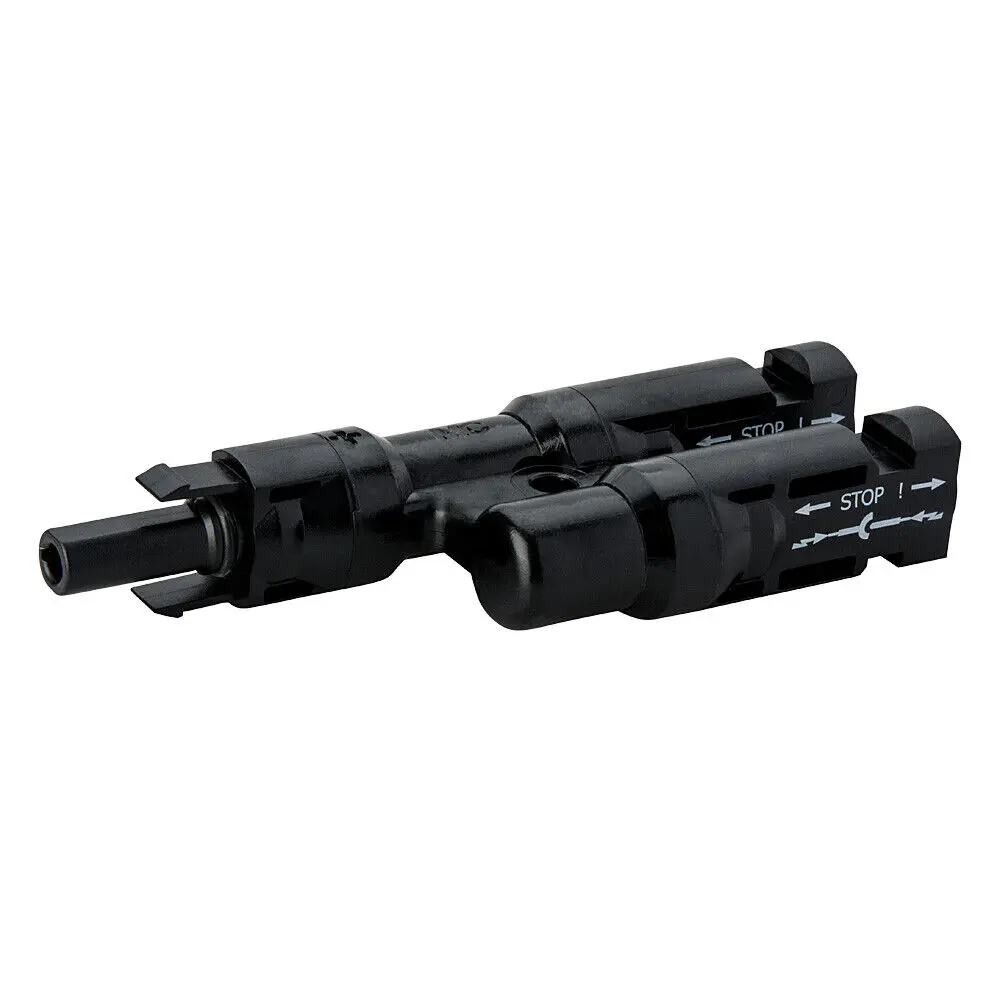

Staubli MC4 Evo 2 Branch Plug 2x Male + 1x Female
Connector features
- Genuine Stäubli MC4-Evo 2 branch plug
- Joins two solar strings in parallel
- Rated 1500V DC; 60A (IEC), 95A (UL)
- Plug-and-play: no crimping or torqueing needed
Build
- IP65 / IP68 when mated
- Mates with original MC4 and MC4-Evo 2 cable connectors
- Salt mist and UV resistant
- Fit sealing caps to any unused connections
Where to use it
The Staubli MC4 Evo 2 Branch Plug 2x Male + 1x Female lets you join two solar panels or strings in parallel without a combiner box, in grid-connected, off-grid, caravan and boat solar systems.
Check the combined current of the strings stays within the connector rating, and fit sealing caps to any unmated connections.
Dimensions
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Staubli
Stäubli Electrical Connectors (formerly Multi-Contact) invented the MC4 connector, the most widely used connector in solar PV. Genuine Stäubli MC4 connectors use the company's MULTILAM contact technology for low, stable contact resistance over the life of the system, and are certified to IEC and UL standards.
