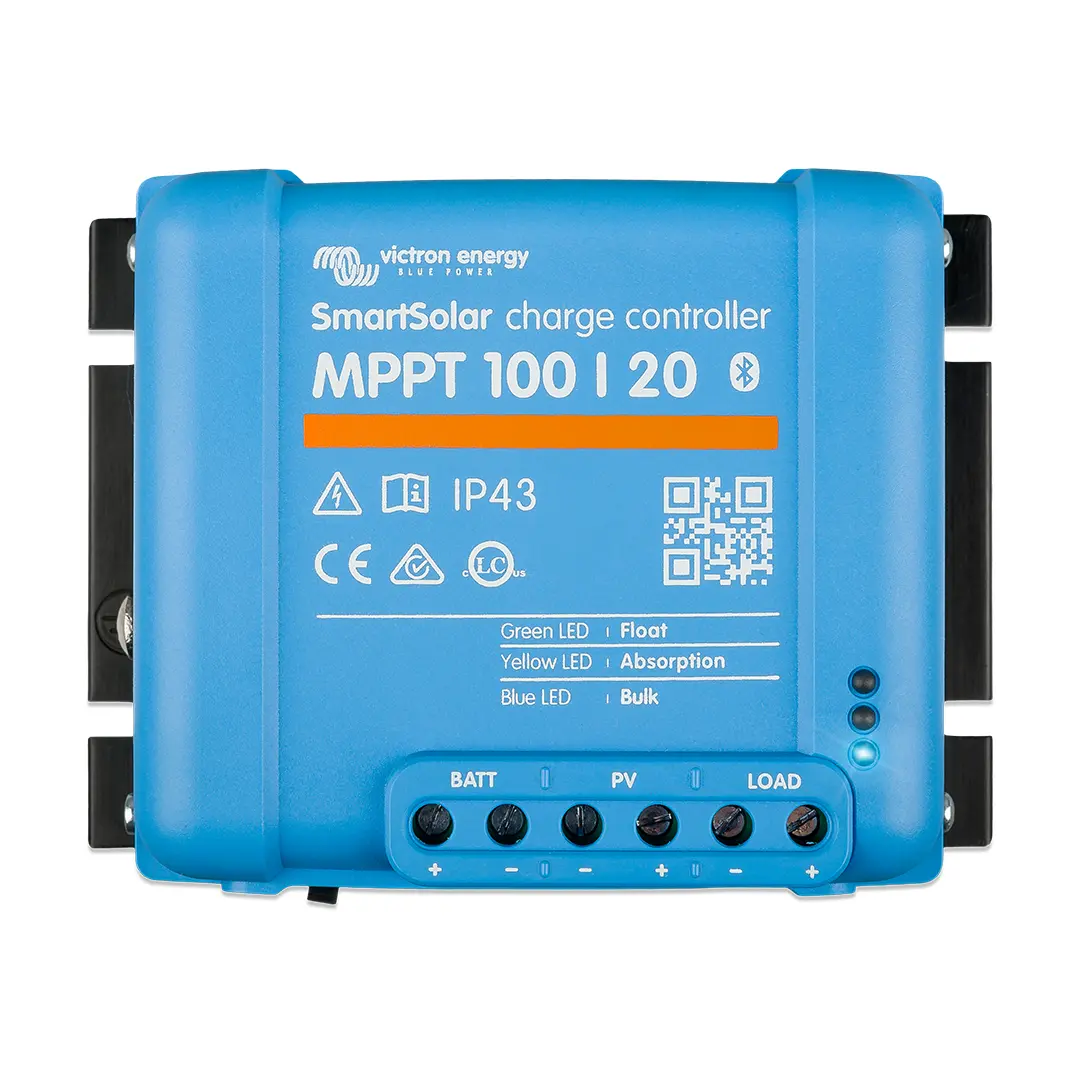

Victron 100/20 SmartSolar MPPT Controller (Up to 48V)
100 V / 20 A maximum power point tracking solar charge controller for 12 - 48 V systems
| Brand: Victron |
VICTRON
30-day money-back guarantee
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Ships in 2-3 Business Days (online only products may differ)
Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers
SCC110020160R
Victron 100/20 SmartSolar MPPT Controller (Up to 48V)
Features
- Maximum power point tracking solar charge controller
- Built-in Bluetooth for ease of programming & monitoring
- 100 V
- 20 A
- Suitable for 12 - 48 V systems
- Internal temperature sensor
- Direct communication port for wired data connection
- Over-temperature sensor
- Flexible charge algorithm
- VE.Direct port
- Intelligent battery management
- Programmable battery charge algorithm
- Additional SmartSolar LCD display available
Where to use it
A Victron SmartSolar MPPT charge controller is used in off-grid solar power systems to maximise energy harvest, particularly in mobile applications like RVs, boats, and campervans, or remote, off-grid cabins.
Engineered for mobile life, they handle vibration and provide efficient charging for 12V - 48V systems. Its built-in Bluetooth allows for easy monitoring via the VictronConnect app, making it ideal for systems with variable shading or varying light conditions.
Dimensions
Width | 131 mm |
Height | 100 mm |
Depth | 60 mm |
Weight | 0.65 kg |
Safety features
- EN/IEC 62109-1
- UL 1741
- CSA C22.2
- IP43 rated
Warranty
- 5-year warranty
- Access to Springers Solar's warranty support team
- Authorised Victron dealer
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Accessory Products
![[ASS030530010] Victron VE.Direct to USB Interface](/web/image/product.product/1684/image_512/%5BASS030530010%5D%20Victron%20VE.Direct%20to%20USB%20Interface?unique=1e59e45)

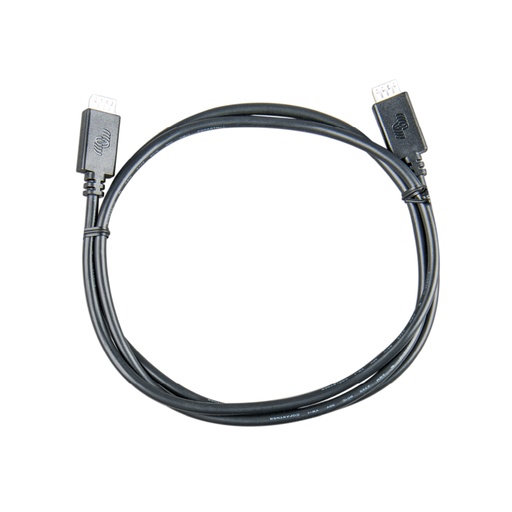

![[ASS030530209] Victron VE.Direct Cable (0.9m)](/web/image/product.product/1678/image_512/%5BASS030530209%5D%20Victron%20VE.Direct%20Cable%20%280.9m%29?unique=1e59e45)
![[SCC900500000] Victron MPPT Control (cable not included)](/web/image/product.product/1683/image_512/%5BSCC900500000%5D%20Victron%20MPPT%20Control%20%28cable%20not%20included%29?unique=1e59e45)

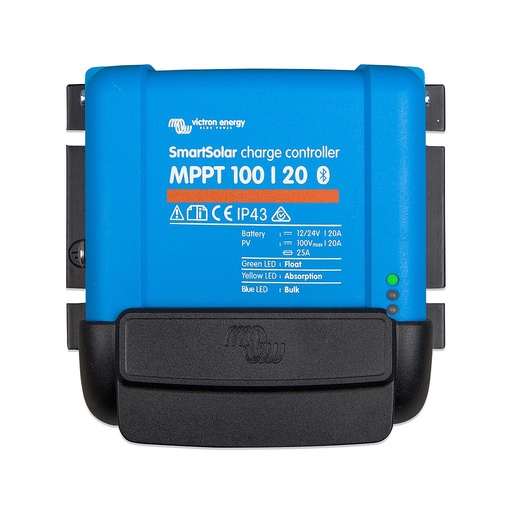

![[SCC950140000] Victron MPPT Wirebox-S 100-20](/web/image/product.product/10127/image_512/%5BSCC950140000%5D%20Victron%20MPPT%20Wirebox-S%20100-20?unique=1e59e45)
