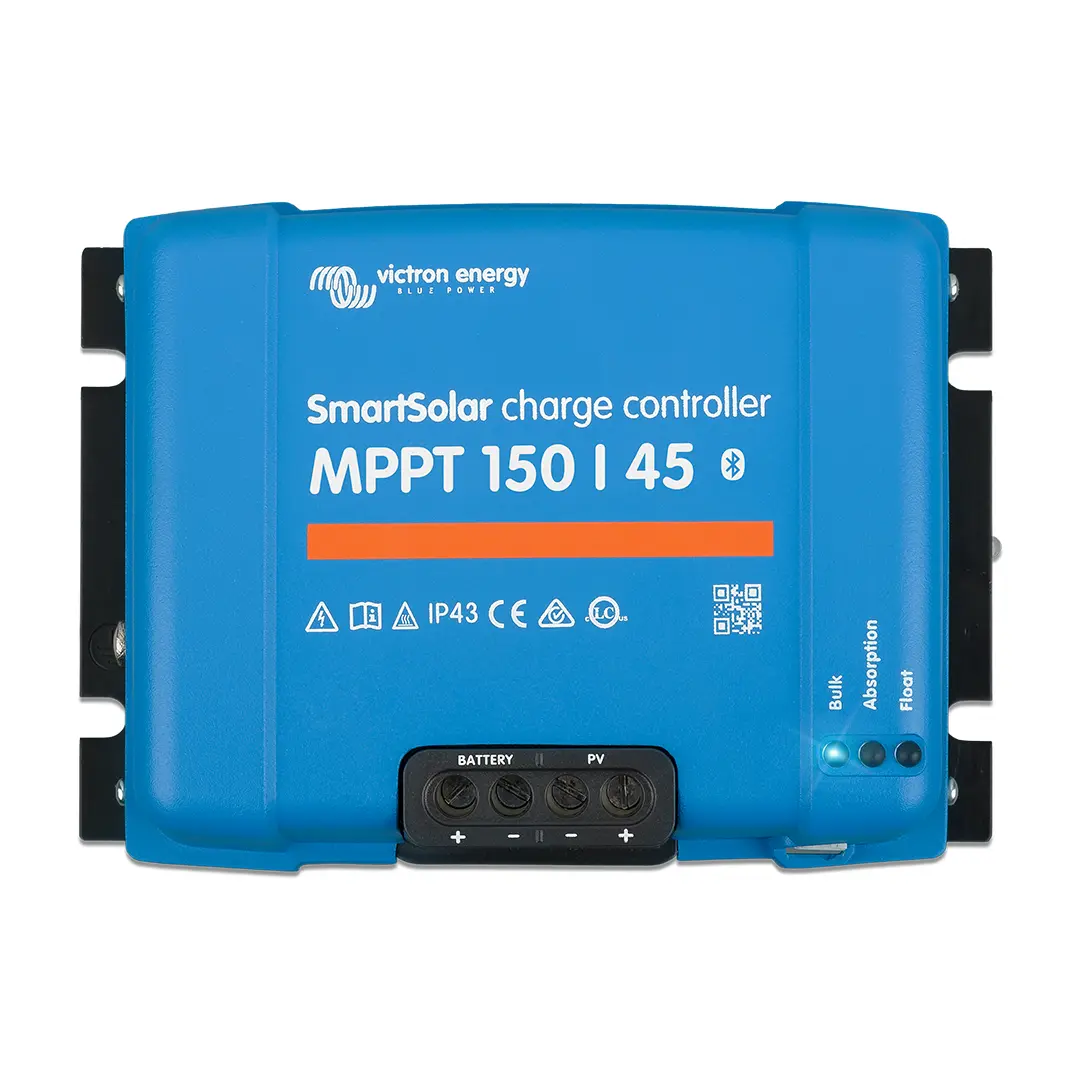

Victron 150/45 SmartSolar MPPT Controller

Victron 150/45 SmartSolar MPPT Controller

(0 reviews)

150 V / 45 A maximum power point tracking solar charge controller for 12 - 48 V systems

$ 301.01 - Inc GST 301.01 AUD $ 301.01 Tax Included

Brand

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

Brand: Victron

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers

SKU: SCC115045212

Victron 150/45 SmartSolar MPPT Controller

Features

Maximum power point tracking solar charge controller
Built-in Bluetooth for ease of programming & monitoring
150 V
45 A
Suitable for 12 / 24 / 48 V systems
Internal temperature sensor
Direct communication port for wired data connection
Over-temperature sensor
Flexible charge algorithm
VE.Direct port
Intelligent battery management
Programmable battery charge algorithm
Additional SmartSolar LCD display available

Where to use it

A Victron SmartSolar MPPT charge controller is used in off-grid solar power systems to maximise energy harvest, particularly in mobile applications like RVs, boats, and campervans, or remote, off-grid cabins.

Engineered for mobile life, they handle vibration and provide efficient charging for 12 - 48 V systems. Its built-in Bluetooth allows for easy monitoring via the VictronConnect app, making it ideal for systems with variable shading or varying light conditions.

Dimensions

Width	186 mm
Height	130 mm
Depth	70 mm
Weight	1.25 kg

Safety features

EN/IEC 62109-1
UL 1741
CSA C22.2
IP43 rated

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Manual_MPPT_solar_charger_manual-pdf-en.pdf

Download

Datasheet_SmartSolar-charge-controller-MPPT-150-35-&-150-45-EN.pdf

Download

Product Specifications

Battery voltage	12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated charge current	45 A
Nominal PV power	45 A 12 V: 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W
Maximum PV short circuit current	50 A
Maximum PV open circuit voltage	150 V absolute maximum coldest conditions 145 V start-up and operating maximum
Maximum efficiency	98%
Self-consumption	12V: 20 mA 24V: 15 mA 48V: 10 mA
Charge voltage 'absorption'	Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable)
Charge voltage 'float'	Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable)
Charge algorithm	Multi-stage adaptive (eight pre-programmed algorithms)
Temperature compensation	-16 mV / -32 mV / -64 mV / °C
Protection	PV reverse polarity / output short circuit / over-temperature
Operating temperature	-30 to +60°C (full rated output up to 40°C)
Humidity	95%, non-condensing
Data communication port	VE.Direct
Enclosure
Colour	Blue (RAL 5012)
Power terminals	16 mm² / AWG6
Protection category	IP43 (electronic components), IP22 (connection area)
Weight	1.25 kg
Dimensions	130 x 186 x 70 mm
Standards
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2
