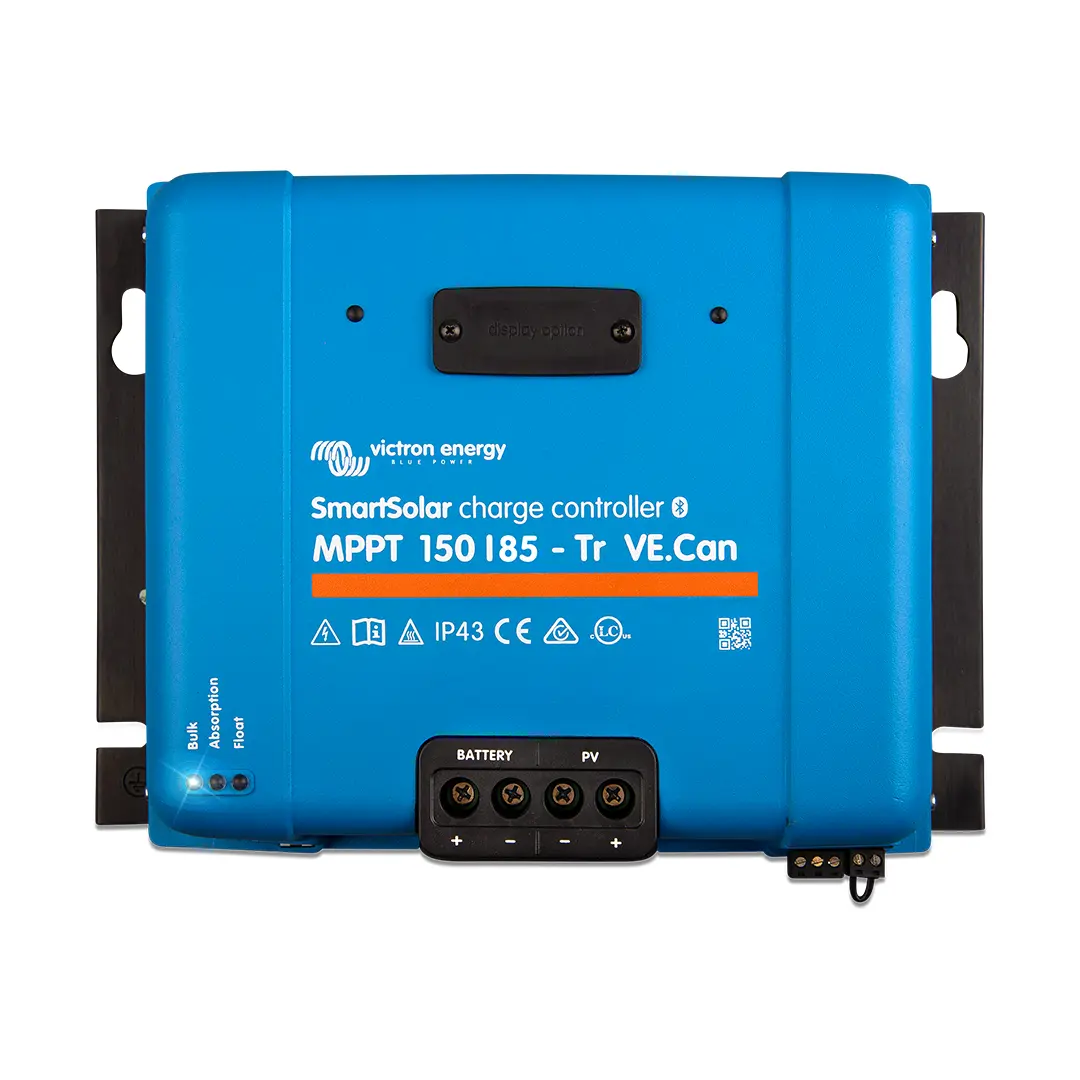

Victron 150/85 SmartSolar MPPT Tr VE.Can Controller
SCC115085411_2
SCC115085411_3
SCC115085411_4
SCC115085411_5
SCC115085411_7
SCC115085411_8
Victron Logo
Victron 150/85 SmartSolar MPPT Tr VE.Can Controller
SCC115085411_2
SCC115085411_3
SCC115085411_4
SCC115085411_5
SCC115085411_7
SCC115085411_8
Victron Logo

Victron 150/85 SmartSolar MPPT Tr VE.Can Controller

https://www.springers.com.au/web/image/product.template/12929/image_1920?unique=33b5144
(0 reviews)

150 V / 85 A maximum power point tracking solar charge controller with screw terminal & VE.Can connections for 12 - 48 V systems

$ 783.20 - Inc GST 783.2 in stock AUD $ 783.20 Tax Included

Not Available For Sale

($ 783.20 / Unit)

This combination does not exist.

You have already submitted a query for this product today.
In stock
In stock
Online Only
Contact Us
VICTRON
Terms and Conditions
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Solar Controllers, MPPT Charge Controllers, Solar Controllers, MPPT Charge Controllers
SCC115085411

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Victron 150/85 SmartSolar MPPT Tr VE.Can Controller



Features

  • Maximum power point tracking solar charge controller
  • Built-in Bluetooth for ease of programming & monitoring
  • 150 V
  • 85 A
  • Suitable for 12 / 24 / 48 V systems
  • Internal temperature sensor
  • Direct communication port for wired data connection
  • Over-temperature sensor
  • Flexible charge algorithm
  • VE.Direct & VE.Can communication ports
  • Screw terminal connections
  • Intelligent battery management
  • Programmable battery charge algorithm
  • Additional SmartSolar LCD display available

​

Where to use it

A Victron SmartSolar MPPT charge controller is used in off-grid solar power systems to maximise energy harvest, particularly in mobile applications like RVs, boats, and campervans, or remote, off-grid cabins.

Engineered for mobile life, they handle vibration and provide efficient charging for 12 - 48 V systems. Its built-in Bluetooth allows for easy monitoring via the VictronConnect app, making it ideal for systems with variable shading or varying light conditions.


Dimensions

Width
295 mm
Height
216 mm
Depth
103 mm
Weight
4.5 kg


Safety features

  • EN/IEC 62109-1
  • UL 1741
  • CSA C22.2
  • IP43 rated

Warranty

  • 5-year warranty
  • Access to Springers Solar's warranty support team
  • Authorised Victron dealer

Applications

4WD
4WD
RV
RV's
Caravan
Caravans
Off-Grid Systems
Off-Grid Systems
Tiny Houses
Tiny Houses
Cabins
Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Datasheet_SmartSolar-charge-controller-MPPT-150-70-up-to-150-100-VE.Can-EN.pdf
Download
Manual_MPPT_solar_charger_manual.pdf
Download

​Product Specifications


Battery voltage12 / 24 / 48 V Auto Select (36 V: manual)
Rated charge current
85 A
Nominal PV power, 12 V
1200 W
Nominal PV power, 24 V
2400 W
Nominal PV power, 36 V
3600 W
Nominal PV power, 48 V
4900 W
Max. PV short circuit current
70 A (max 30 A per MC4 conn.)
Maximum PV open circuit voltage
150 V absolute maximum coldest conditions    145 V start-up and operating maximum
Maximum efficiency
98%
Self-consumption
Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge voltage 'absorption'
Default setting: 14.4 / 28.8 / 43.2 / 57.6 V  (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float'
Default setting: 13.8 / 27.6 / 41.4 / 55.2 V  (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalization'
Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge algorithm
Multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm
Temperature compensation
-16 mV / -32 mV / -64 mV / °C
Protection
PV reverse polarity / Output short circuit / Over temperature
Operating temperature
-30 to +60 °C (full rated output up to 40 °C)
Humidity
95%, non-condensing
Maximum altitude
5000 m (full rated output up to 2000 m)
Environmental condition
Indoor, unconditioned
Pollution degree
PD3
Data communication
VE.Can, VE.Direct and Bluetooth
Remote on/off
Yes (2 pole connector)
Programmable relay
DPST AC rating: 240 V AC / 4 A      DC rating: 4 A up to 35 V DC, 1 A up to 60 V DC
Parallel operation
Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)
Colour
Blue (RAL 5012)
PV terminals
35 mm² / AWG2
Battery terminals
35mm² / AWG2
Protection category
IP43 (electronic components), IP22 (connection area)
Weight
4.5 kg
Dimensions
216 x 295 x 10 mm
Safety
EN/IEC 62109-1, UL 1741, CSA C22.2

Accessory Products

[SCC900650010] Victron SmartSolar Pluggable Display
VICTRON
Victron SmartSolar Pluggable Display
$ 50.49 $ 50.49 50.49 AUD
Tax Included
SKU: SCC900650010

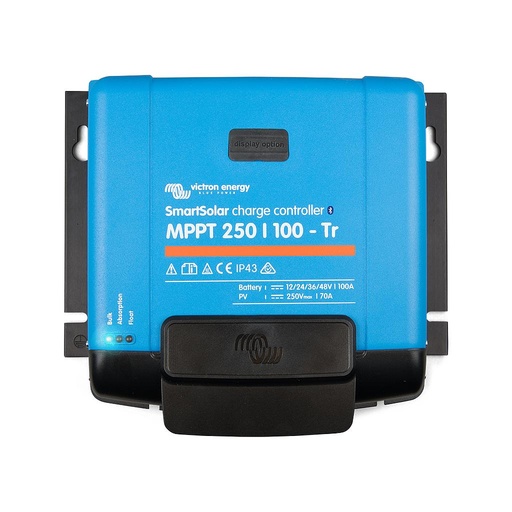

[SCC950400210] Victron MPPT Wirebox-XL Tr VE.Can 150-85/100 & 250-85/100
