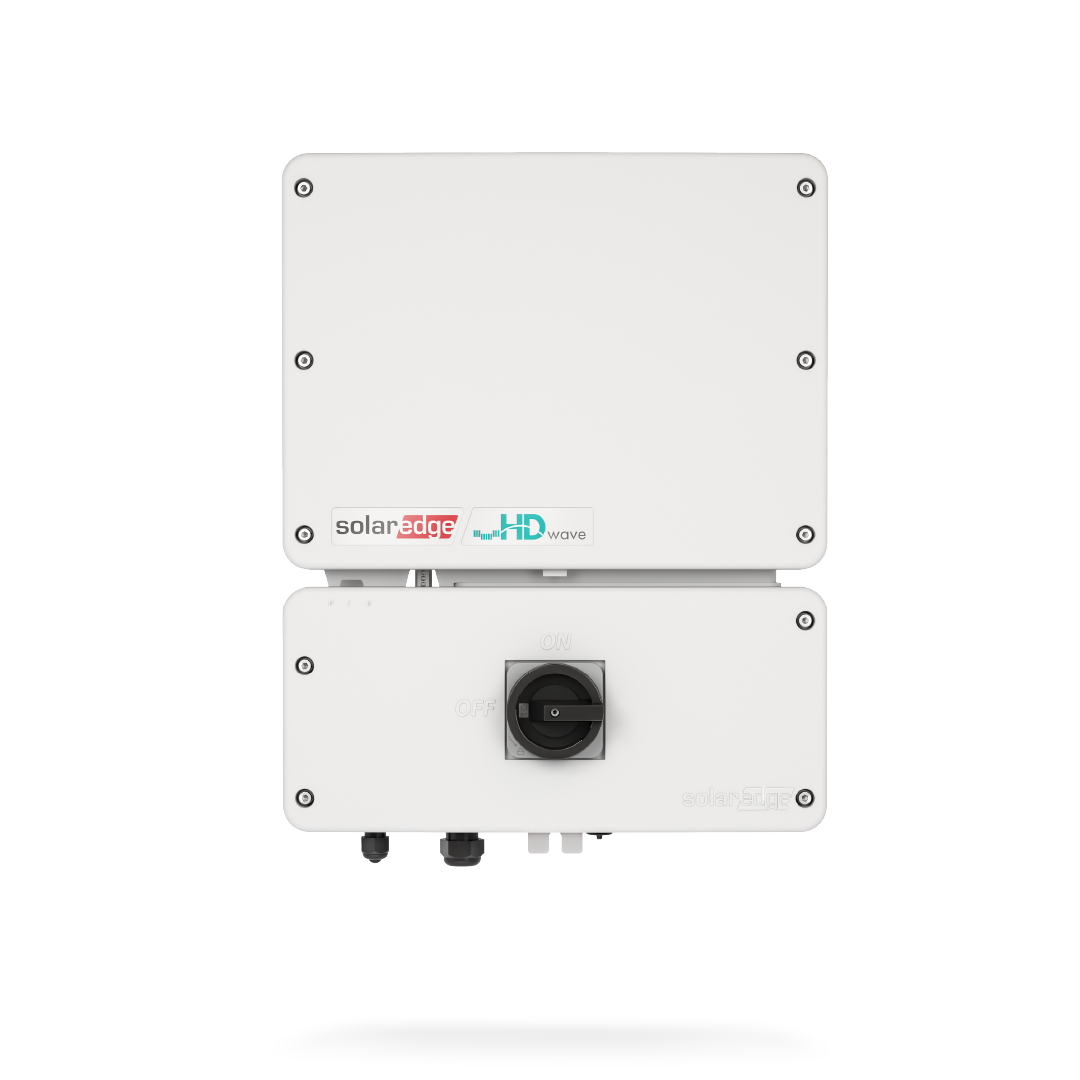

SolarEdge 8.25kW Genesis Solar Inverter

(0 review)

Features:
• Genesis Single-Phase Inverter
• IP65 Rated with Built-in SafeDC™ Function
• 12-year Product Warranty

$ 1,499.00 - Inc GST 1499.0 AUD $ 1,499.00

Brand

This combination does not exist.

ADD TO CART Buy now

Brand: SolarEdge

SOLAREDGE

Shipping information

30-day returns & refunds

Ships from Brisbane

Category: Inverters, Grid Inverters

SolarEdge Genesis 8.25kW Solar Inverter

Features:

Genesis Single-Phase Inverter
IP65 Rated with Built-in SafeDC™ Function

12-year Warranty (extendable to 20 or 25 years)
Faster & Simpler Installations with Maximum Design Flexibility
Record-Breaking Inverter Efficiency for More Energy Production
Battery-Ready Solution Supporting On-Grid Storage (avail. after 2021)
Rapid Inverter Commissioning via the SolarEdge SetApp
Supports External WiFi Communications
Compact, Lightweight & Easy to Install
Built-in Arc Fault Protection

Based on SolarEdge’s HD-Wave technology, the world’s most installed residential inverter, the Genesis gives you a cost-effective solution that fits any shape of roof and any budget. It combines the traditional SolarEdge benefits such as DC-optimised production, advanced safety and long-term warranties with new levels of convenience giving you easier designs and faster installations.

For systems up to 6.7kW DC (with a 5kW Genesis inverter), only one PV string is needed with just one DC isolator. That’s as simple as it gets – especially when installed with SolarEdge smart panels. As with any SolarEdge system, you’re free to design without any restrictions regarding panel type, orientation, or azimuth. Installers can continue to leverage SolarEdge’s panel-level visibility for remote system monitoring and troubleshooting, while mySolarEdge gives homeowners a Dashboard view to simply track their system production and consumption (with an external energy meter).

More about SolarEdge:

Founded in 2006, SolarEdge Technologies is headquartered in Israel and has offices in ten other countries around the world including Australia. Today SolarEdge is undoubtedly the global leader in the DC power optimizer market and is traded on the NASDAQ. The company has invented a ground-breaking type of module-level electronics for solar photovoltaic (PV) harvesting and monitoring systems for all shapes and sizes of solar installations, from residential to commercial and utility-scale plants. SolarEdge’s stand-out product solution is their optimized inverter system which maximizes and improves power output at each individual PV panel. Together with SolarEdge’s cloud-based monitoring platform, the performance of your solar system is trackable with ease.

Since beginning commercial distribution in 2010, over 2.5 GW of SolarEdge products have been installed in solar PV arrays in over 90 countries around the world. The company has won several awards for its innovative products, including an SPP (Solar Power Portal) Award in 2015 and the Solar Industry Award in 2014. Manufacturing mainly takes place through a partnership with Flextronics, a global electronics manufacturing services provider. Another exciting partnership was announced in late 2015 when SolarEdge products became compatible with the Tesla Powerwall battery system. SolarEdge offers impressive warranties and excellent customer support through its Australian office.

Specifications

Brand

SolarEdge

Warranty_SolarEdge (7).pdf

Download

Brochure_Game Changing Inverters - Homeowner Flyer for Australia.pdf

Download

Datasheet_DS-00007-1.1-AUS HD-Wave Genesis Single Phase Inverter_AUS.pdf

Download

Product Specifications

8.25kW Genesis Inverter
Output Data
Rated AC Power Output	8250VA
Maximum AC Power Output	8250VA
AC Output Voltage (Nominal)	220/230V AC
AC Output Voltage Range	184-264.5V AC
AC Frequency (Nominal)	50/60 ± 5
Maximum Continuous Output Current	37.5A
Total Harmonic Distortion (THD)	< 3%
Power Factor	1, adjustable -0.8 to 0.8
Utility Monitoring, Islanding Protection, Configurable Power Factor, Country Configurable Thresholds	Yes
Short Circuit Current from the PV Array	37.5A
Input Data
Maximum DC Power	12,785W
Transformer-less, Ungrounded	Yes
Maximum Input Voltage	480V DC
Nominal DC Input Voltage	400V DC
Maximum Input Current	22A DC
Reverse-Polarity Protection	Yes
Ground-Fault Isolation Detection	600kΩ Sensitivity per Unit
Maximum Inverter Efficiency	99.2%
Nighttime Power Consumption	< 2.5W
Additional Features
Supported Communication Interfaces	RS485, Ethernet, Wi-Fi (optional)
Smart Energy Management	Export Limitation
Arc Fault Protection	Integrated, User Configurable (According to UL1699B)
Inverter Commissioning	Within the SetApp mobile application using built-in Wi-Fi Access-Point for local connection
Installation Specifications
AC Output Conduit Size / Wire cross-section	25mm Maximum / 1-13 mm2
DC Input Conduit Size / # of Strings / Wire cross-section	25mm Maximum / 1-3 strings / 1-13 mm2
Dimensions	540 x 370 x 185mm
Weight	17.6kg
Noise	< 50 dBA
Cooling	Natural Convection
Operating Temperature Range	-40ºC to +60ºC
Protection Rating	IP65 — Outdoor and Indoor
Standard Compliance
Safety	IEC62109, AS/NZS3100
Grid Connection Standards	AS/NZS4777:2015
Emissions	IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC Part 15 Class B
