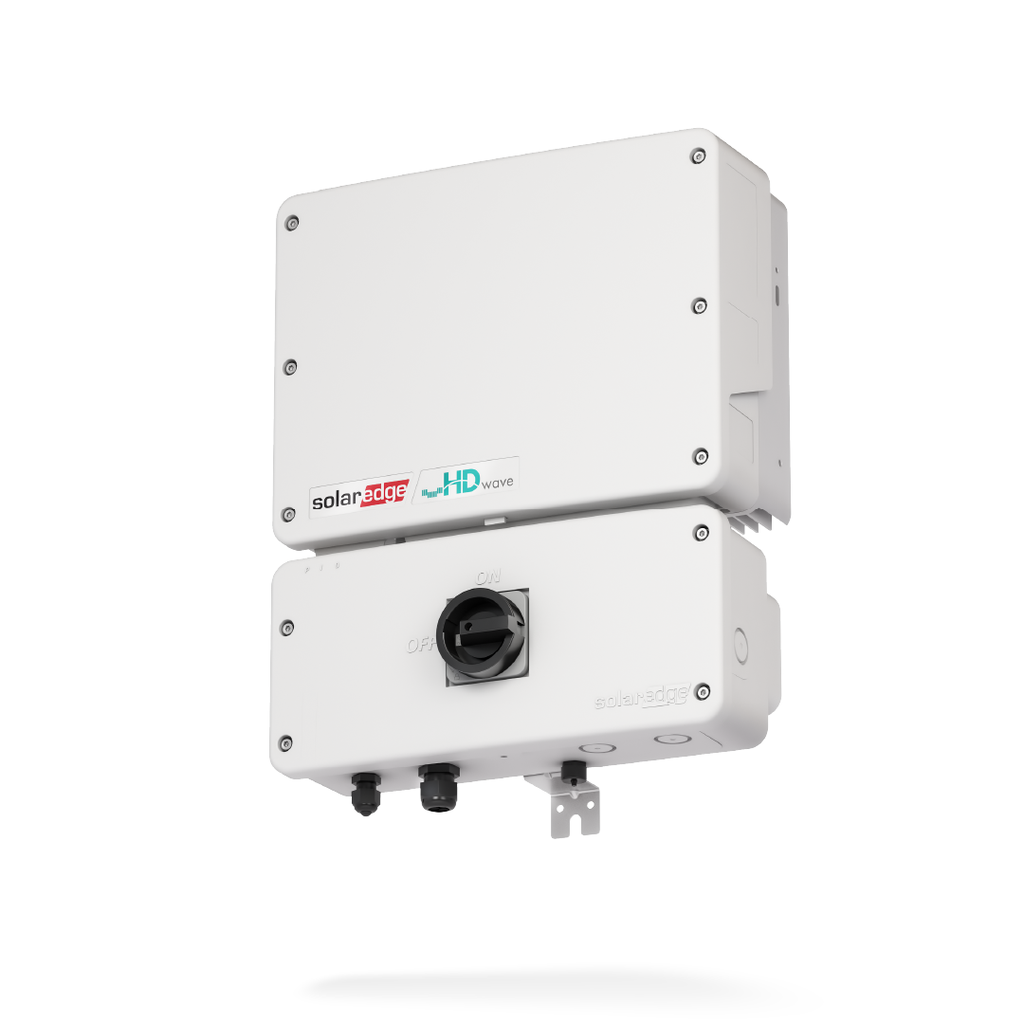

SolarEdge 8.25kW Genesis Solar Inverter

8.25kW Genesis Inverter

Output Data

Rated AC Power Output

8250VA

Maximum AC Power Output

8250VA

AC Output Voltage (Nominal)

220/230V AC

AC Output Voltage Range

184-264.5V AC

AC Frequency (Nominal)

50/60 ± 5

Maximum Continuous Output Current

37.5A

Total Harmonic Distortion (THD)

< 3%

Power Factor

1, adjustable -0.8 to 0.8

Utility Monitoring, Islanding Protection, Configurable Power Factor, Country Configurable Thresholds

Yes

Short Circuit Current from the PV Array

37.5A

Input Data

Maximum DC Power

12,785W

Transformer-less, Ungrounded

Yes

Maximum Input Voltage

480V DC

Nominal DC Input Voltage

400V DC

Maximum Input Current

22A DC

Reverse-Polarity Protection

Yes

Ground-Fault Isolation Detection

600kΩ Sensitivity per Unit

Maximum Inverter Efficiency

99.2%

Nighttime Power Consumption

< 2.5W

Additional Features

Supported Communication Interfaces

RS485, Ethernet, Wi-Fi (optional)

Smart Energy Management

Export Limitation

Arc Fault Protection

Integrated, User Configurable (According to UL1699B)

Inverter Commissioning

Within the SetApp mobile application using built-in Wi-Fi Access-Point for local connection

Installation Specifications

AC Output Conduit Size / Wire cross-section

25mm Maximum / 1-13 mm2

DC Input Conduit Size / # of Strings / Wire cross-section

25mm Maximum / 1-3 strings / 1-13 mm2

Dimensions

540 x 370 x 185mm

Weight

17.6kg

Noise

< 50 dBA

Cooling

Natural Convection

Operating Temperature Range

-40ºC to +60ºC

Protection Rating

IP65 — Outdoor and Indoor

Standard Compliance

Safety

IEC62109, AS/NZS3100

Grid Connection Standards

AS/NZS4777:2015

Emissions

IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12, FCC Part 15 Class B
