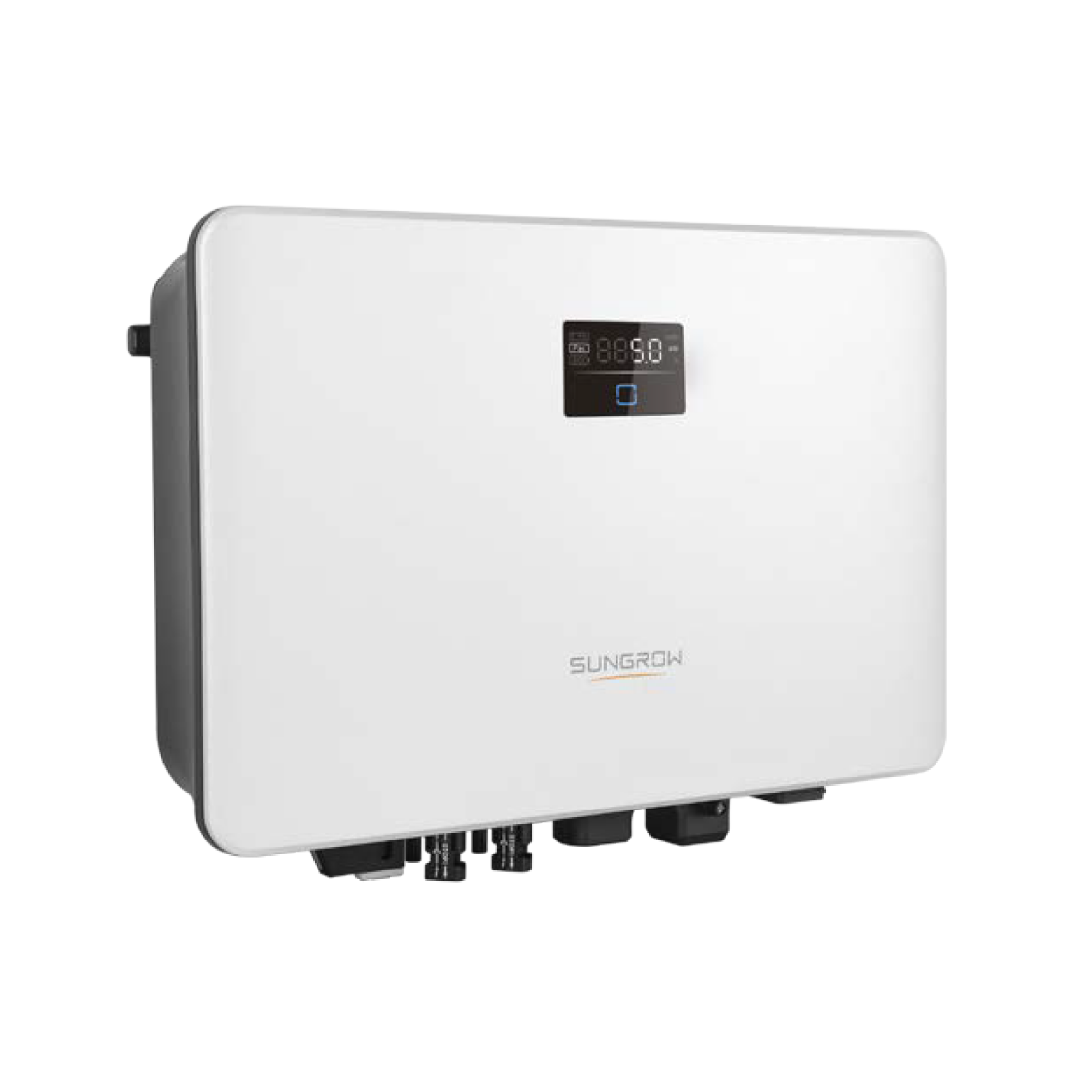

Sungrow 5kW RS Dual-MPPT Solar Inverter

(0 reviews)

Sungrow 5kW single-phase dual-MPPT solar inverter, IP65

$ 1,490.00 - Inc GST 1490.0 in stock AUD $ 1,490.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaOnline Only

Sunshine CoastOnline Only

SUNGROW

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: SOLAR, Grid Inverters

SKU: SG5RS

Sungrow 5kW RS Dual-MPPT Solar Inverter

Features:

5kW single-phase grid-connected string inverter
Dual MPPT for panels on more than one roof face
Recommended max PV input 7.5 kWp (up to 150% oversizing)
Max PV input voltage 600V
IP65 rated for indoor or outdoor installation
WLAN, Ethernet and RS485 communication; iSolarCloud app monitoring

Where to use it

Homes and small businesses on single-phase power wanting a reliable grid-tied solar system. Installed by an accredited solar installer.

Dimensions

Dimensions	410 x 270 x 150mm
Weight	10kg

Warranty

Sungrow manufacturer's warranty (see the attached warranty sheet)
Access to Springers Solar's warranty support team

Applications

More about Sungrow:

Sungrow Power Supply Co. Ltd. is one of the world’s most bankable inverter brands with over 405GW installed worldwide as of June 2023. Founded in 1997 by University Professor Cao Renxian, Sungrow is a leader in the research and development of solar inverters with the largest dedicated R&D team in the industry and a broad product portfolio offering PV inverter solutions and energy storage systems for utility-scale, commercial & industrial, and residential applications, as well as internationally recognised floating PV plant solutions, NEV driving solutions, EV charging solutions and renewable hydrogen production systems. With a strong 26-year track record in the PV space, Sungrow products power over 150 countries worldwide.

Datasheet_SG3-5RS_Inverter.pdf

Download

Product Specifications

Sungrow SG5RS Solar Inverter
Input (DC)
Recommended Maximum PV Input Power	7.5 kWp
Maximum PV Input Voltage	600V
Minimum PV Input Voltage/ Startup Input Voltage	40V / 50V
Rated PV Input Voltage	360V
MPP Voltage Range	40-560V
No. of Independent MPP Inputs	1
No. of PV Strings Per MPPT	1
Maximum PV Input Current	32A (16A / 16A)
Maximum DC Short-Circuit Current	40A (20A / 20A)
Output (AC)
Rated AC Output Power	4999 W
Maximum AC Output Apparent Power	4999 VA
Rated AC Output Apparent Power	4999 VA
Maximum AC Output Current	21.7A
Rated AC Output Current (at 230V)	21.7A
Rated AC Voltage	220 / 230 / 240 V
AC Voltage Range	154 – 276 V
Rated Grid Frequency	50 Hz / 45 – 55 Hz
Grid Frequency Range	60 Hz / 55 – 65 Hz
Harmonic (THD)	< 3 % (at rated power)
Power Factor at Rated Power / Adjustable Power Factor	> 0.99 / 0.8 leading - 0.8 lagging
Feed-in Phases / Connection Phases	1 / 1
Efficiency
Maximum Efficiency	97.9%
Protection
Grid Monitoring	Yes
DC Reverse Polarity Protection	Yes
AC Short-Circuit Protection	Yes
Leakage Current Protection	Yes
Surge Protection	DC type II / AC type II
Ground Fault Monitoring	Yes
DC Switch	Yes
PV String Current Monitoring	Yes
Arc Fault Circuit Interrupter (AFCI)	Yes
PID Recovery Function	Yes
General Data
Dimensions	410 x 270 x 150mm
Weight	10kg
Mounting Method	Wall-mounting bracket
Topology	Transformerless
Degree of Protection	IP65
Corrosion	C5
Operating Ambient Temperature	-25°C to +60°C
Allowable Relative Humidity Range (Non-Condensing)	0 - 100%
Cooling Method	Natural cooling
Maximum Operating Altitude	4000m
Display	LED digital display & LED indicator
Communication	Ethernet / WLAN / RS485 / DI (Ripple control & DRM)
DC Connection Type	MC4 (Max. 6 mm²)
AC Connection Type	Plug and play connector (Max. 6 mm²)
Grid Compliance	IEC / EN62109-1/2, IEC / EN62116, IEC / EN61727, IEC / EN61000-6-2/3, EN50549-1, AS/NZS 4777.2:2020, ABNT NBR 16149, ABNT NBR 16150, UNE 217002:2020, NTS V2 TypeA,CEI 0-21:2020, VDE0126-1-1/A1(VFR-2019), UTE C15-712, C10/11, G98/G99
Grid Support	Active & reactive power control and power ramp rate control
Country of Manufacture	China
