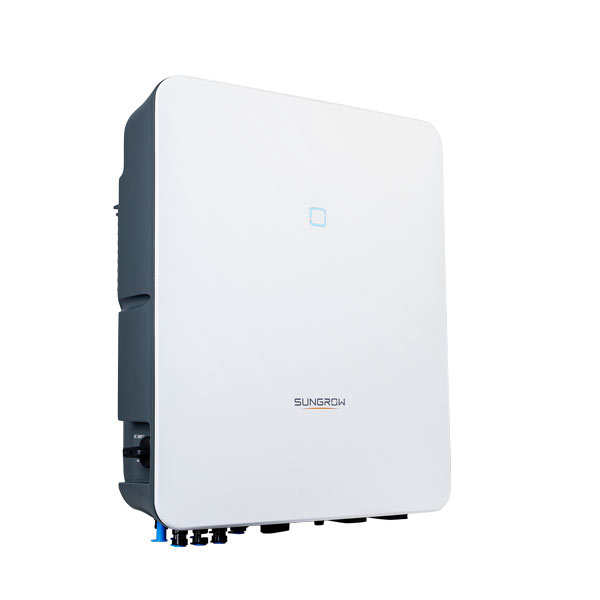

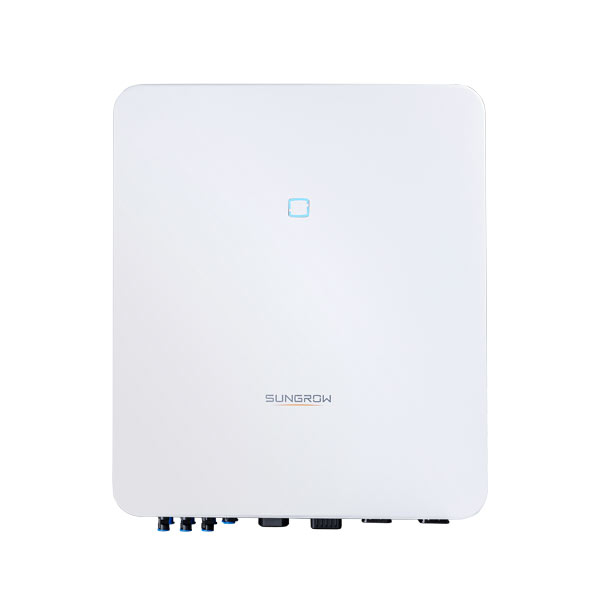

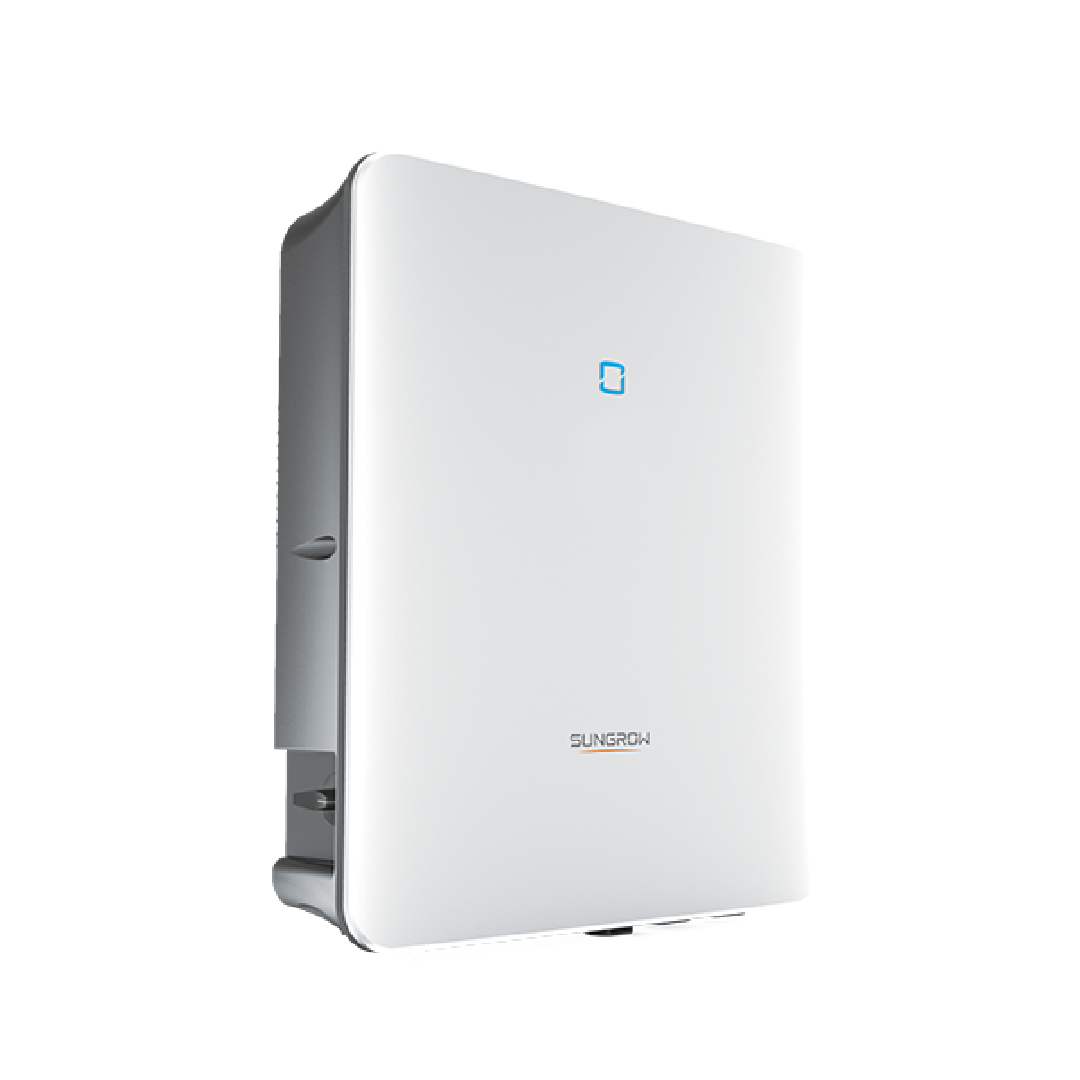

Sungrow Hybrid 10kW RT Three-Phase Solar Inverter

Sungrow Hybrid 10kW RT Three-Phase Solar Inverter

Features:

• Dual-MPPT Three-Phase String Inverter
• Battery-Ready/ Hybrid Inverter
• 10-year Parts & Labour Warranty
• IP65 Rated with Built-in WiFi

• Compatible with a Wide Battery Voltage Range, 150~600V

• Supports Parallel Connection with Master-Slave Controlling
• Seamless Transition to Backup Mode for Protection Against Power Outages
• Fast Charging or Discharging
• High Self-Consumption with Optimised Built-in EMS
• 24hr Real-Time Loads Monitoring via App or Web
• Quick Arc Fault Circuit Interrupter
• Built-in Type II DC&AC Surge Protection Device
• Higher Yield with a Maximum Efficiency of 98.0%

Sungrow's SHRT line of hybrid inverters presents an excellent solar component solution tailored for private residences, especially suitable for smaller roofs or properties needing uniform module alignment.

The SHRT series are lightweight, transformerless, string inverters with a wide MPPT voltage range and Wi-Fi communications included. The SHRT series are hybrid inverters, allowing for the system to connect to a Sungrow solar battery for energy storage. These inverters offer fast charging and discharging, which makes them perfect in a solar and battery installation as this allows for greater self-consumption than other inverters may be able to offer.

As a hybrid inverter, the SHRT series offers a backup function, which supplies the property with backup power in the event of a power outage. This feature gives the inverter the ability to support 100% unbalanced loads in backup mode, which will keep essential appliances running during a blackout. The backup function is a perfect solution for both new installations and retro-fitted designs.

The Sungrow SH10RT is a three-phase inverter solution, with 10kW of inverter capacity. This model offers two Multiple Power Point Tracker or MPPT, allowing for connection to two independent solar arrays. With integrated WiFi, a built-in EPS, two current transformers and a DC switch, this powerful yet compact inverter is perfect for residential and commercial installations.

Sungrow's monitoring solutions allow you to centrally manage your solar power plant. Automated reports, multidimensional analysis, and accurate positioning of faults with quick troubleshooting allow you to quickly resolve faults and avoid downtimes. Certified data security and redundant data storage over the product lifecycle ensure that your investment is securely protected. Sungrow’s iSolarCloud monitoring program offers superior system monitoring from anywhere in the world and is available via the web or through the iSolarCloud app.
