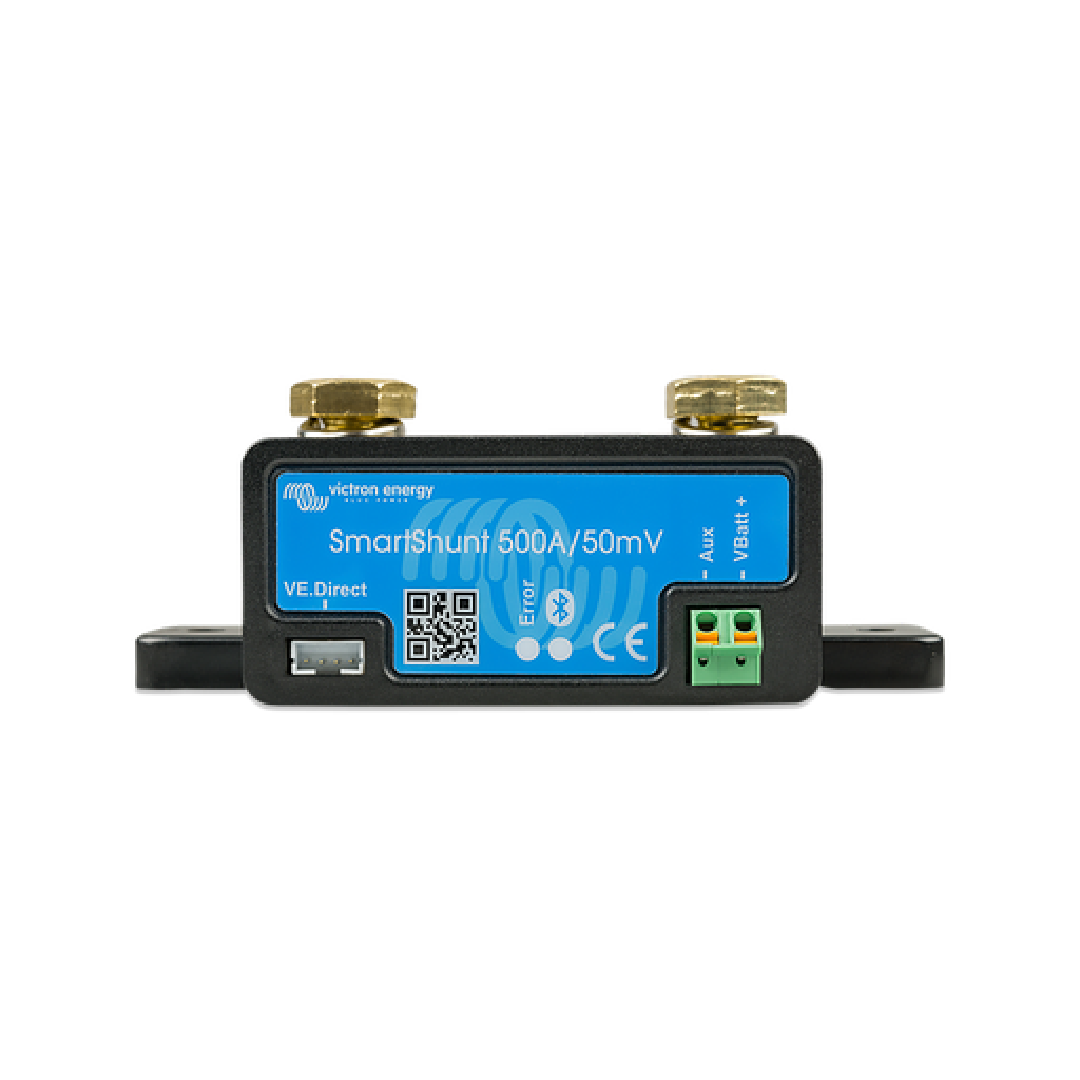

Victron SmartShunt 500A
Features
- All-in-one battery monitor
- Built-in Bluetooth
- Easy to program and monitor
- In-app battery insights
- 99.6% accuracy
- Suitable up to 70V DC
- Works with lithium, AGM & flooded batteries
The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet), and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the SmartShunt can be connected and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth and a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
The SmartShunt is available in 300A, 500A, 1000A and 2000A.
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Victron
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Product Specifications
| SmartShunt 500A | |
| Supply Voltage Range | 6.5 - 70 V DC |
| Current Draw | < 1 mA |
| Input Voltage Range, Auxiliary Battery | 6.5 - 70 V DC |
| Battery Capacity (Ah) | 1 - 9999 Ah |
| Operating Temperature Range | -40 - +50°C |
| Measures voltage of second battery, or temperature, or midpoint | Yes |
| Temperature Measurement Range | -20 - +50°C |
| VE.Direct Communication Port | Yes |
| Resolution & Accuracy | |
| Current | ± 0.01 A |
| Voltage | ± 0.01 V |
| Amp Hours | ± 0.1 Ah |
| State of Charge (0-100%) | ± 0.1% |
| Time to go | ± 1 min |
| Temperature (if an optional temperature sensor is connected) | ± 1 °C (0 – 50 °C) |
| Accuracy of Current Measurement | ± 0.4% |
| Accuracy of Voltage Measurement | ± 0.3% |
| Offset | Less than 10mA |
| Installation & Dimensions | |
| Protection Category | IP21 |
| Shunt Connection Bolts | M10 |
| Dimensions | 46 x 120 x 54 mm |
| Standards | |
| Safety | EN 60335-1 |
| Emission / Immunity | EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3 |
| Automotive | EN 50498 |
| Accessories | |
| Cables (included) | Two cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection |
| Temperature sensor | Optional (ASS000100000) |
| A note regarding the range of the Bluetooth signal | The shunt and the electric cables do negatively influence the range of the Bluetooth signal. The resulting range of 10-15 meter is however satisfactory in most cases. The proximity of other electrically conducting elements, such as the metal chassis of a vehicle or seawater around the hull if a boat, may reduce the range of the Bluetooth signal to an unacceptable level. The solution in such a case is to add a VE.Direct Bluetooth Dongle (ASS030536011) to the system, and to switch off Bluetooth in the SmartShunt. |
| Stored Trends | |
| Data stored | Battery voltage, Current, State of Charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage). |
| Number of days trends data is stored | 46 |
Accessory Products
![[BATTLEADBMV25] Alvolta 600mm Black BMV Battery Lead 25mm²](/web/image/product.product/2259/image_512/%5BBATTLEADBMV25%5D%20Alvolta%20600mm%20Black%20BMV%20Battery%20Lead%2025mm%C2%B2?unique=1a33827)
![[SCC110030210] Victron 100/30 SmartSolar MPPT Controller](/web/image/product.product/1879/image_512/%5BSCC110030210%5D%20Victron%20100-30%20SmartSolar%20MPPT%20Controller?unique=3990c63)
Alternative Products
![[EN55050] Enerdrive ePRO Plus Battery Monitor](/web/image/product.template/9348/image_512/%5BEN55050%5D%20Enerdrive%20ePRO%20Plus%20Battery%20Monitor?unique=86d53f5)

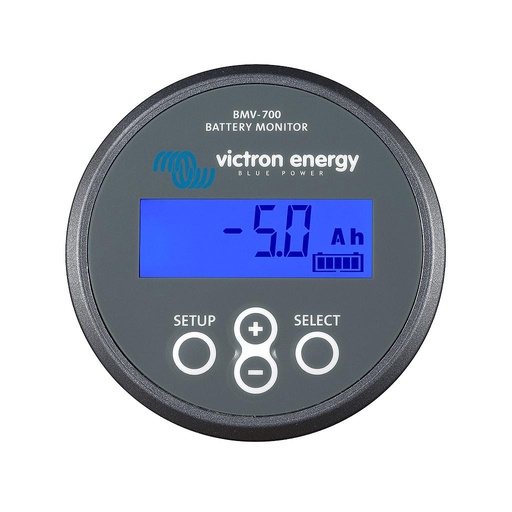

![[BAM010700000R] Victron BMV-700 Battery Monitor](/web/image/product.template/3375/image_512/%5BBAM010700000R%5D%20Victron%20BMV-700%20Battery%20Monitor?unique=4629454)
