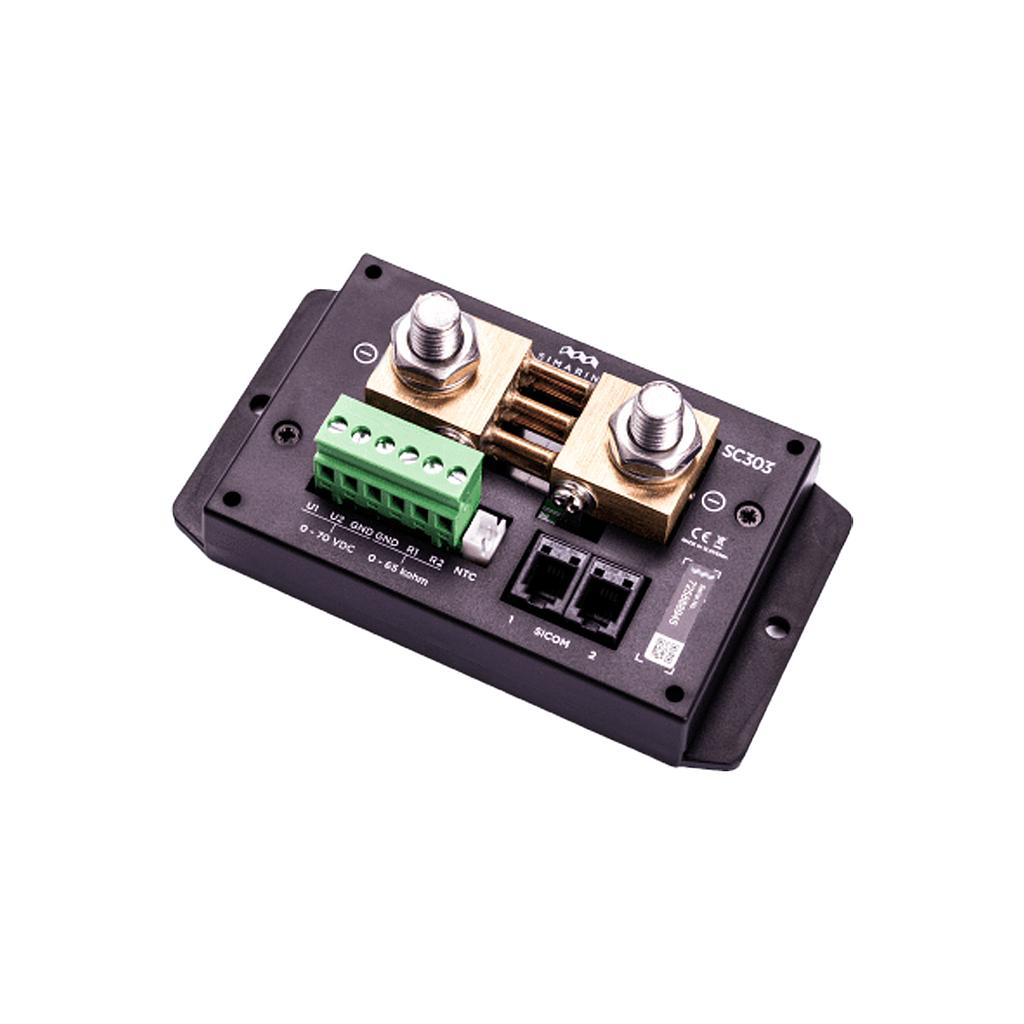

Simarine Battery Shunt 300A 2V 2R 1T

Simarine battery shunt:

SC303 active combo shunt precisely monitors battery voltage on 12V, 24V, 48V, 60V and 72V systems, battery temperature and continuous currents up to 300A (400A peak). It’s suitable for maximal power of 3600W at 12V or 7200W at 24V. It is equipped with one additional battery voltage input (2 in total).

The integrated tank level has 2 resistance type inputs for monitoring tank level or temperature and an additional JST socket for temperature sensor with an JST connector. Additionally, the SC303 module can also be used for monitoring current draw of heavy consumers like inverters, bow and stern thrusters and anchor winches and current generated on generators like shore power chargers, solar panels, hydro- and wind generators. SC303’s innovative protected architecture allows wiring in either negative (up to 72V) or positive (up to 24V) side.

SC303 is an active combo shunt for PICO and PICO one battery monitor with:

- 2x voltages

- 2x tank level or temperature

- 1x socket (temperature sensor)

- 1x current sensor up to 300A for up to 75V systems.

It can be used for monitoring current draw of heavy consumers (inverters, bow and stern thrusters, anchor winches) and current generators (shore power chargers and solar panels). Additionally, it allows monitoring tanks for fuel, fresh and grey water.

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins
