Sigen Energy Controller 12.0 kW Single Phase for AU
Sigen Energy Controller 12.0 kW Single Phase for AU
Sigen Energy Controller 12.0 kW Single Phase for AU
Sigen Energy Controller 12.0 kW Single Phase for AU
Sigen Energy Controller 12.0 kW Single Phase for AU
Sigen Energy Controller 12.0 kW Single Phase for AU

Sigen Energy Controller 12.0 kW Single Phase for AU

https://www.springers.com.au/web/image/product.template/18234/image_1920?unique=270d348
(0 reviews)

Features:
• Single-Phase String Inverter with 4 MPPTs
• Battery-Ready/ Hybrid Inverter
• 10-year Warranty

This combination does not exist.

Contact Us
Contact Us
Contact Us
SIGENERGY
Terms and Conditions
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
Grid Inverters
SigEC12.0SP

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Sigen Energy Controller 12.0 kW Single Phase for AU


Features:

  • Single-phase string inverter with 4 MPPTs
  • Battery-ready / hybrid inverter
  • 10-year warranty
  • EMS inside for precise control
  • Multi-source block start
  • On & off-grid compatibility
  • DC/AC ratio up to 2
  • IP66 system protection rating

​

The Sigen Energy Controller is the foundational component in Sigenergy's flagship, 5-in-one sustainable energy system; the SigenStor Home Energy Solution. Combining PV Solar, Solar Storage and EV Charging, the Sigenergy SigenStor offers a complete energy solution designed to reduce or eliminate reliance on the energy grid. This system is at the forefront of solar technology innovation, offering the world's first AI-optimised home energy solution.

The Sigen Energy Controller is available in 5kW to 12kW (single-phase) or 30kW (three-phase) power options, allowing for complete customisation of your SigenStor to suit your home's energy needs.

The built-in EMS grants easy yet precise energy control, allowing you to dictate how and where you want to use your energy when integrated with SigenStor and Sigen EV Charging.

Connect the SigenStor & Sigenergy Home Energy Solution to the mySigen App for complete control and real-time system monitoring. The app offers Sigenergy customers comprehensive data graphs for live insights into the home's energy production and consumption. The mySigen App also offers the gateway to AI service and support for Sigenergy components. Customers have access to AI-assisted energy planning, optimisation recommendations and much more.


More about Sigenergy:

Sigenergy is a forward-thinking company focusing on developing cutting-edge home and business energy solutions, including energy storage systems, solar inverters, and EV chargers. Their world-class R&D team of hundreds of industry talents shares the vision of making the world greener through continuous innovation. By integrating the latest power electronics, digital, and AI technologies, they build next-generation energy products with optimum safety features. With global sales and services, they aim to become their customers' most trusted partners on their journey to a more sustainable future.

Datasheet_Sigenergy_Home Energy Solution_AU.pdf
Download

Product Specifications

Sigen Energy Controller 12kW Single-Phase
DC Input (from PV)
Max. PV Power24,000W
Max. DC Input Voltage600V
Nominal DC Input Voltage350V
Start-up Voltage100V
MPPT Voltage Range50 ~ 550V
Number of MPP. Trackers4
Number of PV Strings per MPPT1
Max. Input Current per MPPT16A
Max. Short-Circuit Current per MPPT20A
AC Output (on-grid)
Nominal Output Power12,000W
Max. Output Apparent Power12,000VA
Nominal Output Current54.6A
Max. Output Current54.6A
Nominal Output Voltage220 / 230V
Nominal Grid Frequency50 / 60Hz
Power Factor0.8 leading ~ 0.8 lagging
Total Current Harmonic DistortionTHDi < 2%
Efficiency

Max. Efficiency97.6%
AC Output (backup)
​
Nominal Output Power12,000W
Max. Output Apparent Power13,200W
Peak Output Power (10 sec)18,000W
Nominal Output Current54.6A
Max. Output Current60.0A
​Peak Output Current (10 sec)
81.8A
Nominal Output Voltage220 / 230V
​Nominal Output Frequency
50 / 60Hz
​Power Factor
0.8 leading ~ 0.8 lagging
Total Current Harmonic DistortionTHDv < 2%
Disruption Time of Backup Switch0ms
Battery Connection
​
Compatible Battery Module​
SigenStor Battery 5.0 / 8.0kWh
Number of Modules per Controller​
1 - 6pcs
Battery Module Voltage Range​
300 ~ 600V
General Data
Dimensions700 x 300 x 260mm
Weight18kg
Operating Temperature Range-30 ~ +60°C
Relative Humidity Range0% ~ 95%
Max. Operating Altitude4000m
CoolingSmart Air Cooling
Ingress Protection RatingIP66
CommunicationWLAN / Fast Ethernet / RS485 / Sigen CommMod (4G/3G/2G)
ProtectionDC reverse polarity protection, Insulation monitoring, Residual current monitoring, Arc fault circuit interrupter, AC overcurrent/overvoltage/short-circuit protection, Type II DC/AC surge protection, Anti-islanding protection
Standard ComplianceIEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62477, IEC/EN 61000-6-1, IEC/EN 61000-6-2, AS 4777

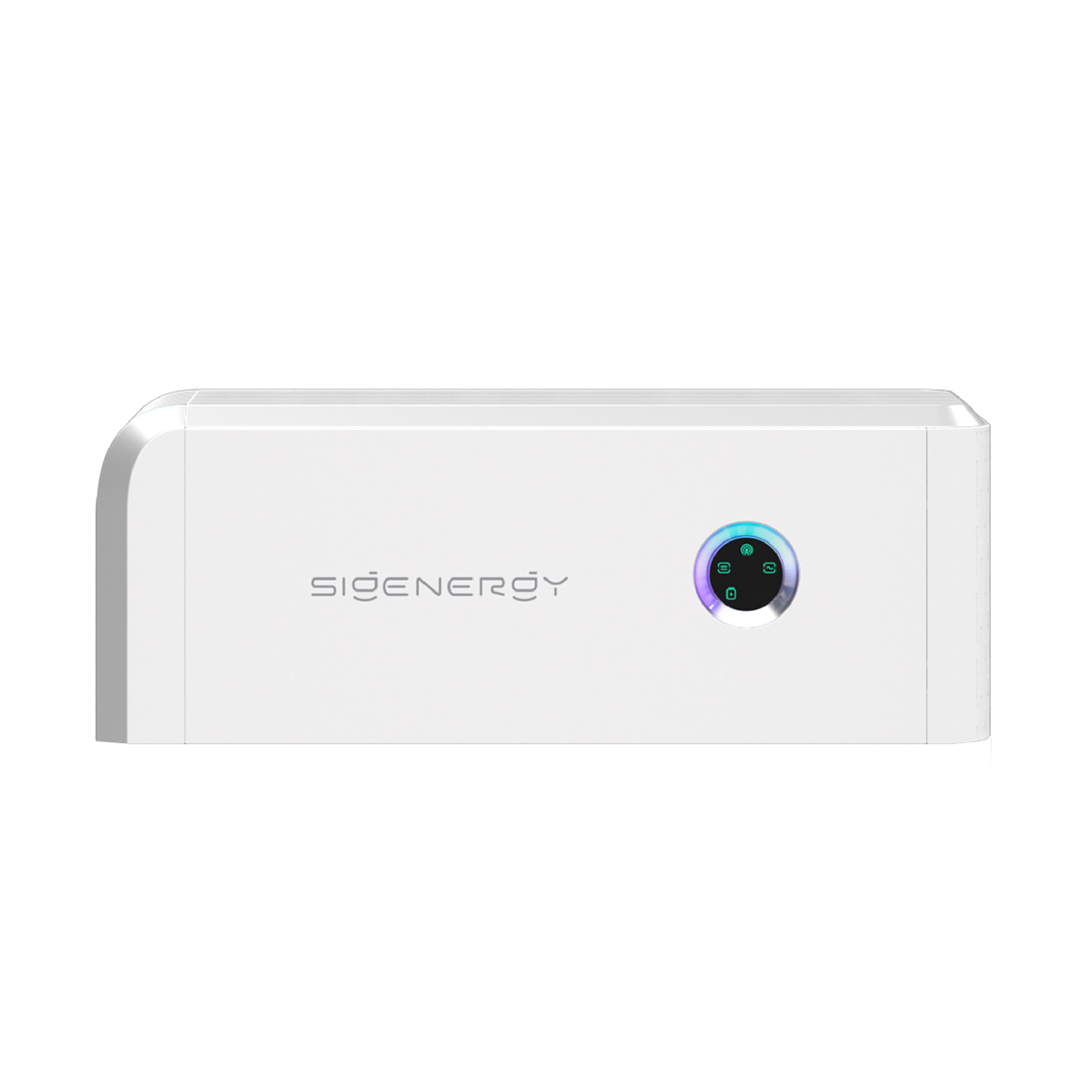

Product Image
Sigen Energy Controller 12.0 kW Single Phase for AU

$ 3,945.70 $ 3,945.70 Tax Included
