Enerdrive 12V 80W Solar Panel

Features:
• 80W Monocrystalline Solar Panel
• 780 x 676 x 35mm
• 5-year warranty

$ 128.00 - Inc GST 128.0 in stock AUD $ 128.00

$ 128.00

Brand

This combination does not exist.

ADD TO CART

Brand: Enerdrive

ENERDRIVE

SKU: ANL050

Category: Solar Panels Fixed Panels

Enerdrive rigid solar panels:

Enerdrive has a range of Mono & Poly Crystalline solar panels from 10 to 200 watts. Each module is typically around 20+vdc open circuit and are well suited to 12v installations (or 24v by series connections of panels).

A fly lead cable is provided for easy connection of the 10 & 20W panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Enerdrive:

Enerdrive Pty Ltd has been providing independent power systems to the Australian market since 1996. Starting as Advance Trident Limited in 2003 and predominantly servicing the marine industry, ATL saw the huge growth potential in the mobile and recreational vehicle market soon after, and in 2008 ATL Limited morphed into Enerdrive. In recent times Enerdrive has embarked on its own manufacturing program. They saw the need to control their own destiny and produce high-end products that the Australian marketplace was demanding. This program has led to Enerdrive manufacturing their own range of ePOWER AC Battery Chargers & DC2DC Battery Chargers along with Lithium battery systems.

Specifications

Brand

Enerdrive

Datasheet_SP-EN80W-SP-EN80W-B-Solar-Spec-Sheet.pdf

Download

Enerdrive-Warranty-Policy-2020.pdf

Download

Product Specification

Maximum Power(Pmax)	80W
Optimum Operating Voltage(Vmp)	17.5V
Optimum Operating Current(Imp)	4.58A
Open Circuit Voltage(Voc)	22.4V
Short Circuit Current(Isc)	5.10A
Module Efficiency	15.17%
Operating Module Temperature	-40°C to +85°C
Maximum System Voltage	1000V DC (IEC)
Power Tolerance	-1%~+3%
STC	lrradiance 1000 W/m, module temperature 25°C, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used
Solar Cell	Monocrystalline silicon157mm×78mm
No. of Cells	36 (4×9)
Dimensions	780x676x35mm
Weight	7.9kg
Front Glass	3.2mm(0.13 inches) tempered glass
Frame	Anodized aluminium alloy (available in silver or black)
Junction Box	Ip67 rated
Output Cables	TÜV (2Pfg1169:2007)
Connectors	MC4 connectors
NOCT	45±2°C
Temperature Coefficient of Pmax	-0.37%/°C
Temperature Coefficient of Voc	-0.30%/°C
Temperature Coefficient of Isc	0.060%/°C

Accessory Products

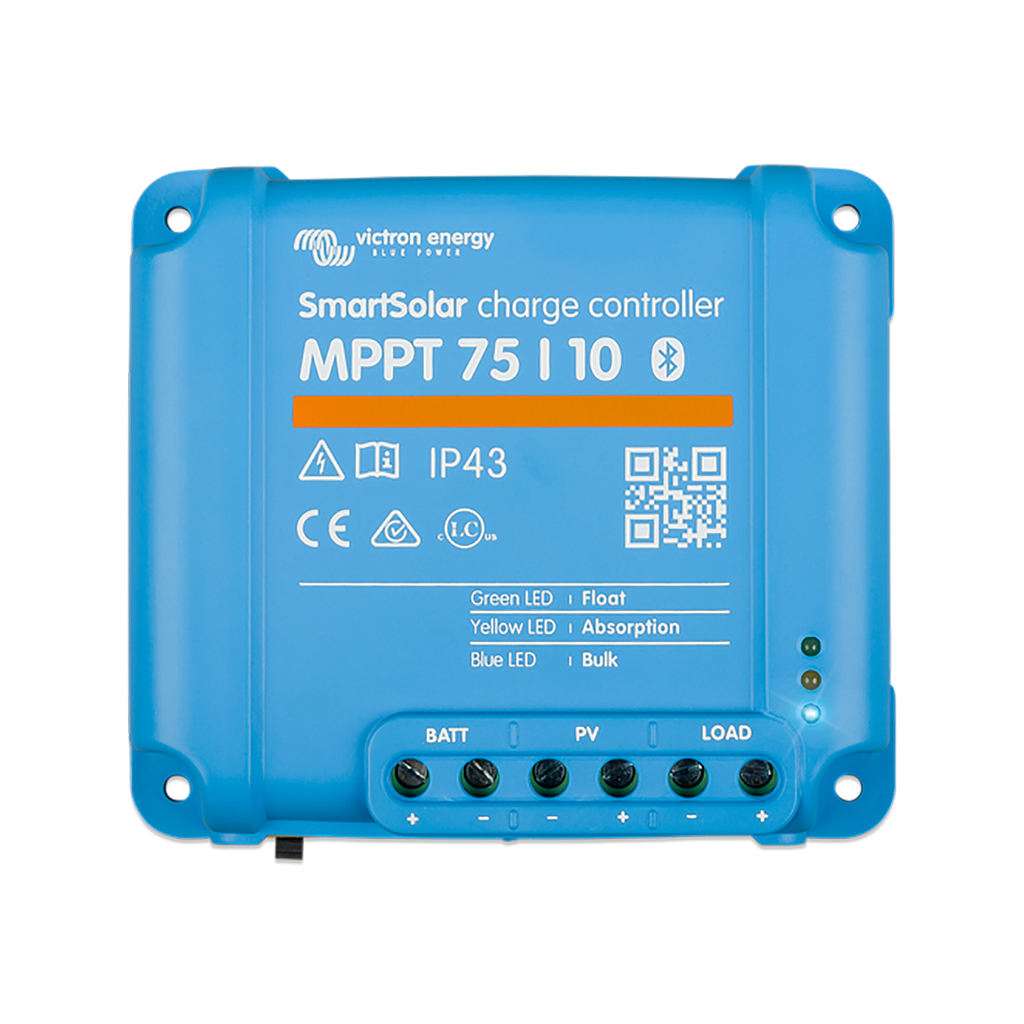

Victron SmartSolar MPPT 75/10

$ 70.63 $ 70.63

$ 128.00

Alternative Products

Enerdrive 12V 100W Solar Panel

$ 170.00 $ 170.00

$ 128.00

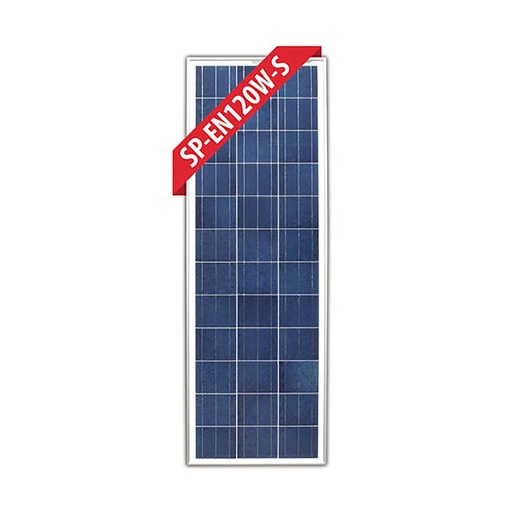

Enerdrive 12V 120W Slimline Solar Panel
