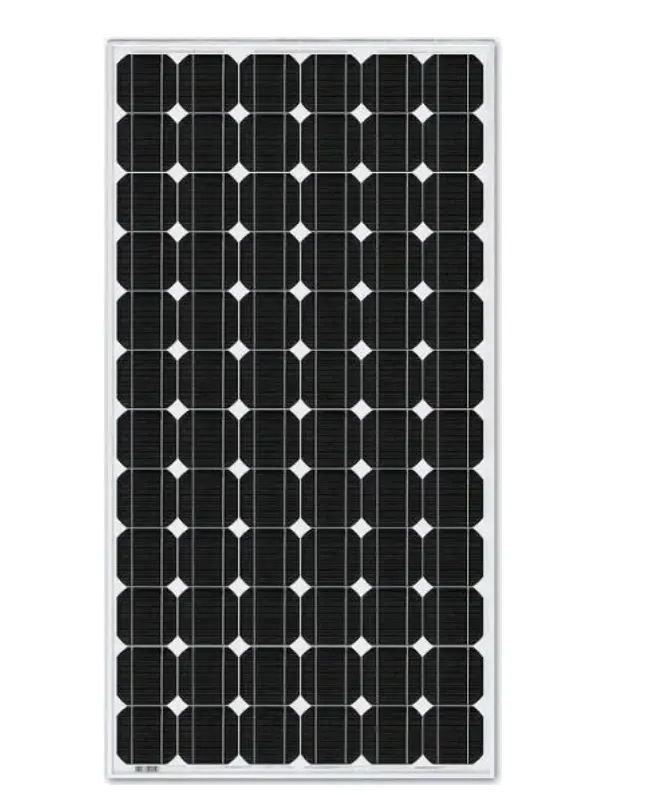

Victron Solar Panel 365W-72 cells Mono 1980x880x35mm series 4c

A highly efficient 365W monocrystalline solar panel featuring a robust aluminium frame, advanced low-light sensitivity, and superior high-temperature performance for off-grid, industrial, and mobile power systems.

$ 399.00 - Inc GST 399.0 AUD $ 399.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Solar Panels

SKU: SPM043657203

Victron Solar Panel 365W-72 cells Mono 1980x880x35mm series 4c

Features

Advanced Low-Light Performance: Exceptionally high sensitivity to light across the entire solar spectrum maximizes energy yields even during early mornings or heavily overcast days.
Low Voltage-Temperature Coefficient: Maintains high operating voltage and superior charging performance even in intense summer heat.
Integrated Bypass Diodes: High-performance diodes significantly minimize unexpected power drops caused by partial shading from surrounding branches or roof fixtures.
Pre-Wired Quick Connect System: Comes equipped with MC4 connectors for fast, reliable, and secure installations out of the box.

Where to use it

The Victron 365W Monocrystalline Solar Panel is a high-capacity energy harvesting solution built for robust power generation. Engineered for large-scale off-grid installations, residential setups, and demanding mobile applications like large motorhomes and commercial vessels, this panel ensures maximum power yield. It perfectly pairs with MPPT controllers to efficiently charge large 12V, 24V, or 48V battery banks and provides the ultimate stability needed for energy independence.

Dimensions

Width	880 mm
Height	35 mm
Depth	1980 mm
Weight	18.3 kg

Safety Features

Sealed Waterproof Junction Box: A multi-functional, fully sealed junction box offers a high level of electrical safety and protection against harsh weather elements.
Advanced EVA Encapsulation: Features an Ethylene Vinyl Acetate encapsulation system and a triple-layer back sheet that strictly meets safety requirements for high-voltage operations.
High-Transmission Tempered Glass: Premium low-iron tempered glass delivers superior stiffness and exceptional impact resistance against heavy hail and extreme wind loads.

Applications

4WD

RV's

Caravans

Marine

Off-Grid Systems

Tiny House

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual_Installation-BlueSolar-Panels-EN-NL-FR-DE-ES-SE.pdf

Download

Datasheet-BlueSolar-Monocrystalline-Panels-current-models-EN.pdf

Download

Product Specifications

Description	365W-72 cells Mono 1980 x 880 x 35 mm series 4c
Net Weight	18.30 kg
Nominal Power (PMPP)	365 W (±3% tolerance)
Max-Power Voltage (VMPP)	41.4 V
Max-Power Current (IMPP)	8.83 A
Open-Circuit Voltage (VOC)	48.40 V
Short-Circuit Current (ISC)	9.30 A
Maximum Series Fuse Rating	15 A
Cell Type	Monocrystalline
Number of Cells in Series	72
Module Efficiency	20.95%
Maximum System Voltage	1000V
Temperature Coefficient of MPP (%)	-0.45%/°C
Temperature Coefficient of VOC (%)	-0.35%/°C
Temperature Coefficient of ISC (%)	+0.04%/°C
Temperature Range	-40°C to +85°C
Surface Maximum Load Capacity	200 kg/m²
Allowable Hail Load	23 m/s, 7.53 g
Junction Box (with bypass diode)	LH858B
Length of Cables / Connector Type	900 mm MC4
Output Tolerance	+/-3%
Frame	Aluminium
Product Warranty	5 years
Warranty on Electrical Performance	10 years 90% + 25 years 80% of power output
Smallest Packaging Unit	1 panel
Quantity per Pallet	26
