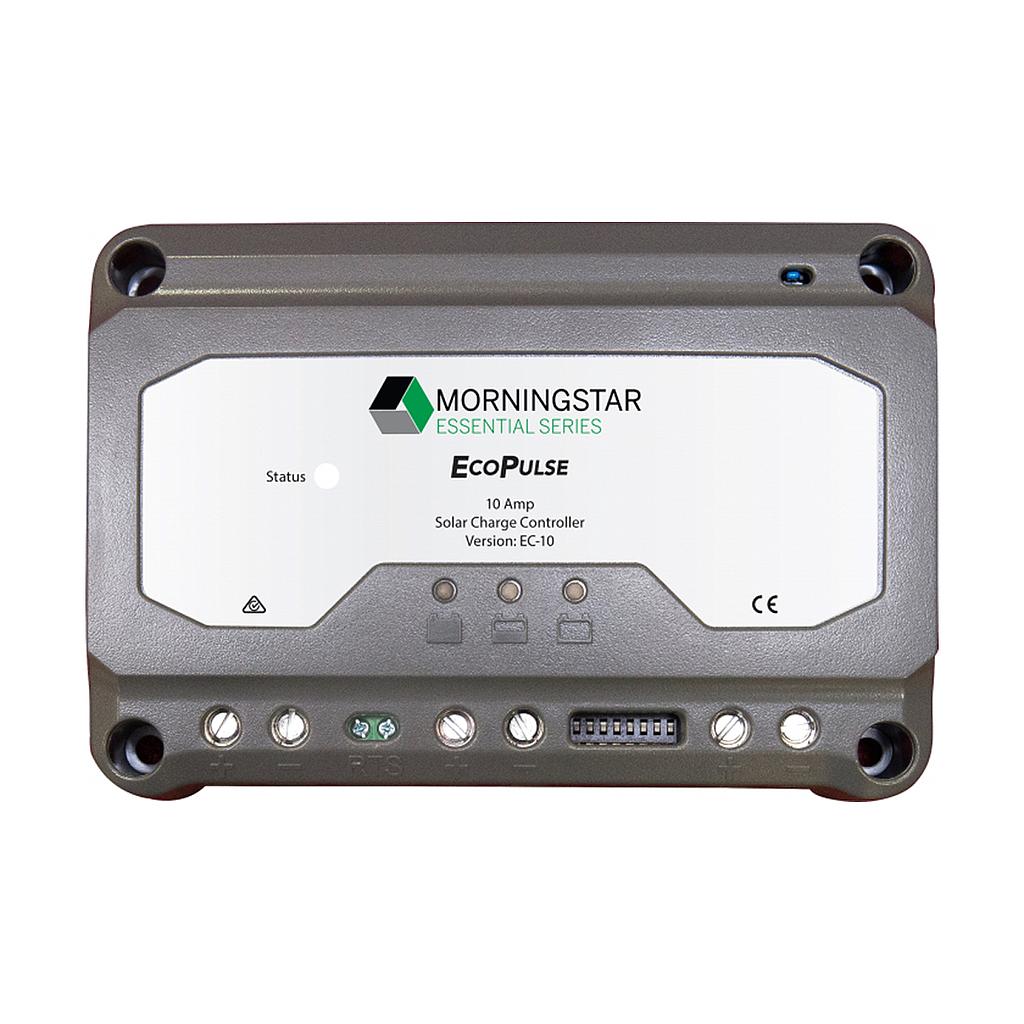

Morningstar ECOPULSE PWM solar charge controller:

The EcoPulse is a pulse width modulation (PWM) solar charge controller within Morningstar’s Essential Series™ of products which provides essential off-grid battery regulation functions. This controller is easy to use, and designed for residential and leisure consumer applications.* Metered and non-metered versions of this product are available at 10, 20, and 30 amp charge ratings for 12 and 24 volt battery systems.

Features:

High Reliability – conformally coated circuit board and corrosion resistant terminals.

Robust Thermal Design – extruded aluminum heatsink dissipates heat quickly without using cooling fans.

Durable Casing – high strength polycarbonate case.

LED Fault Indications – alert when short circuit, over current, high voltage, and other error conditions take place.

Automatic Solar Based Lighting Control – field adjustable dusk ‘til dawn setting.

Adjustable Charge Settings – seven presets and a custom setting can be set via DIP Switches or by the meter display buttons.

Adjustable Load Control – load control can be adjusted via meter display.

Optional Meter – multi-lingual interface with scroll buttons to adjust the settings and display metrics.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Morningstar:

With 30 years of experience and more than 4 million products in over 100 countries, Morningstar has truly earned its reputation for building the “world’s leading solar controllers.” That’s why system designers of the most mission-critical solar energy installations around the world insist on Morningstar components. From mineral mines in South America to telecom repeater stations in Canada, from gas wells in the Middle East to mountain peaks in Nepal, Morningstar technology and legendary quality make the difference between success and failure. “Others survive harsh conditions. We THRIVE in them.”

Specifications

Brand

Morningstar

Datasheet_MSC-EcoPulse-170421-11-MG-HIGH.pdf

Download

Manual_Ecopulse-IOM-4x6_v2.1-_WEB.pdf

Download

Product Specification

Nominal Battery Voltage	12V or 24V auto-detect
Battery Voltage Range	10-35V
Voltage Accuracy	<= 0.1% +/- 50mV
Maximum Battery Current	10A, 20A or 30A
Maximum PV open-circuit voltage	60V
Load Current Rating	10A, 20A or 30A
Self-Consumption	<15mA; <20mA (meter)
LED Indications	(1) status, (3) Battery state of charge
Transient Surge Protection	1500 Watts (solar, battery, load)
Operating Temperature	-40°C to + 45°C
Storage Temperature	-40°C to + 80°C
Humidity	100% non-condensing
Tropicalization	conformal coating, marine-rated terminals
Dimensions (W x L x D)	15.3 x 10.5 x 5.5 cm 6.0 x 4.1 x 2.2 in
Weight	0.4 kg / 1.0 lbs
Wire Size Range	Power Terminals: 2.5 – 16 mm2 / 14 – 6 AWG Battery/Temp. Sense: 0.25 – 1.0 mm2 / 24 – 16 AWG
Enclosure	IP20, Type 1
Solar Input	overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
Load Output	overload, short-circuit, high temperature, reverse polarity
Battery	reverse polarity (no battery removal)
4-Stage charging	Bulk, Absorption, Float, Equalize
Temperature Compensation Coefficient	-30mV/°C/12volt
Set-points	Absorption, Float, Equalize, HVD
Low Voltage Disconnect, Low Voltage Reconnect Settings	11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
Lighting Settings	Dusk to Dawn
CE, TUV Listed	IEC 62109
