Features:
- 150 Amps / 70 Volts
- Dual Stainless Steel Distribution Posts
- Includes Positive and Negative Studs
- 8mm Stud with Linking Plates
Brand: Victron |

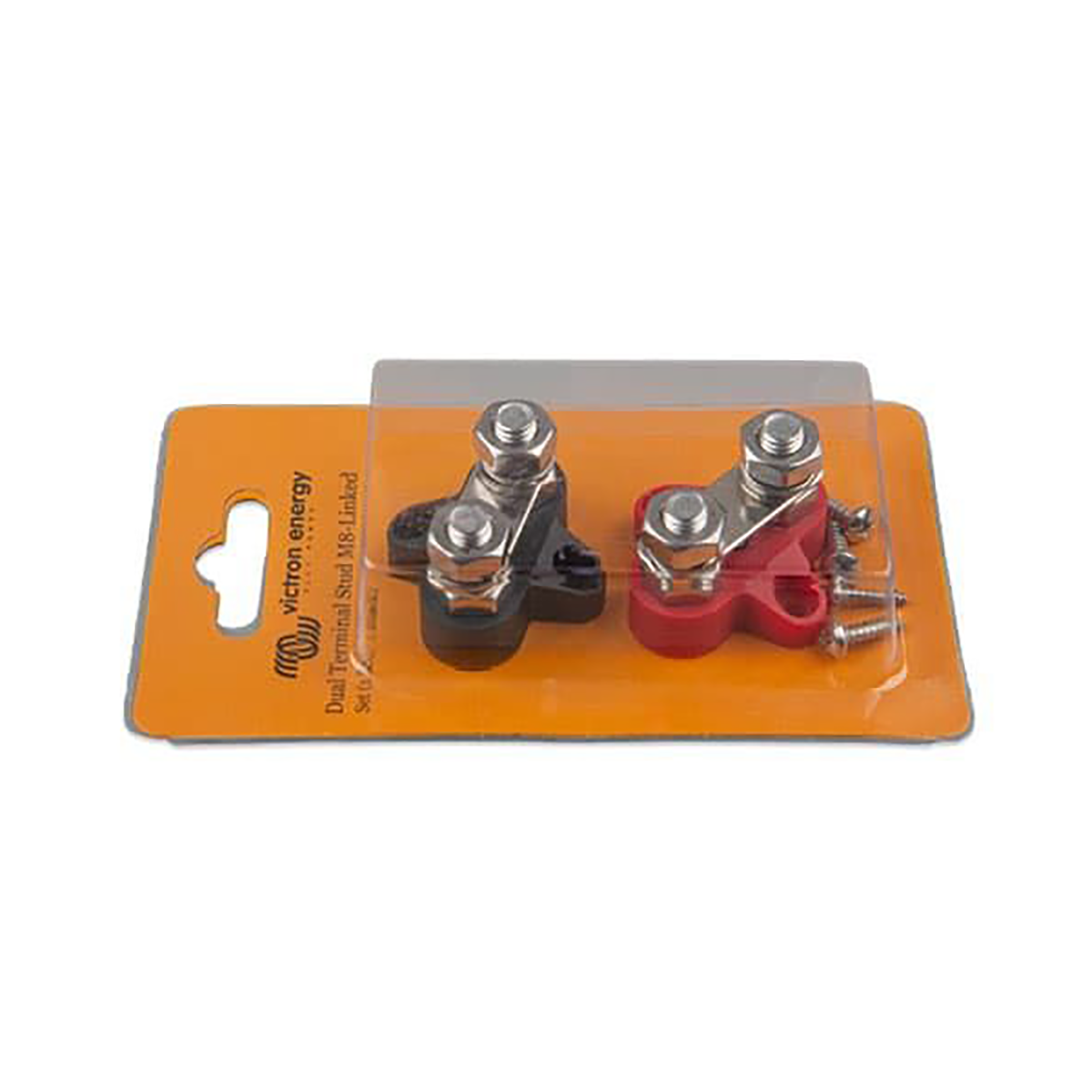

Dual Terminal Stud M8 Linked (Pair)
Features:

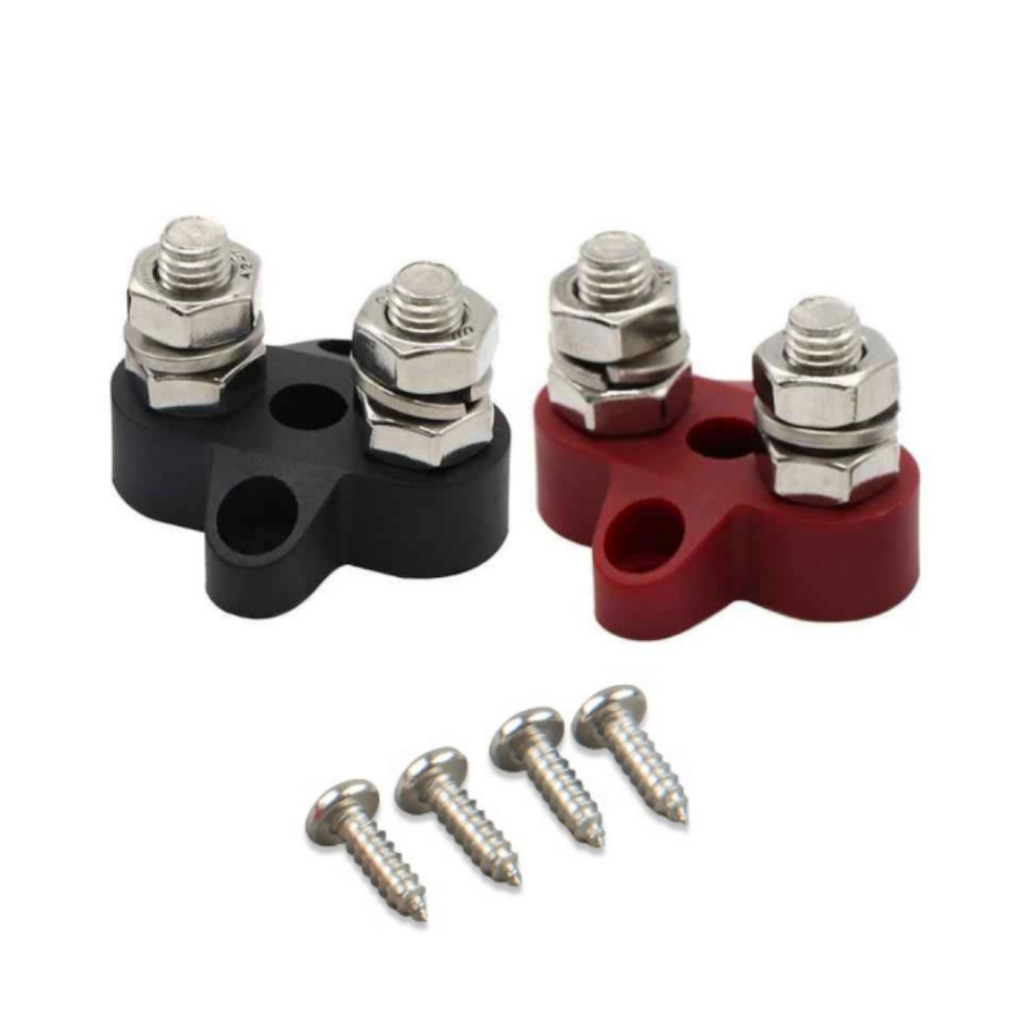

Victron Dual Distribution Post:
Victron's dual power distribution post is designed to connect electrical power runs, distribute power to separate locations and condense ground leads to a central location. They are rated up to 150 amps and can handle up to 70VDC.
Product Properties:
More about Victron:
Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.
Brand | Victron |
Maximum Current | 150 A |
Maximum Voltage | 70V DC |
Terminal Diameter | M8 |
Terminal Height | 17mm |
Terminal Material | Stainless Steel |
Hex Nut Material | Stainless Steel |
Busbar Material | Tin-Plated Copper |
Base Material | Glass Fibre Reinforced Nylon |
Weight | 70g |
Dimensions | 45 x 43 x 32mm |
