Tesla Gateway 2

Features:
• Provides Energy Management & Monitoring
• Provides Backup Operation
• Built to Pair with Tesla Powerwall 2

TESLA

SKU: ANL050

Category: Lithium Grid Inverters

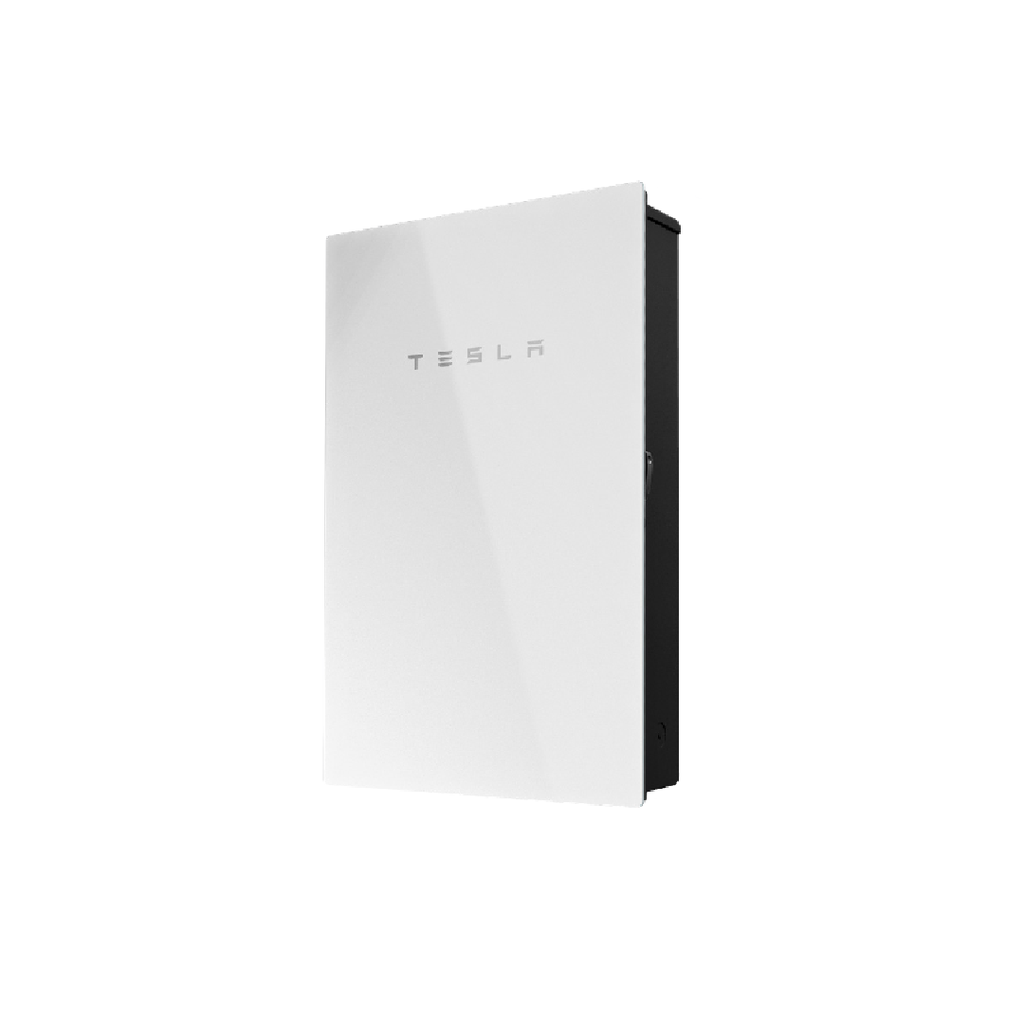

Tesla Backup Gateway 2

Features:

Provides Energy Management & Monitoring
Provides Backup Operation
Provides Time-Based Controls
Built to Pair with Tesla Powerwall

A Powerwall installation includes at least one Powerwall battery, a Backup Gateway and standard electrical hardware such as circuit breaker panels, conduit, junction boxes, or electrical disconnects as required by your particular installation and local electrical codes.

The Backup Gateway 2 for Tesla Powerwall provides energy management and monitoring for self-consumption, time-based control and backup operation for your system. When the Powerwall system is in Backup mode, the Backup Gateway 2 controls connection to the grid, automatically detecting outages and transitioning to backup power. Communicating directly with the Powerwall, the Backup Gateway allows you to monitor energy use and manage backup energy reserves from any mobile device.

The Powerwall and Backup Gateway can be installed indoors or outdoors and can operate within a wide range of temperatures, from -20°C to 50°C. At the extremes of the temperature range, Powerwall may limit charge or discharge power to improve battery lifespan.

More about Tesla:

Tesla's mission is to accelerate the world’s transition to sustainable energy. With global temperatures rising, the faster we free ourselves from fossil fuel reliance and achieve a zero-emission future, the better.

In pursuit of this mission, Tesla manufactures electric vehicles that are not just great EVs, but the best cars, period. They also produce and install infinitely scalable clean energy generation and storage products that help our customers further decrease their environmental impact. When it comes to achieving goals, Tesla prides itself on accomplishing what others deem impossible.

Datasheet_backup-gateway-2.pdf

Download

Product Specifications

Backup Gateway 2
Electrical Specifications
AC Voltage (Nominal)	240V (Line-to-Neutral), 440V (Line-to-Line)
Feed-in Type	Single Phase, Three Phase
Grid Frequency	50/60Hz
Nominal Current	100A per Phase (Single Phase), 80A per Phase (Three Phase)
Maximum Input Short Circuit Current	10kA
Overvoltage Category	Category III
AC Meter	Revenue Accurate (+/- 0.2%)
Connectivity	Ethernet, WiFi, Cellular (LTE/4G)
User Interface	Tesla App or Local Network Monitoring
Operating Modes	Support for solar self-consumption, time-based control, and backup
Backup Operation	Backup of selected single phase; automatic disconnect of all phases
Modularity	Support up to 10 AC-coupled Powerwalls
Warranty	10 Years
Mechanical
Dimensions	584 x 380x 127mm
Weight	11.4kg
Breaker Space (DIN Rail)	Main Breaker: 1-, 2- or 3-pole. Generation/Load Breakers: 6 Spaces
Mounting Options	Wall Mount
Environmental
Operating Temperature	–20°C to +50°C
Operating Humidity (RH)	Up to 100%, Condensing
Maximum Elevation	3000m
Environment	Indoor and Outdoor Rated
Ingress Rating	IP55
Compliance Information
Safety	IEC 62109-1, IEC 62053-22, IEC 61439-1, IEC 61439-3
EMC and Radio Equipment	EMC Directive 2014/30/EU, Radio Equipment Directive 2014/53/EU, IEC 61000-6-1, IEC 61000-6-3, EN 55024, EN 300328, EN 300440, EN 301489-1, EN 301489-17, E N301489-52, EN 301511, EN301893, EN 301908-1
Environmental	RoHS Directive 2011/65/EU, WEEE Directive 2012/19/EU, Battery Directive 2006/66/EC, REACH Regulation EC 1907/2006
Seismic	AC156, IEEE 693-2005 (high)
