Solar Charge Controllers Explained

Solar charge controllers are critical in solar-charged battery systems to prevent battery failure.


If you're setting up a 12V or 24V solar-charged power system, you'll need to include a solar regulator (otherwise known as a solar charge controller) in your setup. Without one, your battery won't last long (because your battery could blow up... seriously).

In this guide, we'll cover:

  • What a solar regulator is and why you need one
  • The different types of regulators (PWM vs MPPT)
  • How to size the right regulator for your solar system


Shopping for a solar regulator? Click here for Australia's largest range of MPPT and PWM solar charge controllers.



TL;DR


What's a solar regulator and why do you need one?
  • A solar regulator regulates the amount of power that is delivered from your solar panel to your battery.
  • You need a solar regulator to protect your battery by controlling the voltage and current.
❓ What's the difference between an MPPT and PWM solar regulator?
  • MPPTs are more efficient, use smarter technology , can be used in complex system designs, and is programmable to your battery.
  • PWMs are ideal for small, simple systems as they directly connect panel voltage to battery voltage.
❓ How to size a regulator for your solar system?
  • Solar panel watts ÷ battery charging voltage (≈14.4V for 12V systems, 28.8V for 24V systems) = required regulator amps


What does a solar regulator do?

A solar regulator acts as the middleman between your solar panel and your battery.

Here's why it's essential:

  • A 12V solar panel actually produces around 17-18V in full sun. If you connect that directly to a 12V battery, the battery will quickly overcharge.
  • Overcharging causes batteries to overheat, degrade, or even fail completely.

The regulator's job is to:

  1. Control the voltage and current coming from your solar panel
  2. Ensure the battery is charged correctly
  3. Stop charging once the battery is full

In short: a regulator prevents your battery blowing up like a balloon, and keeps your system safe and efficient.

Read more: Upgrading your dual battery system to lithium

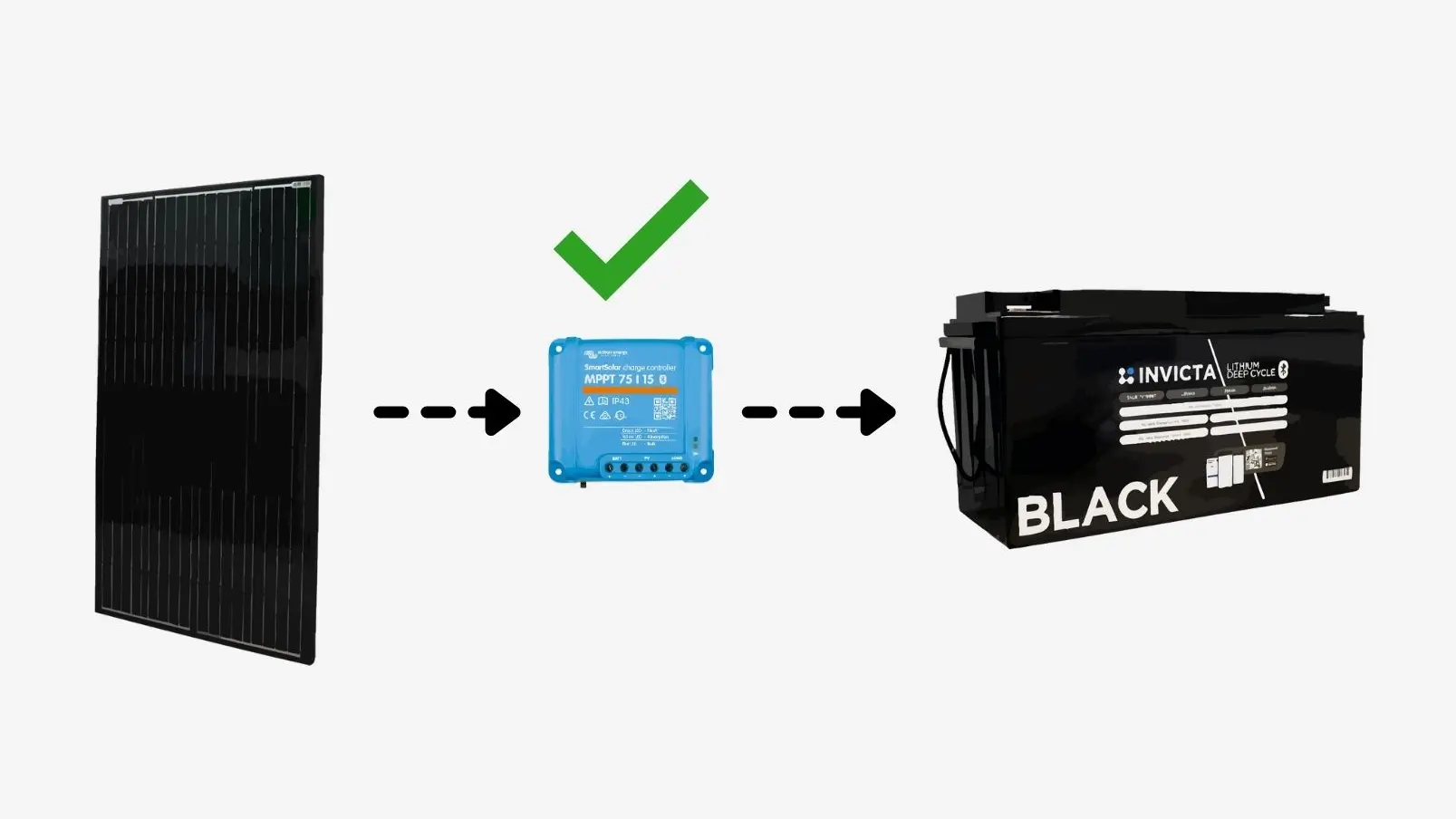

Solar charge controller is installed between a solar panel and a battery to control voltage and current to the battery

Types of Solar Regulators

There are two main types of solar regulators:

PWM (Pulse Width Modulation) Regulators

  • The cheaper option. You can find PWMs starting around the $40-$50 AUD mark.
  • Best for small, simple systems (e.g. a 12V panel charging a 12V battery).
  • Directly connects panel voltage to battery voltage.
  • Limitation: you must use a 12V panel with a 12V battery (or 24V with 24V).
  • Using high-voltage panels will result in wasted power.


MPPT (Maximum Power Point Tracking) Regulators

  • The better, more efficient option.
  • Costs a little more than PWMs ($70-$80 AUD and up), but it's worth it for the additional features.
  • Can take a higher-voltage panels and step them down to the correct battery voltage.
  • Increases charging efficiency by converting excess panel voltage into additional charging current.
  • Includes system monitoring and programmability (with brands like Victron and Alvolta) so you can:
    • Track exactly how much solar is going into your battery
    • Program charge settings for different battery types
    • Diagnose problems with error codes and live data


In most cases, we strongly recommend using an MPPT regulator, especially for larger or high-voltage solar setups. MPPTs are just the smarter technology choice.

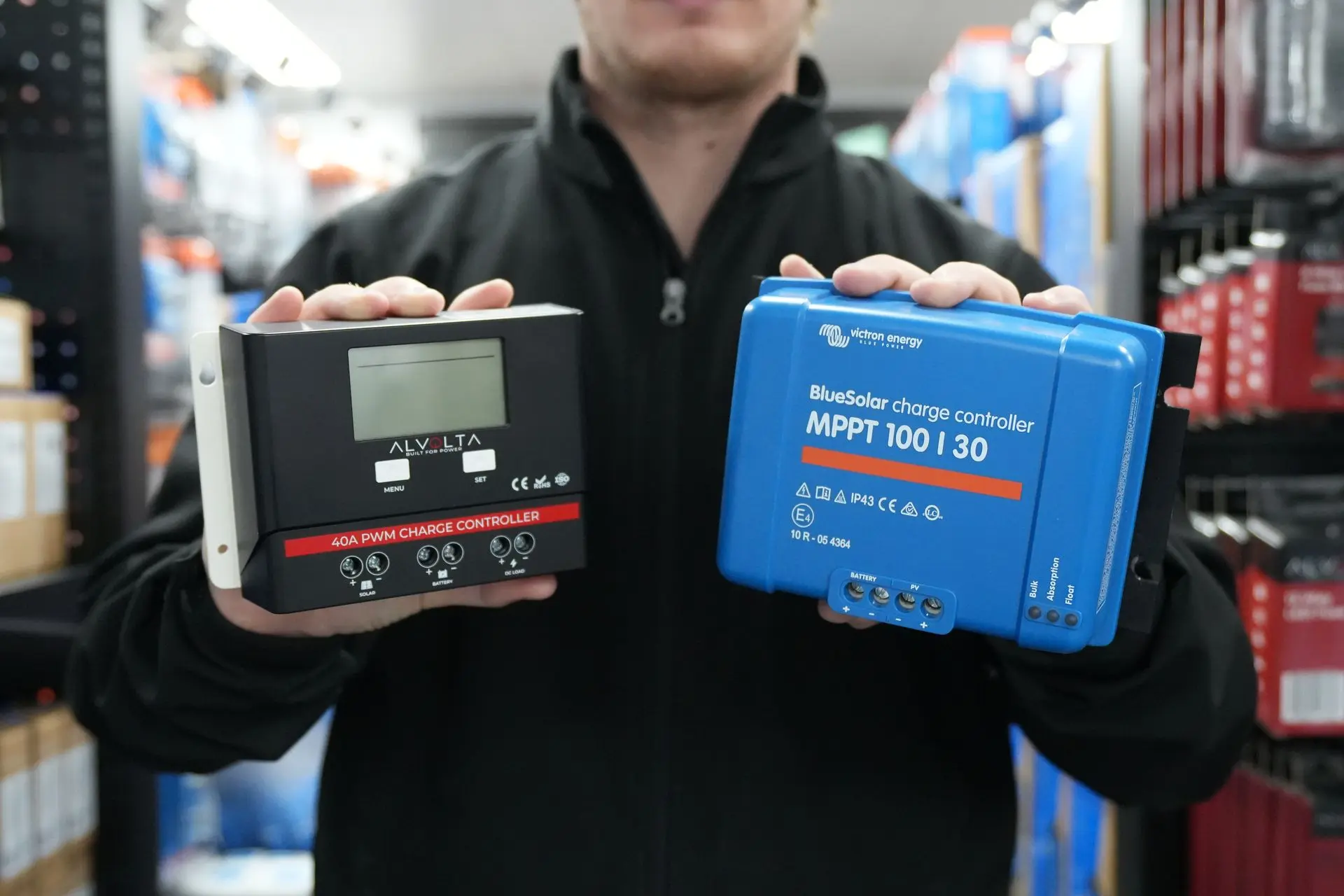

PWM vs MPPT solar charge controller

Example

PWM vs MPPT Efficiency

Say you have a 400W solar panel producing 40V at 10A:

  • With a PWM regulator, your 12V battery would only see about 14.4V at 10A - roughly 144W of usable power. That's a huge loss!
  • With an MPPT regulator, that same panel could be stepped down to 14.4V at around 27A - delivering nearly the full 400W to your battery.


That's why MPPT regulators are the go-to choice for high-voltage panels and bigger systems.

Read more: Cable and fuse guide

How to size a solar regulator

Choosing the right regulator depends on your panel wattage and battery voltage.

Here's a simple calculation:

Solar panel watts ÷ battery charging voltage (≈14.4V for 12V systems, 28.8V for 24V systems) = required regulator amps

Example:

  • 400W panel ÷ 14.4V = 27.7A → You’ll need at least a 30A regulator for a 12V system
  • On a 24V system, the same panel would only need a 15A regulator.


Buying a Victron MPPT solar regulator? Visit the Victron MPPT sizing calculator 👉 https://www.victronenergy.com/mppt-calculator


Key sizing tips:

  • It's fine to exceed the MPPT amp rating (you can exceed by roughly 30%), but never exceed the regulator's voltage limit.
  • Factor in if you may wish to add additional panels later on.
  • Stay about 10% below the maximum voltage rating to allow for fluctuations in panel output.

Read more: How do you size solar for your off-grid vehicle?

Read more: Calculating battery size for your caravan or 4WD

Which regulator should you choose?

PWM regulator

✅ Best for very small, budget systems

✅ Simple setups where efficiency isn't critical


MPPT regulator

✅ Recommended for most modern setups

✅ Extracts more usable power from your panels

✅ Allows flexibility in panel choice and wiring

✅ Includes monitoring and programming features

At Springers Solar, 90% of regulators we supply are MPPT models, simply because they're more efficiency, versatile, and reliable in the long run.

👉 Check out our range of Victron and Alvolta regulators—from 10A units for camping setups right up to 100A models for large solar arrays.
