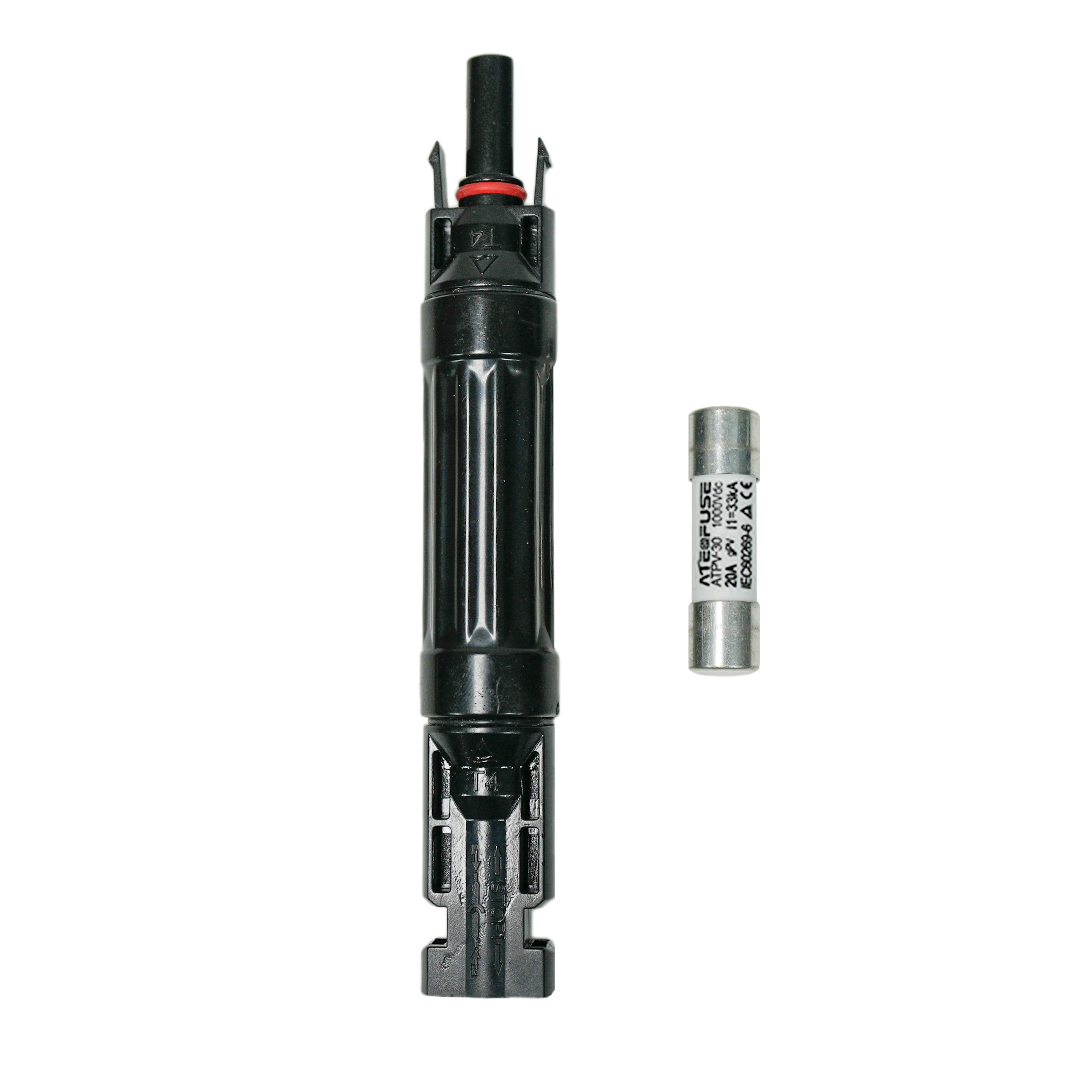

Alvolta 20A Solar Fuse Connector w/Spare Fuse

Alvolta 20A Solar Fuse Connector w/Spare Fuse

(0 reviews)

In-line 20A solar fuse connector with MC4-style ends and spare fuse, 1000V DC, IP68

$ 13.90 - Inc GST 13.9 in stock AUD $ 13.90 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: SOLAR, Solar Hardware, Fuse, Fuse Holder

SKU: ALV-20SFC

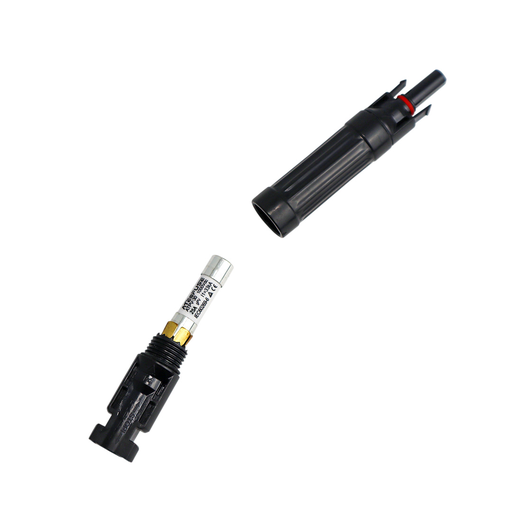

Alvolta 20A Solar Fuse Connector w/Spare Fuse

Fuse connector features

In-line 20A PV fuse with MC4-style male and female ends
Spare fuse included
Suits 2.5, 4 and 6mm² solar cable
Maximum 1000V DC
Snap-in locking

Build

Tin-plated copper contacts, 0.5mΩ contact resistance
UL94-HB/UL94-V0 housing
IP68 rated
Black, 132 x 15mm

Where to use it

The Alvolta 20A Solar Fuse Connector w/Spare Fuse plugs into a solar panel lead to fuse each panel or string, protecting the panel wiring if a fault or reverse current occurs. It is commonly used when paralleling solar panels on caravans, 4WDs, boats and off-grid systems.

Choose a rating that suits the panel's maximum series fuse rating and the cable. A spare fuse is included, and the connector is backed by a 1-year warranty.

What's in the box

1x 20A solar fuse connector
1x spare 20A fuse

Dimensions

Length	132 mm
Width	15 mm

Warranty

1-year warranty

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_ALV-20SFC_V1_compressed.pdf

Download

A solar fuse connector is used to provide inline overcurrent protection between solar panels and a solar charge controller. It helps protect your cabling, regulator, and batteries from short circuits and reverse current, making it an essential safety component in camping, caravan, 4WD, and off-grid solar systems.

Solar fuse connectors are typically installed between the solar panel and the charge controller, often on the positive solar cable. In systems with multiple panels, they’re commonly used on each panel string to prevent reverse current flow from other panels or the battery bank.

Solar fuse connectors are compatible with 12V, 24V, and high-voltage solar panels, including both portable and fixed panel installations. They’re designed to work with MPPT and PWM solar regulators, provided the connector and fuse rating match the system’s voltage and current requirements.

Choose a fuse rating that’s slightly higher than the panel’s maximum operating current, but below the cable’s current rating. For example, a panel with an 8A operating current would typically use a 10A or 15A fuse. Always check your panel specifications and regulator limits to ensure safe and compliant protection.

Product Specifications

Model	ALV-20SFC
Maximum Current Rating	20A
Maximum Voltage Rating	1000V DC
Fuse Type	Schottky diode/PV fuse
Suitable Cable Size	2.5mm², 4mm², 6mm²
Contact Resistance	0.5mΩ
Locking System	Snap-in locking
Contact Material	Tin-plated copper
Temperature Range	-40°C to +90°C
Protection	IP68
Flame Protection Class	UL94-HB/UL94-V0
Colour	Black
Dimensions	132 x 15mm
Warranty	1 Year
