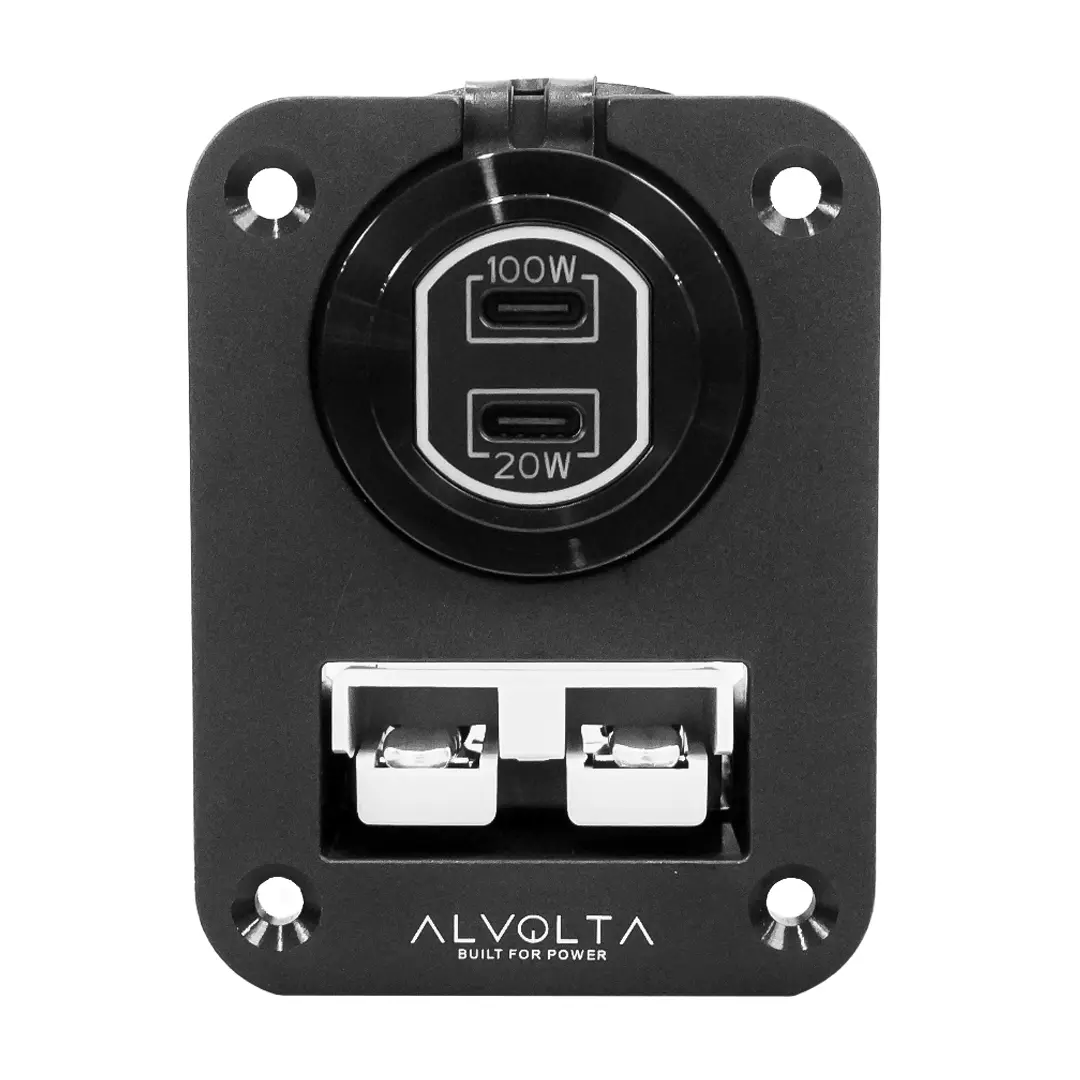

Alvolta Duo Anderson/USB C+C Flush Mount Panel

Alvolta Duo Anderson/USB C+C Flush Mount Panel

(0 reviews)

Flush mount 50A Anderson-style socket with dual USB-C charging, IP65 (black)

$ 44.95 - Inc GST 44.95 in stock AUD $ 44.95 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Plugs and Sockets

SKU: ALV-SB50CCFS

Alvolta Duo Anderson/USB C+C Flush Mount Panel

USB charging

USB-C port 1: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (up to 100W)
USB-C port 2: 5V/3A, 9V/2.22A, 12V/1.67A (20W)
120W combined USB output
Fast charging for phones, tablets and USB-C laptops

Anderson connection

50A Anderson-style plug
Flame-retardant PVC Anderson housing

Build

Flush mount, black housing
Pre-wired with 4mm² UL 1015 cable (100mm)
PA6 nylon housing
IP65 rated
Operating temperature -25°C to +85°C

Where to use it

The Alvolta Duo Anderson/USB C+C Flush Mount Panel combines a 50A Anderson-style connection with two fast USB-C charging ports. It suits caravans, camper trailers, motorhomes, 4WDs, boats and off-grid setups running 12V or 24V systems.

It fits into a panel cut-out through 4mm mounting holes and comes pre-wired, so installation is quick. The PA6 nylon housing is IP65 rated with an operating range of -25°C to +85°C, and it is backed by a 1-year warranty.

What's in the box

Anderson plug socket & USB C+C socket pre-assembled in flush mounting panel
4mm² UL 1015 cables for the USB C+C socket
2x Anderson contacts
2x 4mm mounting screws

Dimensions

Width	60 mm
Height	79.5 mm
Depth	60.2 mm

Safety features

IP65 rated
Flame-retardant PVC Anderson housing

Warranty

1-year warranty

Applications

4WD

RV's

Caravans

Marine

Off-Grid Systems

Tiny Houses

About Alvolta

Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_ALV-SB50CCFS_V1compressed.pdf

Download

Combines a 50A Anderson plug with a dual USB or power charging port in one panel - high-current connection and device charging in a single install.

The Anderson plug module and either the USB module or the power module pre-assembled in one panel, a pre-wired 4mm² UL 1015 cable for the USB/power side, 2x Anderson contacts, and mounting screws.

The Alvolta Duo Anderson sockets work with both 12 V and 24 V systems.

50A, on 12V or 24V systems.

Product Specifications

Model	ALV-SB50CCFS
Input Voltage	12/24V
USB-C Port 1 Output	5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
USB-C Port 2 Output	5V/3A, 9V/2.22A, 12V/1.67A
Combined USB Output	120W
USB Impedance	Less than 100mΩ
Anderson Current Rating	50A
Anderson Plug Material	Flame-retardant PVC
Included Cable	UL 1015, 4mm², 100mm
Mounting Type	Flush mount
Mounting Hole Size	4mm
Housing Material	PA6 (nylon 6)
Ingress Protection	IP65
Operating Temperature	-25°C to +85°C
Colour	Black
Dimensions (W x H x D)	60 x 79.5 x 60.2 mm
Warranty	1 Year
