Alvolta ANL 250A Fuse

(0 reviews)

Tin-plated copper ANL fuse for 12-48V systems

$ 14.90 - Inc GST 14.9 in stock AUD $ 14.90 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

Buy Bulk & Save More

Price

Quantity

$ 8.94 Inc. GST

20+

$ 10.43 Inc. GST

10+

$ 13.41 Inc. GST

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Circuit Protection, Fuse & Fuse Holder, Fuse, Distribution

SKU: ANL250

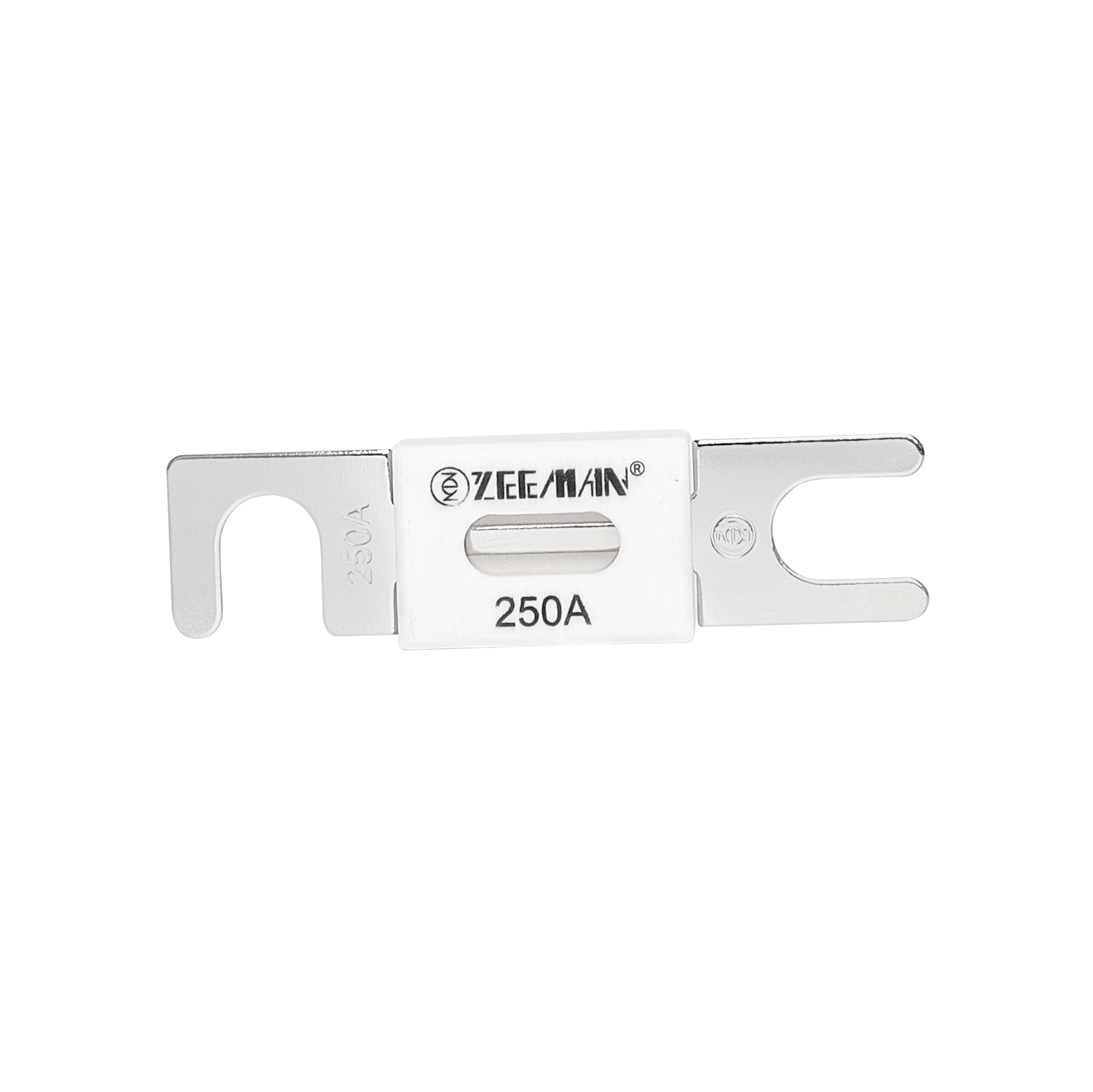

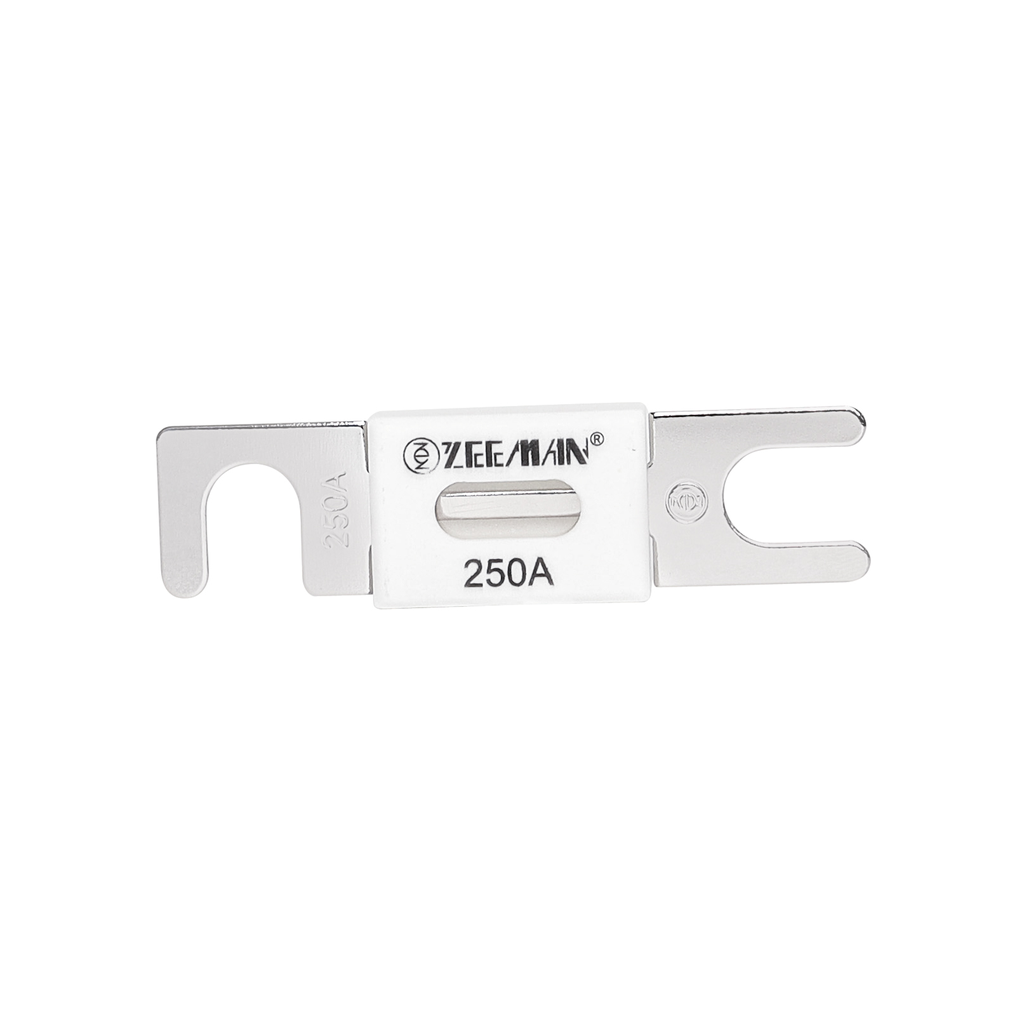

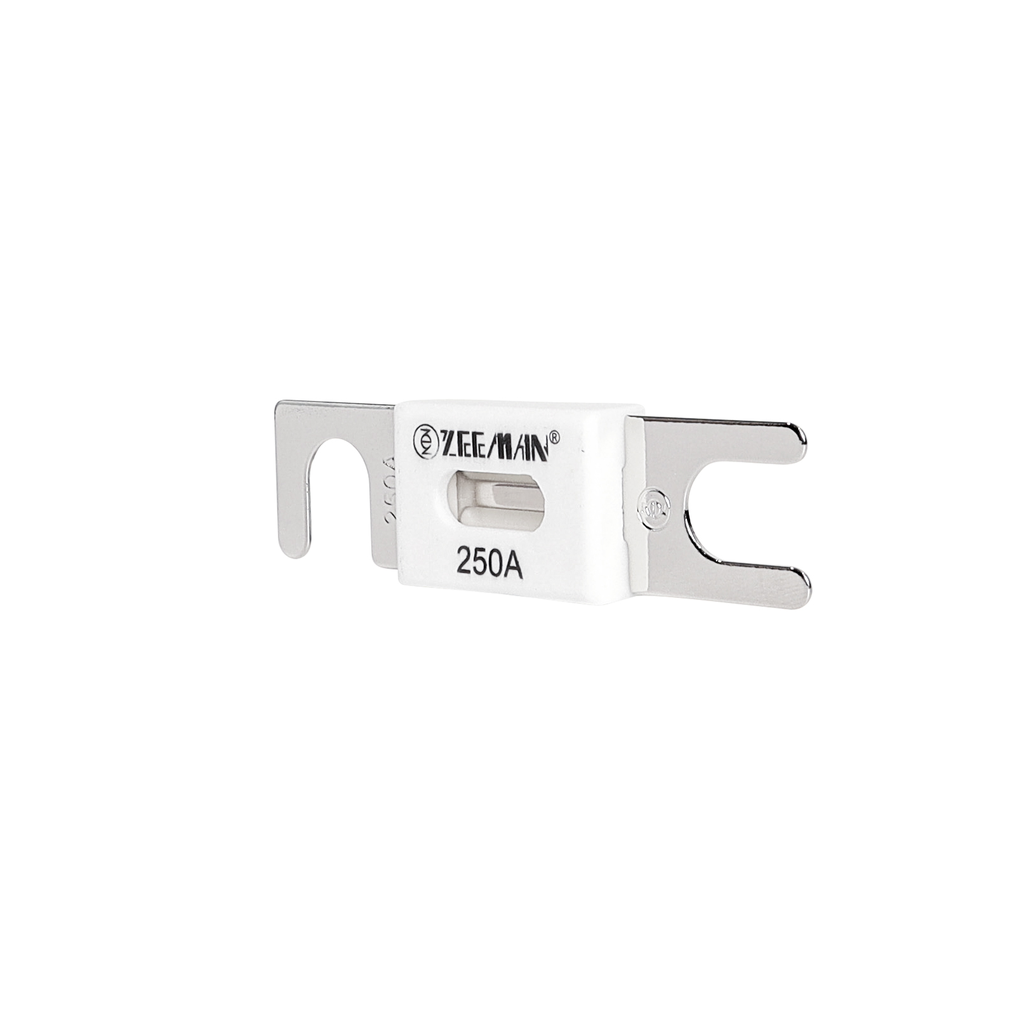

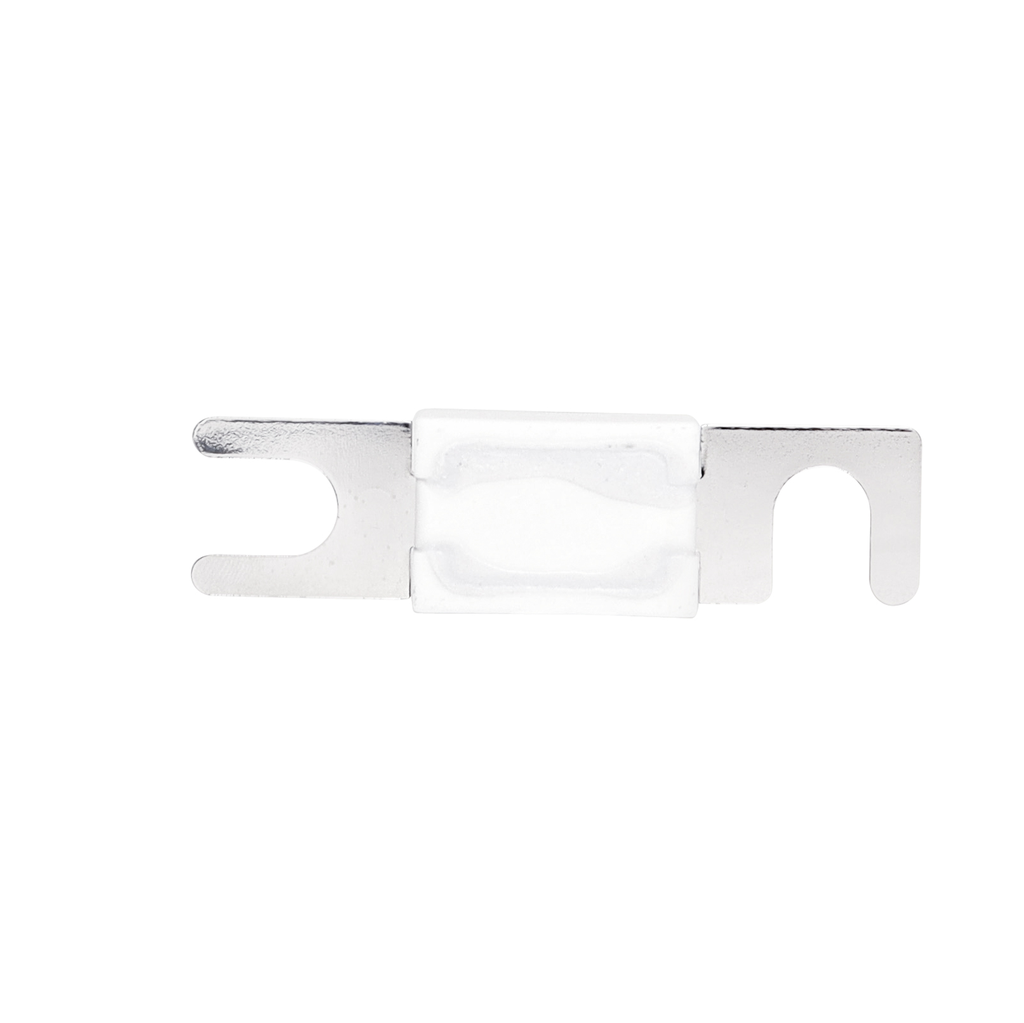

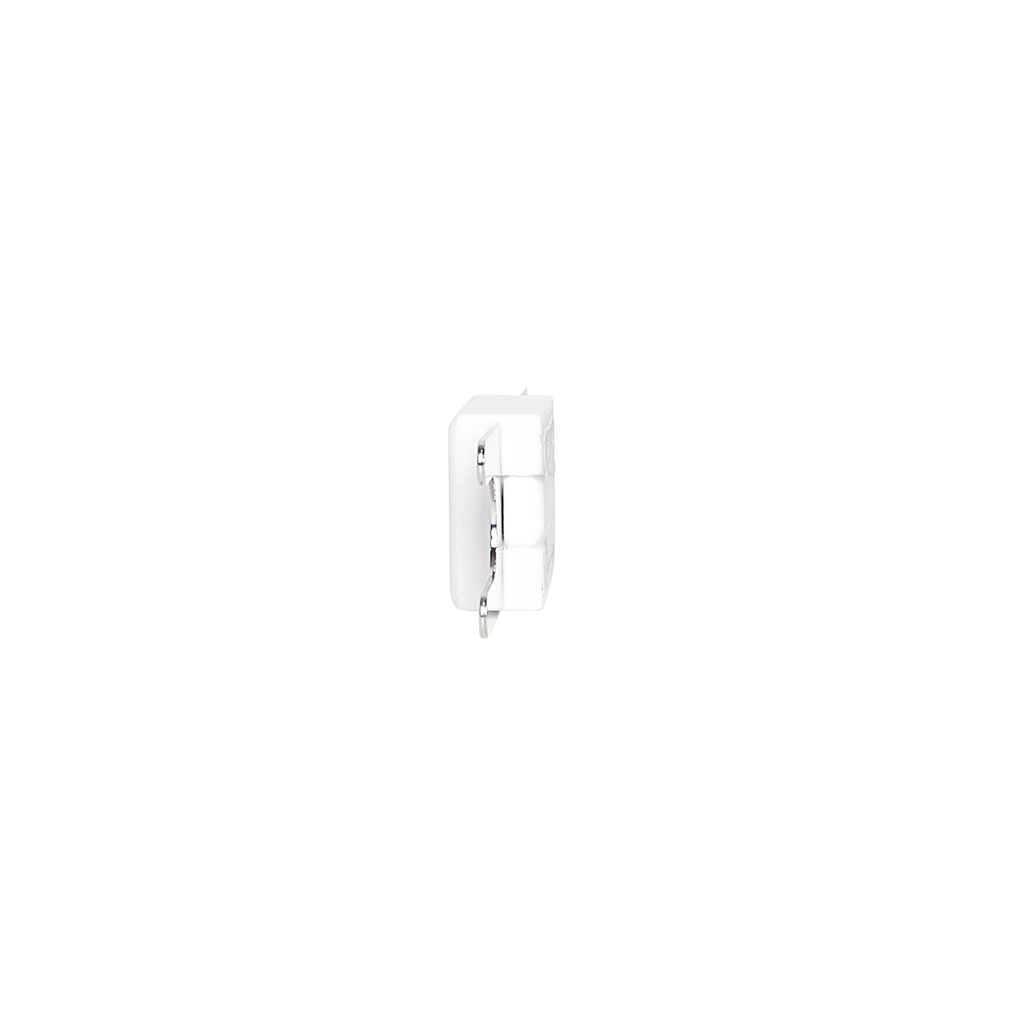

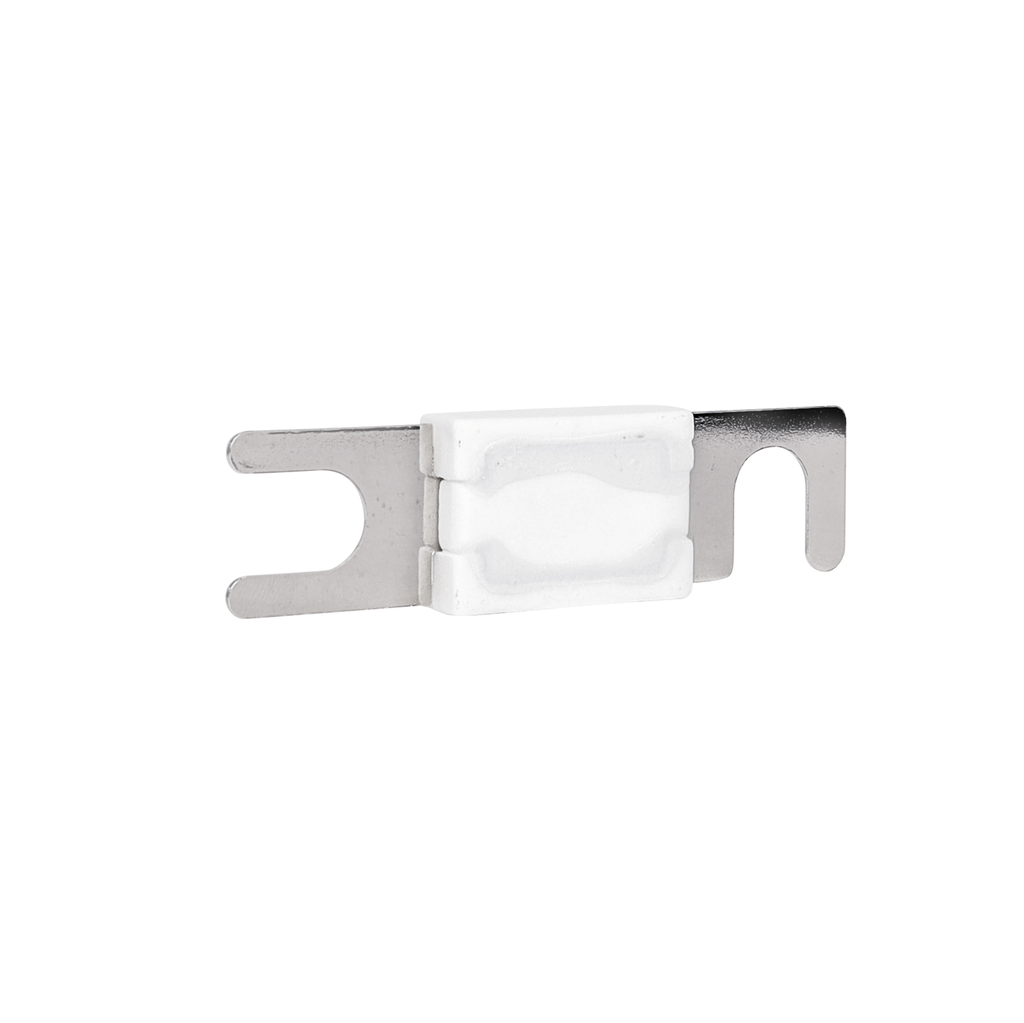

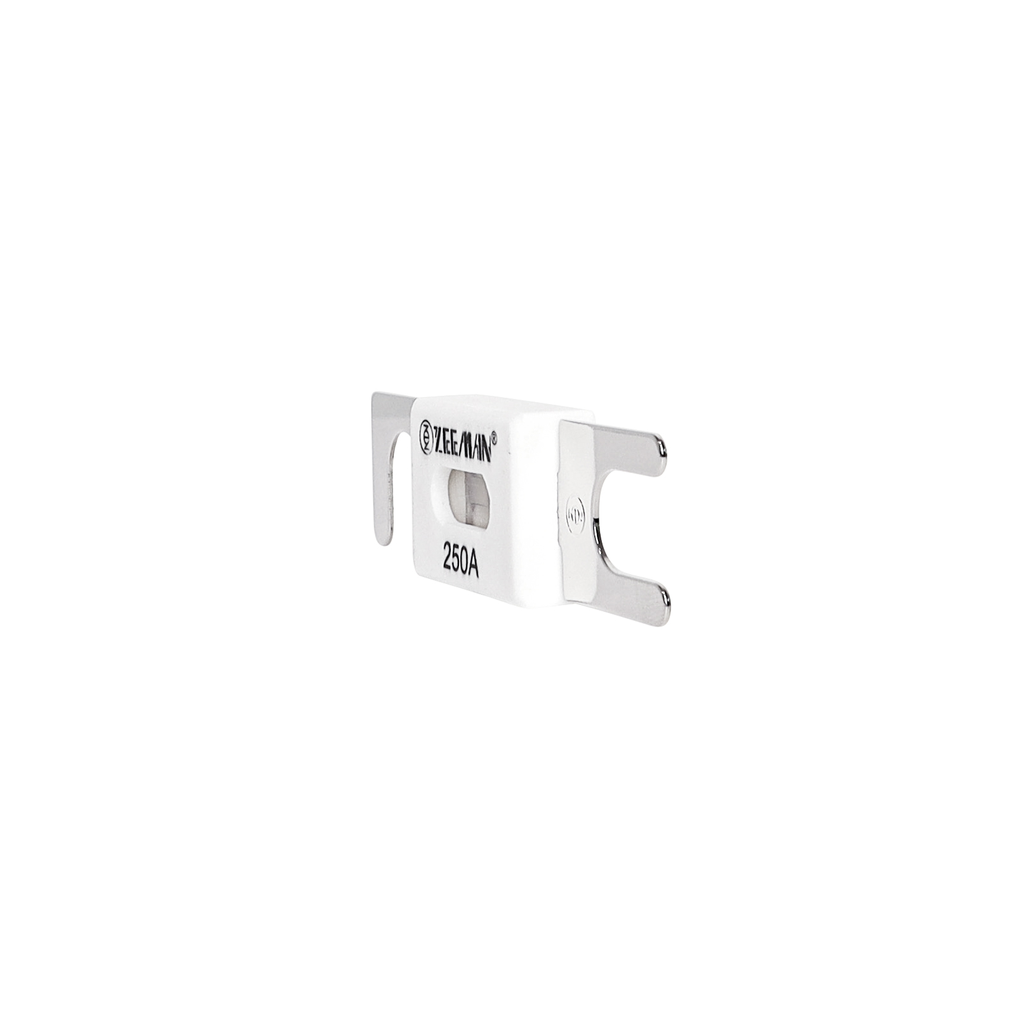

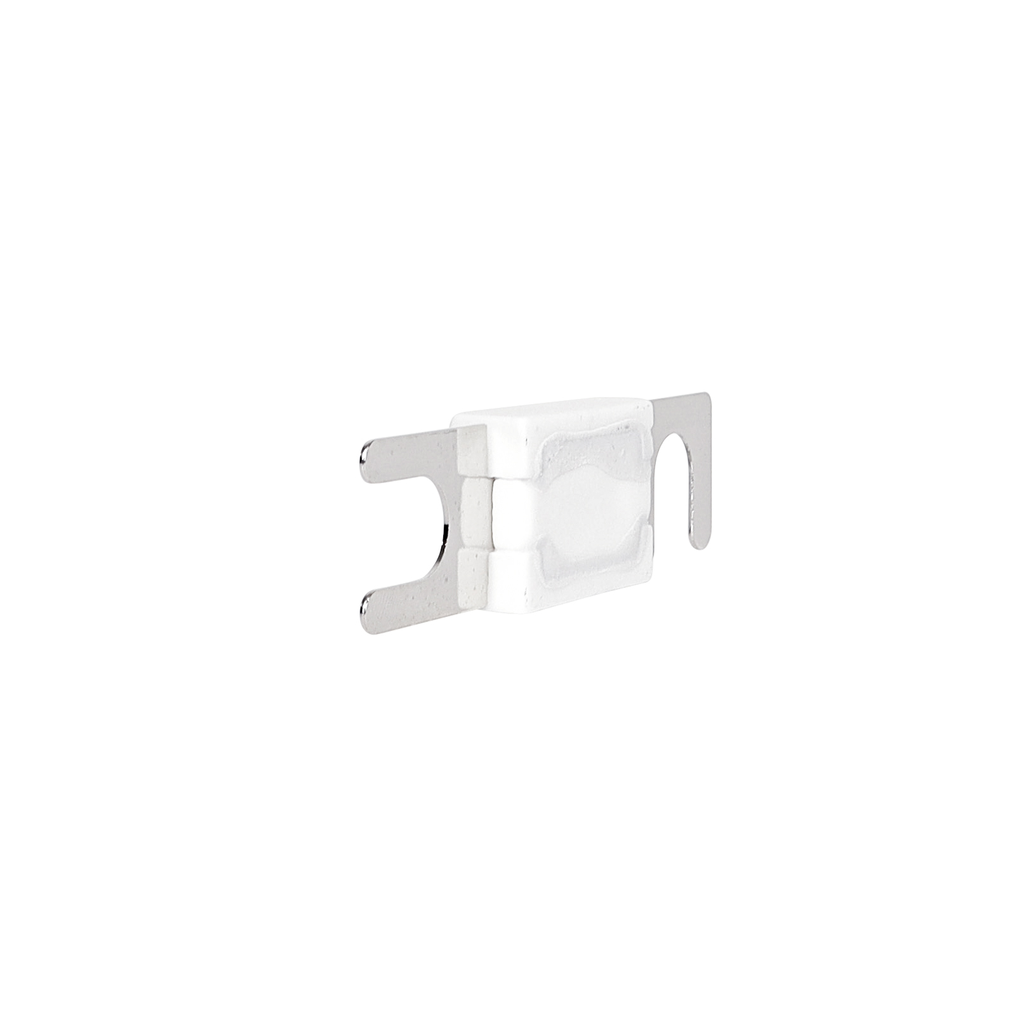

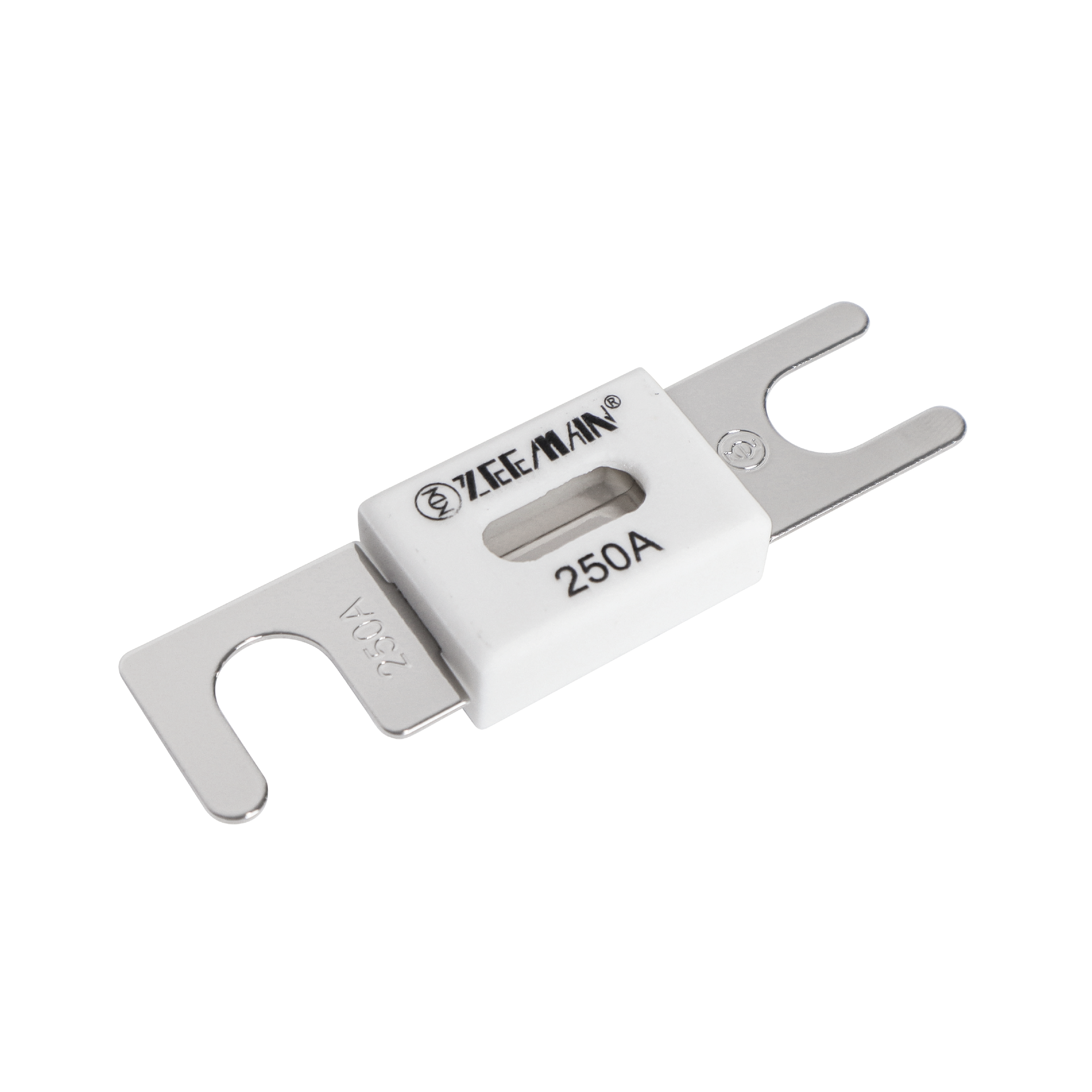

Alvolta ANL 250A Fuse

Fuse features

250A ANL bolt-in fuse
Suitable for 12-48V systems (rated 80V DC or less)
2000A interrupting rating at 80V DC
Low 125mV typical voltage drop
Copper alloy terminals

Design features

Ceramic housing for high-current use
Secure bolt-down terminals for high-vibration installs
8.5mm terminal holes to suit M8 studs

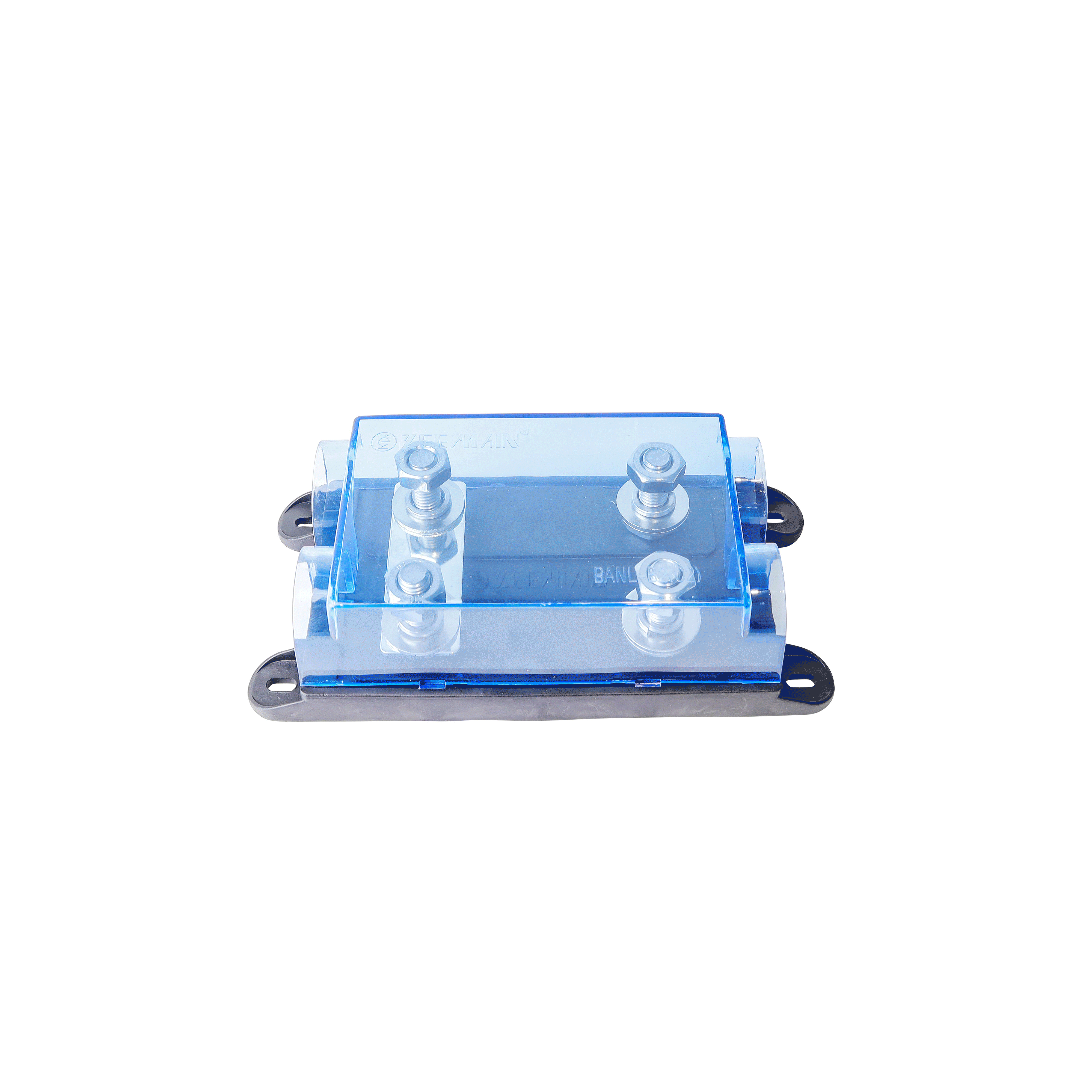

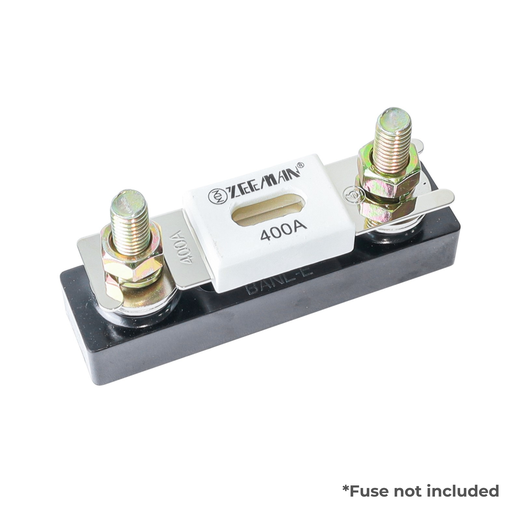

Fits the Alvolta ANL fuse holder (ANL-AH)

Where to use it

The Alvolta ANL 250A Fuse protects heavy-gauge cables in 12, 24 and 48V systems. At 250A it suits inverters, main battery feeds and alternator cables in 4WDs, caravans, camper trailers, boats, trucks and off-grid setups.

Choose the fuse to protect the cable, not the device: it should be rated at or below the cable's current capacity and above the normal load. Bolt it into an Alvolta ANL fuse holder mounted as close as possible to the battery or power source, and tighten to 11-12 N.m. It's rated to operate from -40°C to +125°C and is backed by a 1-year warranty.

Dimensions

Width	20 mm
Length	82 mm
Depth	10 mm
Weight	0.03 kg

Safety features

Compliant with ISO 8820-5 / GB/T31465.5 / UL284
Ceramic housing

Warranty

1-year warranty

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_ANL250_V2_compressed.pdf

Download

ANL fuses are designed for high-current DC applications, offering reliable protection for electrical systems in 4WDs, caravans, boats, and off-grid setups. They’re ideal for protecting batteries, inverters, DC-DC chargers, and other large power circuits from overloads and short circuits.

While both ANL and AMG/Mega fuses handle high current loads, ANL fuses are slightly larger and often feature a clear inspection window so you can easily see if the fuse has blown. AMG/Mega fuses have a more compact design. Both perform the same function and choosing between them usually depends on your fuse holder style or space constraints.

Choose an ANL fuse rated slightly higher than your circuit’s maximum continuous current draw but within the safe limits of your cabling and connected devices. For example, a 100A circuit should typically use a 125A fuse. Always match the fuse to both your wire size and the load for safe operation.

No, ANL fuses are single-use protection devices. Once they blow, they must be replaced with a new fuse of the same amperage rating. Always keep spare fuses on hand for quick replacement when travelling or operating remote systems.

Yes. ANL fuses are commonly used in marine, caravan, and off-road setups, but they should be installed in a sealed or splash-proof fuse holder to protect against water, salt, and dirt. Using a high-quality holder helps ensure long-term reliability in harsh Australian conditions.

Product Specifications

Model	ANL250
Amperage	250A
Fuse Type	ANL bolt-in
Voltage Rating	80 V DC or less
Interrupting Rating	2000 A at 80 V DC
Typical Voltage Drop	125 mV
Mounting Torque	11-12 N.m
Terminal Hole	8.5mm (M8)
Housing Material	Ceramic
Terminal	Copper Alloy
Operating Temperature	-40°C to +125°C
Colour	Silver
Compliance	ISO 8820-5 / GB/T31465.5 / UL284
Dimensions	82 x 20 x 10 mm
Weight	0.03 kg
Warranty	1 Year
