Victron Zigbee to RS485 Converter

Zigbee to RS485 converter • DRF2659C

$ 161.60 - Inc GST 161.6 AUD $ 161.60

Brand

This combination does not exist.

ADD TO CART Buy now

Brand: Victron

VICTRON

Category: Cables & Accessories, Cables & Accessories, Data Cables

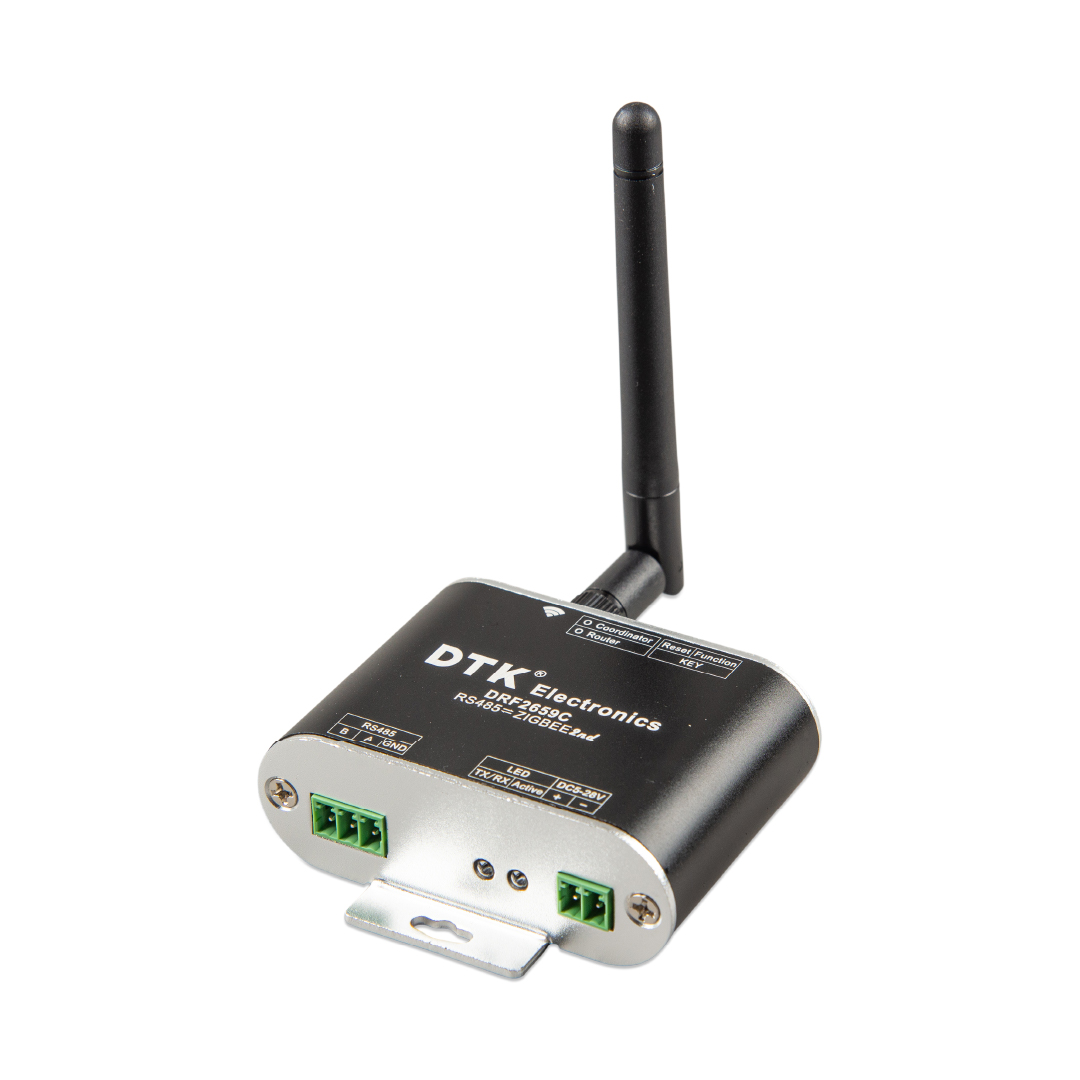

Zigbee to RS485 Converter

Zigbee to RS485 converter • DRF2659C

This Zigbee converter is used to wirelessly connect an Energy Meter to a GX Device. The Zigbee to RS485 Converter is used for building management systems, industrial control systems and building automation. The device is DC 5-12V power and comes with a small antenna.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Datasheet_Victron_Zigbee-To-RS485-Converter.pdf

Download

Product Specifications

Power	Standard: DC 5-12V
Temperature Range	-40°C ~ 85°C
UART Baud Rate	38400bps (Default), 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Radio Frequency	2460MHz (Default), 2405MHz – 2480MHz, Step: 5MHz
Protocol	Zigbee2007
Distance	Visible, open transmission distance: 1600 meters
Operating Current	Send: 120mA (Max), Receive: 45mA (Max), Standby: 40MA (Max)
Receiver Sensitivity	-110dBm
Chip	CC2530F256, 256KFLASH
Configuration Node	Coordinator, Router, Default: Router, PAN ID=0x199B, Channel=22 (2460MHz)
Interface	RS485: B A GND
Size	705024mm
