Victron Zigbee to USB Converter

(0 reviews)

Zigbee to USB converter • DRF2658C

$ 140.20 - Inc GST 140.2 in stock AUD $ 140.20 Tax Included

Brand

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

Brand: Victron

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Cables & Accessories, Cables & Accessories, Data Cables

SKU: ASS300420200

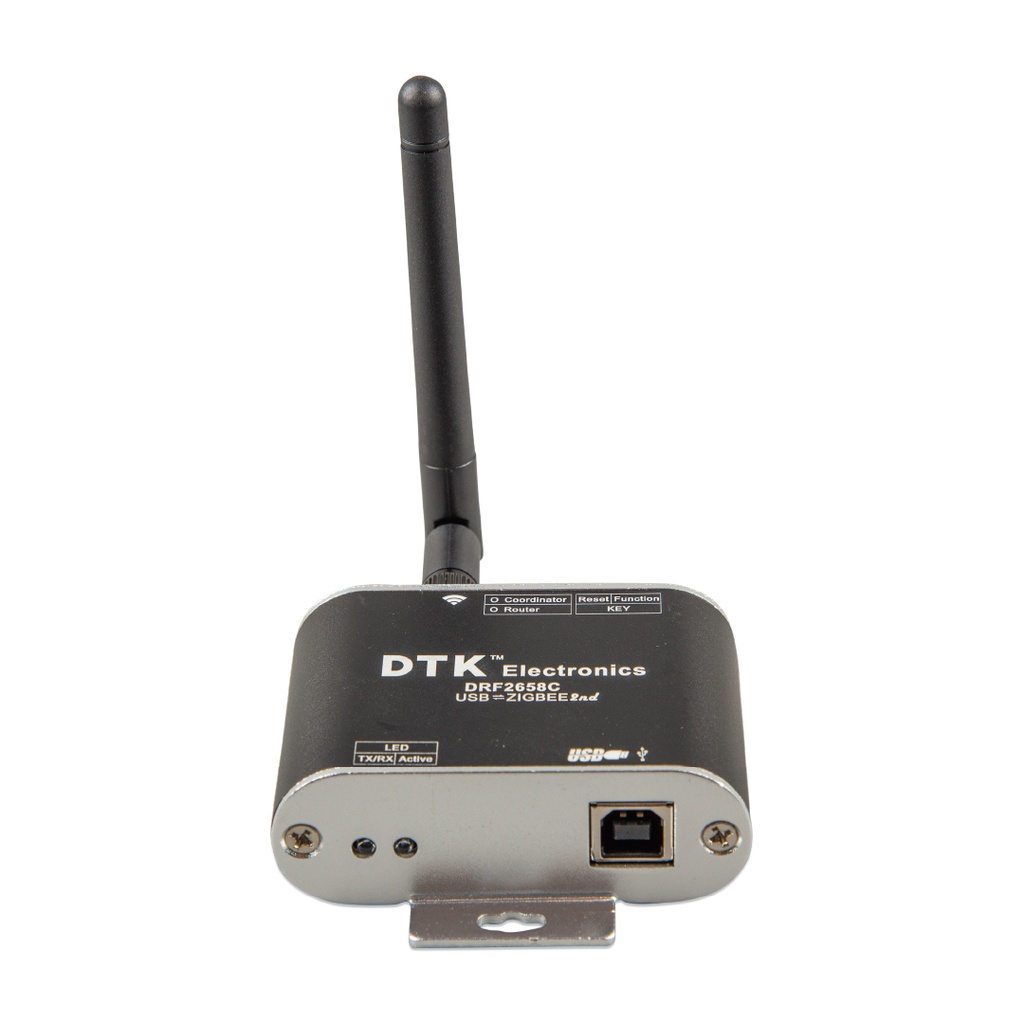

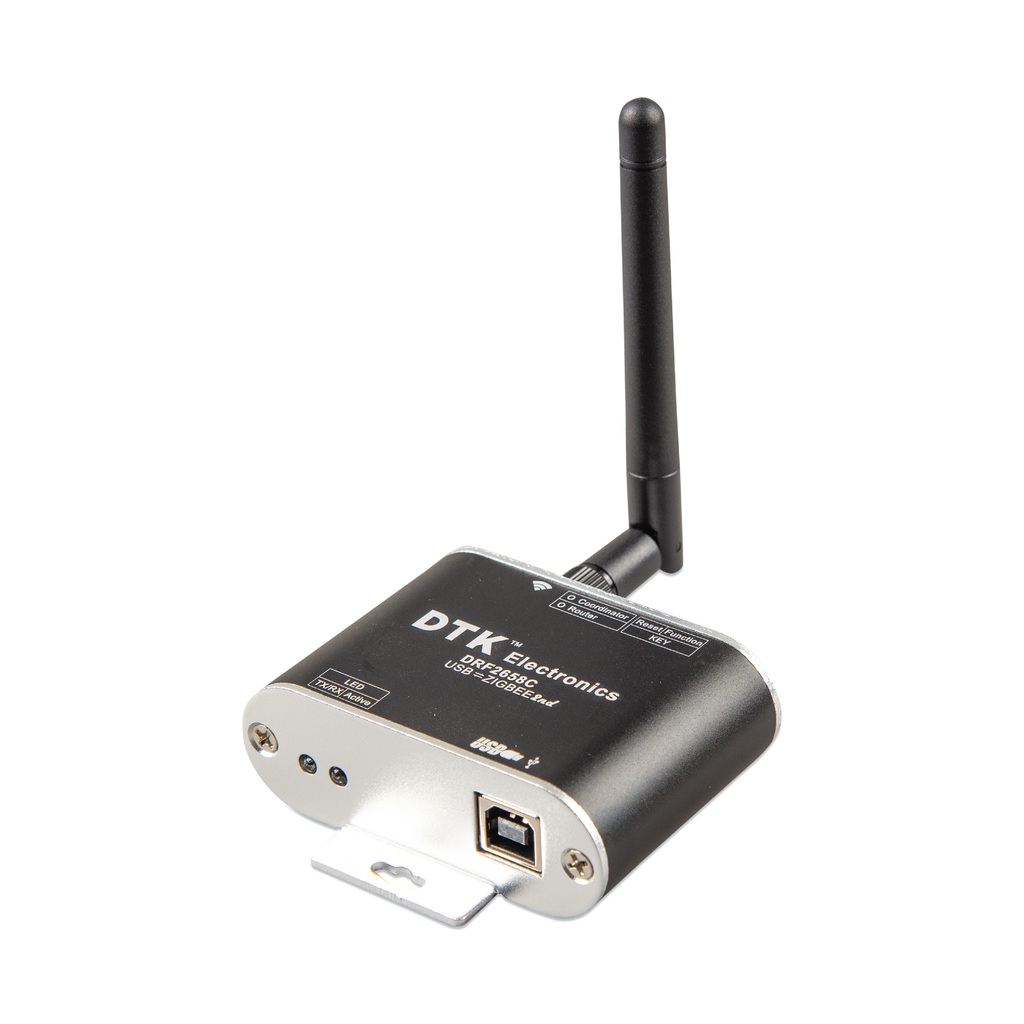

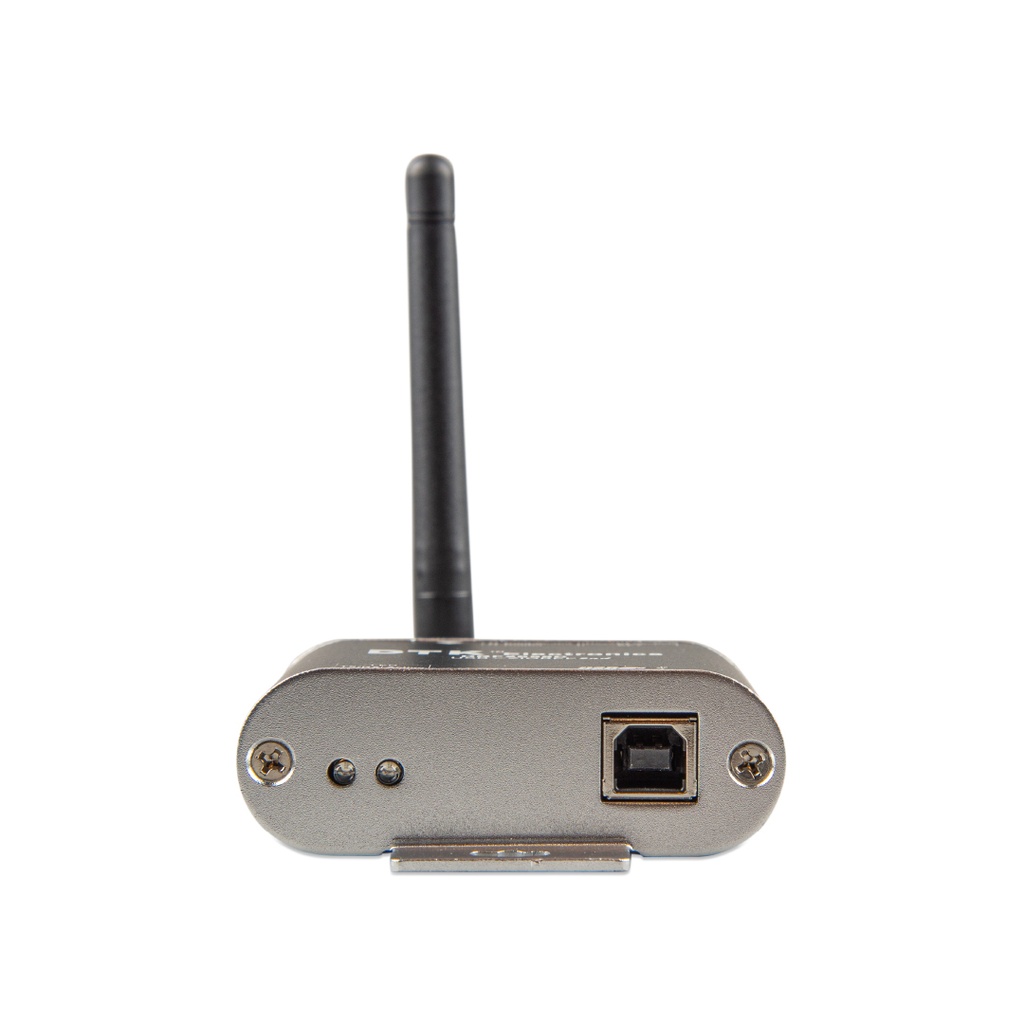

Zigbee to USB Converter

Zigbee to USB converter • DRF2658C

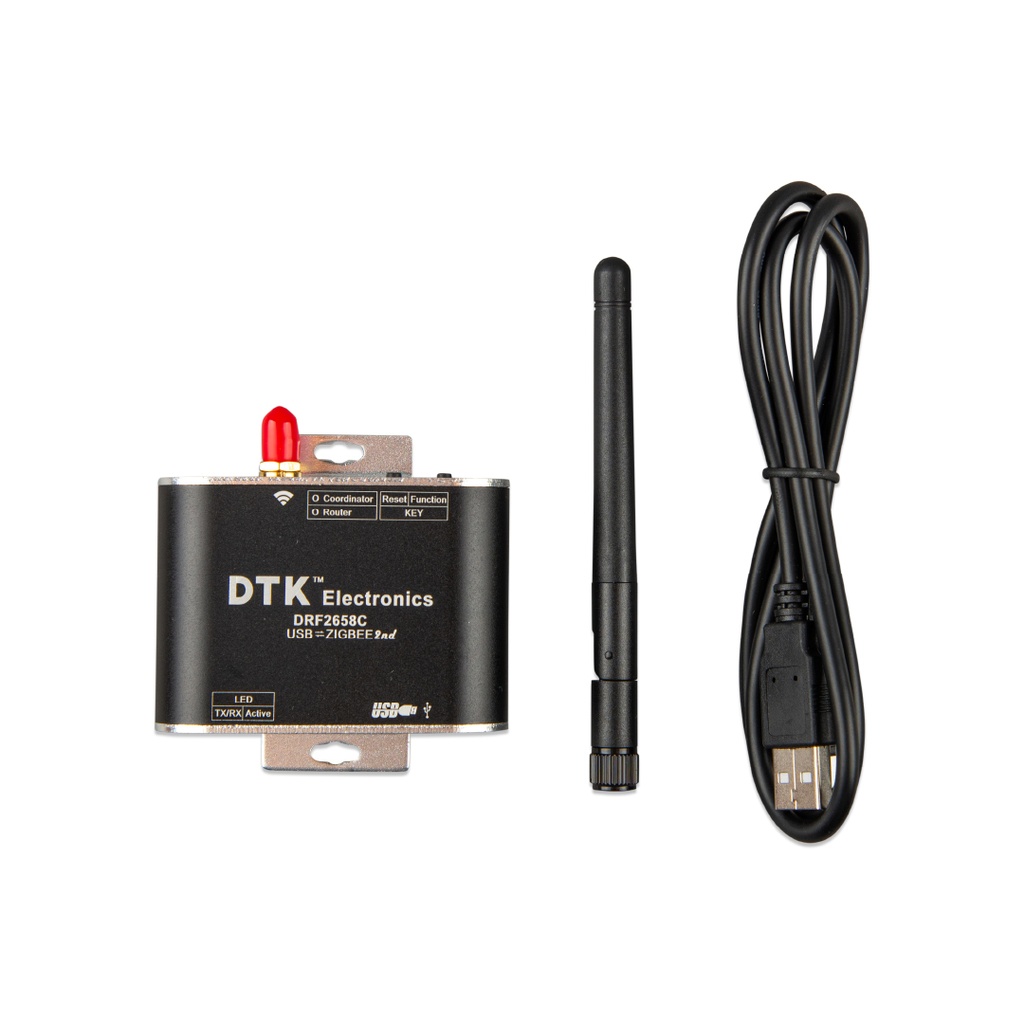

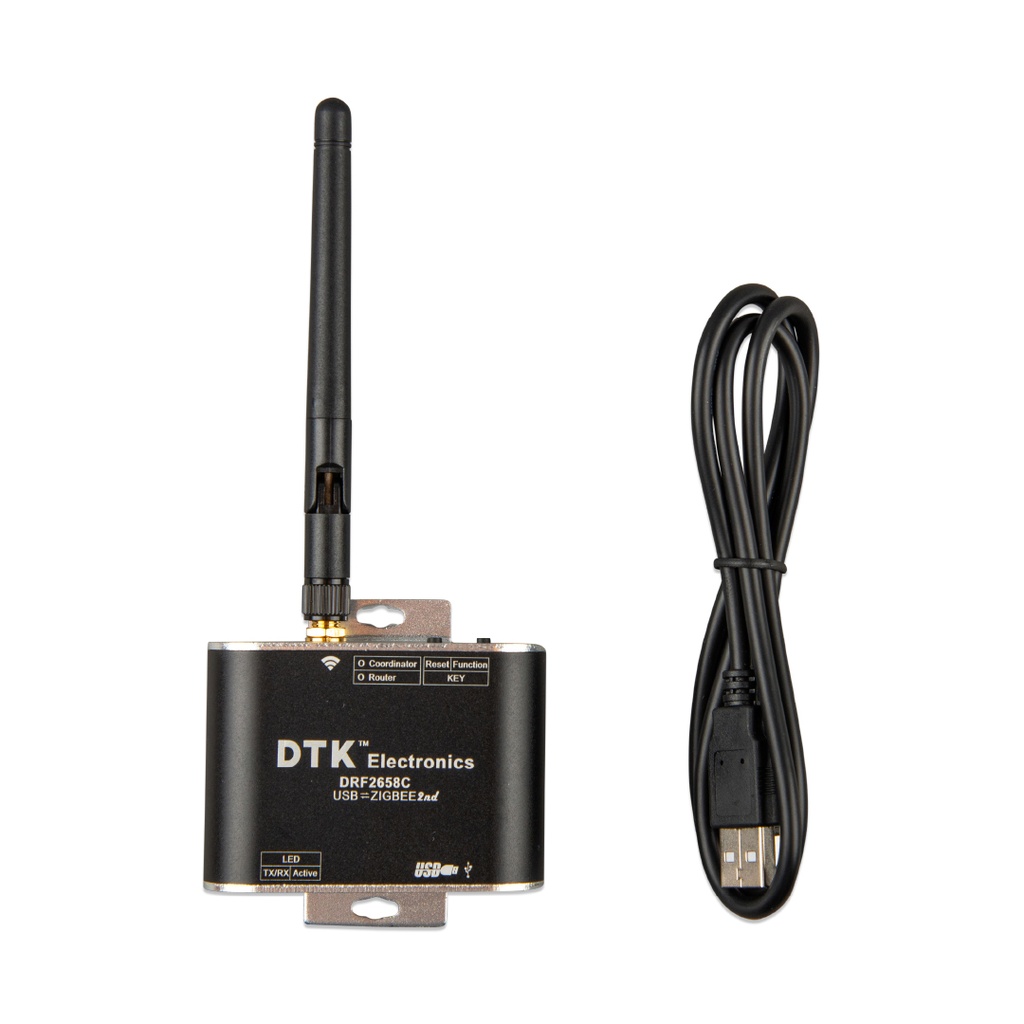

This Zigbee converter is used to wirelessly connect an Energy Meter to a GX Device. If a Victron MultiGrid Inverter is too far away from the Victron Energy Meter (> than 5m), the Zigbee to USB converter, in partnership with the Zigbee to RS485 converter, can wirelessly connect the two devices. The device is USB 5V power and comes with a small antenna.

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

Datasheet_Victron_Zigbee-To-USB-Converter.pdf

Download

Product Specifications

Power	USB Port 5V
Temperature Range	-40°C ~ 85°C
UART Baud Rate	38400bps (Default), 9600bps, 19200bps, 38400bps, 57600bps, 115200bps
Radio Frequency	2460MHz (Default), 2405MHz – 2480MHz, Step: 5MHz
Protocol	Zigbee2007
Distance	Visible, open transmission distance: 1600 meters
Operating Current	Send: 120mA (Max), Receive: 45mA (Max), Standby: 40MA (Max)
Receiver Sensitivity	-110dBm
Chip	CC2530F256, 256KFLASH
Configuration Node	Coordinator, Router, Default: Router, PAN ID=0x199B, Channel=22（2460MHz）
Interface	RS232: 2-TX 3-RX 5-GND
Size	705024mm
