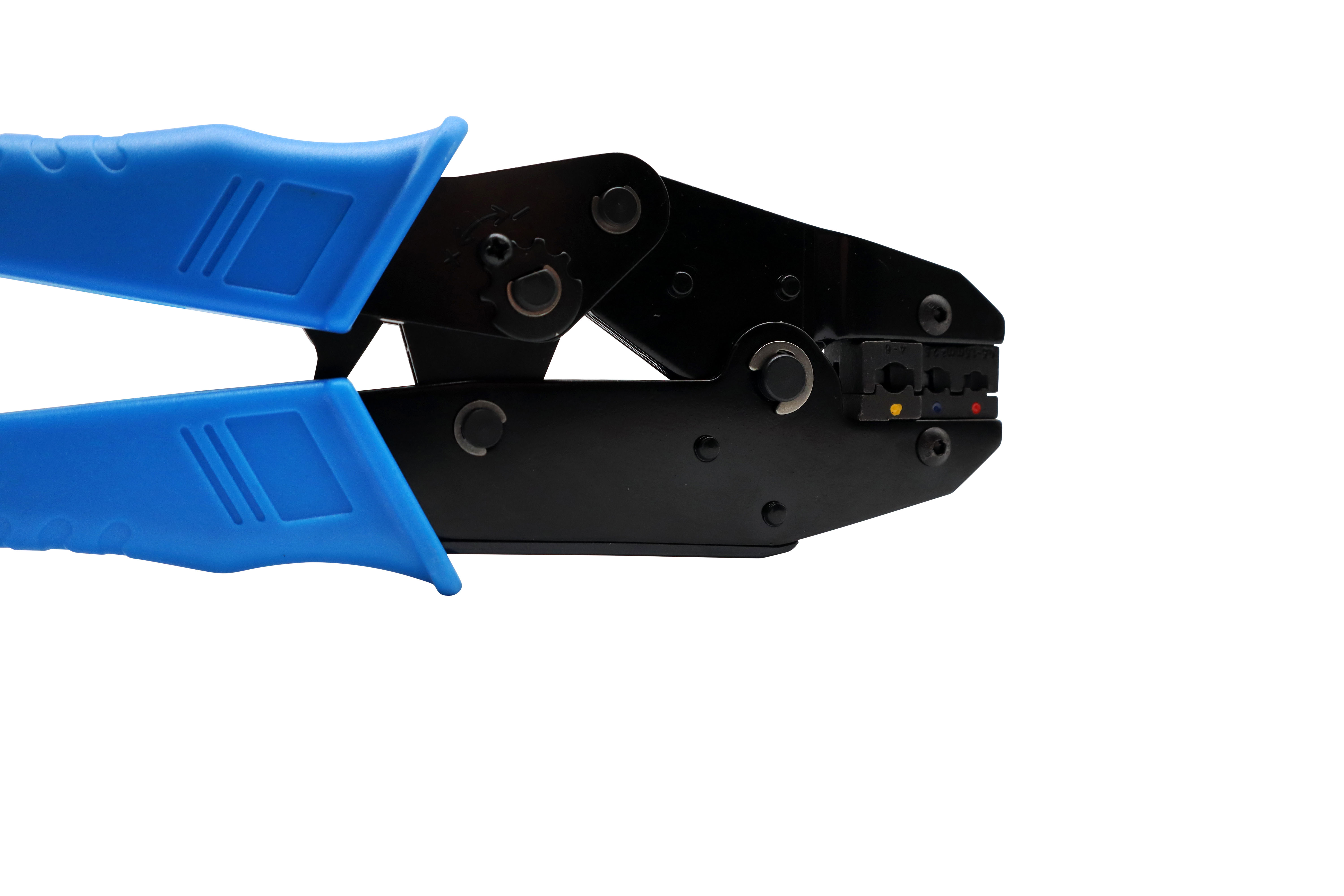

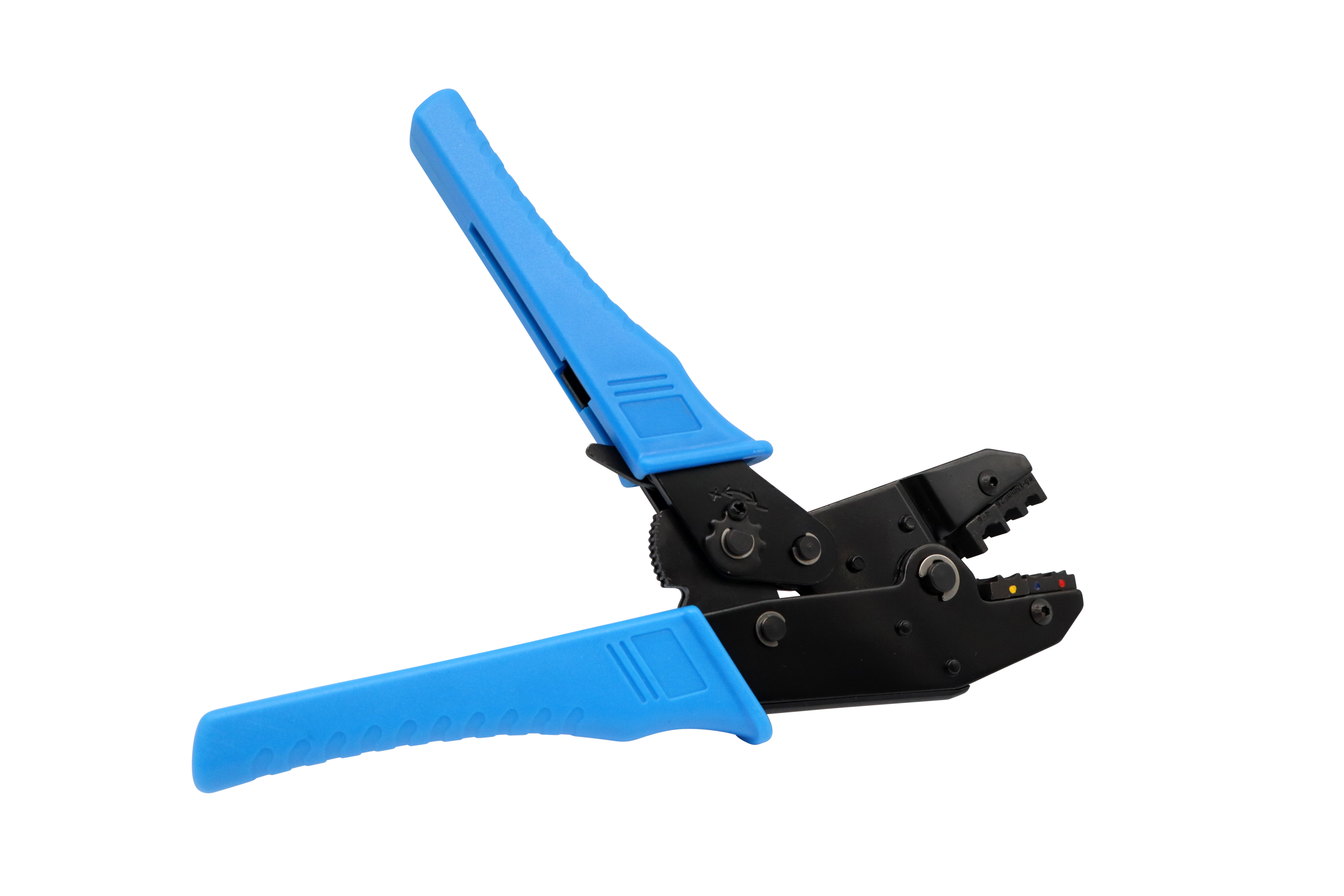

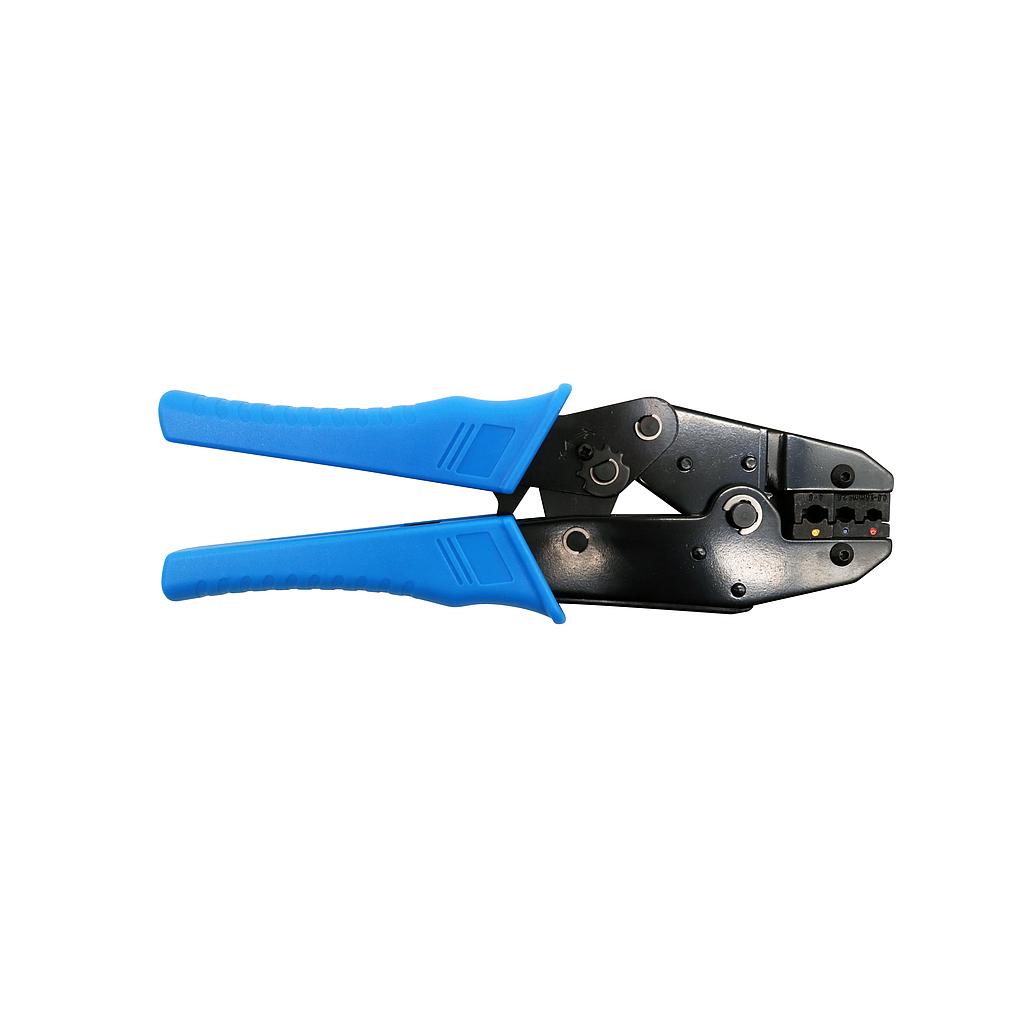

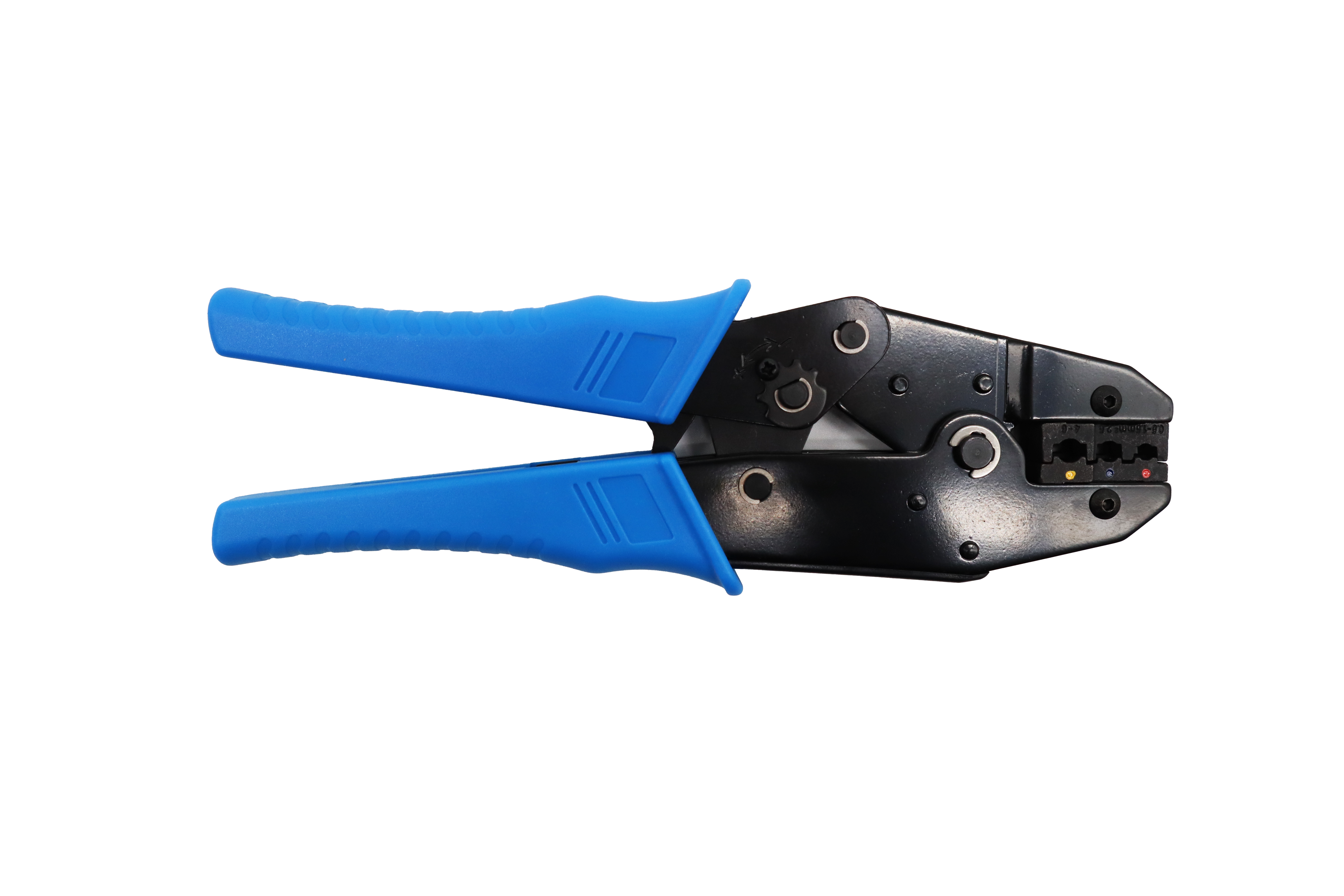

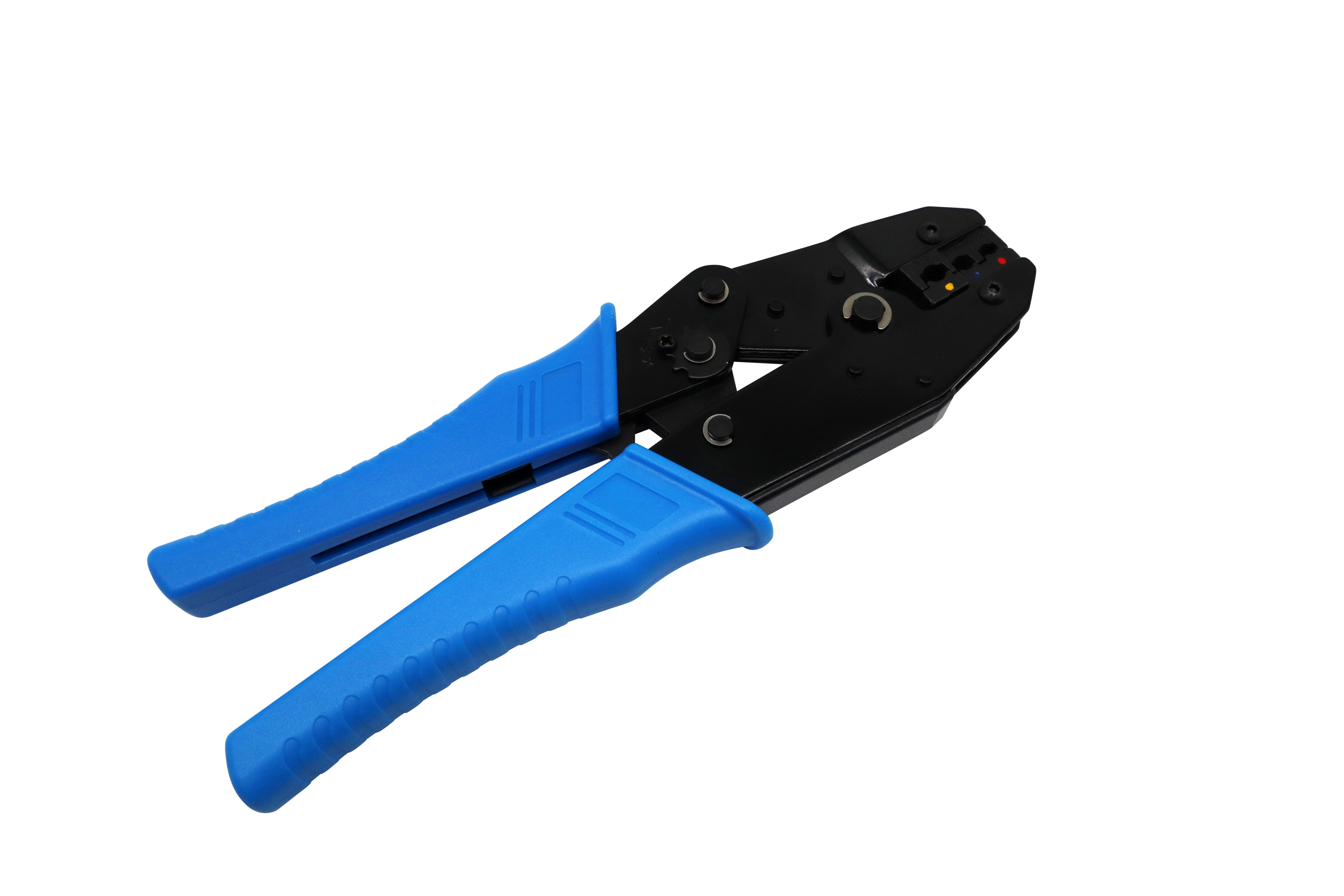

Alvolta Insulated Ratchet Crimping Tool 0.5mm² - 6mm²

Alvolta Insulated Ratchet Crimping Tool 0.5 - 6mm

Alvolta Insulated Ratchet Crimping Tool 0.5mm² - 6mm²

(0 reviews)

0.5 - 6 mm² ratcheting crimper for crimping yellow, blue & red ring terminals

$ 9.50 - Inc GST 9.5 AUD $ 9.50 Tax Included $ 29.00

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

ALVOLTA

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Cable & Accessories, Tools

SKU: AT056

Alvolta Ratchet Crimping Tool 0.5 mm² - 6 mm²

Features:

0.5 - 6 mm² (20-10 AWG) ratcheting crimper
3 crimping cavities in 1 tool
Suitable for yellow, blue & red insulated ring terminals
Pressure adjustment for crimping force control
Ergonomically designed handles
Compact and lightweight
Use 50% less energy with each crimp

What to use it for

These crimpers are designed to make secure electrical connections for low-voltage and 12V systems in applications like solar power, caravans, and 4WDs. They are used to crimp insulated ring terminals onto stranded Copper wire up to 6 mm².

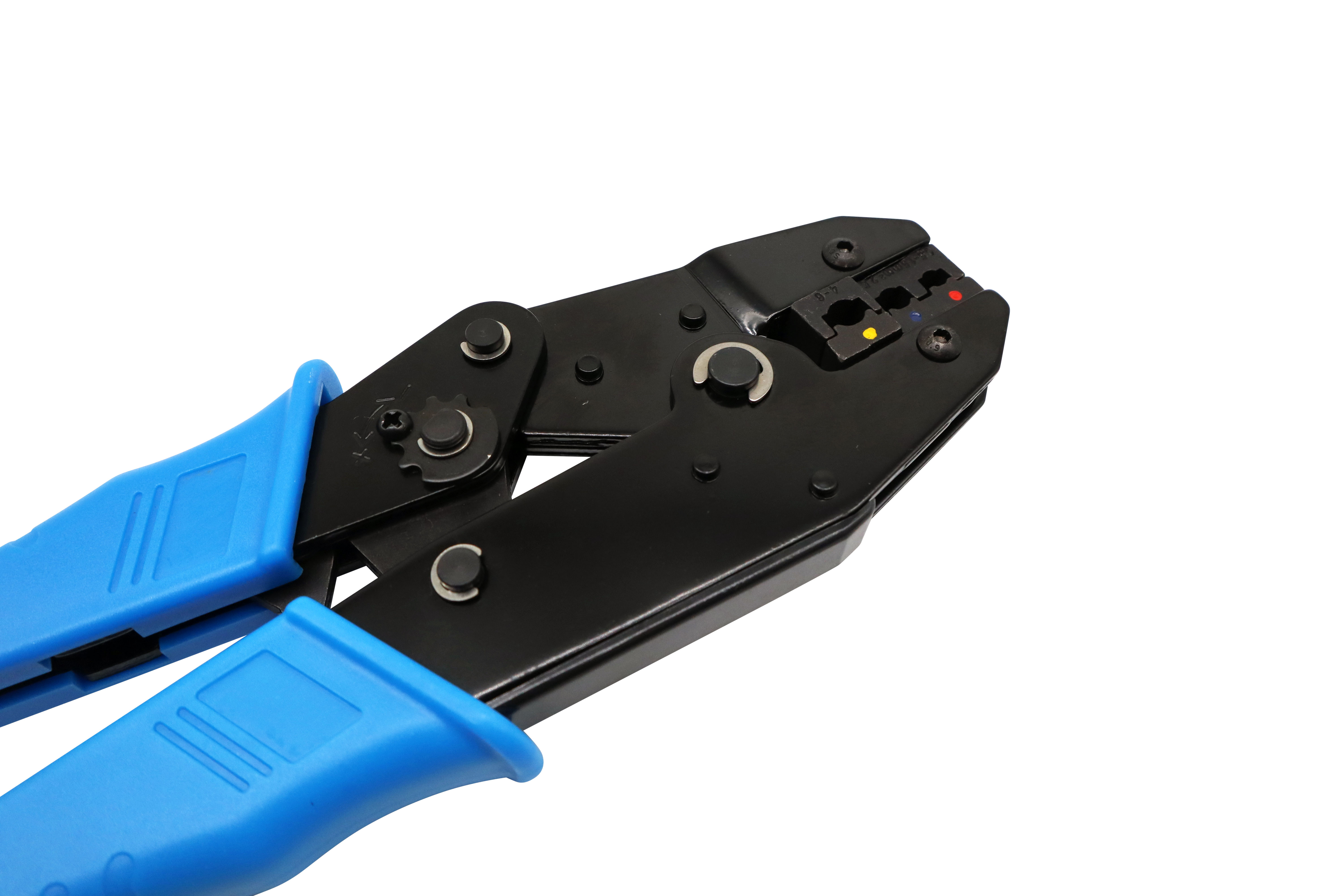

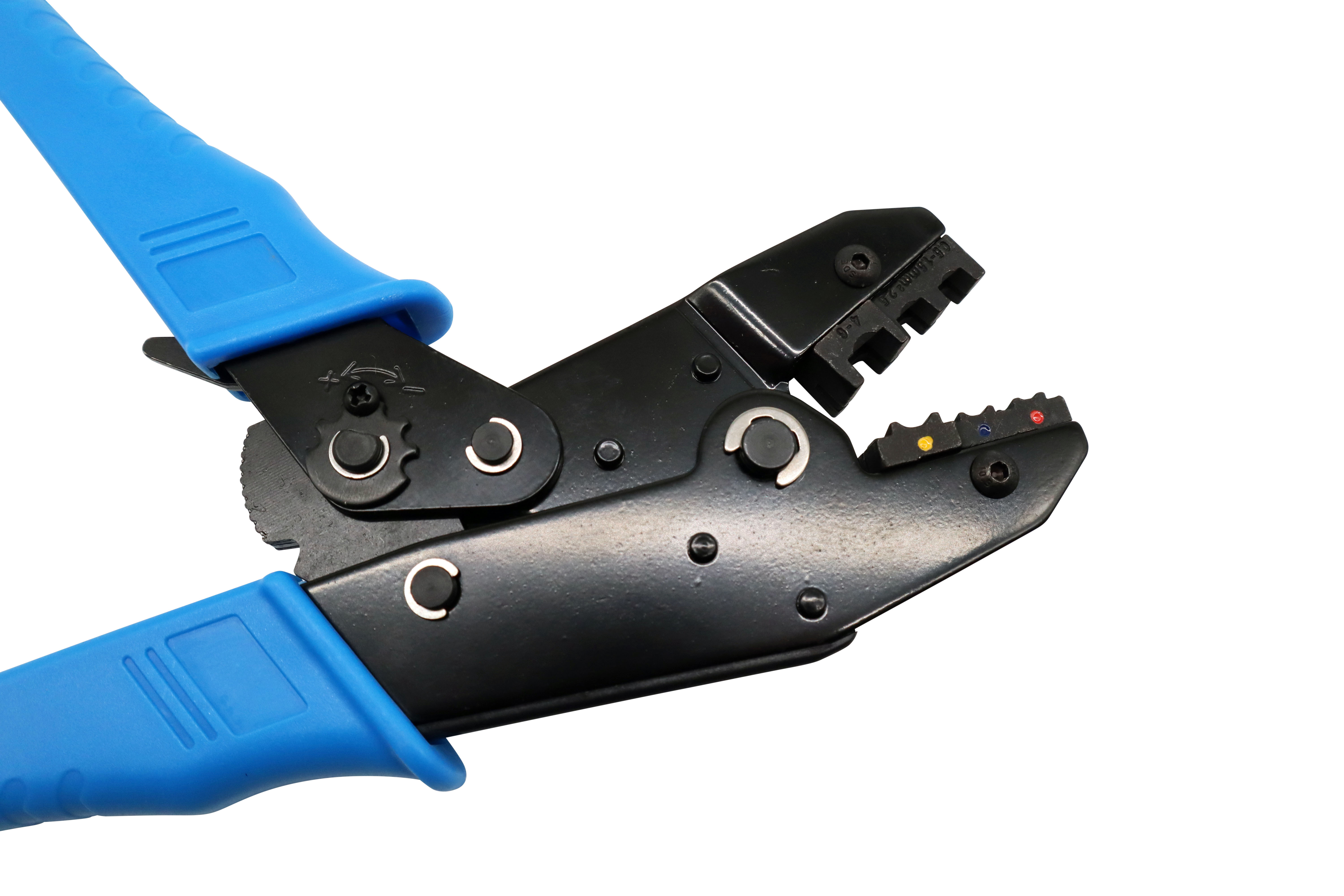

Cavities Included

Alvolta AT056 Crimping Die

Crimping Tool Guide

Alvolta Crimping Tool Guide

Dimensions

Length	190 mm
Width	70 mm
Depth	45 mm
Weight	0.35 kg

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_AT056_V2_compressed.pdf

Download

An insulated ratchet crimping tool is designed to crimp insulated terminals, connectors, and lugs onto electrical wires ranging from 0.5mm² to 6mm². It ensures a secure, consistent, and professional electrical connection for automotive, marine, and solar applications.

Unlike standard crimpers, a ratchet crimping tool locks in place until the correct pressure is applied, ensuring each crimp is completed to a uniform standard. This helps prevent under- or over-crimping, improving the safety and reliability of your connections.

The insulated handles provide user comfort and protection by reducing hand fatigue and offering a layer of electrical insulation. However, the tool is not rated for live electrical work—always disconnect power before crimping.

This model is designed specifically for insulated terminals, such as red, blue, and yellow crimp connectors. For non-insulated or heavy-duty lugs, you’ll need a compatible non-insulated crimper or hydraulic crimping tool.

Most insulated ratchet crimpers are colour-coded or labelled for different wire sizes:

Red: 0.5 – 1.5 mm²
Blue: 1.5 – 2.5 mm²
Yellow: 4 – 6 mm²

Match the terminal colour to the correct cavity for an accurate, reliable crimp.

Yes. Occasionally apply light machine oil to the pivot points and keep the jaws clean of debris. This ensures smooth operation and long tool life. If the ratchet tension feels loose, most tools include an adjustment screw for calibration.

Product Specifications

Suitable Cable	Stranded Copper Wire up to 6 mm²
Suitable Terminals	Yellow, Blue & Red Ring Terminals
Crimping Cavities	0.5-1 mm², 1-2.5 mm², 4-6 mm²
Body Material	Carbon Steel
Handles Material	Moulded Plastic
Colour	Blue
Dimensions	190 x 70 x 45 mm
Weight	0.35 kg
Warranty	3 Years
