Alvolta Tradesmen Multi-Head Ratchet Crimping Kit
https://www.springers.com.au/shop/at056s-alvolta-tradesmen-multi-head-ratchet-crimping-kit-15855 https://www.springers.com.au/web/image/product.template/15855/image_1920?unique=aa26758Ratchet crimping set with 5 crimping heads in hard carry case
ALVOLTA
Alvolta Tradesmen Multi-Head Ratchet Crimping Kit
Features:
- Tradesmen multi-head ratchet crimping set
- 5 head sizes available
- Hard carry case included
- Pressure adjustment for crimping force control
- Ergonomically designed handles
- Compact and lightweight
- Use 50% less energy with each crimp
What to use it for
These crimpers are designed to make secure electrical connections for low-voltage and 12V systems in a wide variety of applications including 4WDs and caravans, off-grid solar installations, and general electrical work. With multiple interchangeable heads, this crimping kit is suitable for crimping insulated and non-insulated terminals, cable lugs, Anderson plugs, and wire ferrules.
Cavities Included
| Terminal Type | Wire Size | |

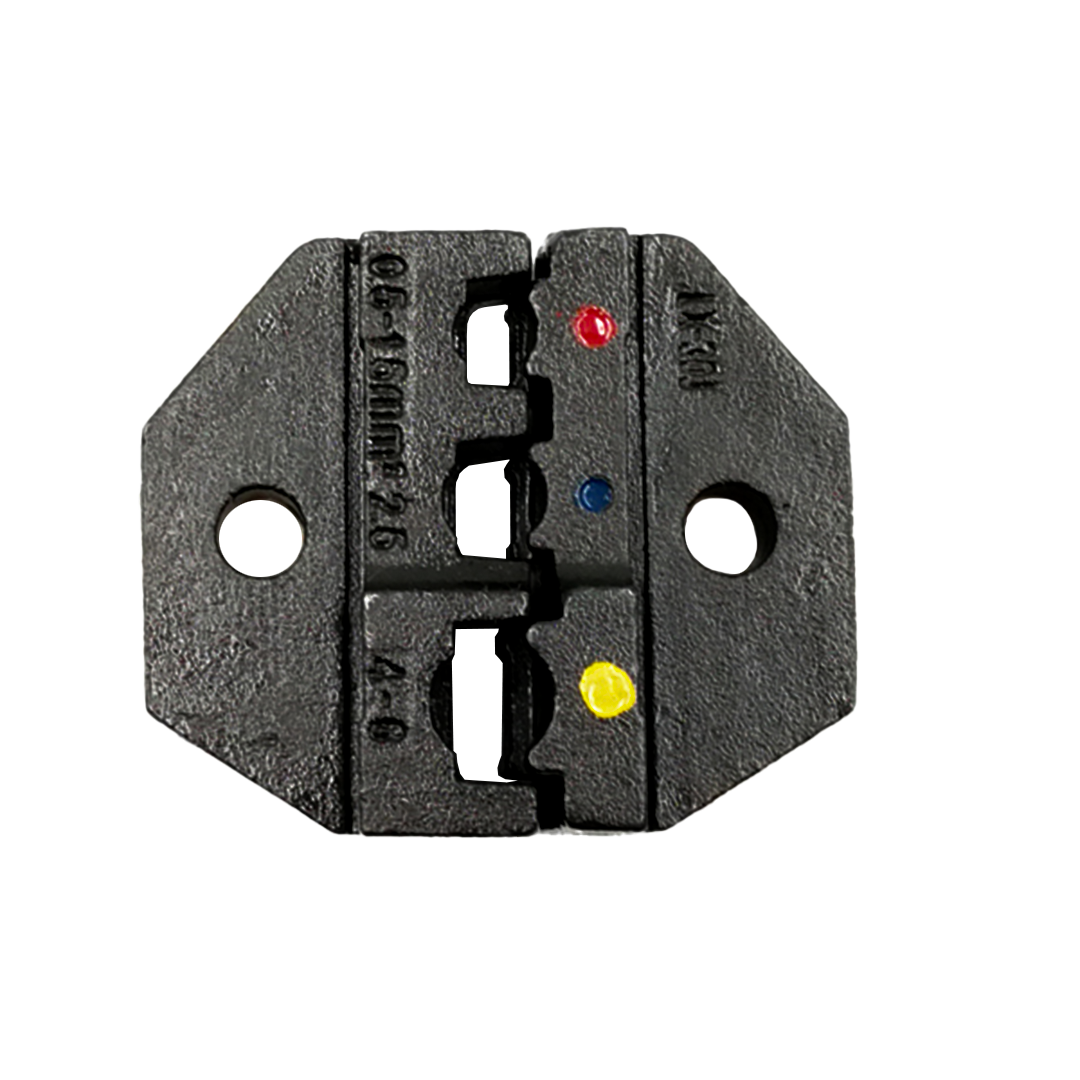

Crimp Die #1 | Ring Terminals | 0.5 - 6 mm² (20-10 AWG) | ![]() |
Crimp Die #2 | Small Ferrules & Anderson Contacts | 1 - 6 mm² (17-10 AWG) | ![]() |
Crimp Die #3 | Large Insulated Ferrule Terminals | 6 - 16 mm² (10-6 AWG) | ![]() |
Crimp Die #4 | Non-Insulated Cable Links | 1.5 - 6 mm² (16-10 AWG) | ![]() |
Crimp Die #5 | Non-Insulated Open Plug Terminals | 0.5 - 6 mm² (20-10 AWG) | ![]() |
Crimping Tool Guide

Crimper dimensions
Length | 190 mm |
Width | 70 mm |
Depth | 45 mm |
Weight | 0.35 kg |
Case dimensions
Length | 275 mm |
Width | 220 mm |
Depth | 67 mm |
Weight | 1.4 kg |
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Product Specifications
Suitable Cable | Copper & Aluminium Cable up to 38 mm² |
Body Material | Carbon Steel |
Handles Material | Moulded Plastic |
Colour | Blue |
Crimper Dimensions | 190 x 70 x 45 mm |
Case Dimensions | 275 x 220 x 670 mm |
Total Weight | 1.4 kg |
Cavities Included
| Terminal Type | Wire Size |
Crimp Die #1 | Ring Terminals | 0.5 - 6 mm² (20-10 AWG) |
Crimp Die #2 | Small Ferrules & Anderson Contacts | 1 - 6 mm² (17-10 AWG) |
Crimp Die #3 | Large Insulated Ferrule Terminals | 6 - 16 mm² (10-6 AWG) |
Crimp Die #4 | Non-Insulated Cable Links | 1.5 - 6 mm² (16-10 AWG) |
Crimp Die #5 | Non-Insulated Open Plug Terminals | 0.5 - 6 mm² (20-10 AWG) |
