    LiFePO4 Battery 25,6V/200Ah NG

    Building upon the success of our Lithium Smart Series, the NG (Next Generation) series incorporates significant enhancements.

    Highlights:

    • Multiple improvements including added read-out of cell voltages and temperatures;
    • Maximum single bank size increased to 385kWh;
    • Modules available in 12, 24 and 48V;
    • Protection class IP65;
    • Bracket mounting and strap mounting.

    Tailored for those seeking advanced and reliable energy storage, the Lithium NG series marks a pivotal advancement in our product lineup, ready to meet the demands of tomorrow.

    Applications

    Marine
    RV's
    Caravans
    Off-Grid Systems
    Tiny Houses
    Cabins

    More about Victron:

    Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

    Manual_LiFePO4 Battery 25,6V.pdf
    Download
    Datasheet_LiFePO4 Battery.pdf
    Download

    Product Specification

    VOLTAGE AND CAPACITY

    LFP-25,6/200

    Nominal voltage25,6 V
    Nominal capacity @ 25 °C*200 Ah
    Nominal energy @ 25 °C*5120 Wh
    Capacity loss(per 100 cycles, @ 25 °C, 100 % DoD): <1 %
    Energy loss(per 100 cycles, @ 25 °C, 100 % DoD): <1 %
    Round trip efficiency92 %
    80 % DoD2500 cycles
    70 % DoD3000 cycles
    50 % DoD5000 cycles
    Max continuous
    discharge current (C-rate)    		200 A (1C)
    Max pulse discharge current 10s (C-rate)400 A (2C)
    End of discharge voltage22,4 V
    Internal resistance2 mΩ
    Charge voltageBetween 14 V / 28 V / 56 V and 14,4 V / 28,8 V / 56,8 V
    Float voltage13,5 V / 27 V 54 V
    Max continuous charge current (C-rate)200 A (1C)
    Max pulse charge current 10s (C-rate)400 A (2C)
    BMS-esLynx Smart BMS NG 500 A / 1000 A (M10 busbars), must be purchased separately
    Cell measurementsCell voltages and temperatures, battery current
    Battery BMS interfaceMale + female cable with M8 circular connector with high-speed digital communication, length 50 cm M8 extension cables are available separately for purchase in various lengths between 1 and 5 meters
    Alarm featurePre-alarm contact on BMS
    BluetoothIn the BMS
    Max batteries per BMS50 (384 kWh per BMS 3))
    Battery firmware updatesBattery firmware automatically updated by BMS
    RepairableYes (cover can be removed with screws)
    Operating temperatureDischarge: -20 °C to +50 °C | Charge: +5 °C to +50 °C
    Storage temperature-45 °C to +70 °C
    Humidity (non-condensing)Max. 95 %
    Protection classIP65
    Mounting optionsStrap or mounting brackets
    Can be placed on their sidesYes2)
    Self-discharge rate≤ 3 % per month @ 25 °C
    Power connectionM8 (threaded inserts and bolts)
    Dimensions (h x w x d) mm235 x 648 x 162
    Weight (est.)37 kg
    SafetyCells: UL1973 UL9540A IEC62619
    SafetyBattery: IEC 62619 (pending)
    EMCEN 61000-6-3, EN 61000-6-2
    AutomotiveECE R10-6 (pending)
    PerformanceIEC 62620 (pending)

    Accessory Products

    [ASS030560200] Victron M8 Circular Connector M/F 3 Pole Cable 2m (Pair)
    Victron M8 Circular Connector M/F 3 Pole Cable 2m (Pair)

    $ 53.29 $ 53.29

    $ 3,799.00

    Not Available For Sale

    [BMS300200200] Victron VE.Bus BMS V2
    Victron VE.Bus BMS V2

    $ 295.00 $ 295.00

    $ 3,799.00

    Not Available For Sale

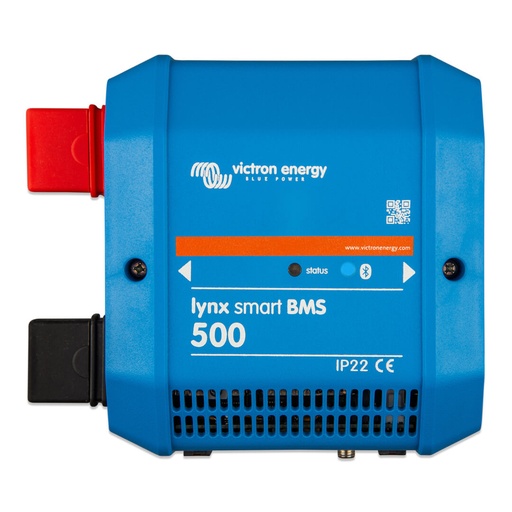

    [LYN034160310] Lynx Smart BMS 500 NG (M10)
