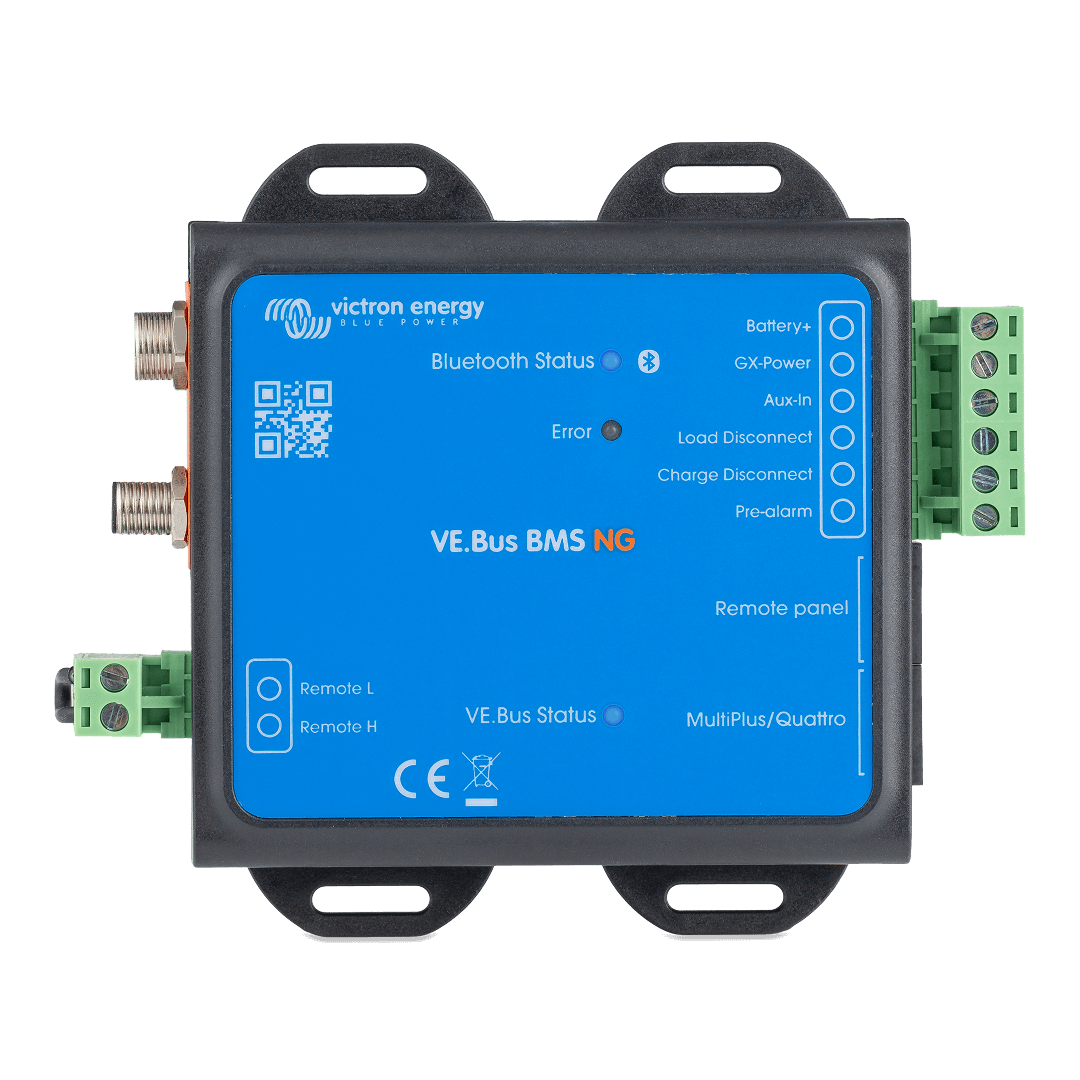

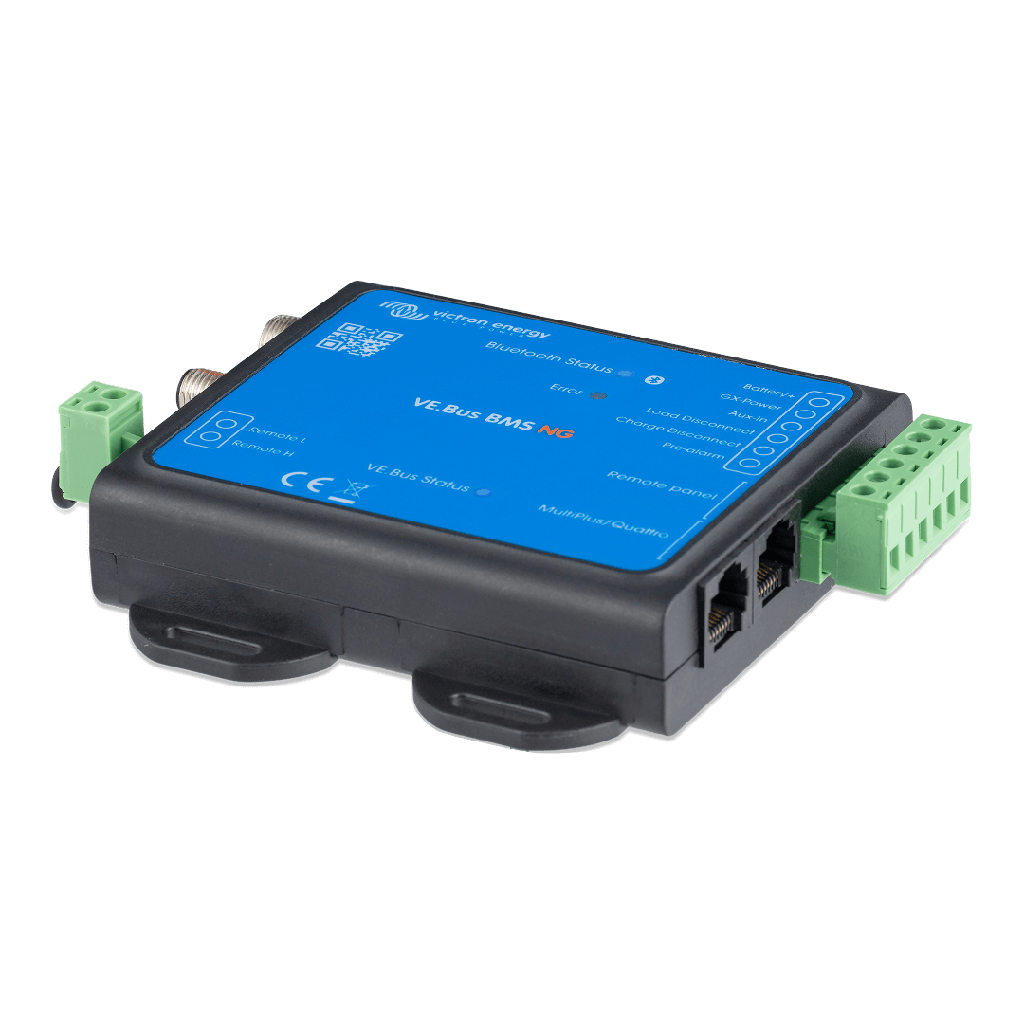

Victron VE.Bus BMS NG

(0 reviews)

All-in-one battery management system designed for 12 / 24 / 48 V Victron Lithium NG batteries

$ 237.00 - Inc GST 237.0 AUD $ 237.00 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Cable & Accessories, Cable & Accessories

SKU: BMS300200300

Victron VE.Bus BMS NG

Features

All-in-one battery monitor
Designed for Victron Lithium NG batteries
Suitable for 12 / 24 / 48 V systems
Built-in Bluetooth with VictronConnect app
Load disconnect output to prevent deep discharge
Charge disconnect output to prevent overvoltage
Pre-alarm output providing early low-battery warning
Remote on/off control
LED indicators
Auxiliary power input and output terminals
VE.Bus communication port

Where to use it

The Victron VE.Bus BMS NG is designed for advanced lithium battery systems, providing seamless integration between your battery bank and Victron Energy inverter/chargers such as the Victron MultiPlus or Quattro.

Ideal for off-grid solar, caravans, marine, and commercial energy storage applications, it acts as the central control unit to protect your system by monitoring voltage, temperature, and overall battery health. By automatically managing charge and discharge and enabling safe shutdown when required, the VE.Bus BMS NG ensures reliable performance, maximises battery lifespan, and delivers peace of mind in demanding power setups.

Dimensions

Width	95 mm
Height	23.2 mm
Depth	105.8 mm
Weight	120 g

Safety features

EN 60950 certified
Provides undervoltage and overvoltage protection for the system
Protects the connect battery back from cell overvoltage, overtemperature and under temperature damages

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

198071-VE_Bus_BMS_NG_-_Manual-pdf-en.pdf

Download

Datasheet-VE-Bus-BMS-NG-EN.pdf

Download

Product Specifications

VE.Bus BMS NG
Input voltage range	9 - 70 V DC
Current draw - regular operation	10 mA (excluding Load disconnect current)
Current draw - low cell voltage	2 mA
Current draw - switched off via remote on/off terminal	1.5 mA
GX-pow output	1 A
Aux-in input	1 A
Load disconnect output	Normally high (output voltage ≈ supply voltage - 1 V) Floating when the load needs to be disconnected Source current limit: 1 A Sink current: 0 A
Charge disconnect output	Normally high, (output voltage ≈ supply voltage - 1 V) Floating when charger should be disconnected Source current limit: 10 mA Sink current: 0 A
Pre-alarm output current rating	1 A, not short circuit protected
Remote on/off: Remote L and Remote H	Use modes to turn the system on or off: ON when the L and H terminal are interconnected (switch or relay contact) ON when the L terminal is pulled to battery minus (V < 3.5 V) ON when the H terminal is high (2.9 V < VH < Vbat) OFF in all other conditions

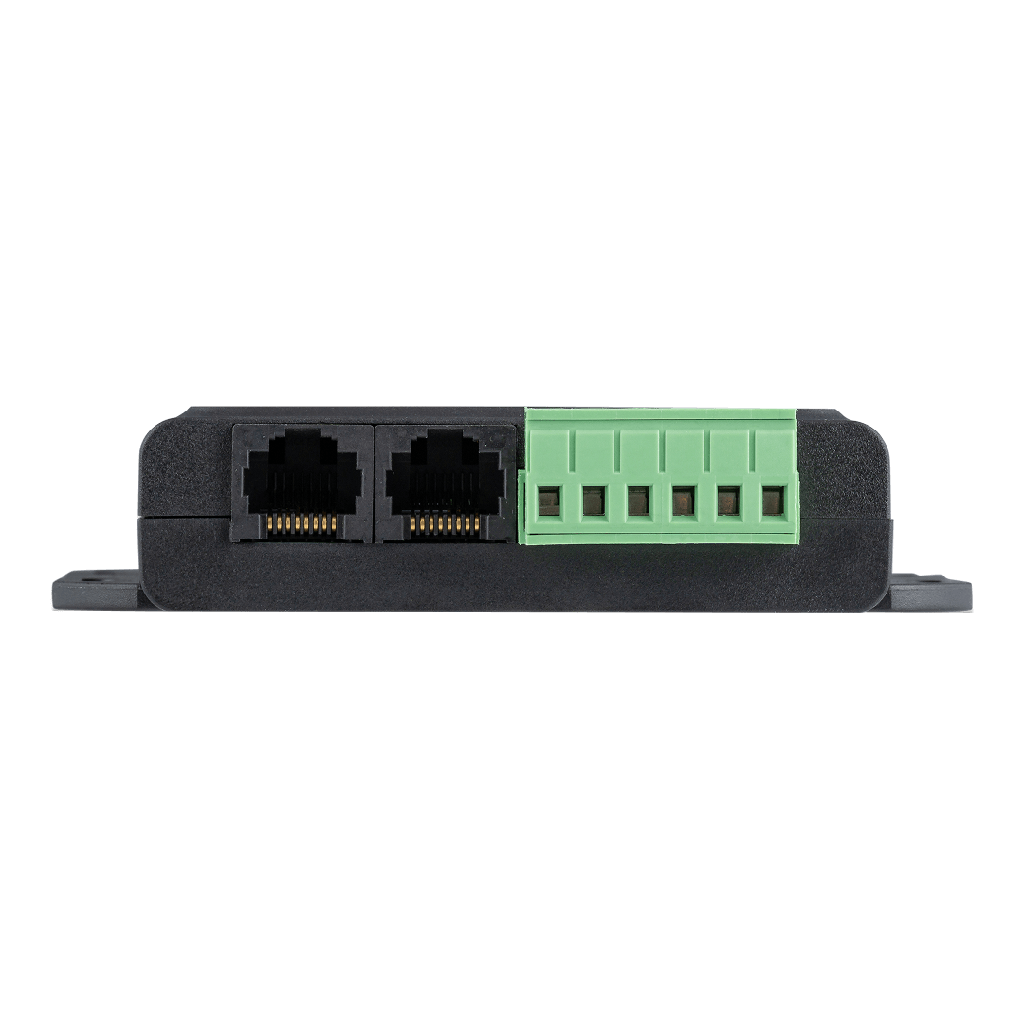

VE.Bus communication port	2 x RJ45 sockets to connect to all VE.Bus products
General
Operating temperature	-20 to +50°C
Humidity	Max. 95 % (non-condensing)
Protection grade	IP20
Enclosure
Material	ABS
Colour	Matte black with a blue sticker
Weight	120 g
Dimensions	23.2 x 95.0 x 105.8 mm
Standards
Safety	EN 60950
Emission	EN 61000-6-3, EN 55014-1
Immunity	EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive	EN 50498
