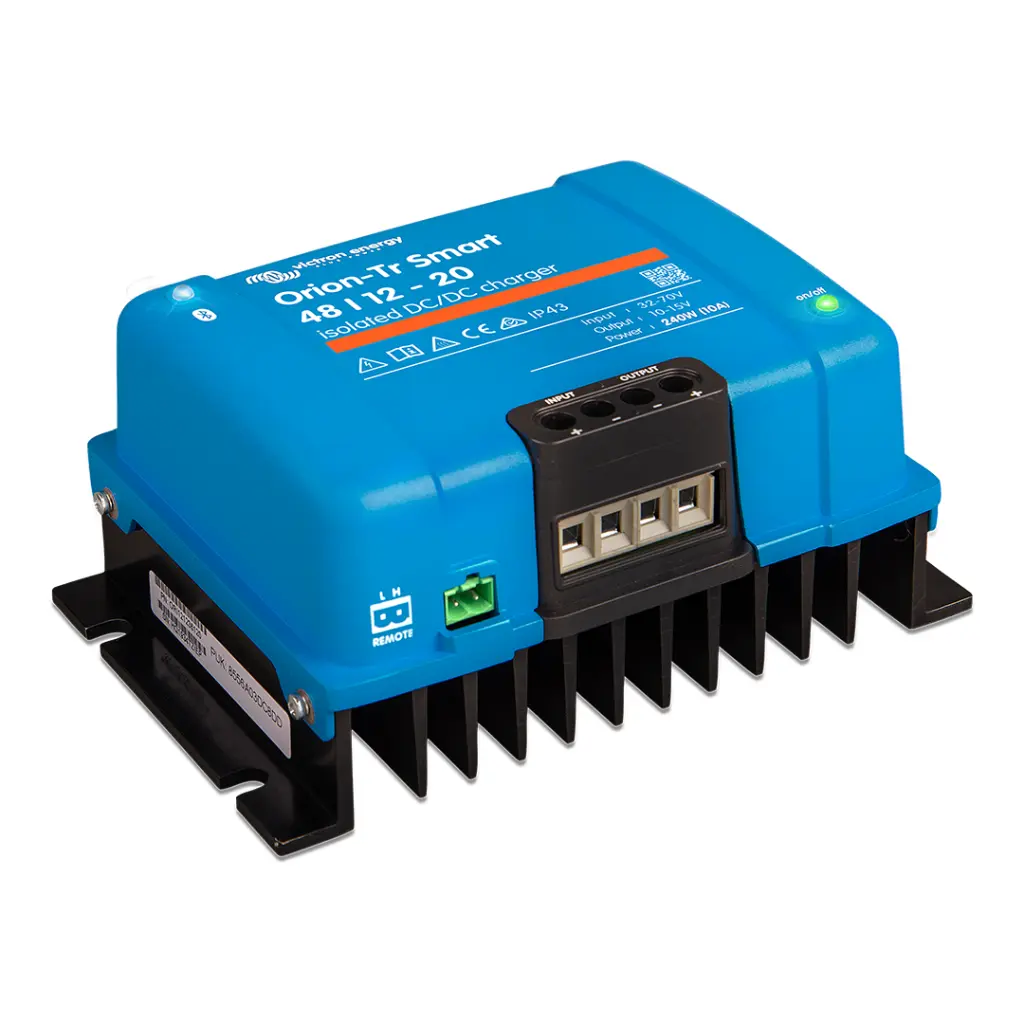

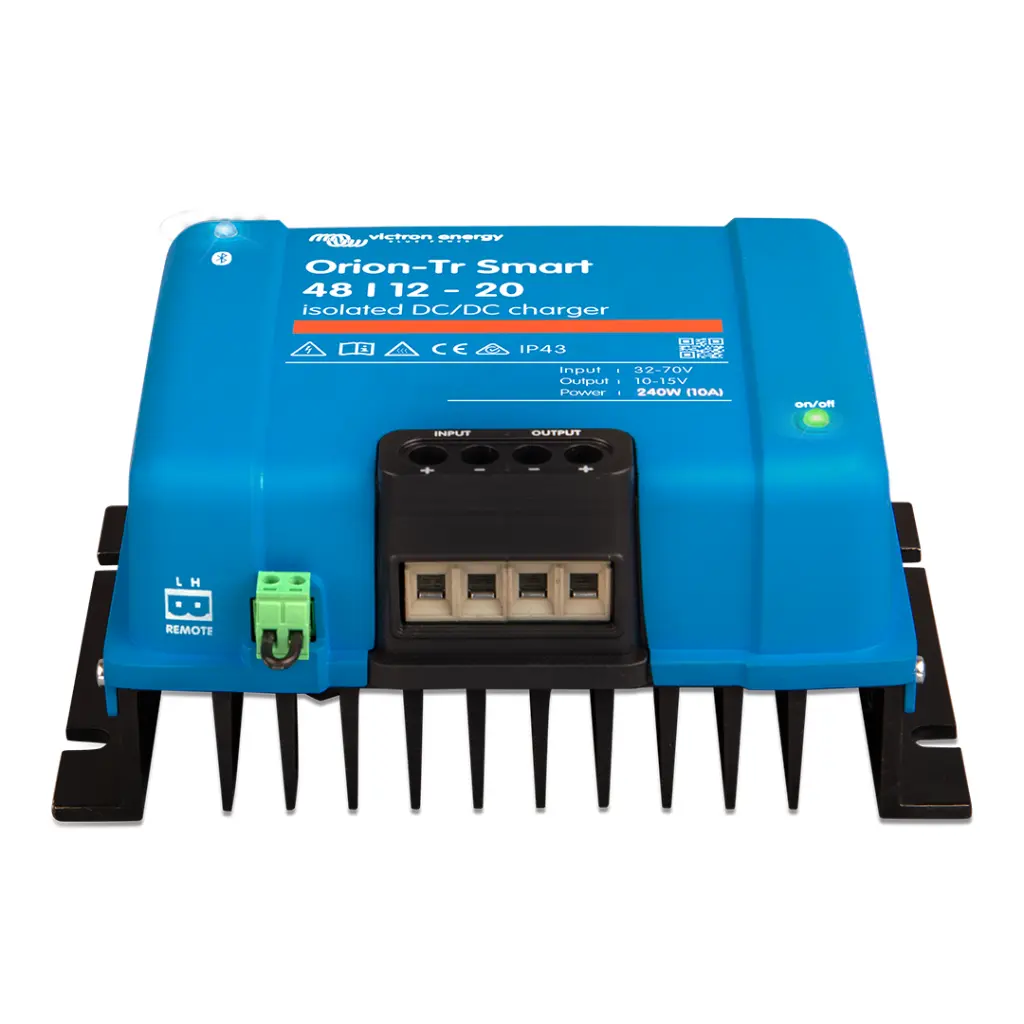

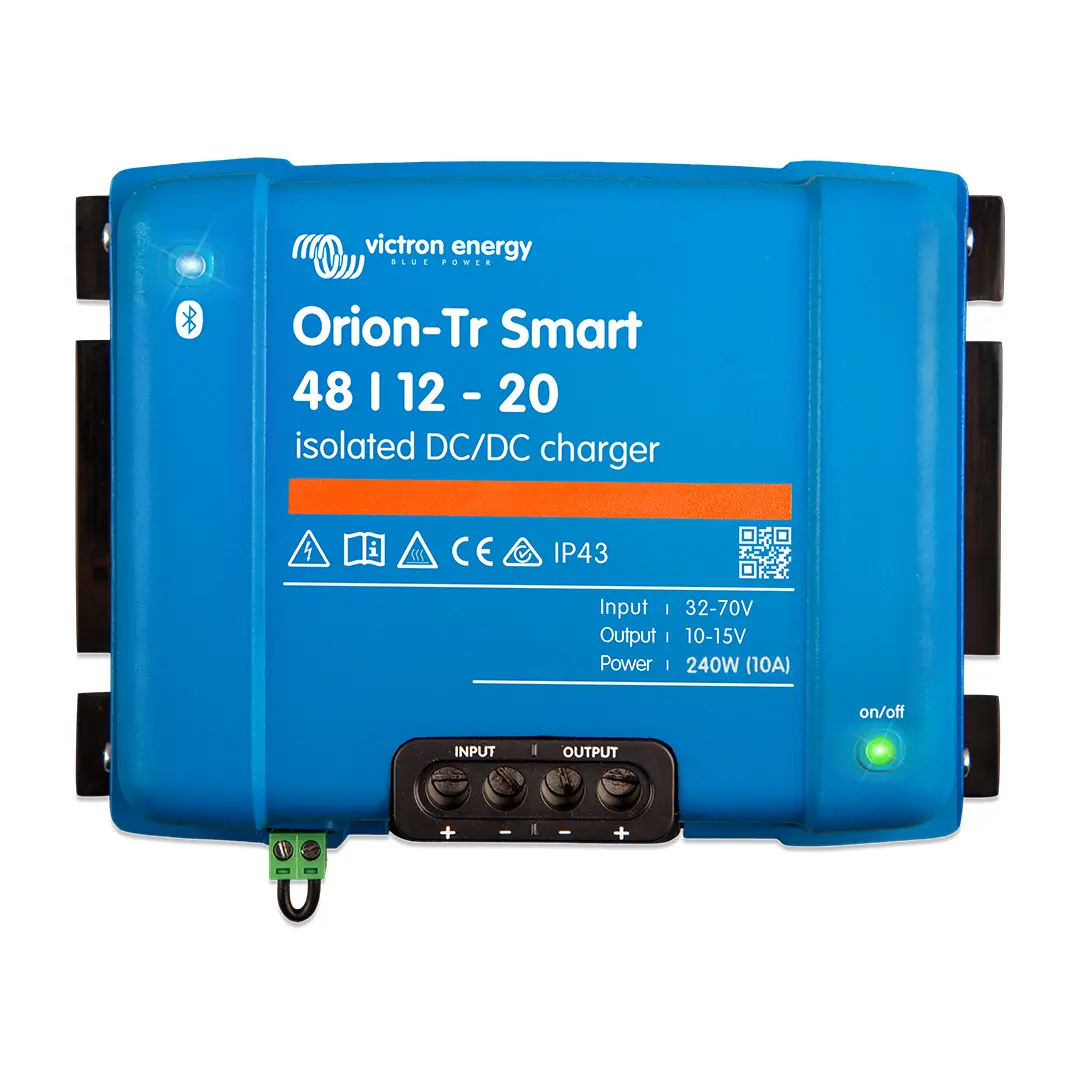

Victron Orion-Tr Smart 48/12-20A (240W) Isolated DC-DC Charger

Victron Orion-Tr Smart 48/12-20A (240W) Isolated DC-DC Charger

(0 reviews)

Isolated DC-DC charger with 3-stage charging algorithm for 12 - 48 V systems

$ 244.89 - Inc GST 244.89 in stock AUD $ 244.89 Tax Included

This combination does not exist.

ADD TO CART

LawntonOnline Only

CapalabaOnline Only

Sunshine CoastOnline Only

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: DCDC Chargers, DCDC Chargers

SKU: ORI481224120

Victron Orion-Tr Smart 48/12-20A (240W) Isolated DC-DC Charger

Features

Adaptive 3-stage charge algorithm: Fully automated Bulk, Absorption, and Float phases perfectly maintain your auxiliary battery.
Bluetooth Smart Built-in: Wireless monitoring, status checking, and custom configuration profiles via the VictronConnect App.
Smart Alternator & Engine Running Detection: Prevents auxiliary loads from draining the starter battery by only drawing power when the alternator is generating current.
Galvanic Isolation: Offers full 200V DC isolation between the input, output, and chassis ground to safeguard sensitive electronic systems from ground loop noise.
Parallel Capability: An unlimited number of units can be combined in parallel to match high power output scaling requirements.

Where to use it

The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual battery systems, such as in vehicles or on boats where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" comes from its built-in Bluetooth connection, where the charger can be monitored and configured via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine-running detection mechanism. This isolated model allows the input and output to have separate chassis grounds.

The Victron Orion-Tr Smart 48/12-20A charger is an exceptional choice for modern dual-battery arrangements across vehicles, 48V battery carts, trucks, or maritime craft where a 48V primary battery bank or alternator setup needs to supply steady, highly controlled 12V output to a dedicated house battery or critical localized DC equipment loops.

Dimensions

Width	186 mm
Height	130 mm
Depth	70 mm
Weight	1.6 kg

Safety features

Short-circuit output protection to prevent system feedback hazards.
High-temperature derating protection ensuring operational safety up to 55°C.
Input under-voltage shutdown/restart threshold cutoffs to protect starter banks.
IP43-rated component protection (when mounted vertically with terminals down).

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications

4WD

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Victron

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

manual-Orion-Tr Smart charger.pdf

Download

Datasheet-Orion-Tr Smart charger.pdf

Download

Yes. Victron DC-DC chargers are fully compatible with modern smart alternators commonly found in newer vehicles. Smart alternators vary their output to improve fuel efficiency, but without a DC-DC charger, this can result in under-charging your auxiliary battery. Victron chargers overcome this by providing stable, regulated charging regardless of alternator type.

Victron Orion XS DC-DC charger models do not require a relay with your smart alternator.

Victron DC-DC chargers are designed to work with AGM, gel, flooded, and lithium (LiFePO4) batteries.

Most Victron DC-DC chargers have built-in Bluetooth connectivity. Use the VictronConnect app to configure charging settings, monitor performance, and run firmware updates.

The input and output have no shared negative, so the 48 V output can sit on a separate ground from the input system. This is useful where the two battery systems must stay electrically separate, such as on boats or with different chassis grounds.

Product Specifications

Orion-Tr 48/12-20A (240 W)
Input voltage range	32-70 V
Under voltage shutdown	28 V
Under voltage restart	30 V
Nominal output voltage	12.2 V
Output voltage adjust range	10-15 V
Output voltage tolerance	+/- 0.2 V
Output noise	2 mV rms
Cont. output current at nominal output voltage and 40 °C	20 A
Max. output current (10 s) at nominal output voltage minus 20 %	25 A
Short circuit output current	50 A
Cont. output power at 25 °C	280 W
Cont. output power at 40 °C	240 W
Efficiency	87%
No load input current	< 80mA
Standby current	Less than 1 mA
Can be used as power supply	Yes, output voltage can be set with Bluetooth
Galvanic isolation	200 V DC between input, output and case
Operating temperature range	-20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity	Max. 95 % non-condensing
DC connection	Screw terminals
Maximum cable cross-section	16 mm² (AWG6)
Weight	1.3 kg
Dimensions (h x w x d)	130 x 186 x 70 mm
Protection category	IP43 (electronic components), IP22 (connection area)
Safety	EN 60950
Emission / Immunity	EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive Directive	ECE R10-5
