Victron Blue Smart IP22 Charger 12/15 (1)

Victron Blue Smart IP22 Charger 12/15 (1)

(0 reviews)

12V 15 A Bluetooth battery charger with one output, for lead-acid and lithium

$ 203.58 - Inc GST 203.58 in stock AUD $ 203.58 Tax Included

This combination does not exist.

ADD TO CART

LawntonIn stock

CapalabaIn stock

Sunshine CoastIn stock

VICTRON

Terms and Conditions

30-day money-back guarantee

Ships in 2-3 Business Days (online only products may differ)

Category: Battery Chargers, AC Chargers, AC Chargers

SKU: BPC121542012

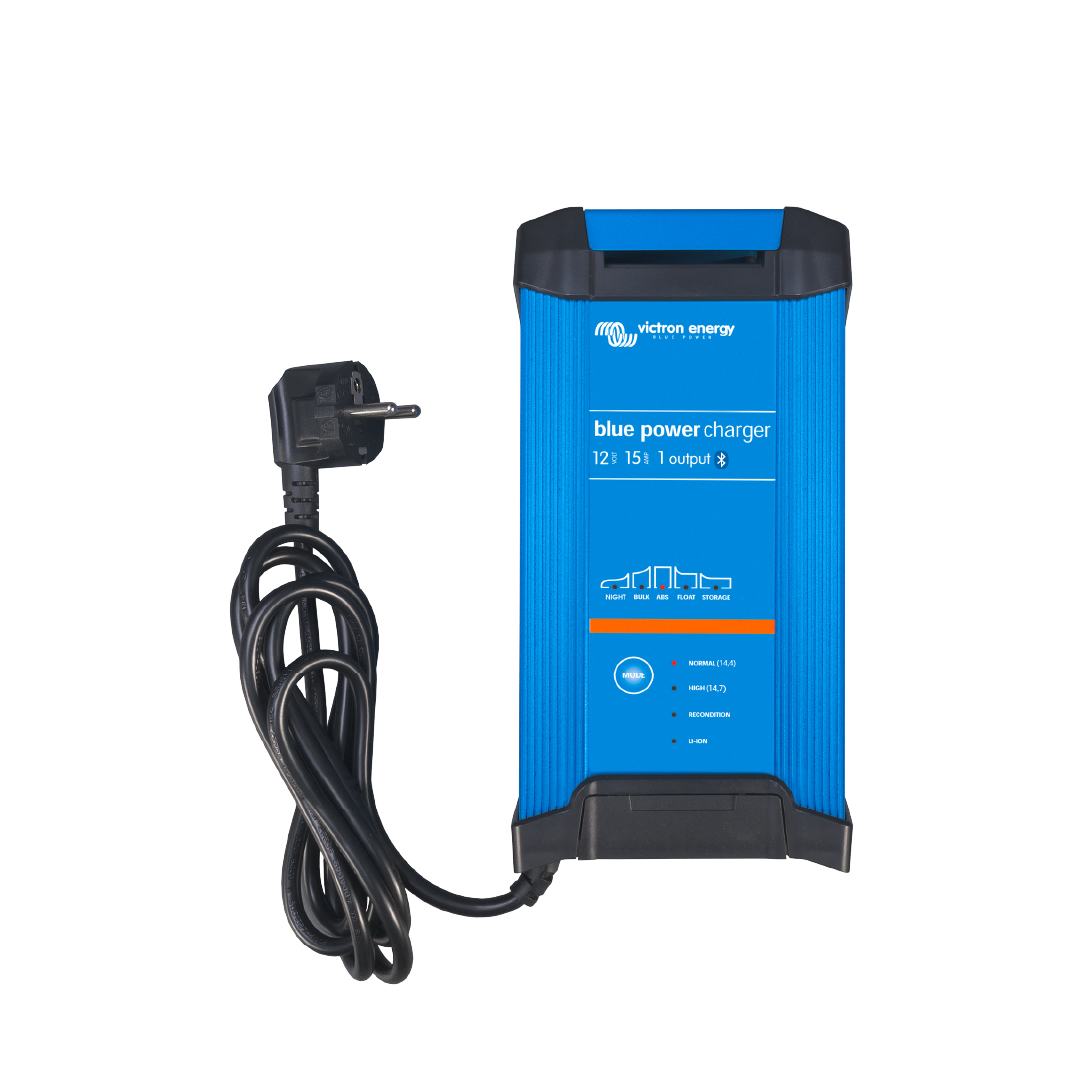

Victron Blue Smart IP22 Charger 12/15 (1)

Features

12V, 15 A battery charger
Single output for one battery bank
Built-in Bluetooth: monitor, set up and update with VictronConnect
93% efficient, with 0.5 W no-load power use
Adaptive 6-stage charge algorithm with storage mode
Lead-acid and lithium (LiFePO4) charge modes
NIGHT and LOW modes cut output to 7.5 A for silent charging
VE.Smart Network for battery voltage, temperature and current sensing
Can be used as a 12V power supply
Supplied with an AU/NZ 240V plug lead

Where to use it

The Blue Smart IP22 12/15 (1) suits caravans, motorhomes, boats and workshops where a single 12V battery bank needs a fast, smart mains charger.

It is designed for indoor or sheltered locations (IP22).

What's in the box

Blue Smart IP22 Charger 12/15 (1)
1.5 m 240V AC lead with AU/NZ plug
DC battery cables are not included (13 mm² / AWG6 terminals)

Dimensions

Height	235 mm
Width	108 mm
Depth	65 mm
Weight	1.3 kg

Warranty

5-year warranty
Access to Springers Solar's warranty support team
Authorised Victron dealer

Applications:

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Datasheet_Blue-Smart-IP22-Charger-230-VAC-EN.pdf

Download

Blue-Smart-IP22-Charger.pdf

Download

Blue_Smart_IP22_Charger-en.pdf

Download

Yes. Once the battery is full the charger moves to storage mode, which lowers the voltage to 13.2 V (12 V models) to reduce gassing and corrosion, then runs a short refresh charge once a week. It uses about 0.5 W when idle.

Both modes cut the output current to half of the rated current and make the charger completely silent. NIGHT mode switches off by itself after 8 hours; LOW mode stays on until you change it.

No. It comes with a 1.5 m 240 V lead with an Australian plug, but the DC battery cable is not included. The battery terminals take cable up to 13 mm² (AWG6); choose the cable size to suit the charge current and cable length.

Product Specifications

Input voltage range	180 – 265 VAC
Charge current, normal mode	15 A
Charge current, NIGHT or LOW	7.5 A
Efficiency	93%
No load power consumption	0.5 W
Frequency	45 – 65 Hz
Number of outputs	1
Charge voltage 'absorption'	Normal: 14.4V, High: 14.7V, Li-ion: 14.2V
Charge voltage 'float'	Normal: 13.8V, High: 13.8V, Li-ion: 13.5V
Charge voltage 'storage'	Normal: 13.2V, High: 13.2V, Li-ion: 13.5V
Charge algorithm	6-stage adaptive
Can be used as power supply	Yes
Protection	Battery reverse polarity (fuse) Output short circuit Over temperature
Operating temp. range	-40 to +60 °C (full rated output up to 40 °C)
Humidity (non-condensing)	Max 98%
Material & Colour	Aluminium (blue RAL 5012)
Battery connection	Screw terminals 13 mm² / AWG6
230 V AC connection	Cable of 1.5 metres with AS/NZS 3112 plug (AU/NZ)
Protection category	IP22
Weight	1.3 kg
Dimensions	235 x 108 x 65 mm
Safety	EN 60335-1, EN 60335-2-29
Emission	EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity	EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive	E4-10R
