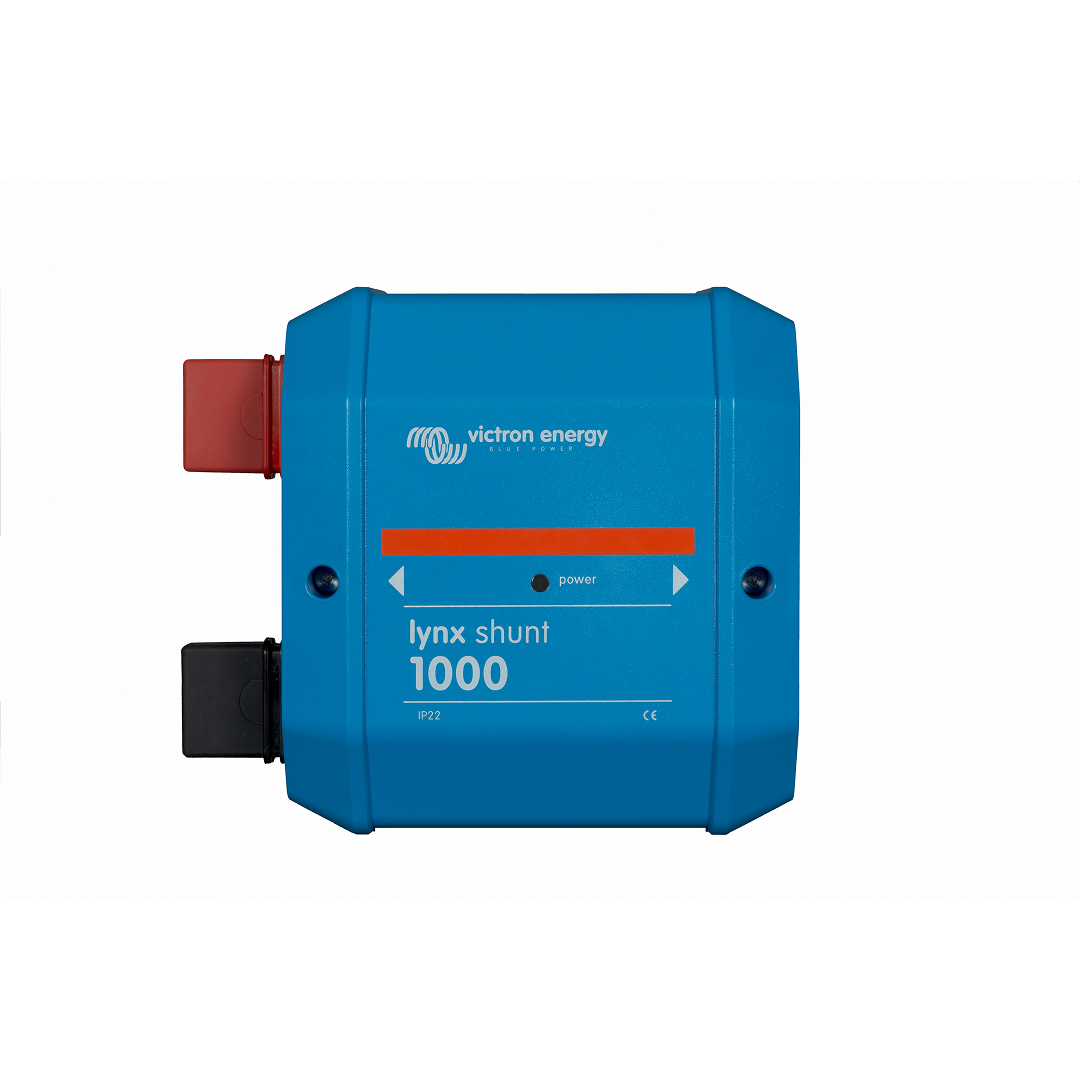

Lynx Shunt VE.Can (M10)
Lynx Shunt VE.Can (M10)
Lynx Shunt VE.Can (M10)
Lynx Shunt VE.Can (M10)
Lynx Shunt VE.Can (M10)
Lynx Shunt VE.Can (M10)

Lynx Shunt VE.Can (M10)

https://www.springers.com.au/web/image/product.template/18537/image_1920?unique=56aa1b1
(0 reviews)
An intelligent 1000A DC distribution shunt featuring an integrated battery monitor and a dedicated main system fuse holder designed for seamless communication with GX monitoring networks.

$ 499.25 - Inc GST 499.25 AUD $ 499.25 Tax Included

Not Available For Sale

($ 0.00 / Unit)

This combination does not exist.

You have already submitted a query for this product today.
In stock
In stock
In stock
Contact Us
VICTRON
Terms and Conditions
30-day money-back guarantee
Ships in 2-3 Business Days (online only products may differ)
MONITORING, Distribution
LYN040102110

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Lynx Shunt VE.Can (M10)

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

Applications

Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Manual-Lynx Shunt VE.Can (M10).pdf
Download
Datasheet-Lynx Shunt VE.Can (M10).pdf
Download

Product Specification

Lynx Shunt VE.Can

M10 model

Supply voltage range9 - 70 Vdc
Supported system voltages12, 24 or 48 V
Reverse polarity protectionNo
Current rating1000 Adc continuous
Power consumption

60 mA @ 1 2V, 33 mA @ 24 V, 20 mA @ 48 V

Potential free alarm contact3 A, 30 Vdc, 250 Vac

CONNECTIONS


BusbarM10
FuseM8
Fuse Dummy BusbarYes, included
VE.Can

RJ45 (Two RJ45 terminators included)

Power supply connection to Lynx Distributor

RJ10 (RJ10 cables ship with each Lynx Distributor)

Temperature sensorScrew terminal (Sensor included)
RelayScrew terminal

PHYSICAL


Enclosure materialABS
Enclosure dimensions (h x w x d)190 x 180 x 80 mm
Unit weight1.4 kg
Busbar materialTinned copper
Busbar dimensions (hxw)8 x 30 mm

ENVIRONMENTAL


Operating temperature range-40 °C to +60 °C
Storage temperature range-40 °C to +60 °C
HumidityMax. 95 % (non-condensing)
Protection classIP22


Accessory Products

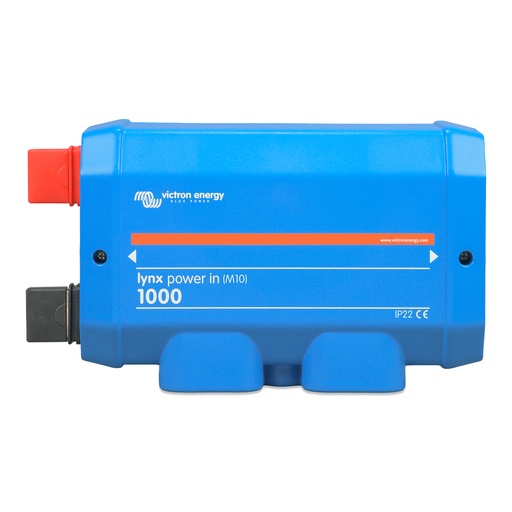

[LYN020102010] Victron Lynx Power In (M10)
VICTRON
Victron Lynx Power In (M10)
$ 239.00 $ 239.00 239.0 AUD
Tax Included
SKU: LYN020102010

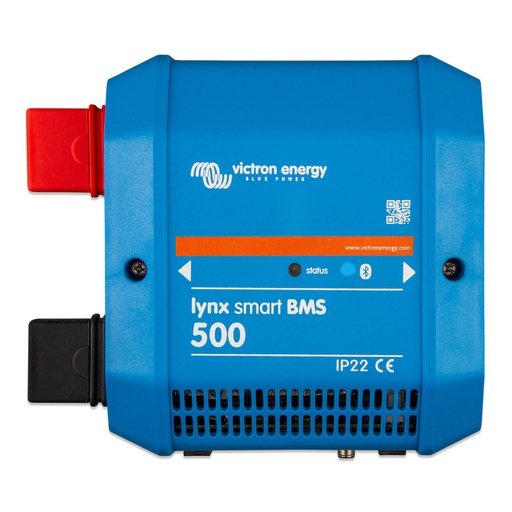

[LYN034160310] Lynx Smart BMS 500 NG (M10)
VICTRON
Lynx Smart BMS 500 NG (M10)
$ 1,299.00 $ 1,299.00 1299.0 AUD
Tax Included
SKU: LYN034160310

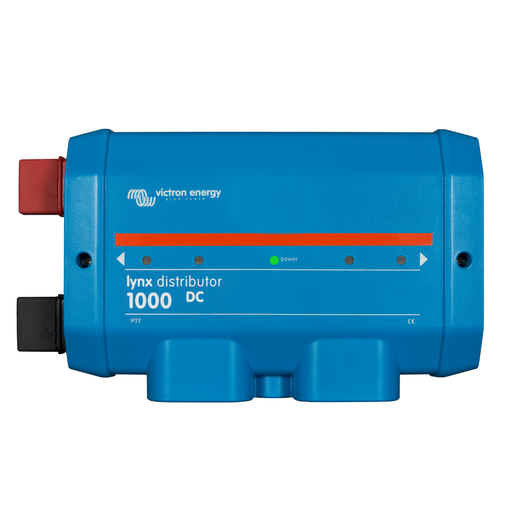

[LYN060102010] Victron Lynx Distributor (M10)
VICTRON
Victron Lynx Distributor (M10)
$ 293.08 $ 293.08 293.08 AUD
Tax Included
SKU: LYN060102010

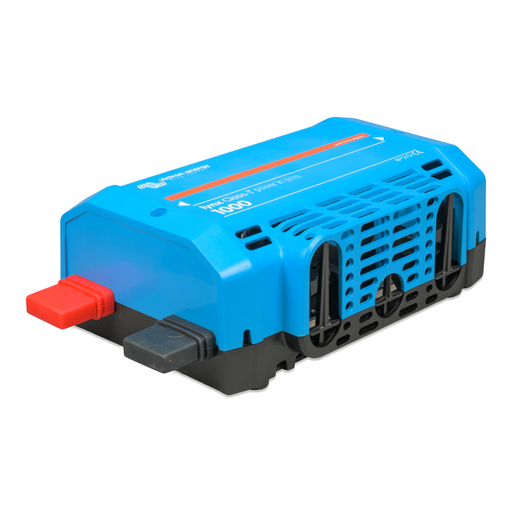

[LYN060404010] Victron Lynx Class-T Power In (M10)
