Victron Lynx Distributor (M8)

Features:
- Modular DC Busbar
- Locations for up to 4 DC Fuses
- Monitor the Status of Each Fuse
- Individual DC Fuses per Group
- LED Status Indicator

$ 242.66 - Inc GST 242.66 in stock AUD $ 242.66

$ 242.66

Brand

This combination does not exist.

ADD TO CART

Brand: Victron

VICTRON

SKU: ANL050

Category: Distribution

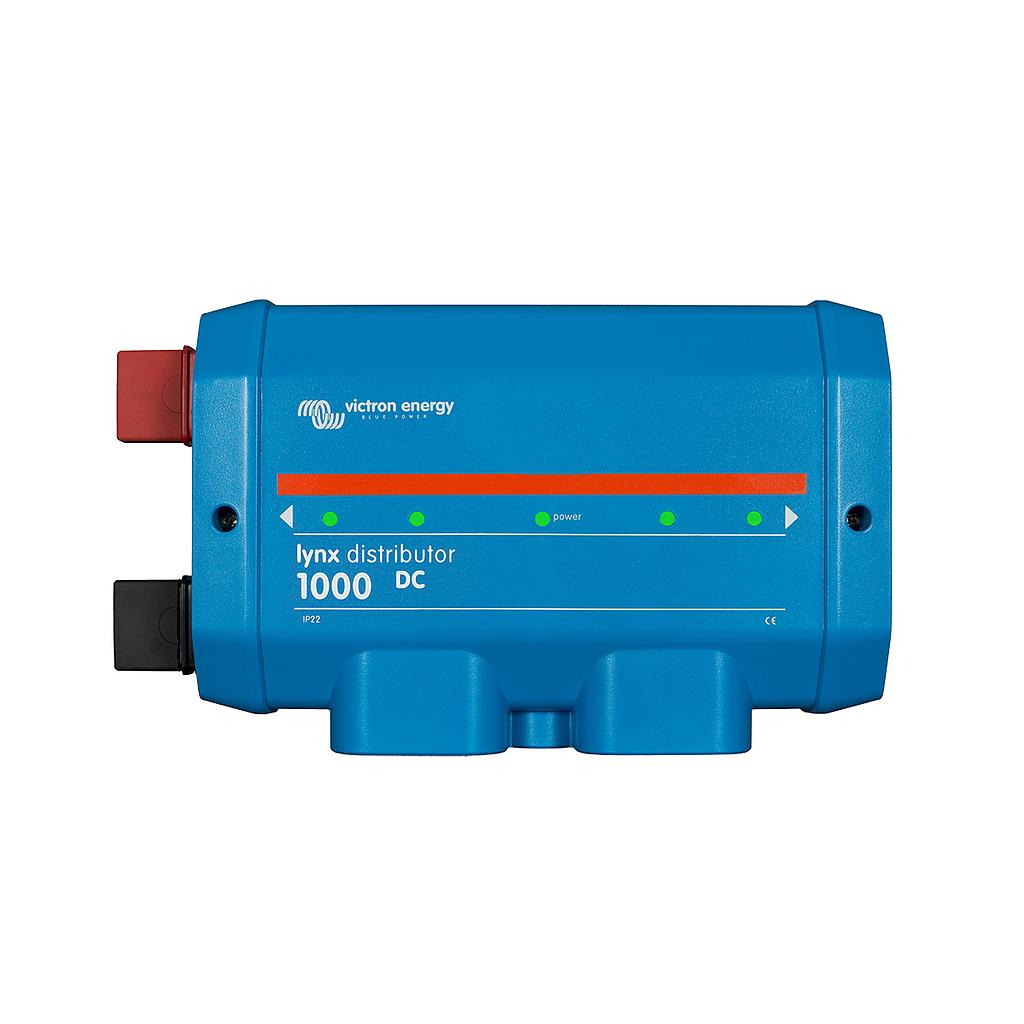

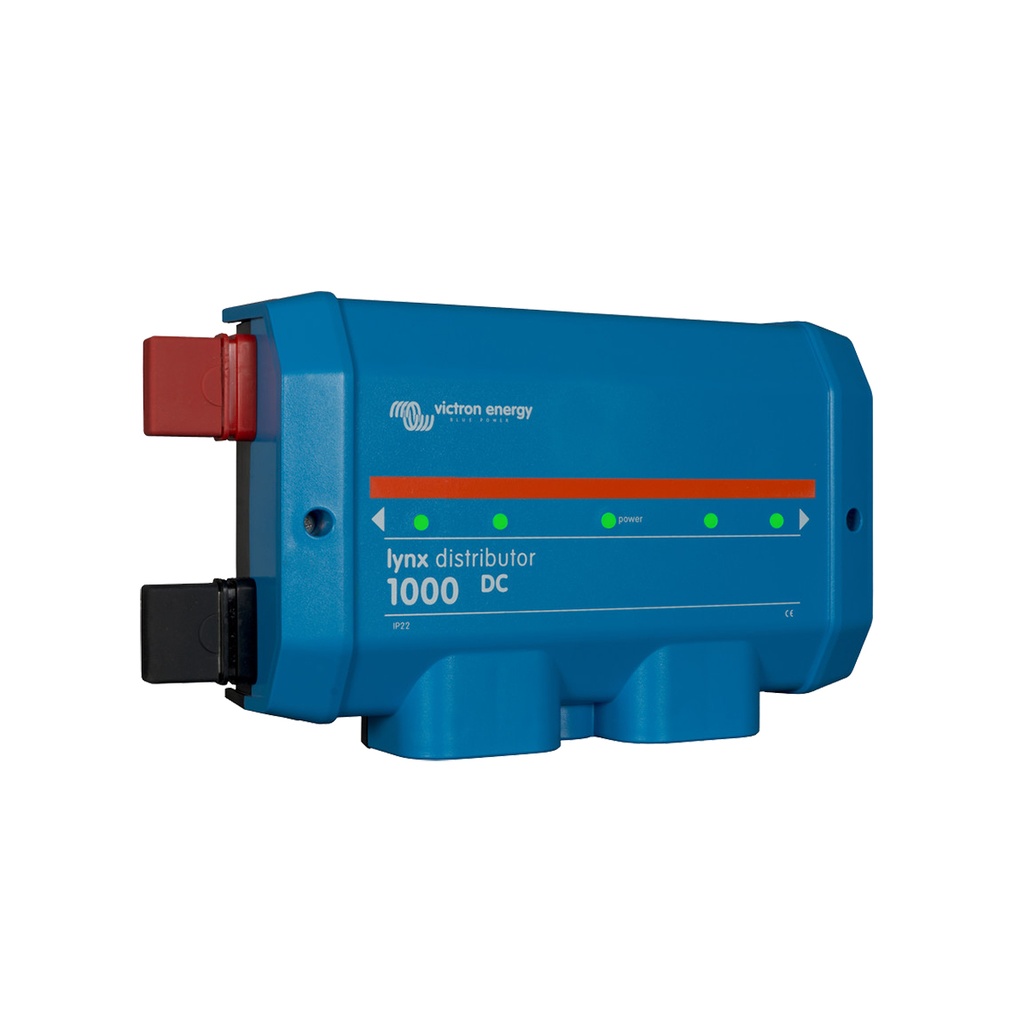

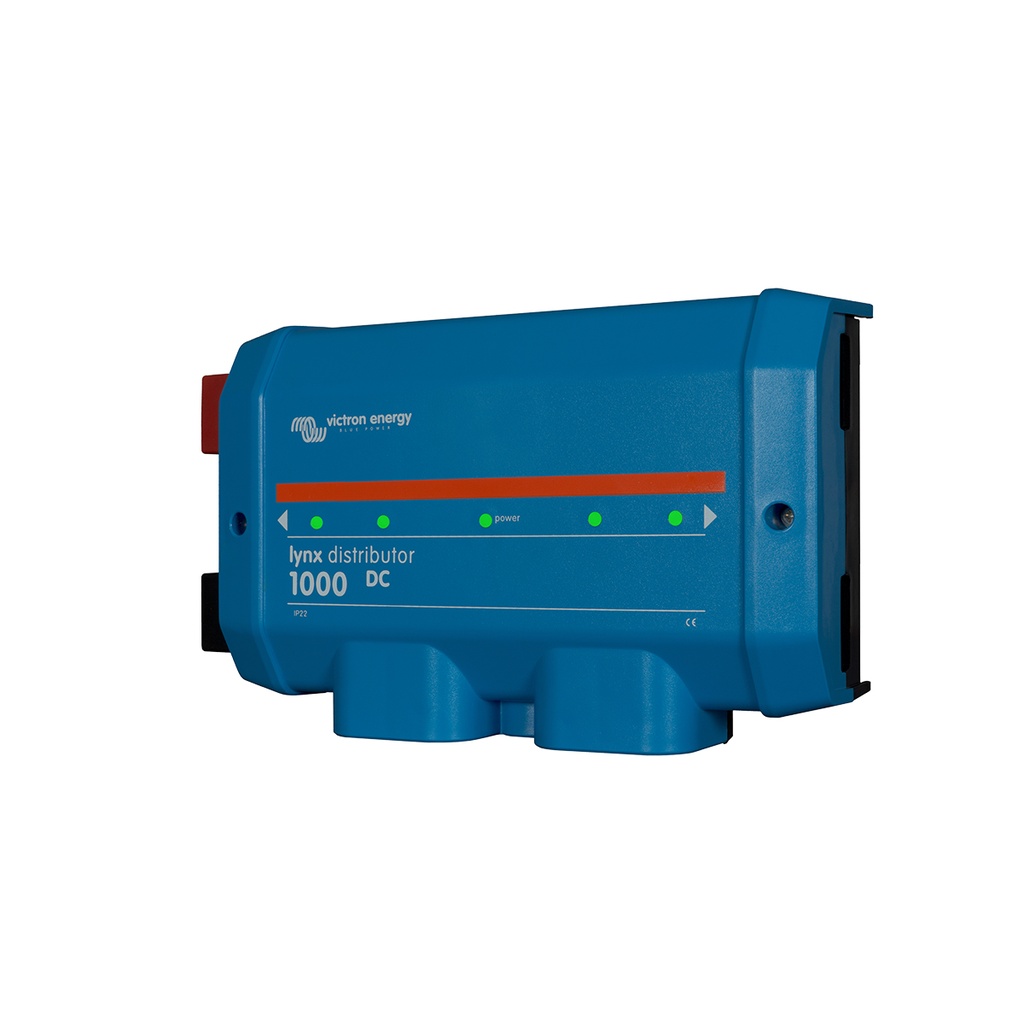

Victron Lynx Distributor

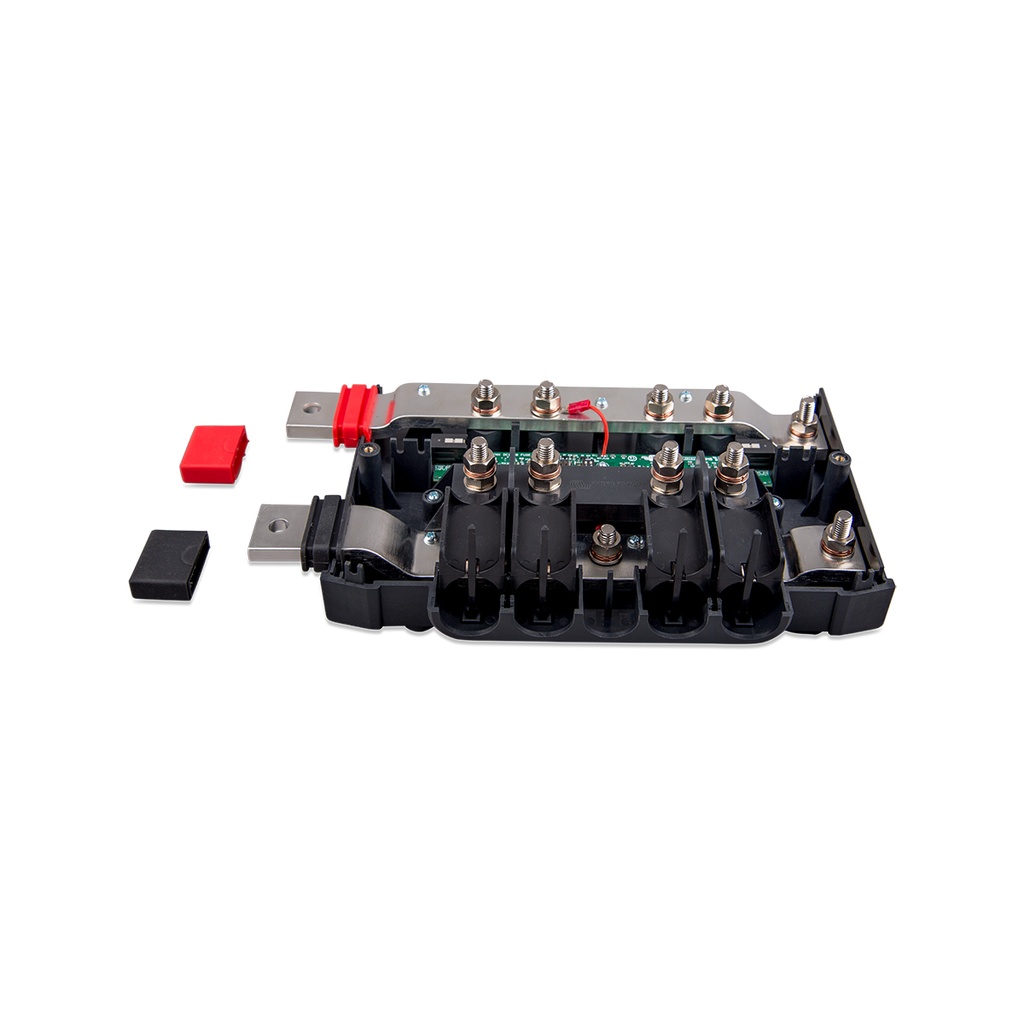

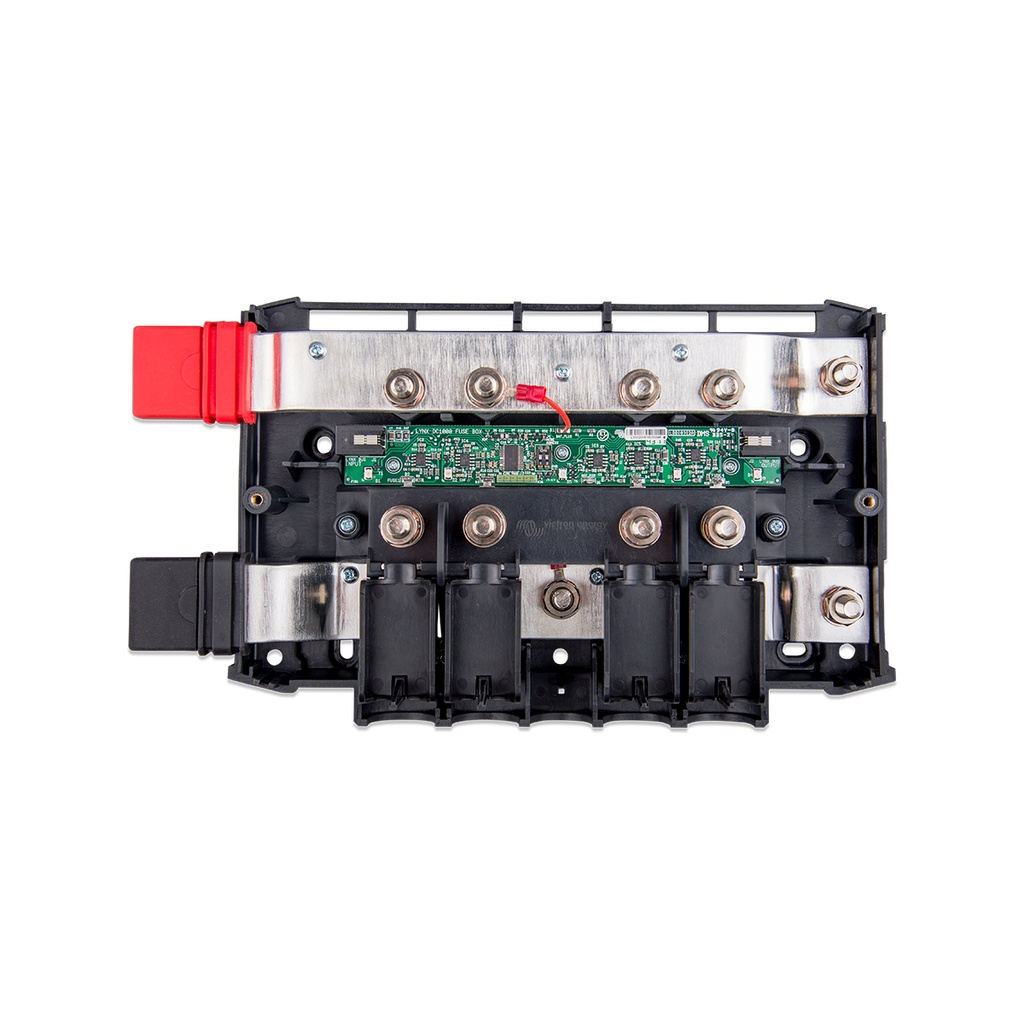

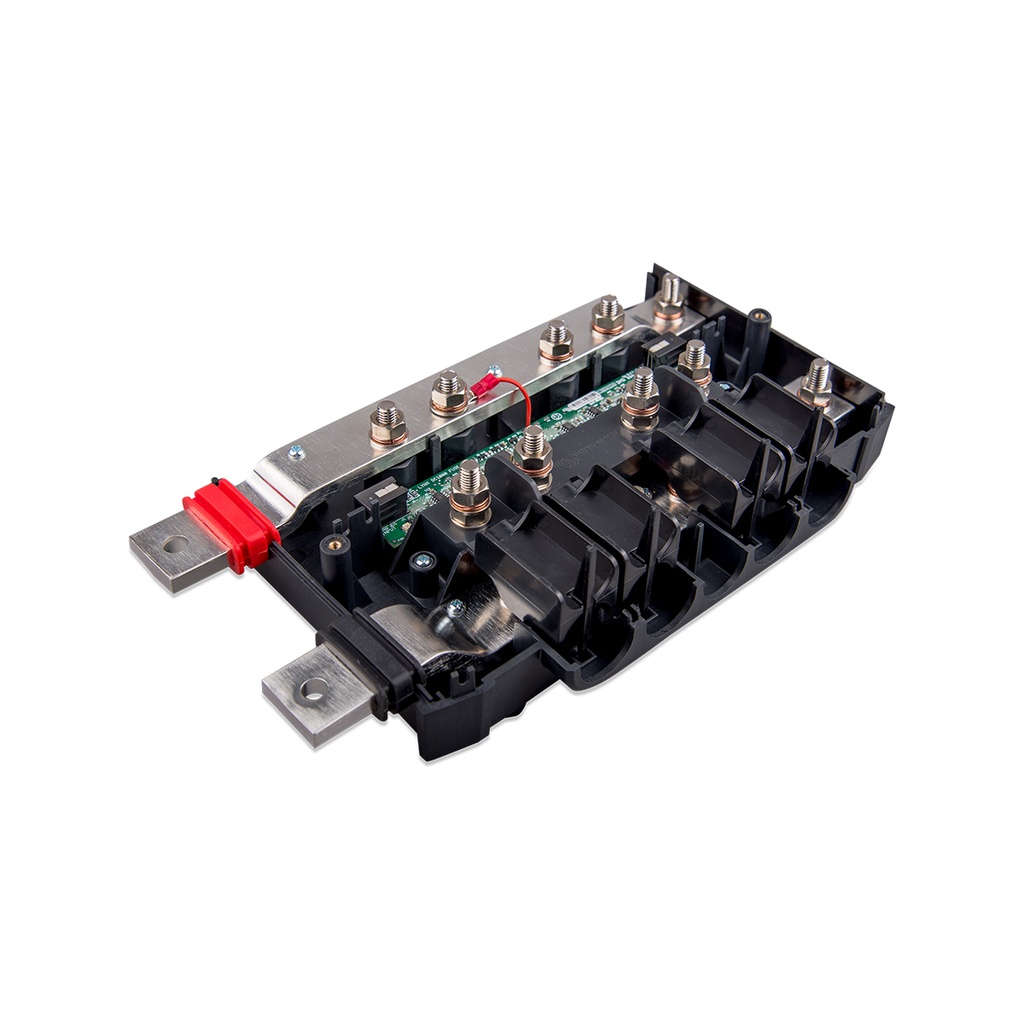

A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system, available as M8 and M10 models.

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

More about Victron:

Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Their products are widely considered to be a professional choice for independent electric power. Efficiently combining two or more distinct power sources is what they do best. Their products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more.

Specifications

Brand

Victron

manual_Lynx Distributor (M10).pdf

Download

Product Specification

Voltage range	9 - 60Vdc
Supported system voltages	12, 24 or 48V
Reverse polarity protection	Yes (1)
Current rating	1000Adc continuous
Power consumption (2)	Maximum 100mA (with all LEDs illuminated)
Busbar	M8 or M10
Power(3) and data(4)	40 cm RJ10 cable (included)
Enclosure material	ABS
Enclosure dimensions (hxlxw)	290 x 170 x 80 mm
Unit weight	2.2 kg
Busbar material	Tinned copper
Busbar material (hxw)	8 x 30mm
Operating temperature range	-40°C to +60°
Storage temperature range	40°C to +60°
Humidity	Max. 95% (non-condensing)
Protection class	IP22
